3065 Series: PH/ORP Meter/Transmitter/Controller

3065 Series: PH/ORP Meter/Transmitter/Controller

Regular price $726.00 Sale SKU:PH-DE-3065-0
1 In stock* Ships in 5-10 days, if NOT in stock
* ships same or next day

  • pH/ORP Probe Input
  • High Input Impedance (1013 Ohms) to Extend the Life of an Electrode
  • Automatic/MNUl Temperature Compensation
  • UL/C - UL Listed 51JB
  • Single or Dual Point Standardization
  • Visible/Audible Hi-Lo Alarms
  • Optional 4-20mA Output
  • Optional 10 AMP S.P.D.T Control Contacts
  • Ships in 1 Week for Fast and FREE Delivery

3065 is an instrument which accepts pH and ORP sensors directly.  We offer it configured as a meter for indication and local monitoring.   The optional analog output allows it to be used as a pH or ORP transmitter to send the measurement to a data logger, recorder or remote monitoring device.  It is also available with two or four SPDT 10 amp relay outputs which can be used as alarms or as control outputs

Imagine! A simple touch of a button and you’ll have  3065 series pH/ORP Meter/Transmitter/Controllers doing what you want it to do. All is easily done through menu selection and reading the ‘plain English’ prompts.

The Model 3065 series all have high impedance inputs that directly accept the output from standard pH and ORP probes through a BNC connector. Each 3065 is factory calibrated for the ideal response of the probes. With one and two point standardization, calibrating of the 3065 to a particular probe is readily accomplished by the front panel controls. The factory calibration may be reloaded at any time.

Other selectable features include: Displays pH as 0.00PH to 14.00PH and ORP as -2.500V to 2.500V. Up to 4 sets of on and off point control with 10 Amp S.P.D.T. contacts. The ability to name each control point a pump or an alarm. Flashing of display on trip. Security code lockout with latching and alarm acknowledgement. Sound horn on trip, trip acknowledgement, latch control on trip. Relay Failsafe Polarity.

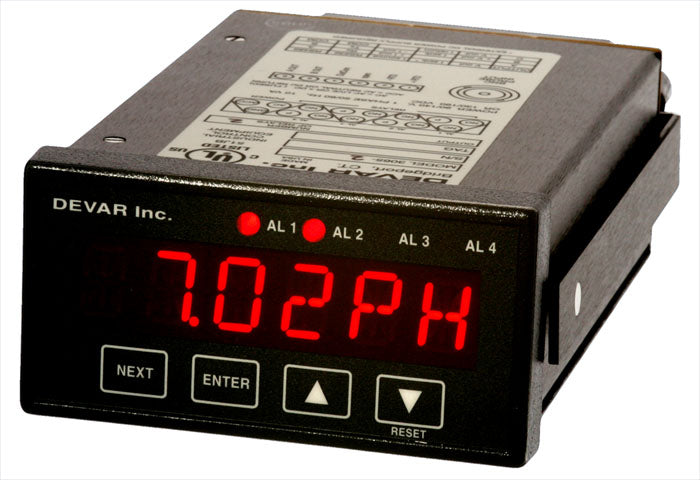

The 3065 is housed in an 1/8 DIN aluminum housing with a splash proof front panel. The six digit 0.54 inch high LED display provides easy viewing under all ambient light conditions and it’s 14 segment alphanumeric display provides plain English prompting during configuration.

 To Order the models below scroll to the top of the page and choose the desired model from the "Output Configuration" drop down menu, then ADD TO CART
 PART NUMBER CONFIGURATION
PH-DE-3065-0 Meter Only
PH-DE-3065-2 Meter, 4-20mA Output and 2 Alarms
PH-DE-3065-4 Meter, 4-20mA Output and 4 Alarms
PH-DE-3065-0-420 Meter , 4-20mA Output
PH-DE-3065-2-420 Meter , 2 Alarms, 4-20mA Output
PH-DE-3065-4-420 Meter ,4 Alarms, 4-20mA Output



SPECIFICATIONS

INPUT

CONFIGURATION: (Units & Range) pH or ORP selected from keypad

IMPEDANCE: >10 to the 13, Ohms

TEMPERATURE SENSORS: 3K Balco, 1 Balco, 1K RTD, or 100 Ohm RTD

CONTROL CHANNELS
Status Indication-Front panel LED’s, flashing display, horn;flashing display and horn active or inactive, menu selectable
Points - 0, 2, or 4 independently set trip and reset points (100%hysteresis); Control action high or low determined by setting trip and reset points
Latching - All control channels can be latching or non latching, menu selectable, reset from keypad
Audible Alarm - An audible alarm can be enabled or disabled foreach channel during configuration
Contacts - SPDT (form C) relays; 10 amps, 250 VAC; 8 amps, 24 VDC resistive; 1/3 HP, 120 VAC; 1/2 HP, 240 VAC



PERFORMANCE

COMMON MODE REJECTION: Greater than 120 dB at 50/60 Hz

NORMAL MODE REJECTION: Greater than 64 dB at 50/60 Hz

TEMPERATURE EFFECT ZERO: ±0.01% of reading per ºC

TEMPERATURE EFFECT SPAN: ±0.01% of reading per ºC

OPERATING TEMPERATURE: 0 to 70ºC

NOTE: Failsafe Operation: Relay coils are energized in non-alarm condition, relay de-energizes on alarm or power failure

DISPLAY

Six bright red LED, 0.54 inch high, 14 segment alphanumeric characters. Four characters are used for process indication, and two characters for pH description. Display range is 0000 to 14.00 pH. Display provides plain English prompts during configuration

A/D RESOLUTION: 20 bits

PROCESS DISPLAY RESOLUTION

pH 0.01pH

ORP 0.001V

Temperature 0.1°C, °F, or °K

INDICATION

REFERENCE STABILITY: 2.5V +/-15ppm / °C typical

ACCURACY: ±0.01% of input range

INPUT SIGNAL CALIBRATION: User selects either factory, 1 point, or two point standardization

TEMPERATURE SENSOR ADJUSTMENT: One point adjustment allows correction for lead length and sensor tolerance errors

UPDATE RATE: 2Hz

ENCLOSURE: 1/8 DIN, polycarbonate bezel, aluminum body Front panel environmentally rated NEMA 4X Dimensions: 1-15/16” H x 3-3/4” W x 6-1/2” D Panel Cutout: 1.722” X 3.622”

CONTROL CHANNELS

STATUS INDICATION: Front panel LED’s, flashing display, horn; flashing display and horn active or inactive, menu selectable

POINTS: 0, 2, or 4 independently set trip and reset points (100% hysteresis); Control action high or low determined by setting trip and reset points

LATCHING: All control channels can be latching or non latching, menu selectable, reset from keypad

AUDIBLE ALARM: An audible alarm can be enabled or disabled for each channel during configuration; Options include: 1. Always sound while in alarm, 2. Sounds while in alarm but can be reset from keypad, 3. Sounds during and continues after an alarm condition, must be reset from keypad, 4. Sounds going into or coming out of alarm, continues sounding until acknowledged

CONTACTS: SPDT (form C) relays; 10 amps, 250 VAC; 8 amps, 24 VDC resistive; 1/3 HP, 120 VAC; 1/2 HP, 240 VAC

POWER / VOLTAGE

CONNECTIONS: 15 position, plug-in terminal block for power and relay contacts; 6 position, plug-in terminal block for external temperature sensor and retransmission; 24 to 14 AWG. Isolated BNC connector for probe

POWER REQUIREMENT: 90 to 140 VAC, 50/60 Hz, 10VA

SECURITY PASSWORD: 6 digit security password to enter configuration menu, user selectable, enabled or disabled by internal switch setting

WARRANTY: 2 years, Made in USA
