- Functions as Both a Repeater and a Transceiver
- Green and Red LED Indicators
- Compatible with VTMS Vaccine Temperature Monitoring System /Data Logger
- Connect to up to 64 Data Loggers
- IP69K(Splash proof) Rated Version Available

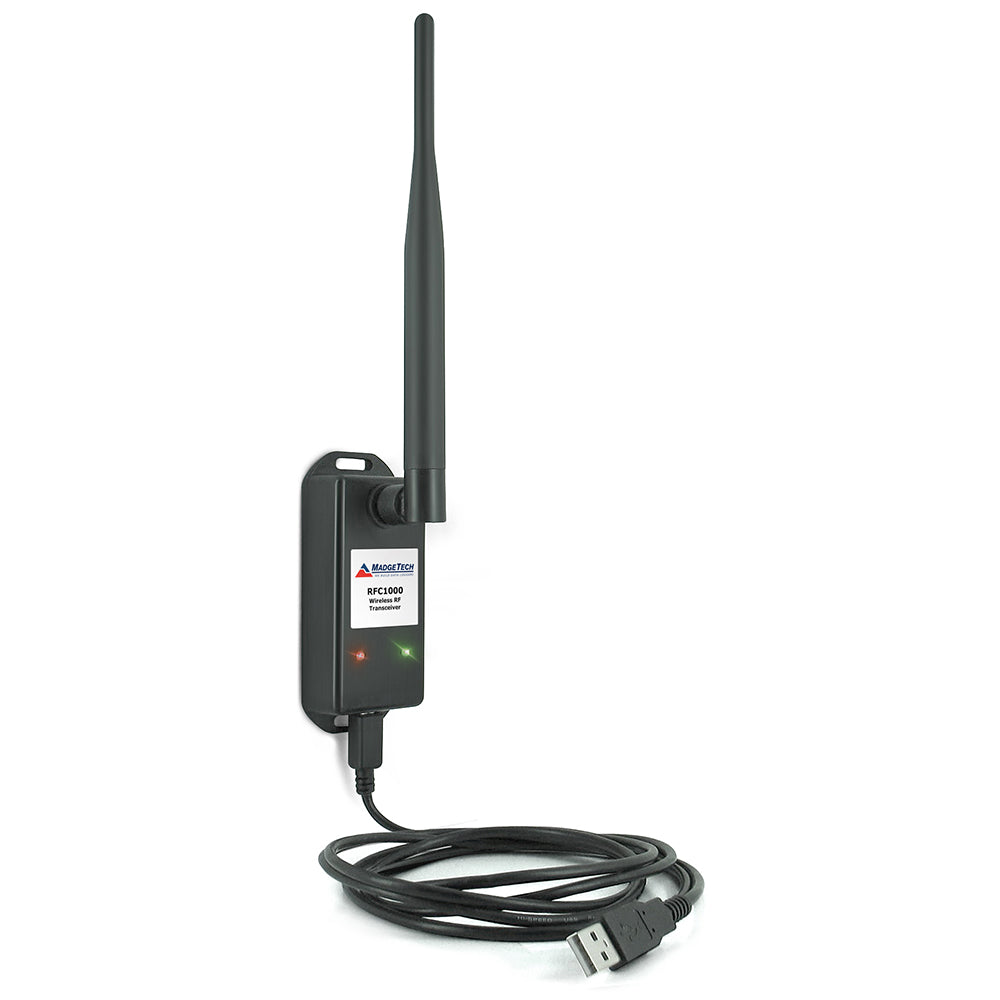

The RFC1000 is a powerful wireless transceiver for use with the VTMS vaccine temperature monitoring/data logging system. The RFC1000 transmits to other RFC1000s up to 4000 feet outdoors/ line of sight, 1000 feet typical indoors/urban. The RFC1000 transmits to data loggers up to 2000 feet outdoors/line of sight, 500 feet typical indoors/urban. Additional RFC1000s can be used as repeaters to transmit greater distances or around obstacles.
The RFC1000 is designed to communicate between MadgeTech’s two-way wireless data loggers and the MadgeTech software. It can connect to a maximum of 64 data loggers. Through the use of the software and the RFC1000s, remote data loggers can be started, stopped and downloaded wirelessly.
The RFC1000 also includes an external antenna, allowing more flexibility with mounting positions in both orientation and proximity to metal walls. This may be used as a repeater, or directly plugged into the PC.

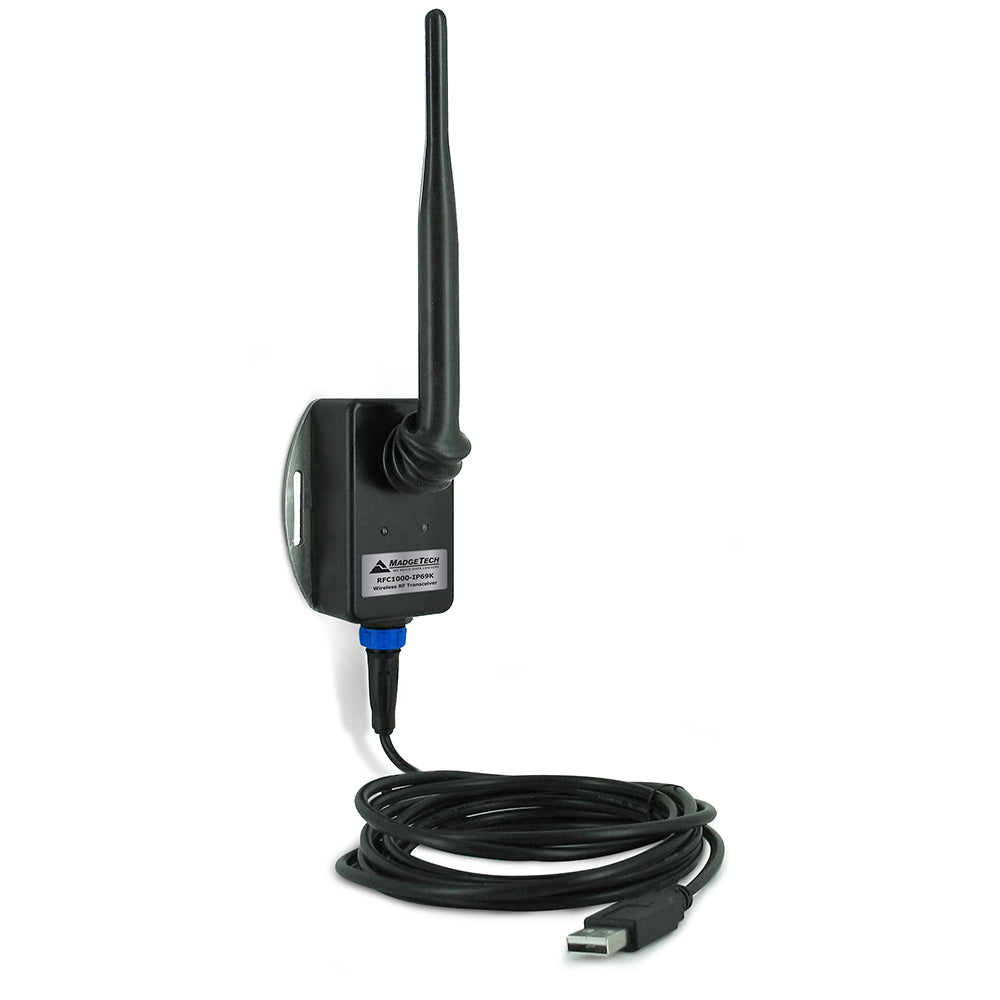

The RFC1000-IP69K is available for environments that require high pressure, high temperature wash down. This splash-proof transceiver can be installed directly in the wash down location, ensuring 100% communication throughout the entire process. The RFC1000-IP69K has gone through extensive testing to ensure that it can withstand wash down cycles using caustic chemicals, making it ideal for harsh environments. This model includes a high powered transceiver with an IP69K ingress protection rating.
| To Order click on the model below (or scroll to the top of the page and select the model from the drop down box) then ADD TO CART button |
| PART NUMBERS | DESCRIPTION |
RFC1000
|
Wireless Transceiver |
| RFC1000-IP69K | Splash Proof Wireless Transceiver |
Specifications (Common to RFC1000 and RFC100-IP69K)
Materials Enclosure: ABS Plastic, Cable and Antenna: PVC
Transmission Distance to Data Loggers
Unobstructed line-of-sight (outdoors): 2,000 ft max.
Typical urban environment (indoors): 500 ft max.
Transmission Distance to other RFC1000’s
Unobstructed line-of-sight (outdoors): 4,000 ft max.
Typical urban environment (indoors): 1,000 ft max.
Frequency Range: 2.405 GHz - 2.475 GHz
RFC Sensitivity: -95 dBm Typical
Specifications (RFC1000)
Enclosure Ambient Temperature: -20 °C to +85 °C (-4 °F to +185 °F)
Power Supply Ambient Temperature: 0 °C to +40 °C (+32 °F to +104 °F)
Body Dimensions: 3.79 in x 1.57 in x 0.81 in (96.3 mm x 39.9 mm x 21 mm)
Antenna Overall Height: 8.03 in (204.0 mm)
Weight: 5.5 oz (156 g)
Specifications (RFC1000-IP69K)
Enclosure Ambient Temperature: -20 °C to 80 °C (-4 °F to +176 °F)
Power Supply Ambient Temperature: 0 °C to 45 °C (32 °F to +113 °F)
Body Dimensions: 3.4 in x 2.9 in x 1.3 in (86.4 mm x 73.7 mm x 33 mm)
Body Dimensions with antenna, normal to case: 3.4 in x 2.9 in x 8.8 in (86.4 mm x 73.7 mm x 223.5 mm)
Weight: 14.1 oz (400 g)
Ingress Protection: IP69K
