- EMC Standards Compliant for Construction Machinery
- Designed for Non-Contact Asphalt Temperature Measurement
- Options for CAN Communications or Linear 0-5 V DC Output
- Temperature Range: -20°C to 500°C
- Robust Stainless Steel 316 Housing
- Sealed to IP67 / IP65 when mated

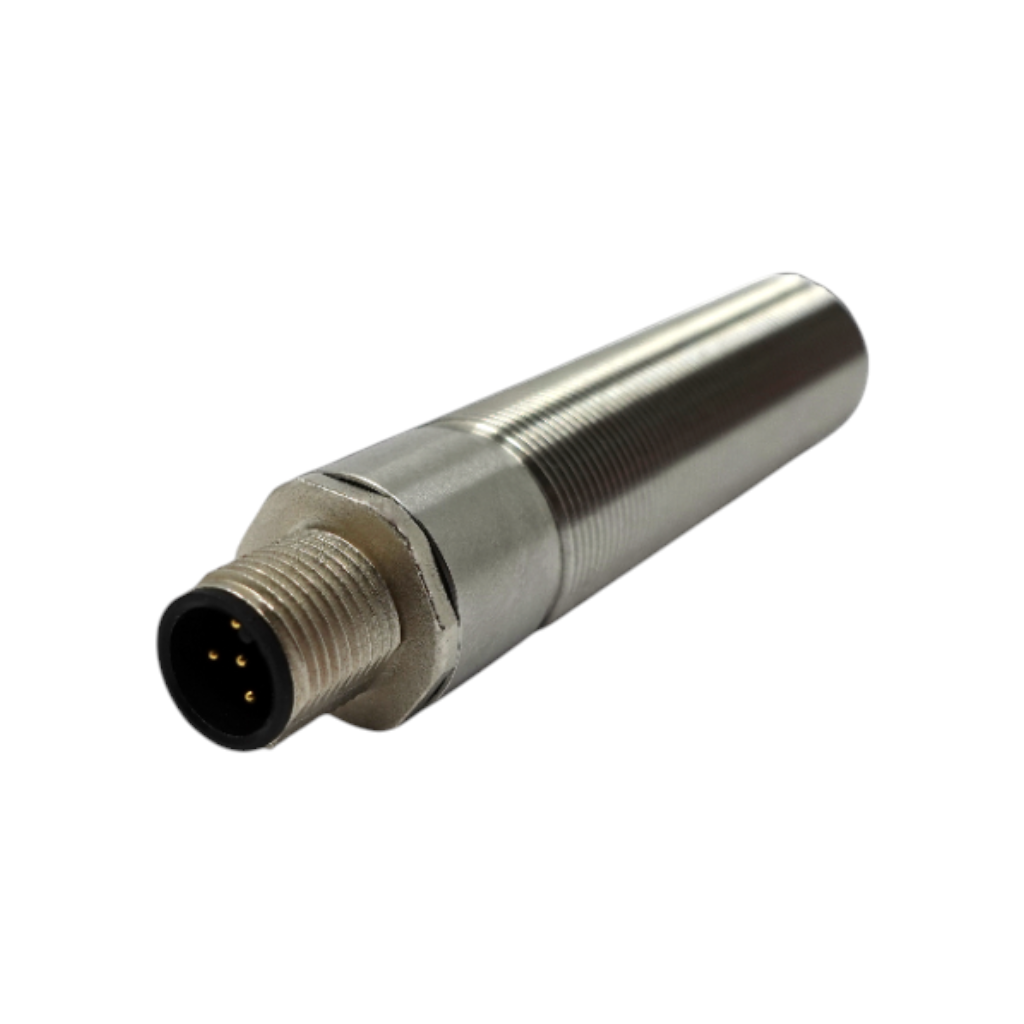

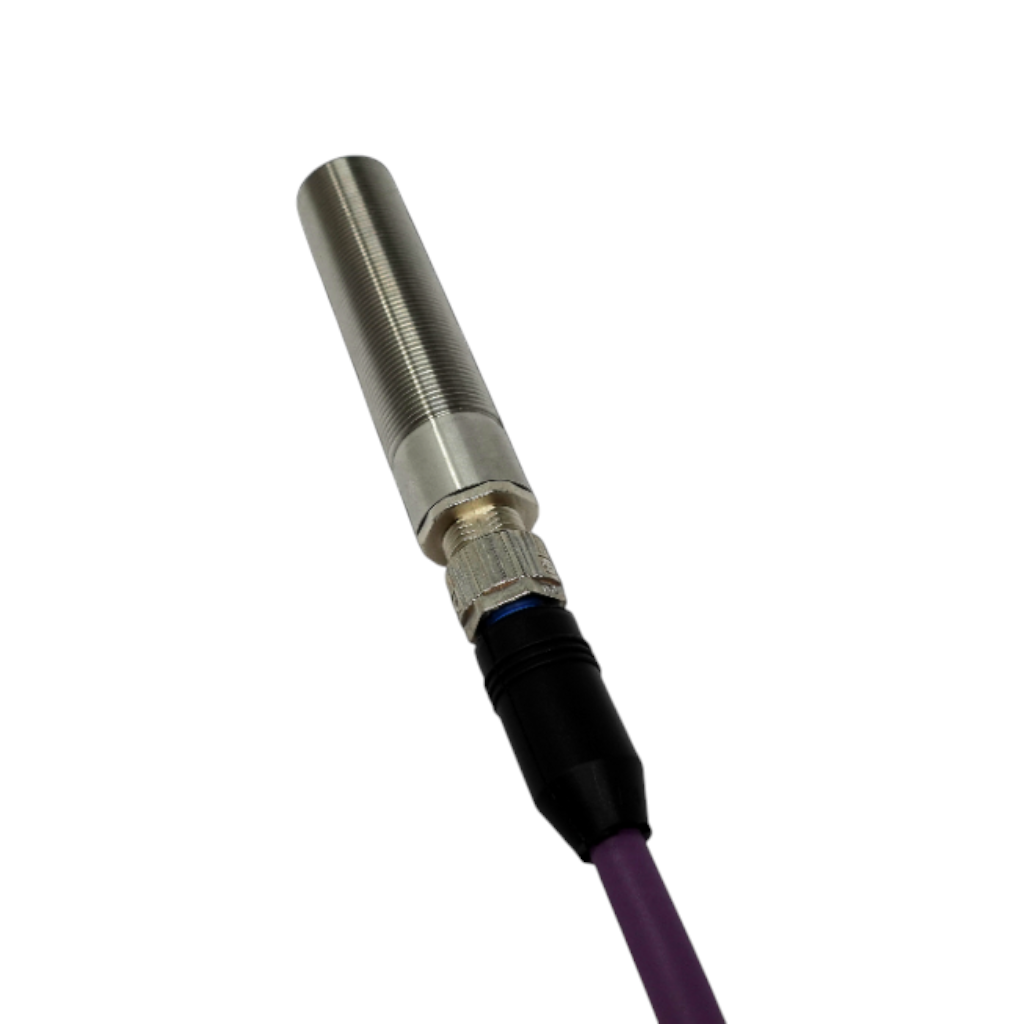

- Quick and Easy Installation via M12 Connector
- Fast Response Time: 125 ms with High Stability

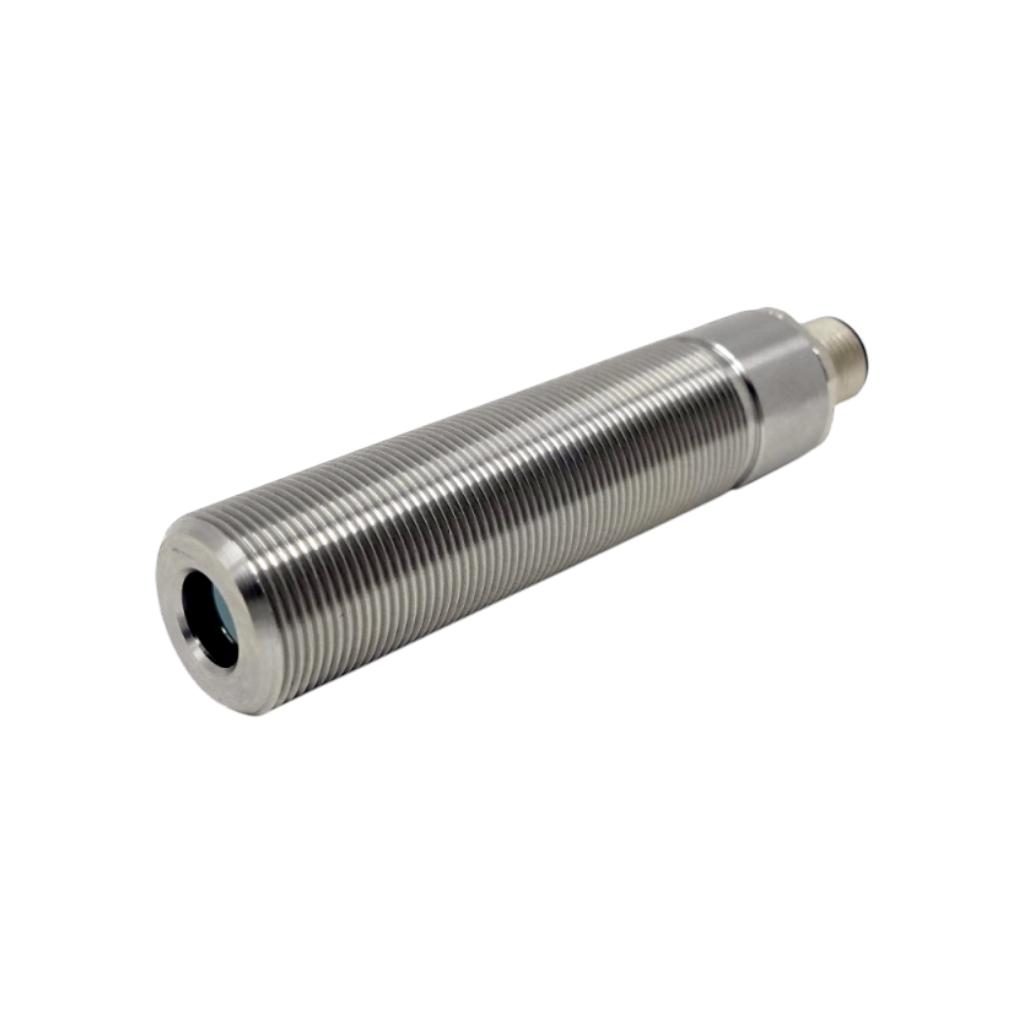

The PyroCV infrared temperature sensor is purpose-built for construction and paving applications where reliable, non-contact temperature measurement is critical. Designed specifically for the asphalt industry, it enables operators to continuously monitor material temperature during paving, compaction, and transport without interfering with the process. It is also well suited for concrete and other non-reflective bulk materials, delivering consistent performance in demanding field environments.
Built for Construction Machinery
Designed to operate reliably on heavy equipment, this sensor conforms to EMC requirements for construction machinery. It performs consistently in electrically noisy environments such as pavers and rollers, ensuring accurate readings even near engines, generators, and other sources of interference.
Non-Contact Temperature Measurement
Measures asphalt and other non-reflective materials without physical contact, eliminating wear and reducing installation complexity. This makes it ideal for continuous monitoring during paving operations where direct sensors are not practical.
Flexible Output Options
Supports both CAN communication and a linear 0 to 5 V DC output, allowing easy integration with modern vehicle systems, controllers, or standalone monitoring equipment.
Rugged Industrial Design
Constructed from stainless steel 316 and sealed to IP67 / IP65 when properly connected, the sensor is built to withstand harsh outdoor conditions including dust, moisture, vibration, and temperature extremes.
Fast, Stable Performance
With a rapid response time and high measurement stability, the sensor provides real-time temperature feedback, helping operators maintain optimal material conditions and improve paving quality.
SPECIFICATIONS
General
Output: Raw CAN, and 0 to 5 V DC, linear with measured temperature
Temperature Range:
CAN Bus Model: -20 to +500 °C
Voltage Models: LT = -20 to +100 °C; MT = 0 to 250 °C; HT = 0 to 500 °C
Accuracy: ±1% of reading or ±1°C, whichever is greater
Repeatability: ± 0.5% of reading or ± 0.5°C, whichever is greater
Emissivity Setting: Voltage: Fixed 0.95; CAN: 0.2 to 1.0 (configurable)
Startup Time: 250 ms
Response Time: 125 ms (90% response)
Spectral Range: 8 to 14 μm
Supply Voltage (at Sensor): 10 V DC to 28.8 V DC
Max. Current Draw: 20 mA
Minimum Load Resistance (Voltage only): 50 kΩ
Wiring Protection: Reverse polarity; shorts to other pins
Mechanical
Construction: Stainless Steel
Dimensions: Sensor body length 86.5 mm; Thread Mounting M18 x 1 mm pitch, length 60 mm
Weight: 90 g
Environmental
Environmental (IP) Rating: IP67 / IP65. (when mated)
Ambient (Operating) Temperature & Humidity: -40°C to +85°C, no condensation
Storage Temperature: -40°C to +85°C
Conformity
Electromagnetic Compatibility (EMC): ISO 13766-1
