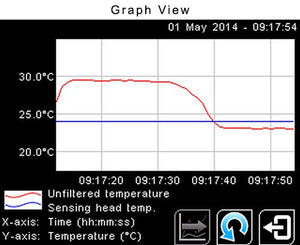

Graphic Display
Graphic Display
Data Logging Setup Screen
Data Logging Setup Screen
Alarm Setup
Alarm Setup
PyroMini infrared temperature sensor without display (BB and CB models)
PyroMini infrared temperature sensor without display (BB and CB models)
PyroMini infrared temperature sensor without display (BB and CB models)
PyroMini infrared temperature sensor without display (BB and CB models)

Pyromini2.2 Short Wavelength Infrared Temperature Sensor for Relective Iron and Steel Surfaces

Regular price $779.00 Sale SKU:IR-CA-PM2.2-151-PT-CRT
Ships in 2-3 weeks

  • Temperature Ranges from 100°C to 2000°C
  • Short-wavelength models for improved accuracy on iron, steel, and high-temperature targets
  • 4-20 mA Output or RS485 Modbus Output
  • Miniature Sensing Head and Configurable Electronics Module
  • Touch Screen Interface
  • Data Logging to MicroSD Card
  • Screen Turns Bright Red in Alarm Condition for Maximum Visibility
  • Adjustable Emissivity Setting on all Models

The PyroMini2.2 is a miniature non-contact infrared temperature sensor with separate electronics modules.

It features an adjustable emissivity setting and is capable of measuring a wide variety of target materials, including food, paper, textiles, plastics, leather, tobacco, pharmaceuticals, chemicals, rubber, coal and asphalt.

The PyroMini2.2 is a version of our popular PyroMini for short-wavelength measurement for improved accuracy on reflective targets such as steel rollers and many other metal surfaces.  The short wavelength measurement also provides improved performance on non-metal surfaces.


The PyroMini2.2 is available with an optional touch screen interface which provides temperature indication, alarms, sensor configuration and data logging to a MicroSD Card.

A choice of optics is available to measure small or large targets at short or long distances.

To Order

Select the following options from the drop down box at the top of the page

1) Field of View

    2) Temperature Range

    3) Output and Touch Screen Display

     Popular Models  - To order click on the model number (or scroll to the top of the page and choose the desired options from the drop down menus) then ADD TO CART

    Part Number Field of View Range Output Touch Screen
    Display
    IR-CA-PM2.2-151-PT-CRT 15:1 100°C to 400°C 4-20mA Output Yes
    IR-CA-PM2.2-151-PT-BRT 15:1 100°C to 400°C RS485 Output Yes
    IR-CA-PM2.2-151-MT-CRT 15:1 250°C to 1000°C 4-20mA Output Yes
    IR-CA-PM2.2-151-MT-BRT 15:1 250°C to 1000°C RS485 Output Yes
    IR-CA-PM2.2-151-HT-CRT 15:1 450°C to 2000°C 4-20mA Output Yes
    IR-CA-PM2.2-151-HT-BRT 15:1 450°C to 2000°C RS485 Output Yes
    IR-CA-PM2.2-251-MT-CRT 25:1 250°C to 1000°C 4-20mA Output Yes
    IR-CA-PM2.2-251-MT-BRT 25:1 250°C to 1000°C RS485 Output Yes
    IR-CA-PM2.2-251-HT-CRT 25:1 450°C to 2000°C 4-20mA Output Yes
    IR-CA-PM2.2-251-HT-BRT 25:1 450°C to 2000°C RS485 Output Yes
    IR-CA-PM2.2-751-MT-CRT 75:1 250°C to 1000°C 4-20mA Output Yes
    IR-CA-PM2.2-751-MT-BRT 75:1 250°C to 1000°C RS485 Output Yes
    IR-CA-PM2.2-751-HT-CRT 75:1 450°C to 2000°C 4-20mA Output Yes
    IR-CA-PM2.2-751-HT-BRT 75:1 450°C to 2000°C RS485 Output Yes
    IR-CA-PM2.2-CF-MT-CRT Close Focus 250°C to 1000°C 4-20mA Output Yes
    IR-CA-PM2.2-CF-MT-BRT Close Focus 250°C to 1000°C RS485 Output Yes
    IR-CA-PM2.2-CF-HT-CRT Close Focus 450°C to 2000°C 4-20mA Output Yes
    IR-CA-PM2.2-CF-HT-BRT Close Focus 450°C to 2000°C RS485 Output Yes



    Downloads

    PyroMini User Guide

    PyroMini Data Sheet





    Videos



    GENERAL SPECIFICATIONS
    Temperature Range: 100°C to 2000°C
    Output : 4-20 mA  or RS485 Modbus (Up to 247 sensors may be installed on a single Modbus network)
    Accuracy: ± 2°C or 1%, whichever is greater
    Repeatability: ± 0.5°C or 0.5%, whichever is greater
    Emissivity Setting: Adjustable, 0.10 to 1.00 via touch screen
    Response Time, t90: 240 ms (90% response)
    Spectral Range: 2.0 to 2.6 μm
    Supply Voltage: 24 V DC ± 5%
    Maximum Current Draw: 100 mA
    Max. Loop Impedance: 900 Ω (4-20 mA output)
    Alarm Relays: 2 x Single Pole Changeover alarm relays, rated 24 V DC, 1 A, isolated 500 V DC(included with touch screen interface)
    Cable Length: 1m standard, contact IOThrifty for additional cable lengths.


    Touch Screen Interface Specifications
    Touch Screen Display Format: 2.83” (72 mm) resistive touch TFT, 320 x 240 pixels, backlit
    Configurable Parameters: Temperature range, temperature units, emissivity setting, reflected energy compensation, alarms, signal processing, Modbus address (-BRT models), date and time, data logging
    Temperature Units: °C or °F configurable
    Temperature Resolution: 0.1°
    Alarm Configuration: Two alarms with adjustable level, individually configurable as HI or LO. Alarm 2 can be set to target temperature or sensing head internal temperature
    Signal Processing: Average, peak hold, valley hold, minimum, maximum
    Data Logging Interval: 1 to 86,400 seconds (1 day)
    MicroSD Card: Max. capacity: 2 GB (not included)
    Internal Clock Battery: 1 x BR 1225 3V (not included)
    Variables Logged: Target temperature, sensing head temperature, electronics module temperature, max, min, average, emissivity setting, reflected energy compensation Temperature, alarm events
    File format :.csv
    Configurable Parameters: Sample period, number of samples, scheduled start date and time



    Field of View

    PyroMini2.2 15:1 Optics

    PyroMini2.2 25:1 Optics



    Please note: ThPyroMini2.2 75:1 Opticse

    PyroMini2.2 Close Focus Optics

    Please note: The given measured spot size contains 90% of the energy detected by the sensor. We normally recommend the target is at least twice as large as the given measured spot size contains 90% of the energy detected by the sensor. We normally recommend the target is at least twice as large as the given measured spot for maximum accuracy. Sensors may be used at longer distances than the above diagrams show. There is no maximum measurement distance in clean air, and accuracy does not change with distance; this is because the PyroMini detects only the wavelengths of infrared radiation that are not absorbed by the atmosphere.


    .
