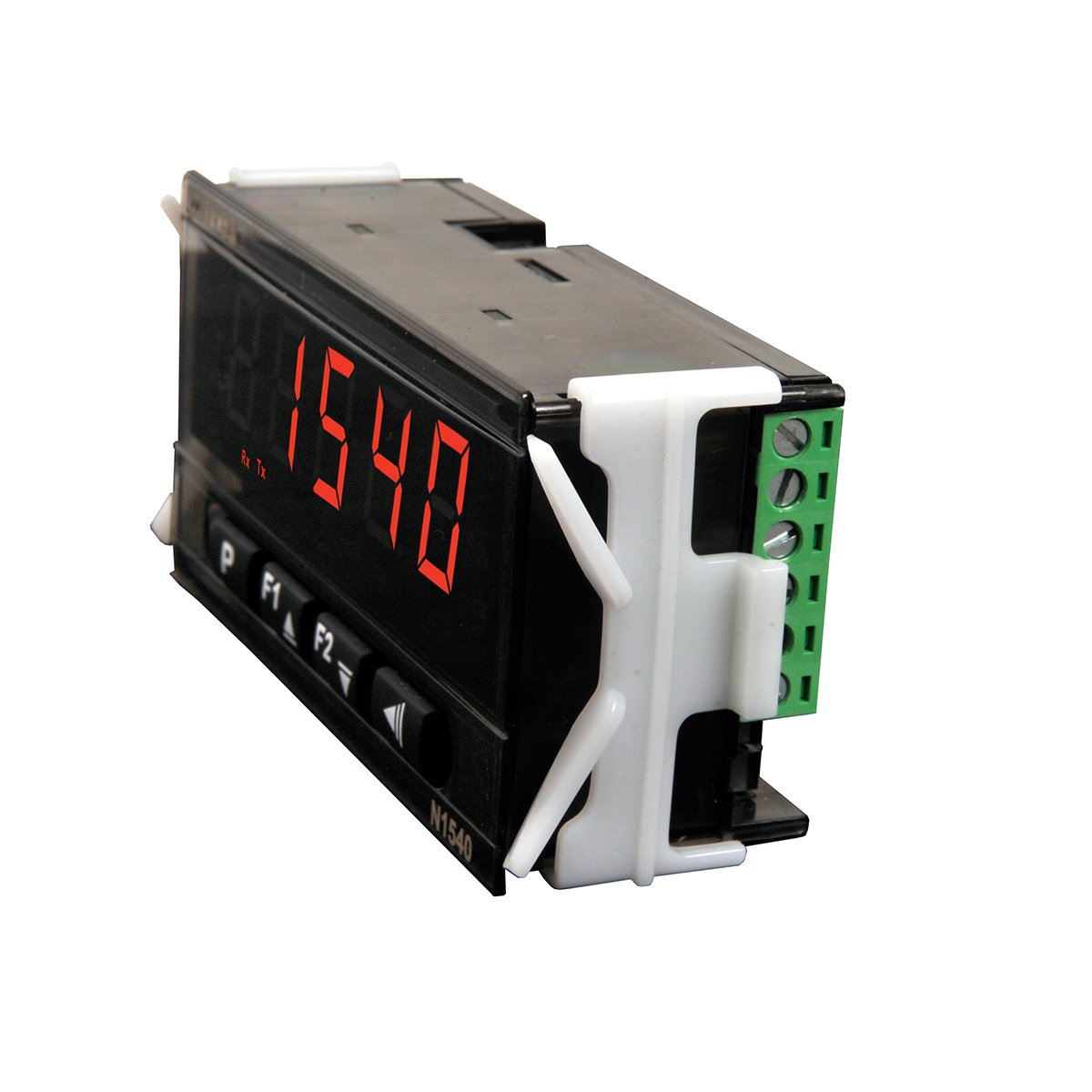

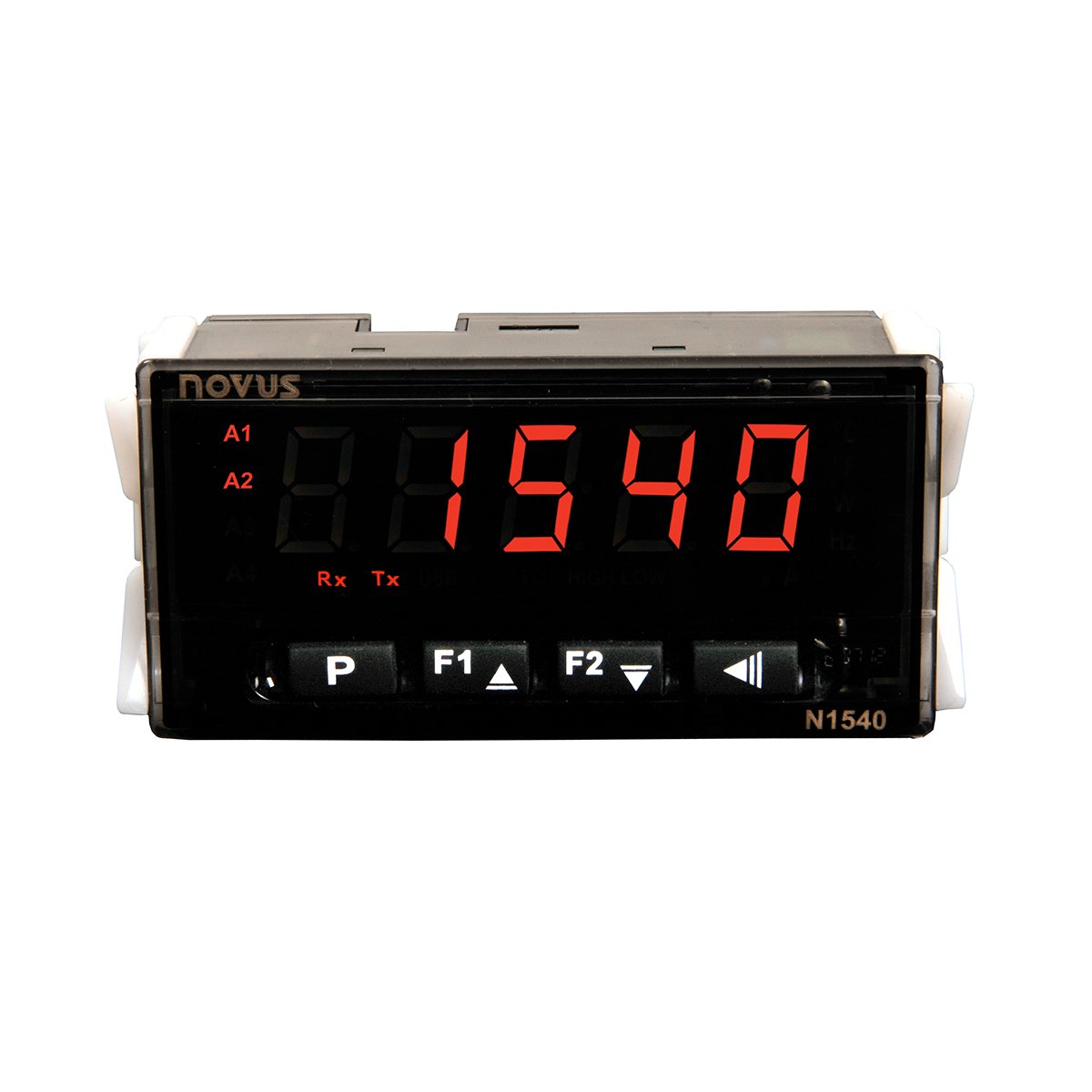

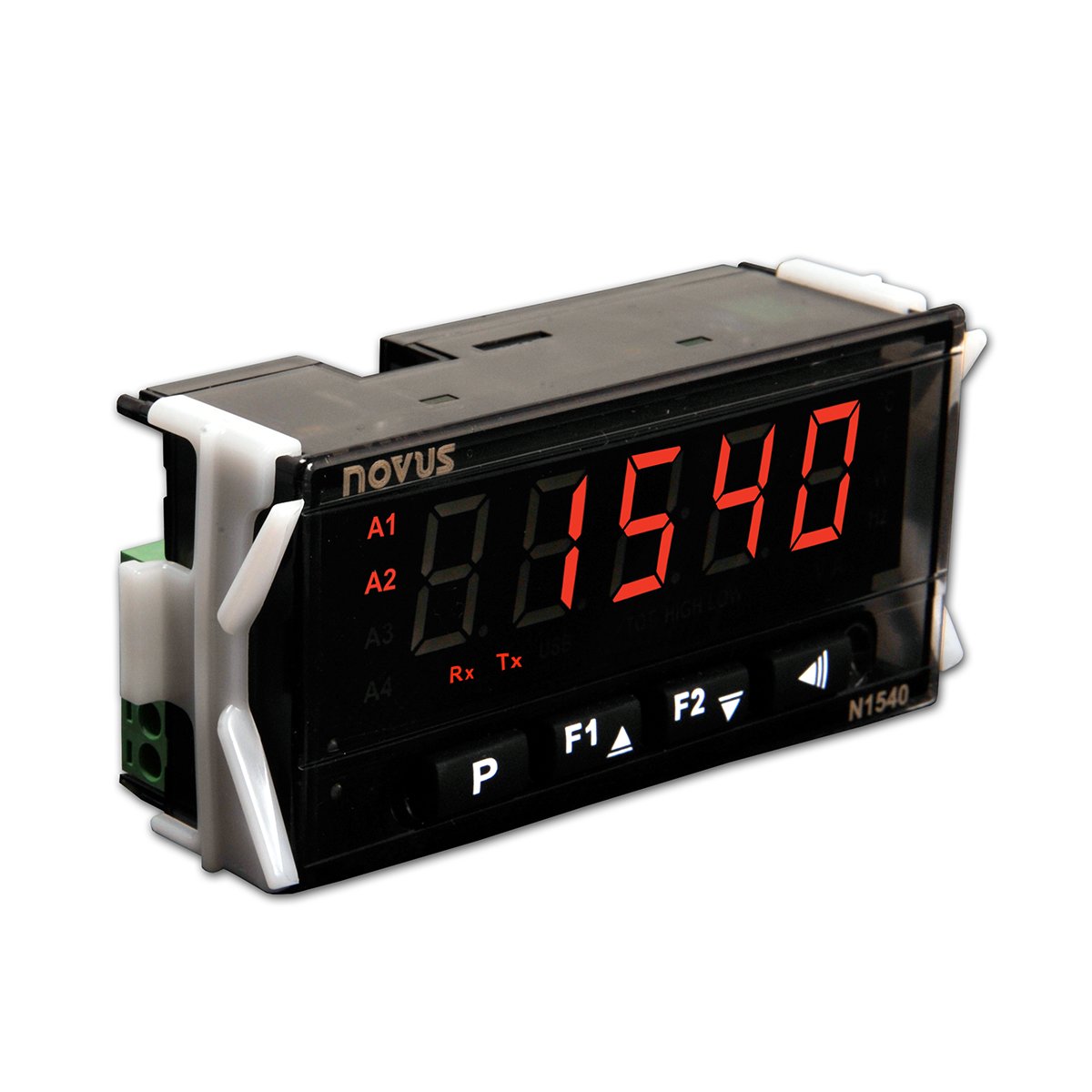

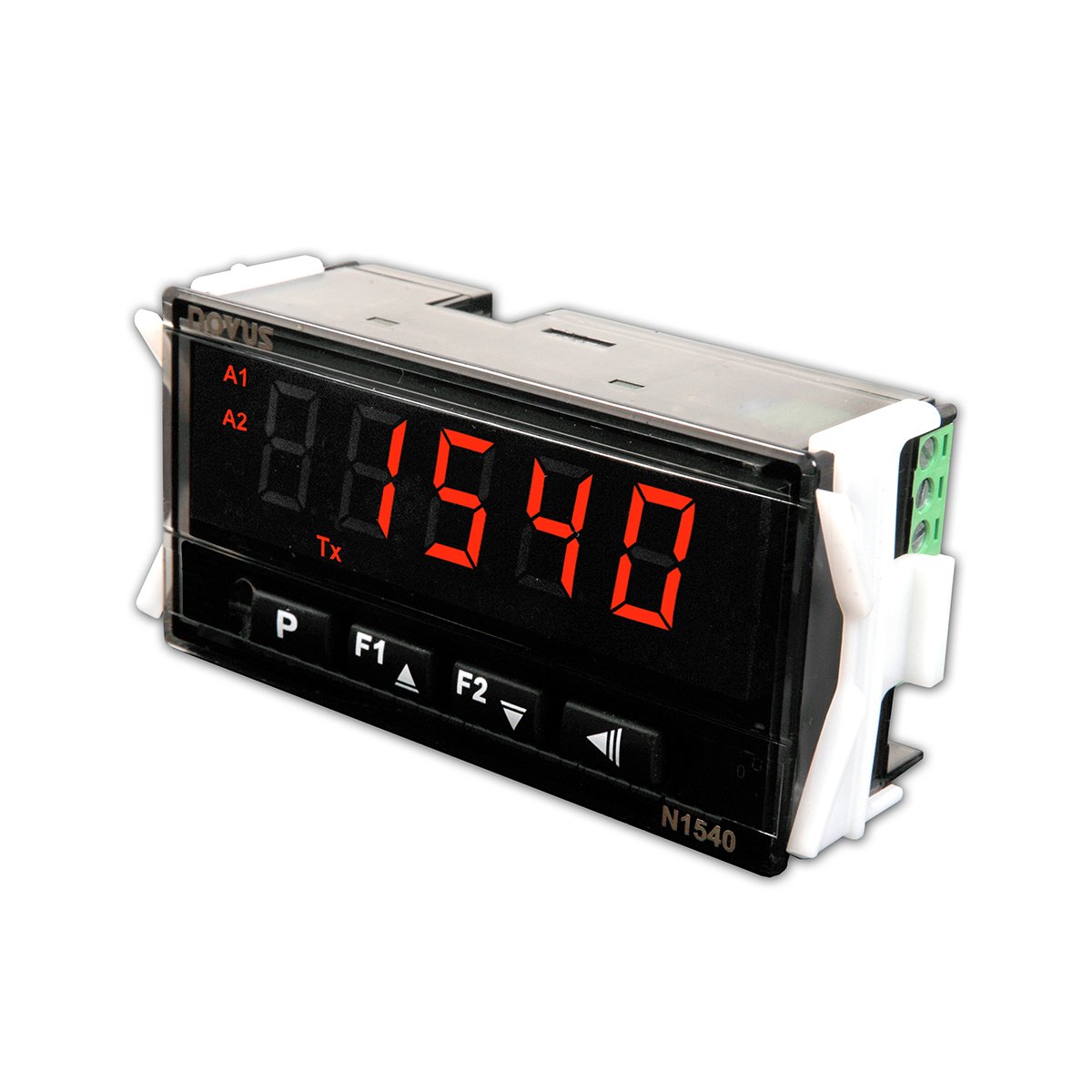

N1540 Fast Sampling Universal Process Panel Meter for Thermocouples, RTDs, Voltage and Current, 1/8 DIN
N1540 Fast Sampling Universal Process Panel Meter for Thermocouples, RTDs, Voltage and Current, 1/8 DIN
N1540 Fast Sampling Universal Process Panel Meter for Thermocouples, RTDs, Voltage and Current, 1/8 DIN
N1540 Fast Sampling Universal Process Panel Meter for Thermocouples, RTDs, Voltage and Current, 1/8 DIN

N1540 Fast Sampling Universal Process Panel Meter for Thermocouples, RTDs, Voltage and Current, 1/8 DIN

Regular price $110.00 Sale SKU:N1540-USB
17 In stock* Ships in 3-4 weeks, if NOT in stock
* 3 available for immediate shipment, 14 ship in 3-4 days

  • Universal Process Panel Meter for Thermocouples, RTDs, Voltage and Current with Thin Depth
  • Display: LED 7-segment, 5-digit, 17 mm High
  • Accepts Thermocouples J, K, T, E, N, R, S, B, Pt100, 0-50 mV, 0-5 Vdc, 0-10 Vdc, 0-20 mA and 4-20 mA
  • Thin Profile-Only 35mm Depth
  • Fast Sampling Rate: Up to 55 Measurements per Second
  • Adjustable Indication Offset
  • Adjustable Digital Filter
  • Temperature in °C or °F
  • Two Relay Alarms: SPST 1.5 A / 240 Vac
  • Alarm Functions: LO, HI, Differential, Differential LO, Differential HI, Sensor Break
  • Alarm Hysteresis
  • Recorded Maximum HI and Minimum LO Values can be Retrieved via Keypad
  • Password for Configuration Protection
  • Auxiliary 24 Vdc Voltage Source
  • USB Interface for Configuration and Monitoring
  • UL Certified

The N1540 is a fast sampling (up to 50 samples per second) process indicator with a wide list of input types - Thermocouples, Pt100 RTDs, Voltage and Current – the N1540 is capable of measuring the majority of the variables and sensors encountered in industrial processes.

The N1540 meter was designed with advanced technology for highest performance and reliability in the most demanding applications. Based on an advanced and robust hardware platform, the N1540 can be fully programmed via its front keypad or via a USB interface. The unique USB interface makes the programming task a simple one step fool proof operation. It allows, for example, the set up of several instruments with the same programming parameters with extreme ease while saving precious time.

This powerful but attractively priced panel meter contains two alarms (six functions), sensor offset, configuration of parameters protected by password, serial communication, indication in degrees Celsius (°C) or Fahrenheit (°F), among others.

With a very short 35 mm (1.34 inches) depth enclosure, the N1540 can be easily installed in panels and enclosures where space is at a premium. Dual alarm relays and a convenient 24 V auxiliary power supply are also available in this competitively priced process meter.

The meter configuration can be performed directly on the meters key panel or through the USB interface. We offer a free downloadable software, NConfig software,  for configuration and monitoring through the USB port of a Windows computer.

USB INTERFACE
The USB interface is used for CONFIGURING or MONITORING the panel meter. We offer NConfig software as a free download that must be used for the configuration. It makes it possible to create, view, save and open configurations from the meter or files in your computer. The software can be used for saving and opening configurations in files and makes it possible to transfer configurations between meters and to make backup copies.

For MONITORING purposes you can use any supervisory software (SCADA) or laboratory software that supports the MODBUS RTU communication on a serial communications port. When connected to the USB of a computer, the indicator is recognized as a conventional serial port (COM x).


 To Order the model below scroll to the top of the page then  click on ADD TO CART button
 PART NUMBERS DESCRIPTION
N1540-USBIn Stock N1540 Universal process indicator with USB connectivity, two relays, 100 to 240 Vac/dc power
N1540-USB-24VIn Stock N1540 Universal process indicator with USB connectivity, two relays, 12 to 24 Vdc / 24 Vac power
N1540-RT-USBIn Stock N1540 Universal process indicator with USB connectivity, two relays,  4-20mA process variable re-transmission, 100 to 240 Vac/dc power
N1540-RT-USB-24VIn Stock N1540 Universal process indicator with USB connectivity, two relays, 4-20mA process variable re-transmission, 12 to 24 Vdc / 24 Vac power
N1540-USB-RS485In Stock N1540 Universal process indicator with USB connectivity, two relays, RS485 communications, 100 to 240 Vac/dc power
N1540-USB-RS485-24VIn Stock N1540 Universal process indicator with USB connectivity, two relays, RS485 communications, 12 to 24 Vdc / 24 Vac power



 Downloads

User Manual

Dimensional Drawings

NConfig Configuration and Monitoring Software



SPECIFICATIONS
Internal Resolution: 2767 levels (15 bits)
Display Resolution: 32000 levels (from -2000 to 30000)
Temperature Resolution: 0.1, 1 (°F or °C)

Inputs
J t/c:-110 to 950°C (-166 to 1742°F)
K t/c: -150 to 1370°C (-238 to 2498°F)
T t/c: -160 to 400°C (-256 to 752°F)
N t/c: -270 to 1300°C (-454 to 2372°F)
R t/c: -50 to 1760°C (-58 to 3200°F)
S t/c: -50 to 1760°C (-58 to 3200°F)
B t/c: 400 to 1800°C (752 to 3272°F)
E t/c: -90 to 730°C (-130 to 1346°F)
RTD (Pt100 3 wire,α=0.00385) : -200 to 850°C (-328 to 1562°F)
Voltage/Current: 0-20 mA, 4-20 mA, 0–50 mV, 0-5 V DC, 0-10 V DC

Accuracy
J, K, T, E: 0.25% ±1 °C
N, R, S, B: 0.25% ±3 °C
Pt100: 0.20%
Voltage/Current: 0.2%

Display: LED 7-segment, 5-digit, 17 mm high
Sampling Rate: Up to 55 per second
Outputs: Two Relays SPST; 240 Vac / 30 Vdc / 1.5 A
Analog output (optional): (4-20 mA or 0-20 mA), RS485
Communication: RS-485 Modbus RTU optional
Dimensions: 96 x 48 x 35 mm (1/16 DIN)
Panel Cut-out: 93.0 x 45.5 mm
Approximate Weight: 110 g
Power Supply: 100 to 240 Vac/dc (±10 %), 50/60 Hz,  or 12 to 24 Vdc / 24 Vac (-10% / +20%)
Maximum power consumption: 6 VA
Operation Temperature: 0 to 50°C
Relative Humidity: 80 % @ 30°C
