- Hermetically Sealed Airtight Tip with IP67 Rating
- K Thermocouple Calibration
- Waterproof & Suitable for Liquid Submersion
- Chemically Resistant PFA Insulation
- Temperature Range -100°F to 500°F (-75 to +260°C)
- Available in 1M, 2M and 5 M Lengths

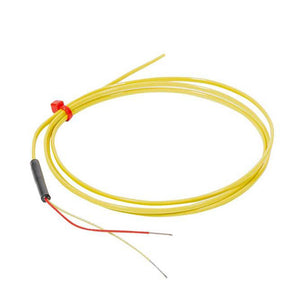

The HSTC is a hermetically sealed, waterproof, wire thermocouple with an IP67 rating which may be used in corrosive or wet environments.
The HSTC has a quick response time and can be easily cleaned. The impermeable PFA insulated flexible wire thermocouple provides exceptional resistance to oils, fluids, gases, and chemicals and is electrically isolated.

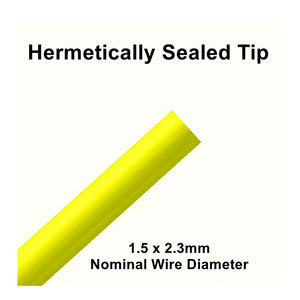

The thermocouple tip contains the beaded sensing connection, which is weld-sealed to give a continuous PFA coating along the entire length and provides an atmosphere that is airtight and moisture-proof.
Optional Thermocouple Calibration
This thermocouple can be calibrated at three standard temperature points before it ships, so it arrives ready to use with a calibration certificate for your quality records or audits. Choose NIST-Traceable Commercial Calibration for measurements traceable to national standards, or ISO 17025 Accredited Calibration when your quality system or customer requires fully accredited results. Custom calibration points are available at no extra cost. Calibration typically adds 1–2 weeks to delivery. Learn more about thermocouple calibration.
| To Order (scroll to top of page and add to cart) |
| PART NUMBERS | DESCRIPTION |
HSTC-K-24-1M-SL |
Hermetically sealed type K thermocouple, 1 meter length, stripped leads |
| HSTC-K-24-2M-SL |
Hermetically sealed type K thermocouple, 2 meter length, stripped leads |
| HSTC-K-24-5M-SL |
Hermetically sealed type K thermocouple, 5 meter length, stripped leads |
| Calibration | |
| TC-CAL-3-COM | NIST-Traceable Commercial 3-Point Calibration with Certificate |
| TC-CAL-3-ACC | ISO 17025 Accredited 3-Point Calibration with Certificate |
| Downloads |
| HSTC Data Sheet |
Specifications
Thermocouple Type: (Chromel[Nickel-Chromium]/Alumel[Nickel-Alumel])
Thermocouple Length: 1, 2 & 5m
Wire Size: 24 AWG
Termination Type: Stripped Leads
Temperature Range: -100°F to 500°F (-75 to +260°C)
Accuracy: Class 1 (the larger of ±1.5°C or ±0.4% of the measured value)
IP Rating: IP67
Pressure Rating: Tested at 40 PSI
Electrical Isolation: Electrically insulated tip tested to 1.0Kv
