- Type T Calibration
- Stainless Steel Probe
- Temperature Range : -90°C to +150°C
- PTFE Insulation
- Ungrounded Thermocouple Junction

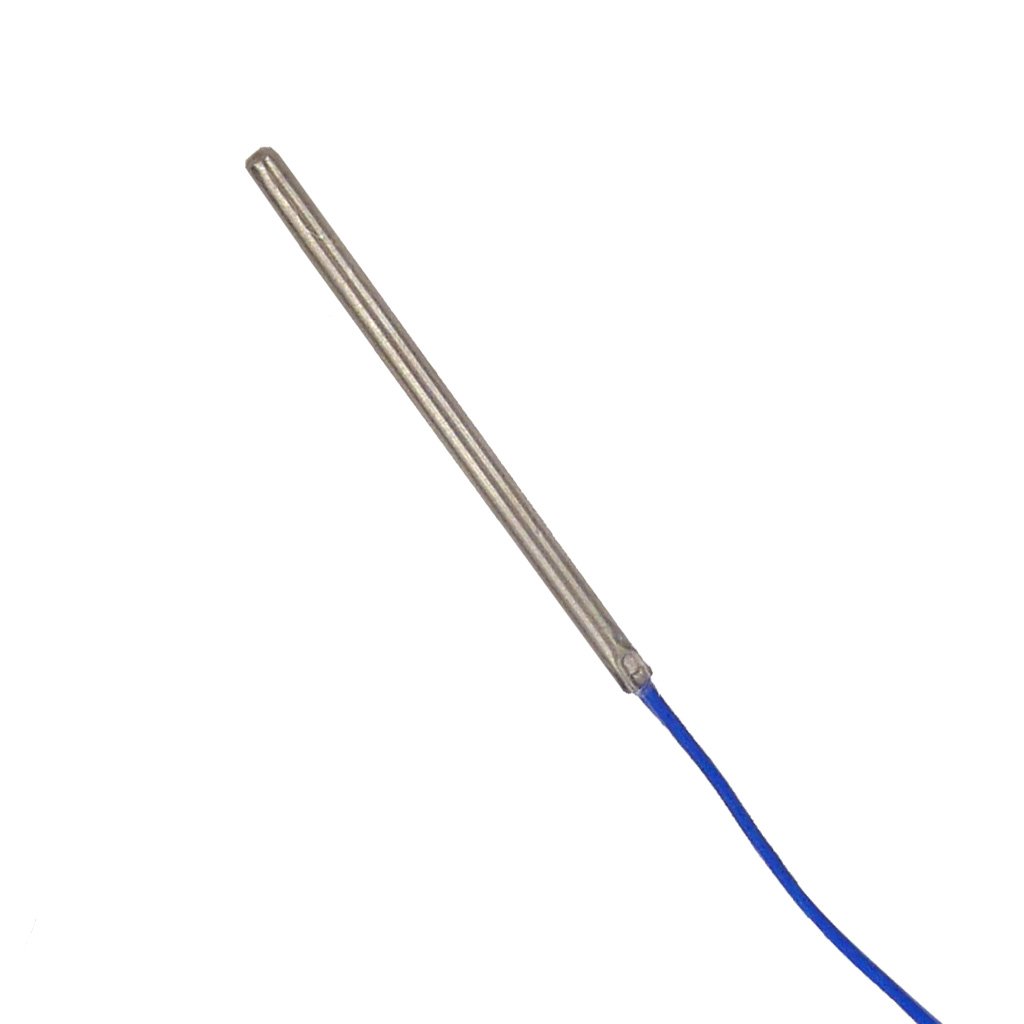

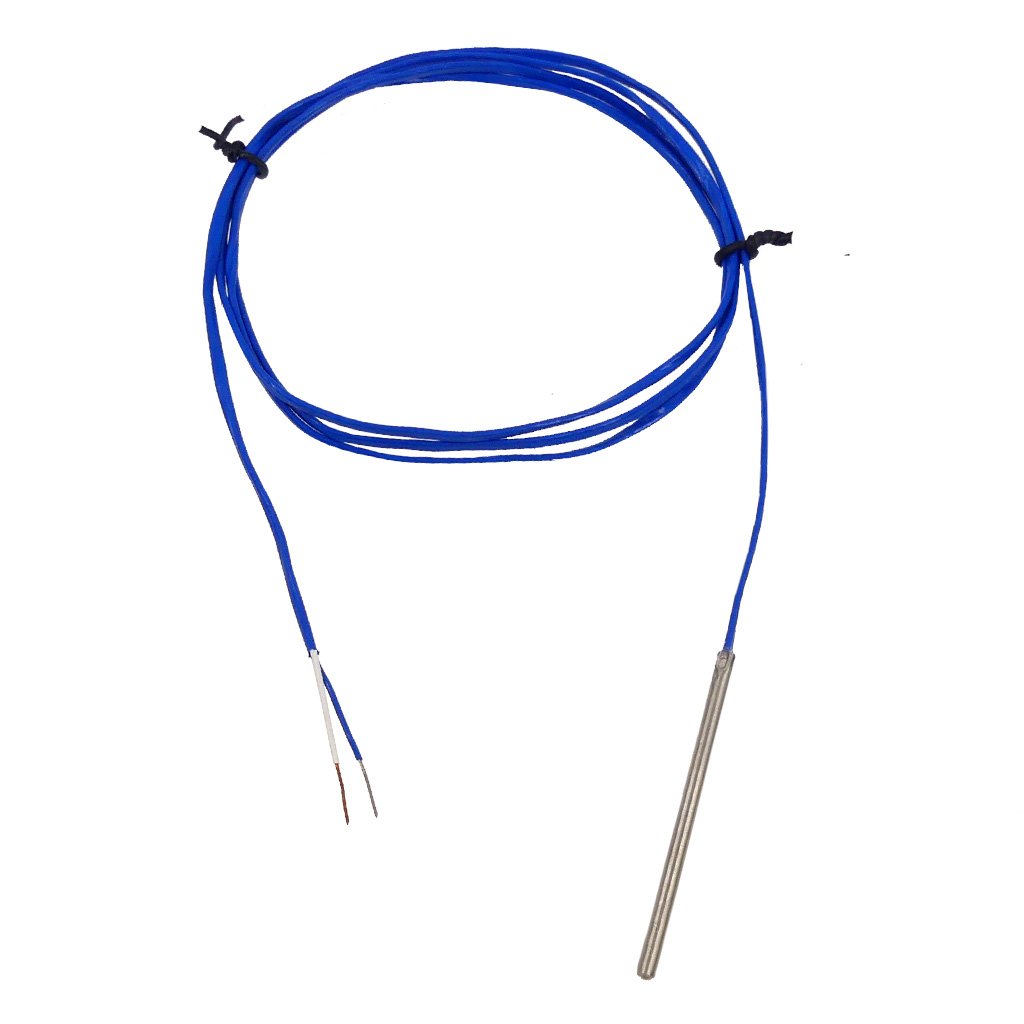

The TSTP Tube Style Thermocouple is a low cost thermocouple. This thermocouple is available in T style calibration and consist of an ungrounded thermocouple element mounted inside a 304SS steel tube.
Optional Thermocouple Calibration
This thermocouple can be calibrated at three standard temperature points before it ships, so it arrives ready to use with a calibration certificate for your quality records or audits. Choose NIST-Traceable Commercial Calibration for measurements traceable to national standards, or ISO 17025 Accredited Calibration when your quality system or customer requires fully accredited results. Custom calibration points are available at no extra cost. Calibration typically adds 1–2 weeks to delivery. Learn more about thermocouple calibration.
| To Order scroll to the top of the page and select the model number then click on ADD TO CART button |
| PART NUMBERS | DESCRIPTION |
TSTP-T-3.2-50-40-PTFE |
Tube Style Thermocouple |
| Calibration | |
| TC-CAL-3-COM | NIST-Traceable Commercial 3-Point Calibration with Certificate |
| TC-CAL-3-ACC | ISO 17025 Accredited 3-Point Calibration with Certificate |
SPECIFICATION
Calibration : Type T
Stainless Steel Tip :304SS
Probe diameter : 3.2mm +/- 0.2mm
Probe length: 50mm
Length of Leads : 40 inch. ( excluding SS TIP)
Conductor : Type T, 24 AWG
Color Coding : ANSI
Temperature Range : -90C to +150°C
Lead Insulation : PTFE Teflon - Tape Wrapped and Sintered - Individual Conductor as well as Outer Jacket
Thermocouple Junction: ungrounded
