WTC-GG-24-SL Type K Glass Insulated 24 AWG Beaded Wire Thermocouple with Stripped Leads

WTC-GG-24-SL Type K Glass Insulated 24 AWG Beaded Wire Thermocouple with Stripped Leads

Regular price $11.00 Sale SKU:WTC-GG-K-24-40-SL
63 In stock* Ships in 3-4 weeks, if NOT in stock
* ships same or next day

  • K Type Thermocouple
  • 24 AWG Wire with Braided Glass Insulation
  • 40 or 72  Inches Long
  • Stripped Leads Termination
  • Temperature Range:32 to 900°F(0 to 482°C)

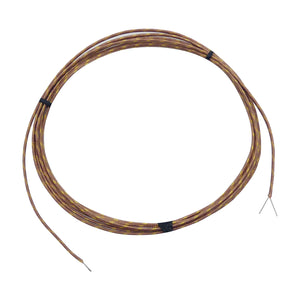

The WTC-GG-24-SL is a beaded wire thermocouple with braided glass (fiberglass) insulation which a miniature connector. This is a basic general purpose style of thermocouple well suited for temperature measurement of air or other gases.

Made from 24 awg wire these thermocouples offer a quick response time with a time constant of about 1.2 seconds in fast moving air.

The WTC-SL is available in K thermocouple calibration (made from Nickel-Chromium/ Nickel-Alumel alloy) and has a temperature range of 32 to 900°F(0 to 482°C) .

The thermocouple terminates in stripped leads which makes it easy to connect to and instrument with screw terminals.

.

To Order the model below click on the link or scroll to the top of the page then click on ADD TO CART button
PART NUMBERS DESCRIPTION
WTC-GG-K-24-40-SLIn Stock Type K Glass Insulated 24 AWG Beaded Wire Thermocouple with Stripped Leads Termination, 40 Inch Length
WTC-GG-K-24-72-SLIn Stock Type K Glass Insulated 24 AWG Beaded Wire Thermocouple with Stripped Leads Termination, 40 Inch Length, 72 Inch Length



SPECIFICATIONS

Thermocouple Type: K
Length: 40 or 72 inches
Wire gauge: 24 AWG
Temperature Range: 32 to 900°F(0 to 482°C)
Accuracy:  ±2.5°C or ±0.75% of reading (whichever is greater)
Insulation: Braided fiberglass
Termination: Stripped Leads
