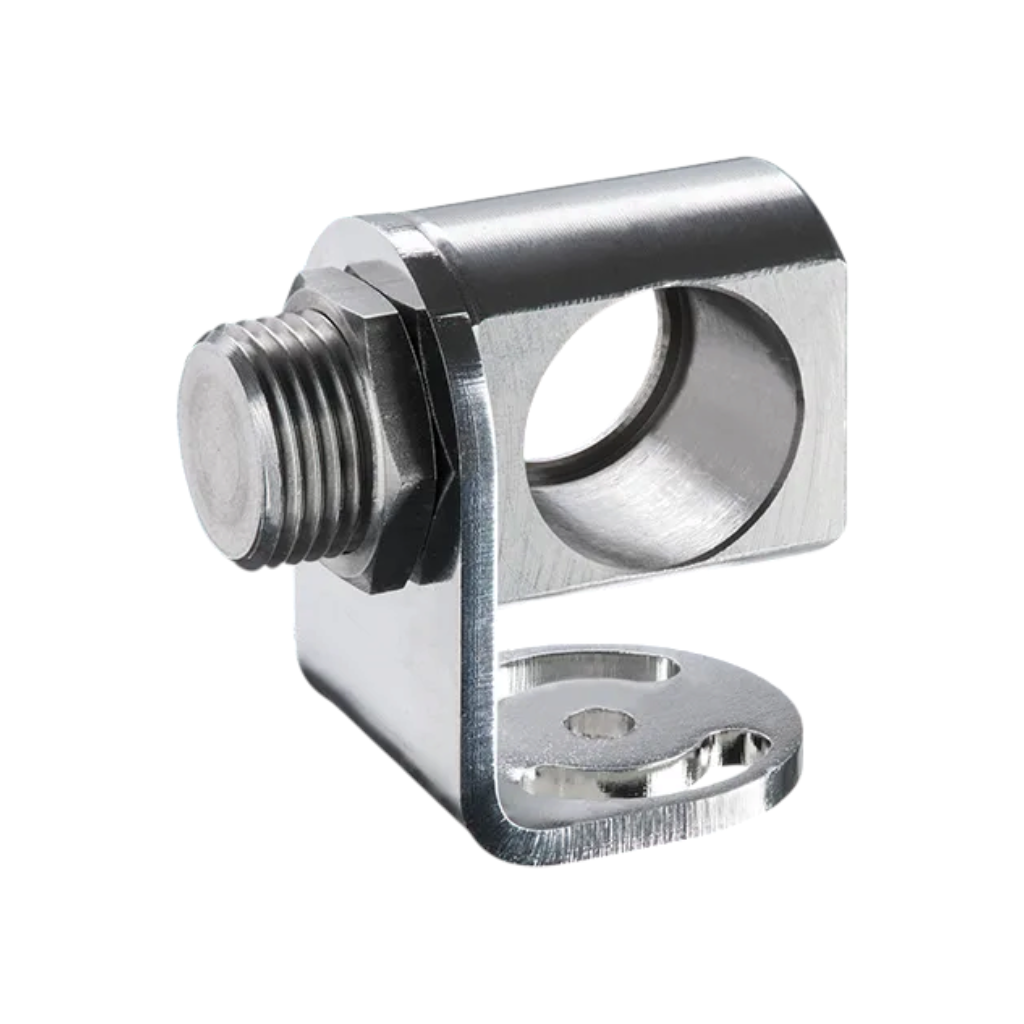

- Two-Axis Adjustable Mounting Bracket for Precise Sensor Aiming
- Fits CS LT, CSmicro, and CT Measuring Heads with an M12 Thread
- Durable Stainless Steel (Type 1.4301) for Indoor and Outdoor Use
- Horizontal Rotation and Tilt Adjustment to Align the Measurement Spot
- Compact 30 x 30 x 20 mm Design for Stable, Fixed Installation

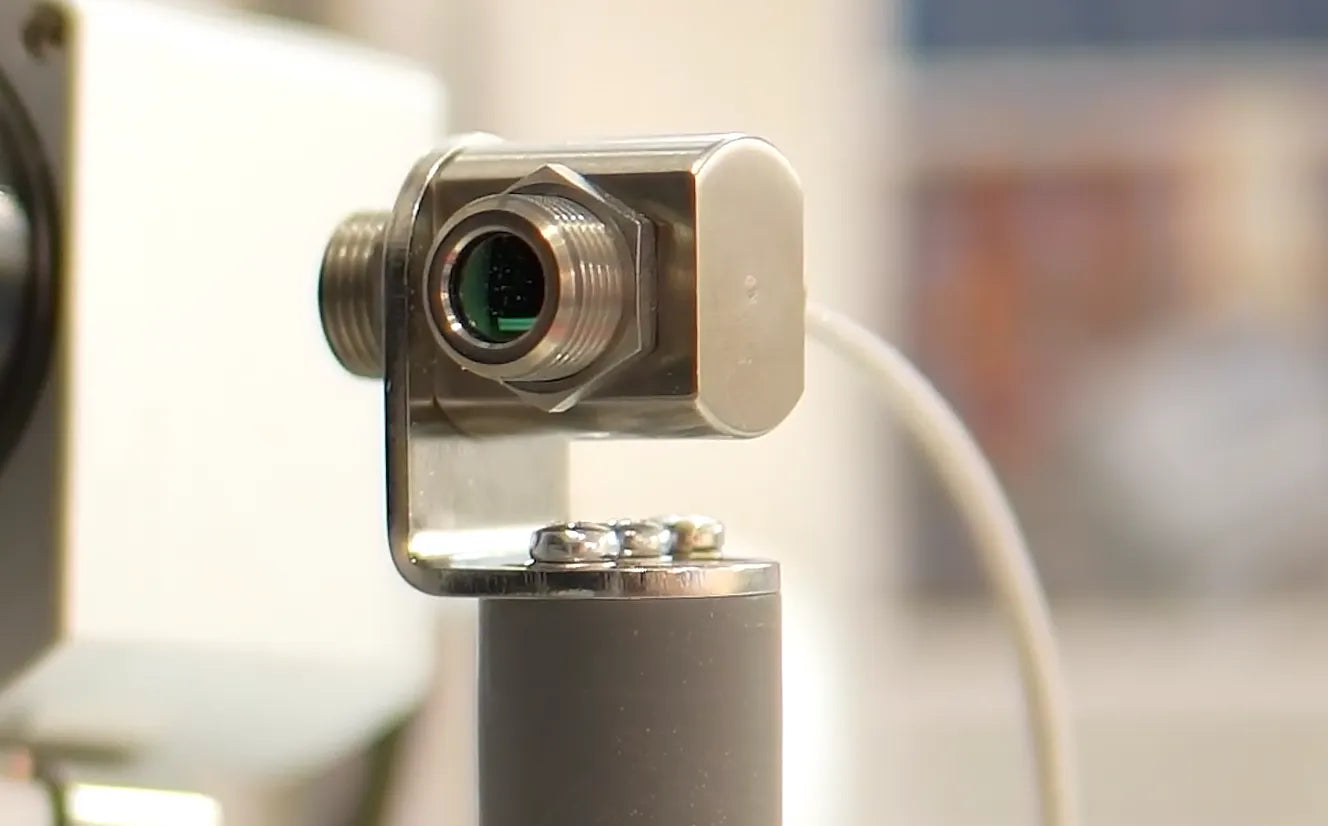

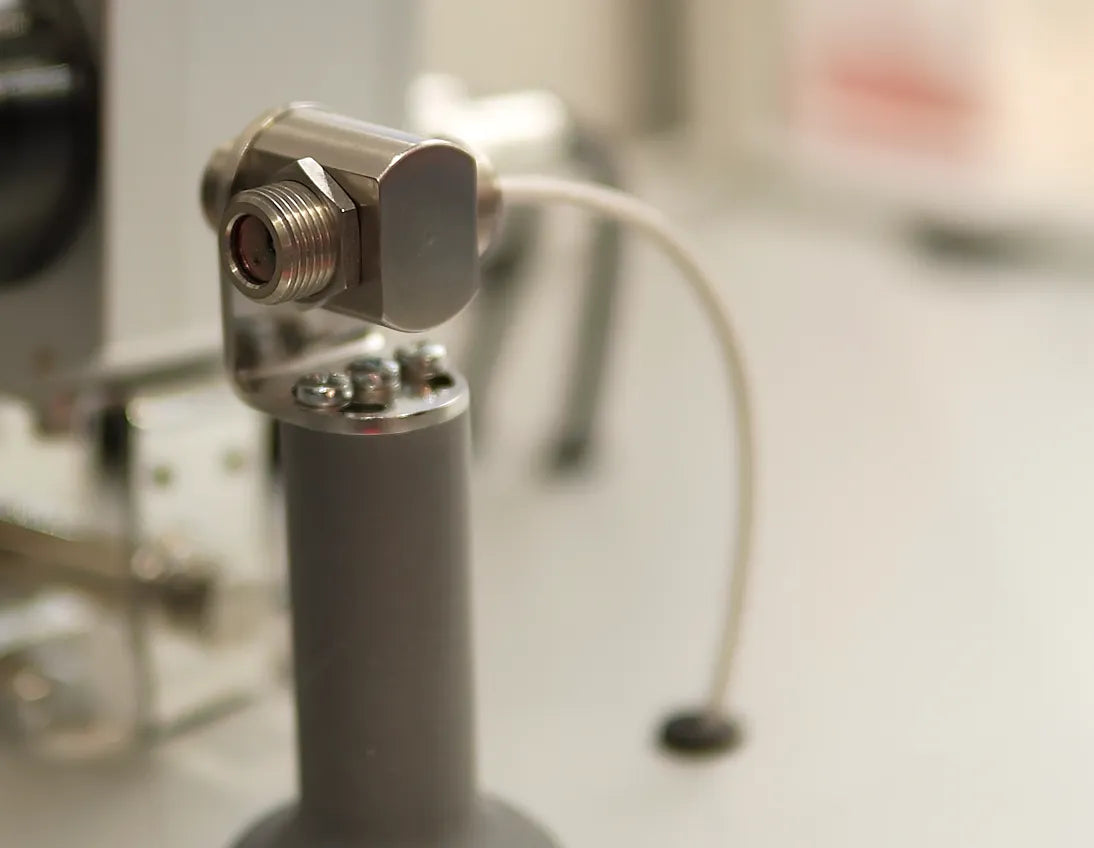

This adjustable mounting bracket provides a secure, precise way to mount CS LT, CSmicro, and CT infrared sensing heads that have an M12 thread. Made from durable stainless steel, it lets you aim the sensor exactly at your target and lock it in place for stable, repeatable temperature measurement. It is designed for stationary installation and is an essential accessory for getting a clean, well-aligned reading in an industrial setup.
Precise Two-Axis Aiming

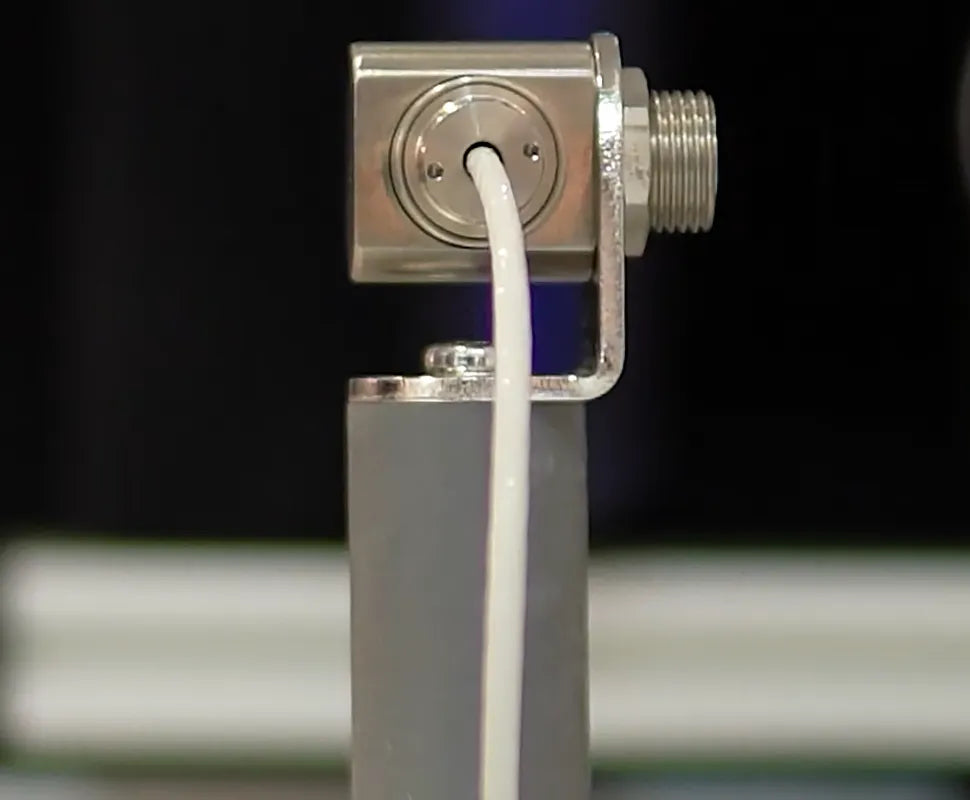

The bracket is secured with two screws, one of which sits in a slot so the sensor can rotate horizontally as well as tilt. That gives you two independent axes of adjustment, so you can line the measurement spot up precisely on the target and then lock everything down for consistent readings over time.
Built to Last
The bracket is made from high-quality stainless steel (type 1.4301) with a 2 mm sheet thickness, so it stands up to both indoor and outdoor industrial environments. It shares the operating temperature range of the sensing head it holds, making it suitable wherever your sensor can go.
SPECIFICATIONS
Type: Mounting bracket, adjustable in two axes
Material: Stainless steel (type 1.4301)
Size: 30 x 30 x 20 mm
Mounting Thread: M12 x 1
Sheet Thickness: 2 mm
Adjustment: Two axes (horizontal rotation via a slotted screw mount, plus tilt)
Operating Temperature: same as the sensing head
Compatible Heads: CS LT, CSmicro, and CT measuring heads with an M12 thread
Scope of Supply / What comes with your order
1x mounting bracket.
