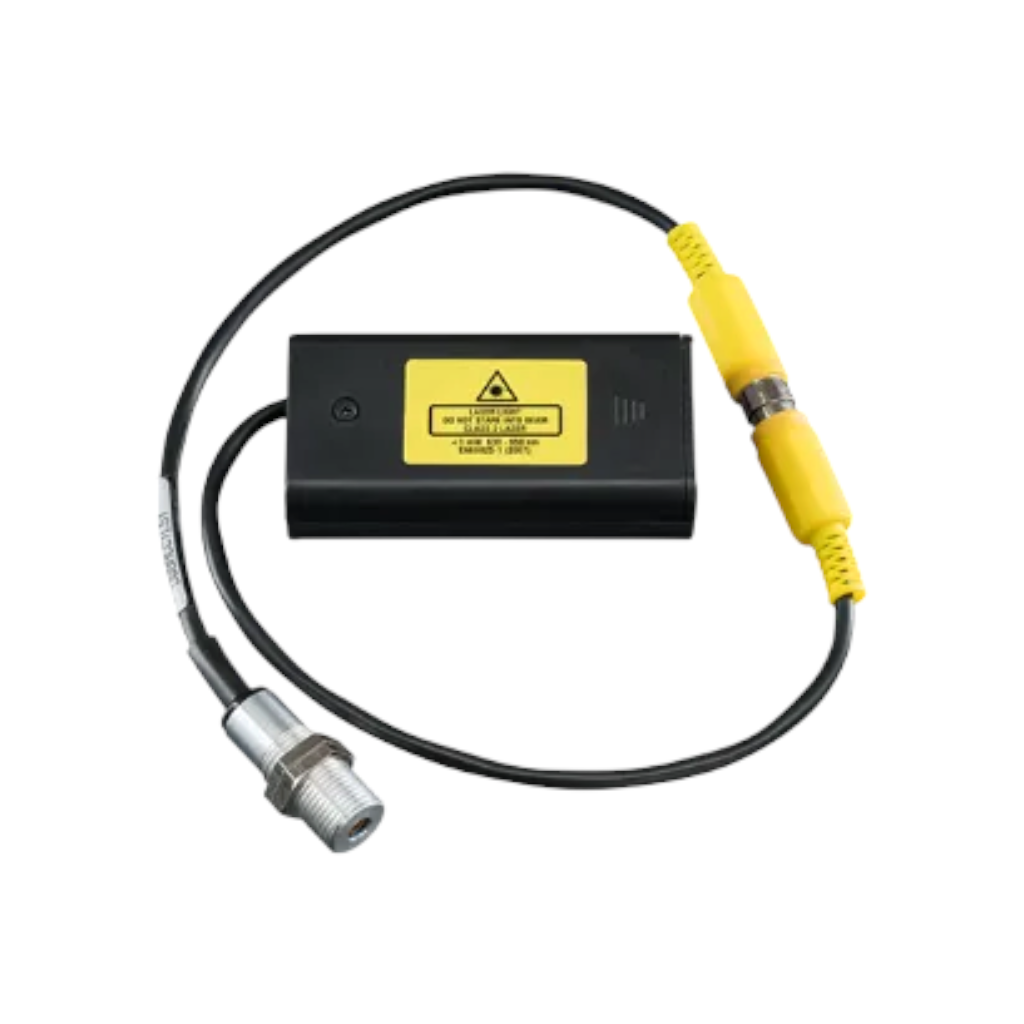

ACCTLST - Laser-Sighting Tool for CT heads

• Laser Sighting Tool for Precise Alignment of CT Series Sensing Heads
• Marks the Exact Center of the Measurement Spot with a Visible Red Laser
• Ideal for Aiming Small Sensing Heads in Tight, Hard-to-Reach Spaces
• Powered from the Sensor Electronics Box or by Battery
• Can Be Triggered Externally Through the Electronics Box Digital Output
• Low-Power Class 2 Laser (635 nm), Rotation-Symmetrical for Accurate Centering

The laser sighting tool makes it easy to aim a CT series sensing head precisely at your target. It projects a simple visible laser that marks the center of the measurement spot, so you can see exactly where the sensor is pointed and line it up on the area you want to measure. It is a convenient add-on for any installation where getting the aim right matters.

Alignment in Tight Spaces
The compact CT sensing heads are often chosen for installations that are too cramped for a larger sensor with a built-in laser. In those spots, aiming the head by eye can be a challenge. This tool solves that by indicating the center of the sensor's optical path, so you can confirm and fine-tune alignment even in narrow, awkward locations. It works with CT and CSmicro sensing heads.

Flexible Power and Triggering
The tool can draw power from the sensor electronics box or run on its own batteries, and two AA cells are included to get you started. You can also trigger it externally through the digital output on the electronics box, so the laser comes on only when you need it for sighting.

Safe, Considerate Use
The tool uses a low-power class 2 laser (under 1 mW at about 635 nm). As with any laser, do not point it at the eyes of people or animals, and avoid staring into the beam or its reflections. The laser is meant for sighting and positioning rather than continuous operation: leaving it on permanently shortens the life of the laser diode, and it should not be operated above 50 °C.

SPECIFICATIONS

Type: Laser sighting tool for sensor alignment
Laser Class: 2 (EN 60825-1), under 1 mW
Wavelength: 635 nm (0.635 µm), visible red
Beam: rotation-symmetrical
Size: Ø12 mm, M12 x 1
Power Supply: via sensor electronics box or battery
External Trigger: via electronics box digital output
Operating Temperature: 0 to 50 °C
Storage Temperature: 0 to 50 °C
Relative Humidity: 10 to 95 %, non-condensing
Compatible Heads: CT series and CSmicro sensing heads

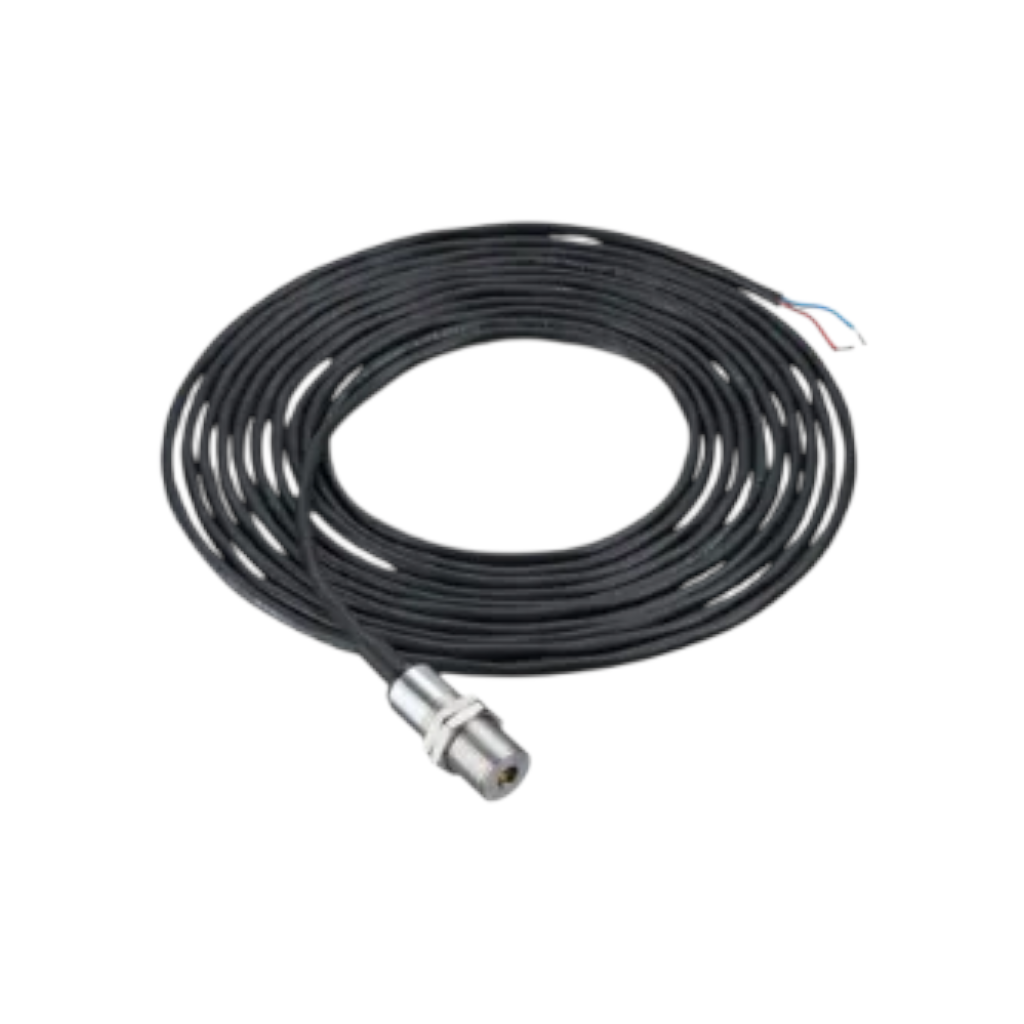

Options: with or without connection cable (3.5 m or 8 m); batteries included or none

Scope of Supply / What comes with your order
Laser sighting tool for CT, and 2x AA alkaline batteries.
