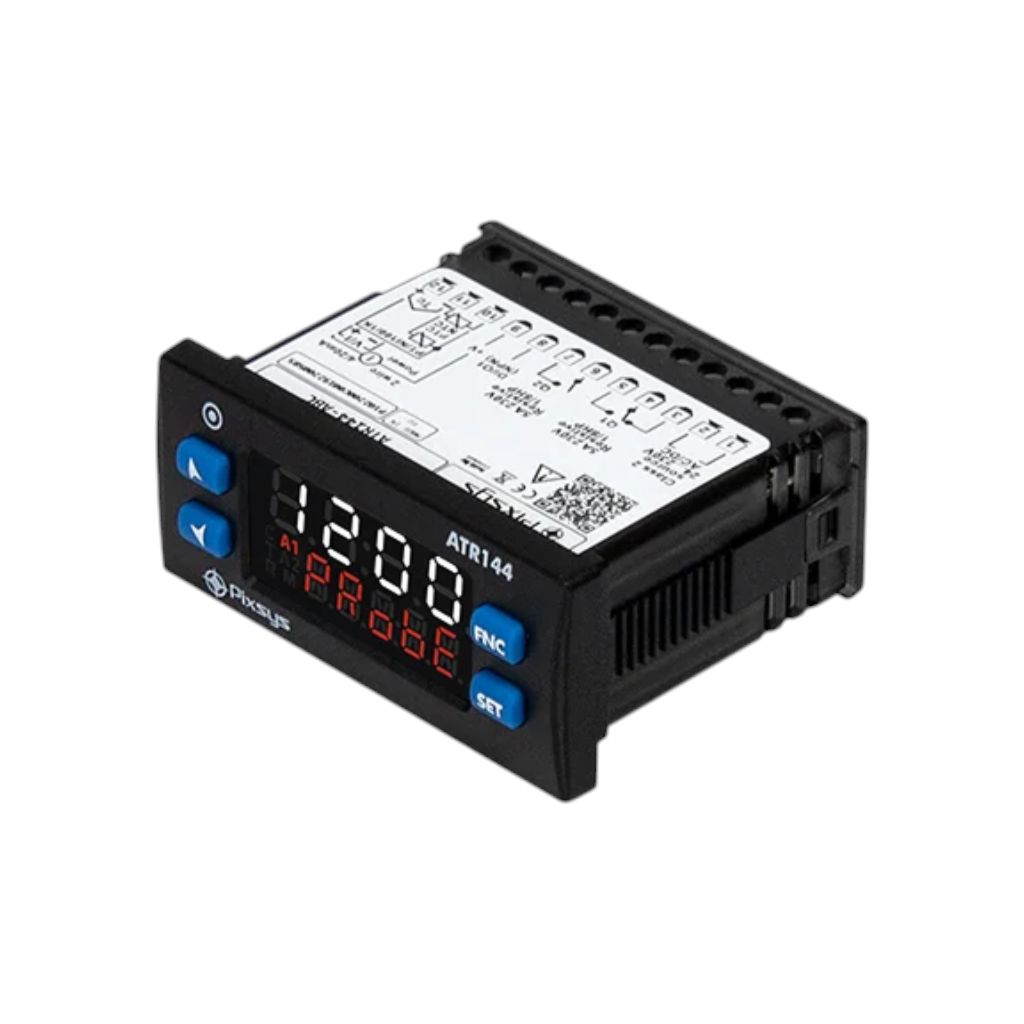

ATR144 - PID Controller

• Universal input for thermocouples, RTDs, thermistors, 0/4–20 mA, 0–10 V, mV, and potentiometer
• Auto/Manual PID with Smart Tuning, ON/OFF, P, PI, PD; dual action heating–cooling
• Two 5 A relay outputs plus 12 Vdc digital (SSR/NPN) output

• NFC/RFID setup with MyPixsys app; front keypad; USB memory card or PC software
• Soft-start, timers, pre-programmed cycle, alarm modes with Loop Break

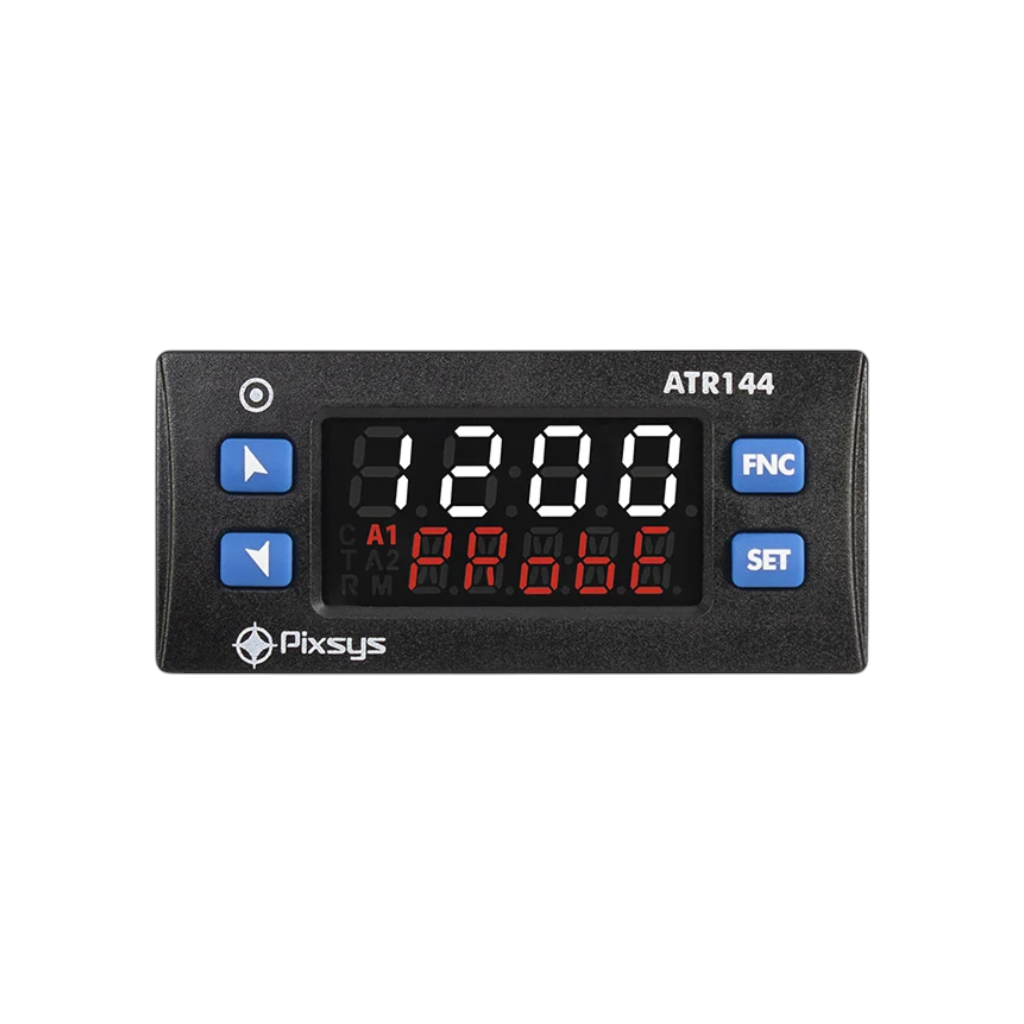

• Bright dual display with contextual messages
• IP65 front panel, compact 32 × 74 mm face; wide-range power options

The ATR144 is a compact, panel-mount PID controller built for fast setup and dependable closed-loop control. A universal input handles temperature and process signals, while two relays and a 12 Vdc digital output cover control and alarm duties. Configure from the front keypad or in seconds via NFC with the MyPixsys app. A bright dual display and on-screen help keep commissioning quick and operations clear.

Universal Input
A single configurable input supports thermocouples (K, S, R, J, T, N, B), RTDs (Pt100/500/1000, Ni100/120), thermistors (PTC1K, NTC10K), process signals (0–10 V, 0/4–20 mA, 0–60 mV), and 1–150 kΩ potentiometers. That flexibility lets you standardize on one controller across ovens, environmental chambers, heaters, valves, and general process loops. Sampling time is programmable down to 2.1 ms (≈470 Hz) for responsive control.

PID You Can Trust (and Tune Fast)
Choose ON/OFF, P, PI, PID, or PD control. Start with Auto-Tune or Manual Tune, and use synchronized tuning on multi-zone systems. The controller also supports dual-action heat/cool with overlapping or dead-band, plus Loop Break detection to catch load or loop faults early. If a sensor fails, the Auto/Manual function can hold the last output to keep the process stable until service.

Outputs, Alarms, and Motion-Friendly Logic
You get two 5 A relay outputs for heat/cool or alarms, and a 12 Vdc/25 mA digital output (SSR/NPN) for solid-state drive. Alarm modes include absolute, band, deviation, asymmetric band, and more, each with optional manual reset and labels. There’s also open/close logic for motorized valves, timers (independent, sequential, or looped), a pre-programmed ramp/soak cycle, and soft-start by gradient or fixed output.

Quick Configuration, Keypad, NFC, or Software
Program from the front keys with on-screen help, tap-to-configure via NFC/RFID using the MyPixsys mobile app, or use a USB memory card/PC software (LabSoftview).

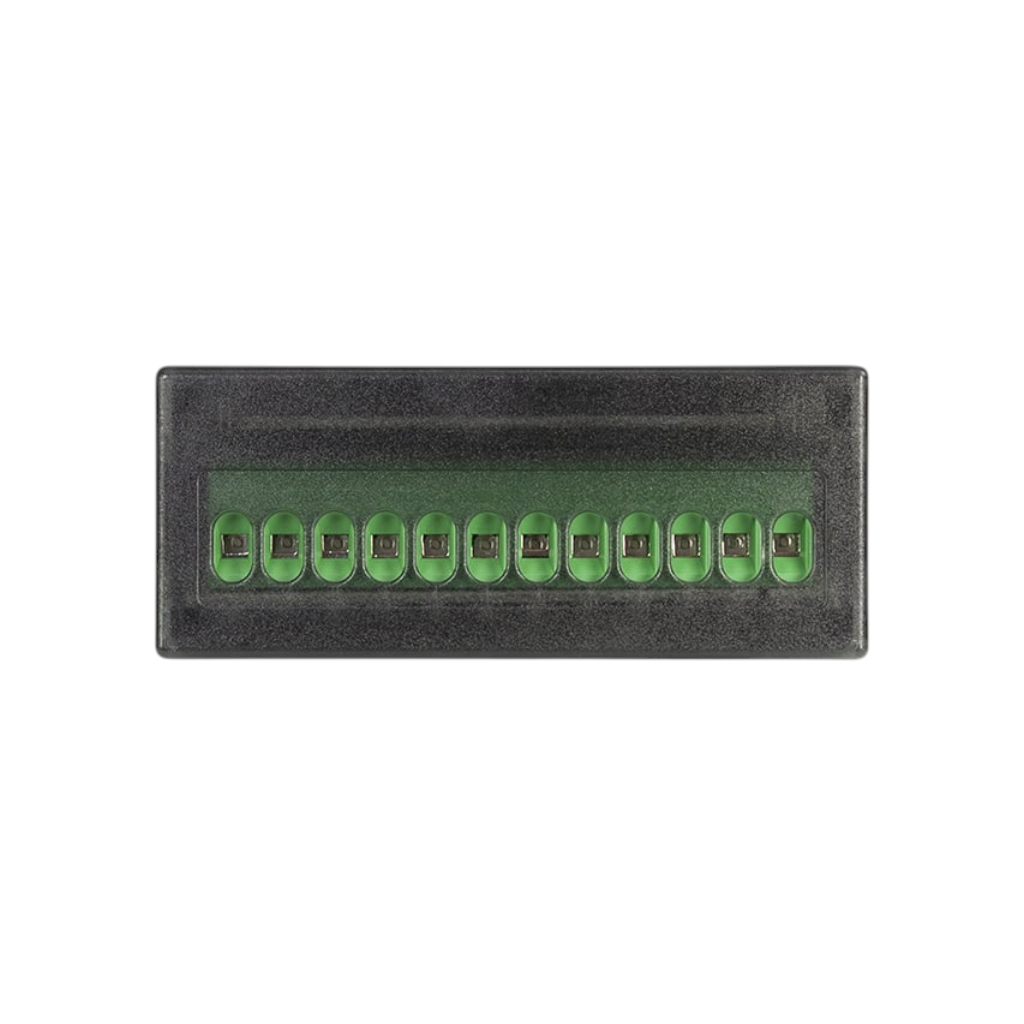

Rugged, Panel-Ready Design

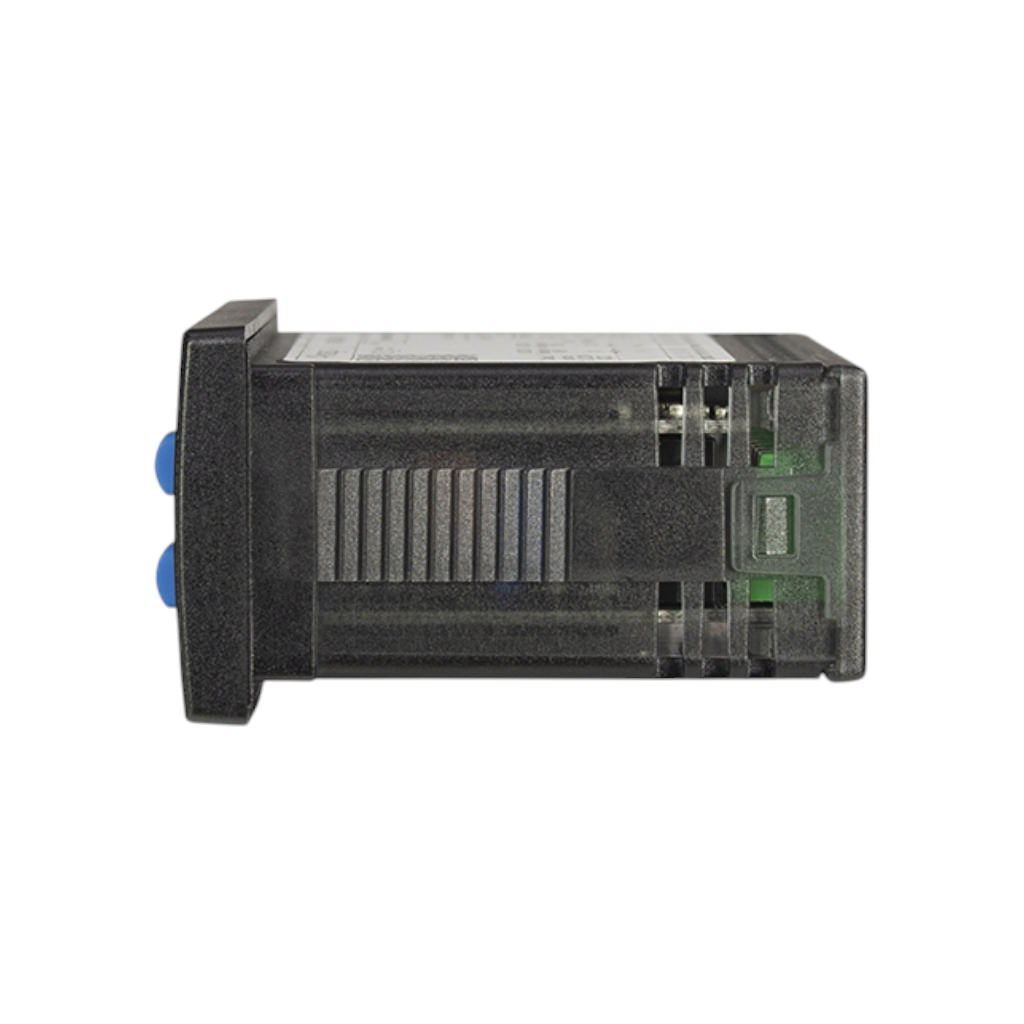

A compact 32 × 74 mm front panel (IP65 with gasket) and shallow depth fit tight enclosures. Front sealing protects in industrial environments, with IP20 on the enclosure/terminals. Wide-range supplies are available: 24–230 Vac/Vdc (ABC/ABC-T) or 12–24 Vac/Vdc (AD/AD-T).

SPECIFICATIONS

Display
4 digits 0.38″ (white) + 5 digits 0.28″ (red)

Input
Type: 1 configurable analog input
Thermocouples: K, S, R, J, T, N, B (auto CJC −25…85 °C)
RTDs: Pt100, Pt500, Pt1000, Ni100, Ni120
Thermistors: PTC1K, NTC10K (β 3435K / 3694K), NTC 2252 (β 3976K)
Process Signals: 0–1 V, 0–5 V, 0–10 V, 0/4–20 mA, 0–60 mV
Potentiometer: 1–150 kΩ
Resolution: 16 bit A/D
Accuracy (25 °C): ±0.2 % F.S. ±1 digit
Cold-junction accuracy: 0.1 °C/°C
Impedance: 0–10 V >110 kΩ; 0–20 mA <5 Ω; 0–40 mV >1 MΩ
Sampling time: Programmable up to 2.1 ms (≈470 Hz)

Control Algorithms
ON/OFF with hysteresis; P, PI, PID, PD (time-proportioned)
Auto-Tune, Manual Tune, Synchronized Tune
Dual action heating–cooling with adjustable overlap/dead-band
Loop Break detection

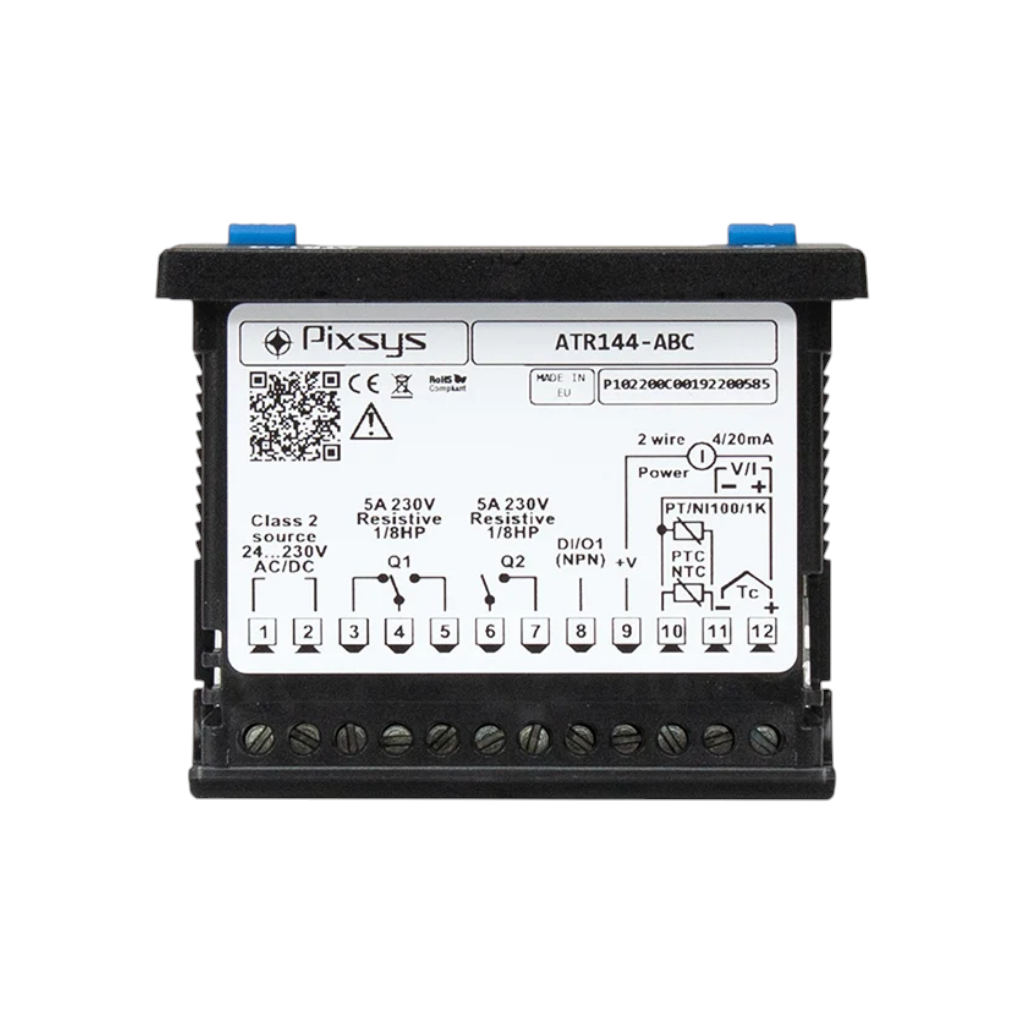

Outputs
1/2 Relays: 5 A @ 250 Vac resistive load
1 Digital Output (NPN or SSR): 12 Vdc, 25 mA max (min 1 mA load)

Functions
Auto/Manual output with safe hold on sensor failure
Soft-start (gradient °/h or fixed %)
2 timers (independent, sequential or looped)
Pre-programmed ramp/soak cycle
Digital inputs for setpoint select, hold, run, start/stop, tuning, lock
Open/Close logic for motorized valves
Password protection and Loop Break alarm

Power Supply: 24–230 Vac/Vdc ±15 % (5 W)

Environmental
Operating 0–45 °C; Humidity 35–95 % RH (non-condensing); Altitude ≤ 2000 m
Sealing IP65 (front with gasket); IP20 (box and terminals)

Mechanical
Front panel 32 × 74 mm; Cut-out 28.5 × 70.5 mm; Depth ≈ 53 mm; Weight ≈ 120 g

Configuration
Front keypad; NFC/RFID via MyPixsys App; USB memory card; LabSoftview PC software
