ATR244 1/16th DIN Universal Input PID Temperture and Process Controller
ATR244 1/16th DIN Universal Input PID Temperture and Process Controller
ATR244 1/16th DIN Universal Input PID Temperture and Process Controller
ATR244 1/16th DIN Universal Input PID Temperture and Process Controller

ATR244 1/16th DIN Universal Input PID Temperture and Process Controller

Regular price $179.00 Sale SKU:ATR244-12ABC
5 In stock* Ships in 4-5 weeks, if NOT in stock
* ships same or next day


UL Recognized Component Marks for Canada and the United States
  • Universal Input - Thermocouple, RTD, Thermistor, Voltage, Millivolt, Milliamp, Potentiometer
  • Models with Single or Dual Input
  • Multiple Outputs
  • Autotune or Manual Tune
  • Dual Action (Heating-Cooling)
  • Digital Inputs
  • Optional RS485 Modbus Communications
  • Analog Retransmission
  • Timers
  • Optional Heater Break Alarm

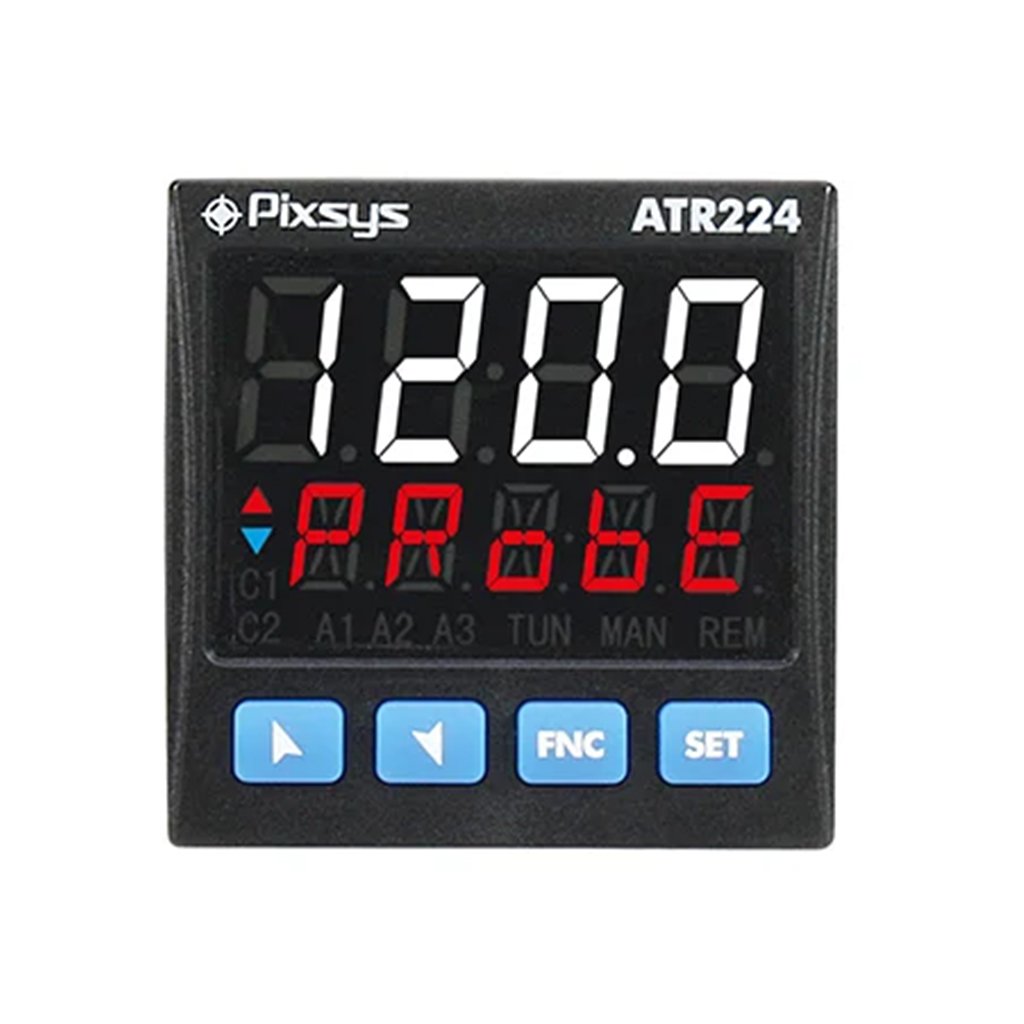

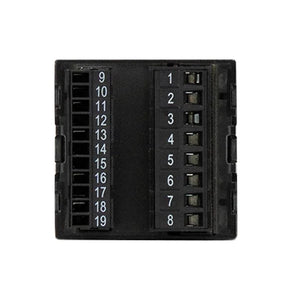

The ATR244 is a 1/16th DIN PID controller that has all of the features you need for even the most demanding process control applications. It has a high-performance display which ensures excellent readability and can be programmed with NFC/RFID technology via our App without the need for wiring and device power supply. It accepts most process sensors allowing it to work in temperature, pressure, flow and just about any other control application.

Universal Input
The ATR244 can accept inputs from most temperature and process sensors. The ATR244-12ABC has a single analog input and ATR244-23BC-T has two analog inputs.  The inputs can be configured for the following signal types:
  • Thermocouples: K, S, R, J, T, N, E, B
  • RTDs: PT100, PT500, PT1000, Ni100,
  • Thermistor: PTC1K, NTC10K (ß 3435K)
  • Process Signals: 0-1Vdc, 0-5Vdc, 0-10 Vdc, 0/4-20mA, 0-60 mVdc
  • Potentiometer: 1-150 KΩ


Models with Single or Dual Input
The ATR244-12ABC has a single analog input and ATR244-23BC-T has two analog inputs.  The dual input model can manage two processes with  two separate control loops or the two inputs can be used to perform mathematical operations between the two processes (sum, difference, average).

Multiple Outputs
The ATR244 is offered in two models and both models offer relays, pulse outputs for SSRs and analog outputs.

 ATR244-12ABC ATR244-23BC-T
2  Relays( one 2A SPDT, one2 A SPST) 3 Relays( one 2A SPDT, two A SPST)
2 SSR Outputs 2 SSR Outputs
1 Analog Output V / mA 2 Analog Outputs V / mA


Autotune or Manual Tune
All PID controllers need to be tuned to a process for optimal control.  The ATR244 can be set to automatic tuning which allows the controller to perform the tuning function or it can  be set to manual tune for those users who want full control over the tuning process.

Dual Action (Heating-Cooling)
The ATR244 can be used in both a heating and cooling mode.  Many controllers can perform heating or cooling but can only operate in one mode at a time.  That is they can operate in either heating or cooling.  ATR244 is suitable also for systems requiring a combined heating-cooling action.

Digital Input Functions
Both models offer two dedicated digital inputs.  The two SSR pulse outputs of the ATR244-23BC-T are mulit-function and programmable as digital inputs or digital outputs.  The digital inputs can be used to perform various functions including:
  • Changing setpoints
  • Activating/Deactivating Control
  • Switch Between Automatic and Manual Control
  • Switch Between Heating and Cooling Modes
  • Tare the Analog Input
  • Manually Reset Alarms
  • Activate/Deactivate the Timer


RS485 Modbus Communications(ATR244-23BC-T only)
The ATR244-23BC-T is equipped with RS485 and can receive/broadcast data via serial communication using MODBUS RTU protocol. This function enables the
control of multiple controllers connected to a supervisory system(SCADA). The controller can only be configured as a slave.

Analog Retransmission of Setpoint, Process Variable or Current Transformer Input
When the analog output is not used for control purposes it may be used to retransmit the process value, setpoint or the current transformer input.  The retransmission of the current transformer is only available on the ATR244-23BC-T.

Timers
The ATR244 has two timers that can be used independently or linked together.  The timers can be used to control the alarm outputs.

Heater Break Alarm (ATR244-23BC-T)
The ATR244-23BC-T has a 50mA input that will  accept a user supplier current transformer which can be used to monitor heater power. If there is a break in the heater power, the controller can activate an alarm.

To Order  (scroll to top of page and add to cart)
PART NUMBERS DESCRIPTION
ATR244-12ABC ATR244 controller with 1 analog Input, 2 relays,  2 SSR  outputs,  2 digital Inputs, 1 analog output, 24-230 Vac/ Vdc power input
ATR244-23BC-T ATR244 controller with 2 analog Input, 2 relays,  3 SSR  outputs,  2/4 digital Inputs, 2 analog outputs, RS485, current transformer inputs, 115-230 Vac power input.



SPECIFICATIONS

Inputs/Ranges
J Thermocouple: -200 to 1200°C (-328 to 2192°F)
K Thermocouple: -260 to 1360°C (-436 to 2480°F)
T Thermocouple: -260 to 400°C (-436 to 752°F)
N Thermocouple: -260 to 1280°C (-436 to 2336°F)
R Thermocouple: -40 to 1760°C (-40 to 3200°F)
S Thermocouple: -40 to 1760°C (-40 to 3200°F)
B Thermocouple: 100 to 1820°C (212 to 3308°F)
E Thermocouple: -260 to 980°C (-436 to 1796°F)
Pt100 RTD: -200 to 600°C (-328 to 1112°F)
Pt500 RTD: -200 to 600°C (-328 to 1112°F)
Pt1000 RTD: -200 to 600°C (-328 to 1112°F)
Ni100 RTD: -60 to 180 (-76 to 356°F)
Ni120 RTD: -60 to 240 (-76 to 464°F)
NTC 10K Thermistor ß3694K: -40°C to 150°C(-40 to 302°F)
NTC 2252 Thermistor ß3976K: -40°C to 150°C(-40 to 302°F)
Potentiometer: 1 to 150KO
Current: 0-20 mA, 4-20 mA
Voltage: 0–60 mV, 0-1 Vdc 0-5 Vdc, 0-10 Vdc

Accuracy of Inputs(@25°): 0.2% ±1 digit (F.S.), Cold junction accuracy 0.1° C/°C

Impedance:
0-10 V: Ri>110 KΩ
0-20 mA: Ri<5 Ω
0-40 mV: Ri>1 MΩ

Analog Output: 4-20 mA or 0-10V for control or retransmission of PV and SP
Control Outputs: Relay 2A, 250 VAC for resistive load, SSR outputs 12/24V, 25mA.
Sample Rate: Programmable up to 2.1 ms (470 Hz)
Dimensions: 48 x 48 x 88 mm (1/16 DIN)
Panel Cutout: 46 x 46 mm
Weight: 185 g
Ingress Protection: Front panel-IP65; Box and terminal blocks - IP20
Power Supply
  ATR244-12ABC: 24-230 VAC/ VDC ±15% 50/60 Hz ,6 Watt/VA
  ATR244-23BC-top: ;115-230 VAC ±15% 50/60 Hz, 12 Watt/VA
Operating Temperature: 5 to 45 °C
Operating Relative Humidity: 35-95 RH%
Certifications: CE and UL
