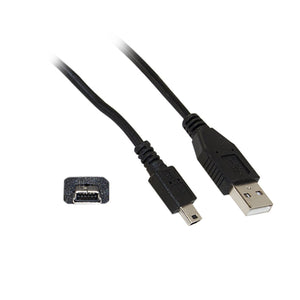

The CAB-USB-MINI-B-3 a USB type A male connection to be plugged into a computer on one side. On the other side is a USB mini-B type connector with 5 pins. This USB-A male to mini USB-B male cable features gold contacts to prevent corrosion and prolong the life of the cable. A USB 2.0 cord offers the fastest USB speeds currently available on most devices and is fully backwards compatible with USB 1.0 and USB 1.1. The length of the cable is 3 ft.
To Order the model below scroll to the top of the page then click on ADD TO CART button |
PART NUMBERS | DESCRIPTION |
CAB-USB-MINI-B-3 | Micro USB 2.0 Cable, Type A to Mini B, 3ft |
SPECIFICATIONS
Electrical Characteristics
Rate Voltage: AC 5V (rms)
Rate Current: 1A
Withstanding Voltage: AC 100V (rms) 1 minute
Insulation Resistance: 100M@ min. (at 500V DC)
Contact Resistance: 500m@ max.
Propagation Delay: 26ns max.
Skew: 100pS max.
Character Impedance: 90@+-15%
Mechanical Characteristics
Total Insertion Force: 35 Newtons
Total Widthdrawal Force: 3 Newtons
Life (Mating cycle): 5,000
Cable Specifications
Conductor: 30Awg (11/0.08) *4C
Filler: Fiber 250D*2
Al/Mylar: Overlap 25%
Braid Copper: 85% 16/5/0.08TA
Color: Black;PMS 426C
O.D.: 2.8+-0.10mm
