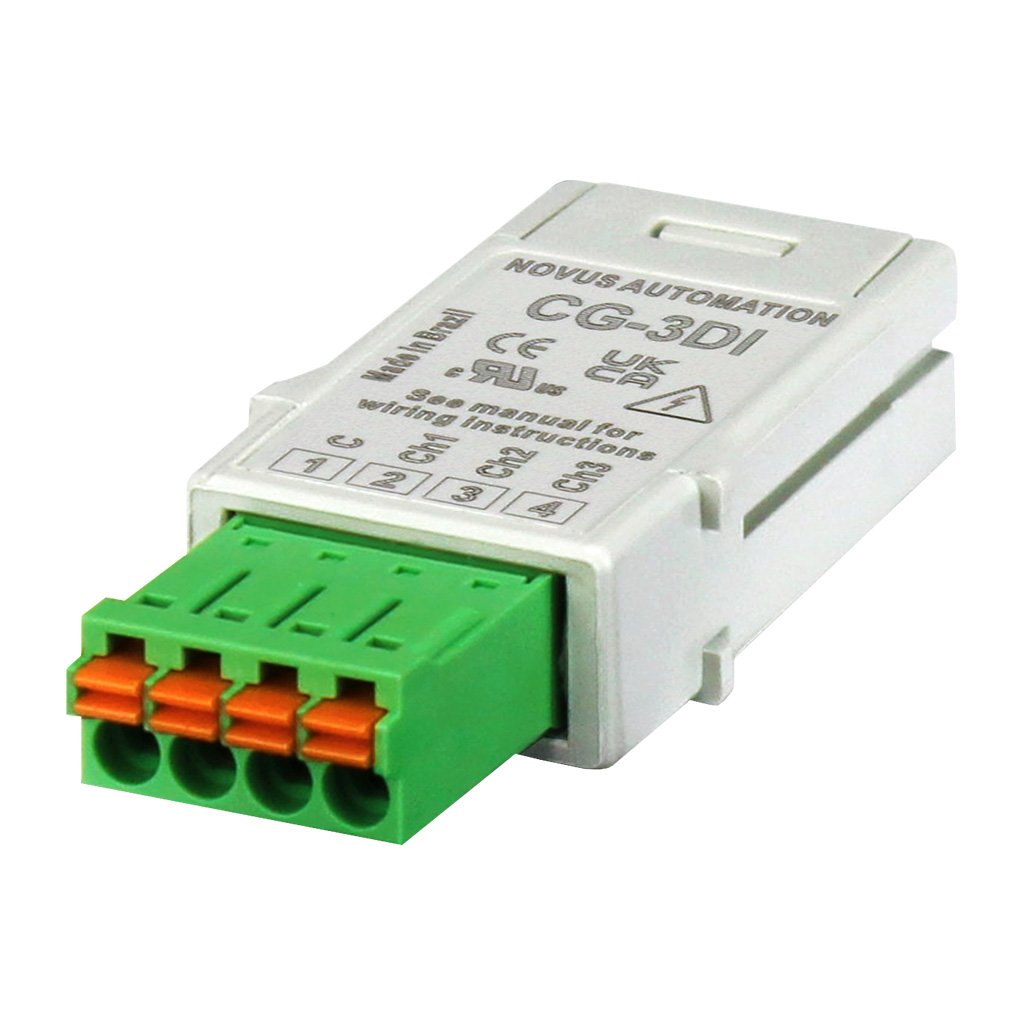

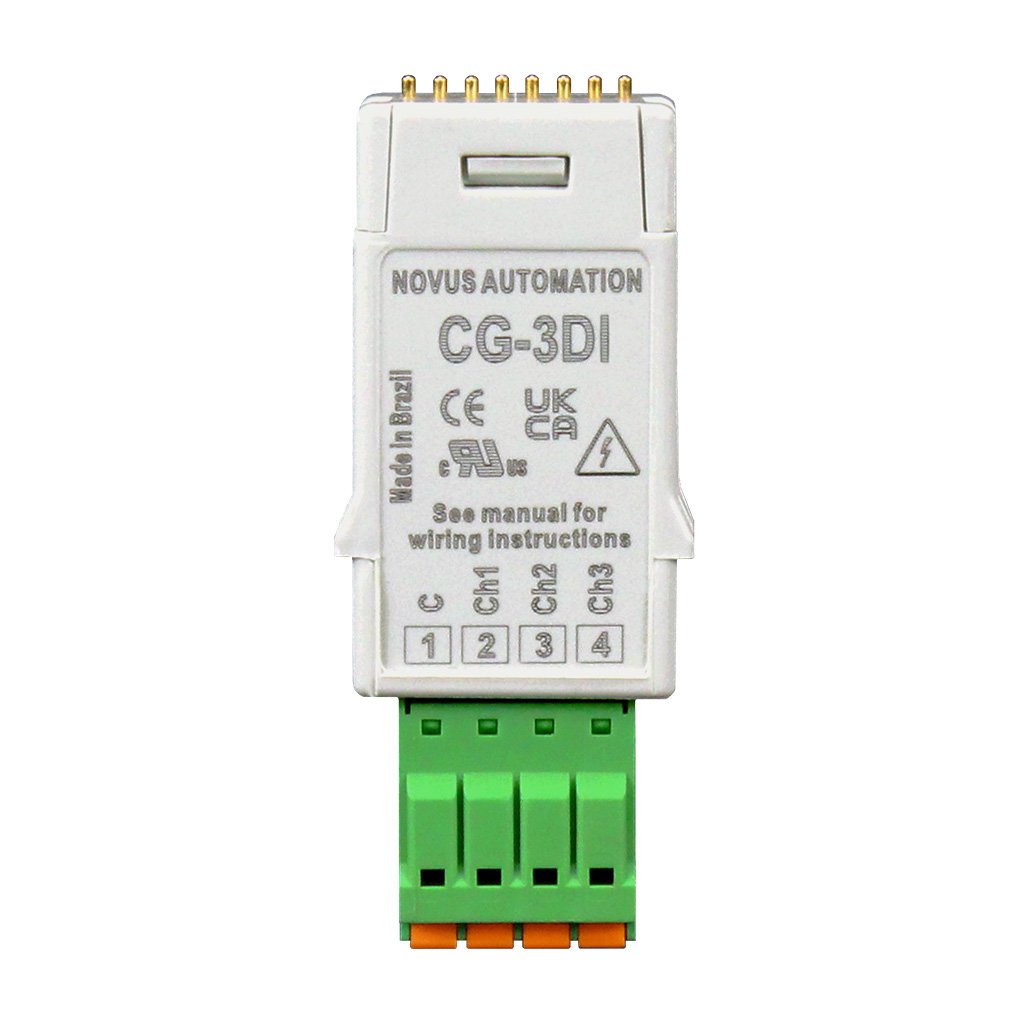

CG-3DI Digital Input ClickNGo Module for the N20K48 Modular PID Controller – 3 Channels of Digital Input
CG-3DI Digital Input ClickNGo Module for the N20K48 Modular PID Controller – 3 Channels of Digital Input

CG-3DI Digital Input ClickNGo Module for the N20K48 Modular PID Controller – 3 Channels of Digital Input

Regular price $21.00 Sale SKU:CG-3DI
11 In stock* Ships in 2-4 weeks, if NOT in stock
* 4 available for immediate shipment, 7 ship in 3-4 days

  • 3 Digital Inputs
  • Inputs Configurable as  NPN, PNP or Dry Contact
  • Plug and Play Configuration

The CG-3DI ClickNGo  module is a digital input expansion module for the N20K48 of modular controller. The CG-3DI adds three digital inputs to the NK2048 controller.  Used in conjunction with the controller dock, once inserted, it is automatically recognized by the controller. Its configuration parameters are referenced to the dock slot into which the module has been inserted. The CG-3DI module can be configured through the controller's keyboard, QuickTune software or QuickTune Mobile software.

SPECIFICATIONS
Inputs: 3 digital inputs channels, configurable as NPN, PNP, dry contact types
Operating Temperature: -20 to 60 °C (-4 to 140 °F)
Relative Humidity: 80 % max. @ 30 °C (86 °F) (For temperatures above 30 °C (86 °F), reduce by 3 %for each °C)
UL: 61010-1/A2:2012
Dimension: 53.8 x 10.6 x 22.2 mm
Weight: 10 g
Protection: IP50 when installed in controller
Software: QuickTune (for PC), QuickTune Mobile (for mobile devices)
Certifications: CE, UKCA



 To Order click on the model below or  scroll to the top of the page and select the model number then  click on ADD TO CART button
 PART NUMBERS DESCRIPTION
CG-3DIIn Stock Digital input ClickNGo module for the N20K48 modular PID controller – 3 channels of digital input



 Downloads

CG-3DI Data Sheet



SPECIFICATIONS
Inputs: 3 digital inputs channels, configurable as NPN, PNP, dry contact types
Operating Temperature: -20 to 60 °C (-4 to 140 °F)
Relative Humidity: 80 % max. @ 30 °C (86 °F) (For temperatures above 30 °C (86 °F), reduce by 3 %for each °C)
UL: 61010-1/A2:2012
Dimensions: 53.8 x 10.6 x 22.2 mm
Weight: 10 g
Protection: IP50 when installed in controller
Software: QuickTune (for PC), QuickTune Mobile (for mobile devices)
Certifications: CE, UKCA
