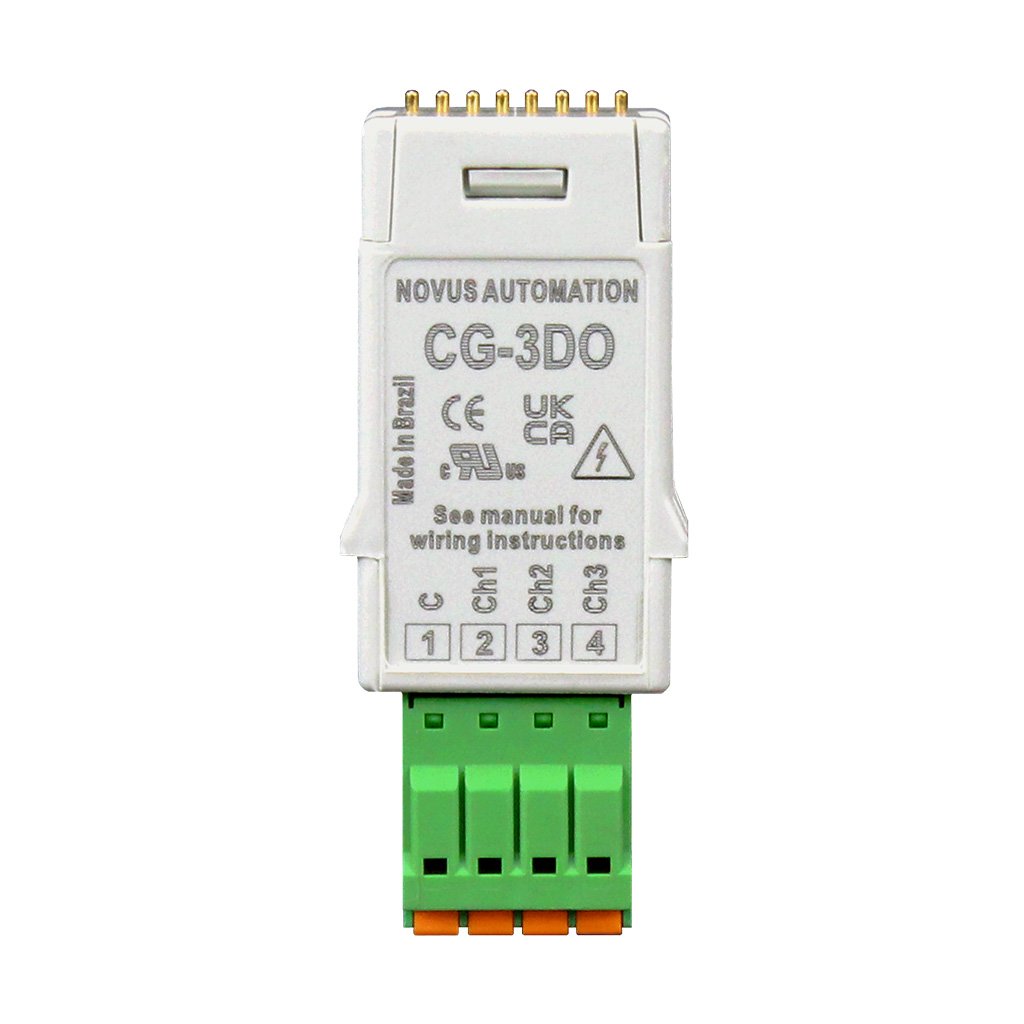

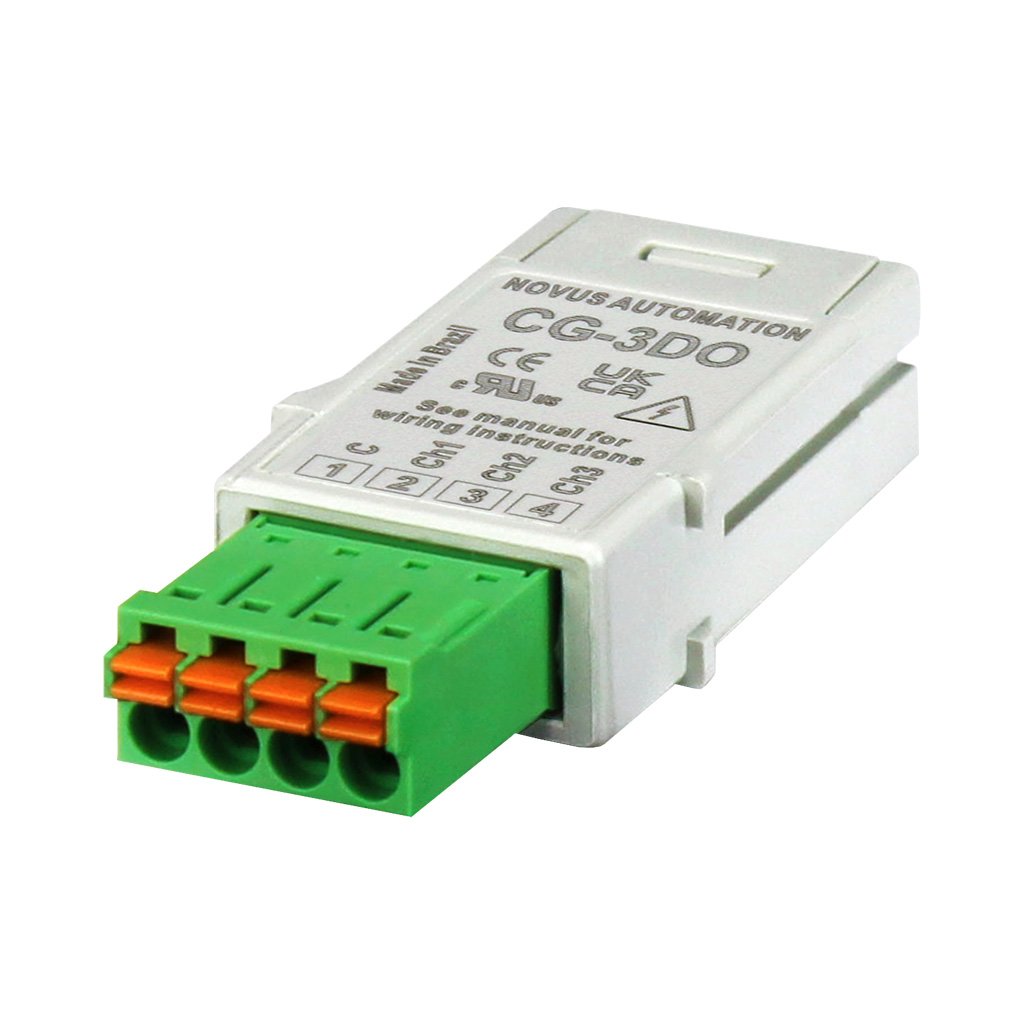

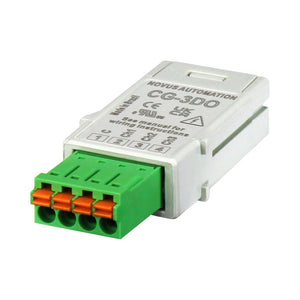

CG-3DO Voltage Pulse Ouput ClickNGo Module for the N20K48 Modular PID Controller - 3 Channels of Voltage Pulse Output
CG-3DO Voltage Pulse Ouput ClickNGo Module for the N20K48 Modular PID Controller - 3 Channels of Voltage Pulse Output

CG-3DO Voltage Pulse Ouput ClickNGo Module for the N20K48 Modular PID Controller - 3 Channels of Voltage Pulse Output

Regular price $21.00 Sale SKU:CG-3DO
2 In stock* Ships in 2-4 weeks, if NOT in stock
* ships same or next day

  • 3 Pulse (5V) Outputs
  • Outputs Configurable as  Control Output, Alarm Output, Timer Output or Modbus-Coil
  • Plug and Play Configuration


The CG-3DO ClickNGo module is a digital output expansion module for the N20K48 of modular controller. The CG-3DO adds three 3 pulse voltage outputs (+5V) to the NK2048 controller.  Used in conjunction with the controller dock, once inserted, it is automatically recognized by the controller. Its configuration parameters are referenced to the dock slot into which the module has been inserted. The CG-3DO module can be configured through the controller's keyboard, QuickTune software or QuickTune Mobile software.



 To Order click on the model below or  scroll to the top of the page and select the model number then  click on ADD TO CART button
 PART NUMBERS DESCRIPTION
CG-3DOIn Stock Pulse output ClickNGo module for the N20K48 modular PID controller – 3 channels of pulse output



 Downloads

CG-3DO Data Sheet



SPECIFICATIONS
Operating Temperature: -20 to 60 °C (-4 to 140 °F)
Relative Humidity: 80 % max. @ 30 °C (86 °F) (For temperatures above 30 °C (86 °F), reduce by 3 %for each °C)
Dimensions: 53.8 x 10.6 x 22.2 mm
Weight: 10 g
Protection: IP50 when installed in controller
Software: QuickTune (for PC), QuickTune Mobile (for mobile devices)
Certifications: CE, UKCA
