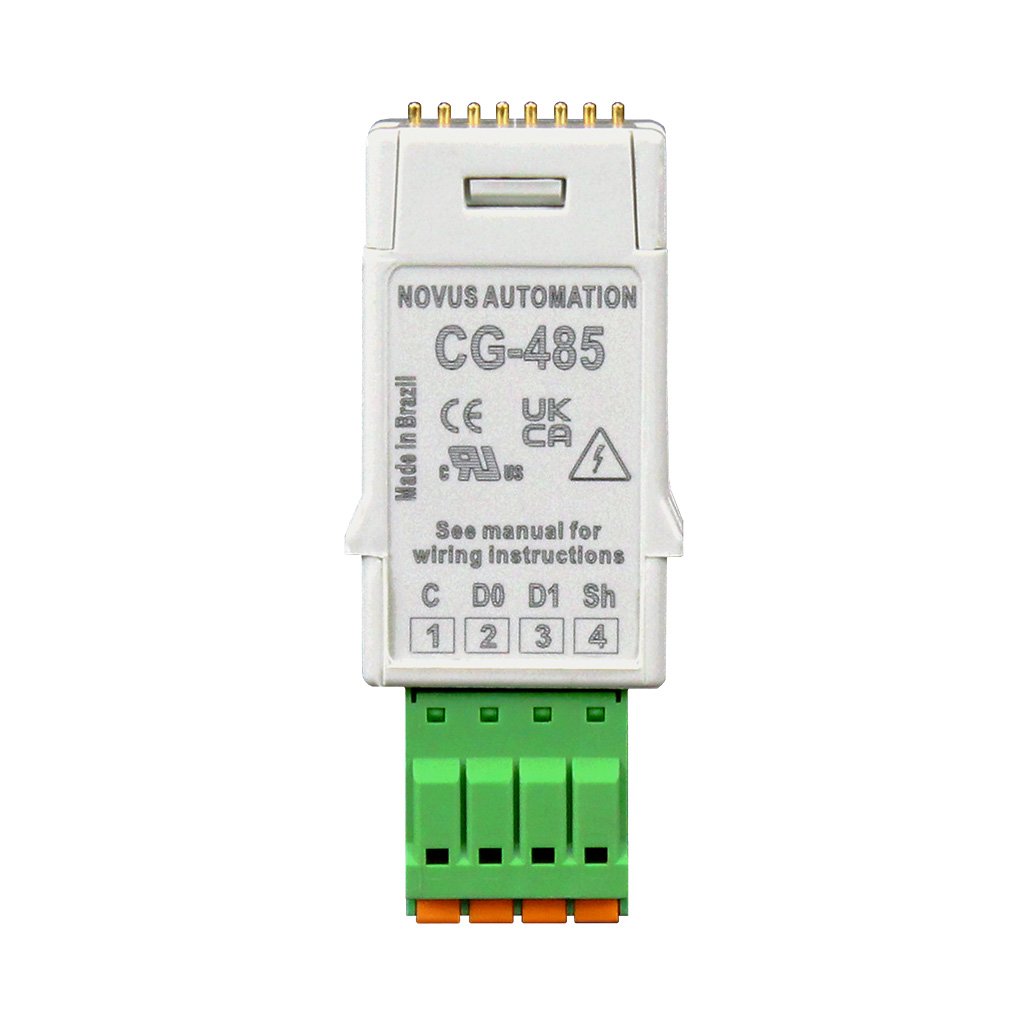

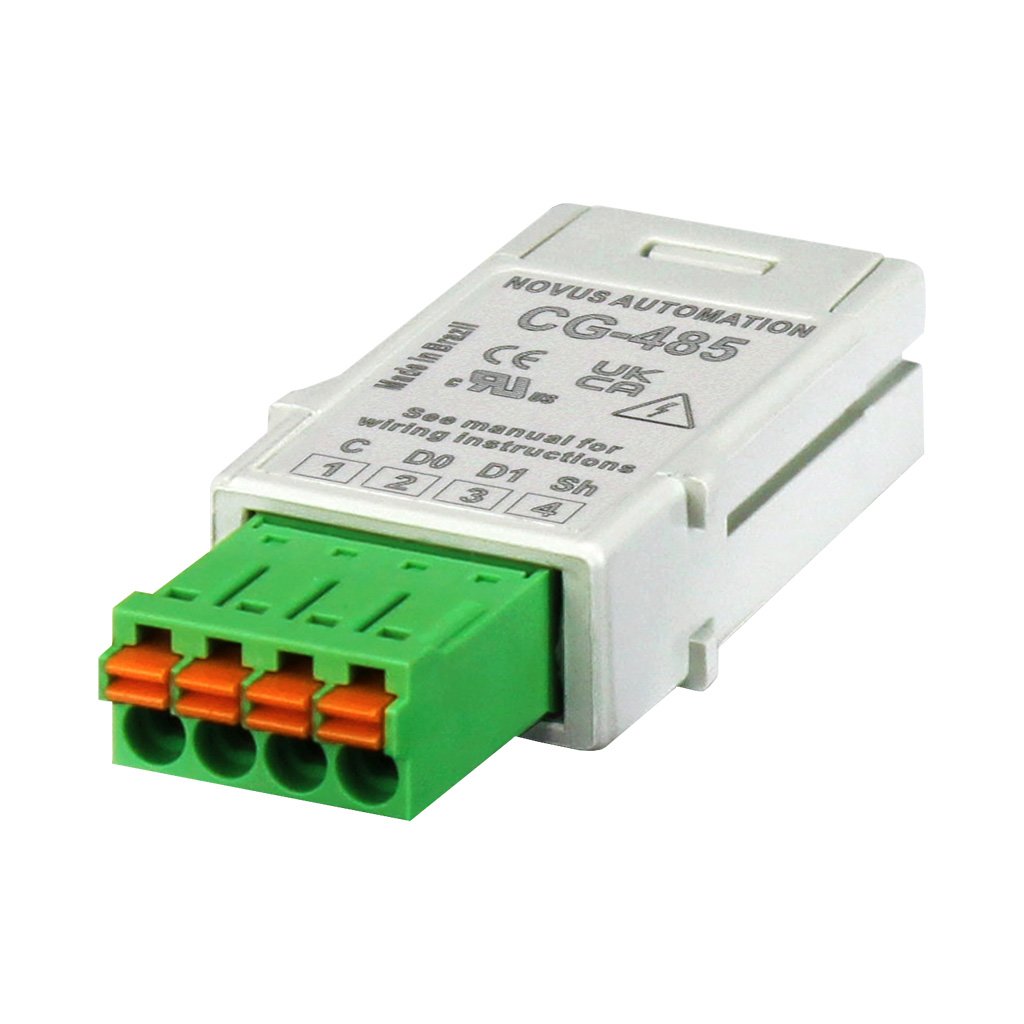

CG-485 RS485 Digital Communications ClickNGo Module for the N20K48 Modular PID Controller

Free Shipping! - USA Orders Over $75, Canada Orders Over $125

CG-485 RS485 Digital Communication ClickNGo Module for the N20K48 Modular PID Controller
CG-485 RS485 Digital Communication ClickNGo Module for the N20K48 Modular PID Controller

CG-485 RS485 Digital Communication ClickNGo Module for the N20K48 Modular PID Controller

Regular price $54.00 Sale SKU:CG-485
9 In stock* Ships in 2-4 weeks, if NOT in stock
* 5 available for immediate shipment, 4 ship in 2-3 days

  • Adds RS485 Communications to N20K48 Controllers
  • Supports MODBUS RTU Protocol
  • 2-wire Connection to Up to 247 Devices
  • Up to 1000 Meter Connection Distance
  • Plug and Play Configuration

The CG-485 ClickNGo module is an RS485 digital communications expansion module for the N20K48 of modular controller. Used in conjunction with the controller dock, once inserted, it is automatically recognized by the controller. Its configuration parameters are referenced to the dock slot into which the module has been inserted. The CG-3DO module can be configured through the controller's keyboard, QuickTune software or QuickTune Mobile software.



 To Order click on the model below or  scroll to the top of the page and select the model number then  click on ADD TO CART button
 PART NUMBERS DESCRIPTION
CG-485 RS485 Digital Communications RS485 ClickNGo Module for the N20K48 Modular PID Controller



 Downloads

CG-485 RS485 Data Sheet



SPECIFICATIONS
Operating Temperature: -20 to 60 °C (-4 to 140 °F)
Relative Humidity: 80% max. @ 30 °C (86 °F) (For temperatures above 30°C (86°F), reduce by 3 %for each °C)
Dimension: 53.8 x 10.6 x 22.2 mm
Weight: 10 g
Protection: IP50 when installed in controller
Software: QuickTune (for PC), QuickTune Mobile(for mobile devices)
Certifications: CE, UKCA
