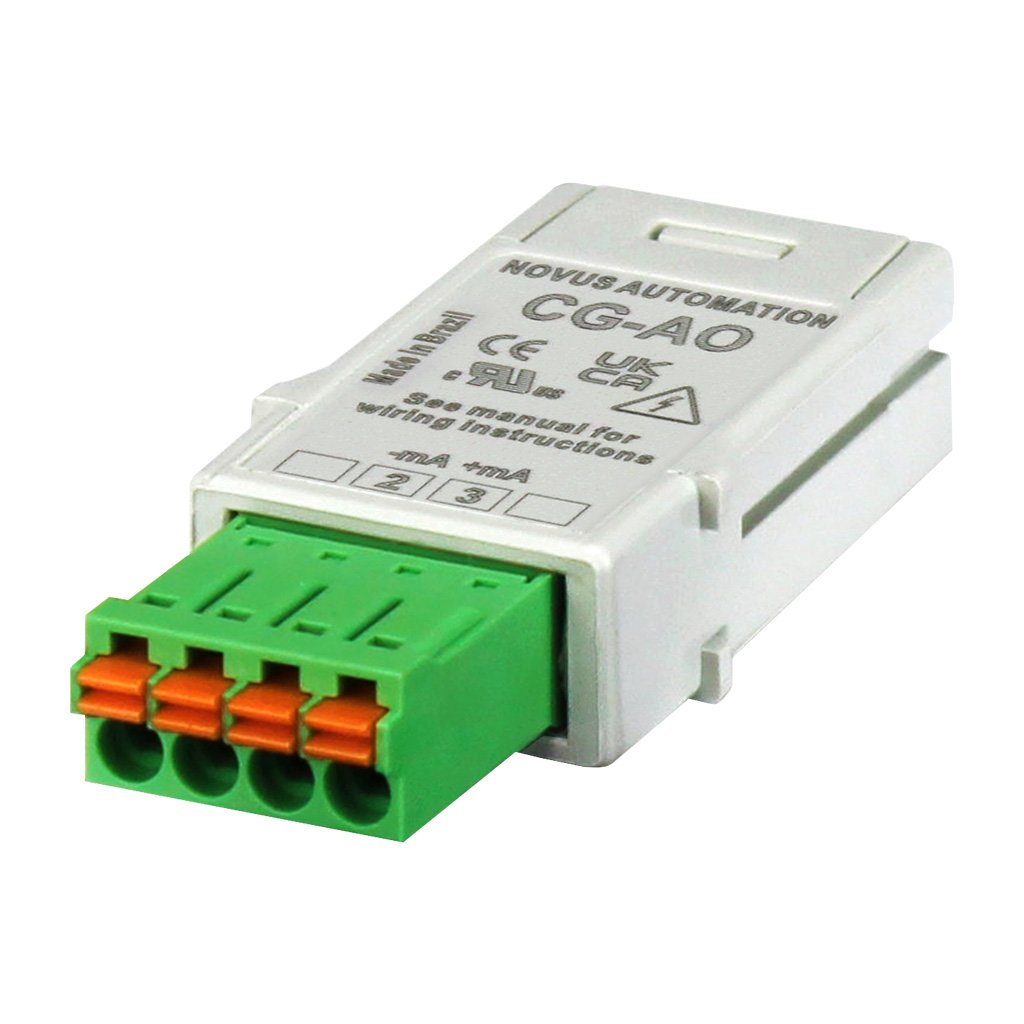

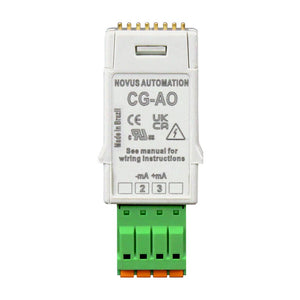

CG-AO Analog Output ClickNGo Module for the N20K48 Modular PID Controller - 1 Analog Output Channel
CG-AO Analog Output ClickNGo Module for the N20K48 Modular PID Controller - 1 Analog Output Channel

CG-AO Analog Output ClickNGo Module for the N20K48 Modular PID Controller - 1 Analog Output Channel

Regular price $33.00 Sale SKU:CG-AO
32 In stock* Ships in 2-4 weeks, if NOT in stock
* 8 available for immediate shipment, 24 ship in 2-3 days

  • 0-20 mA or 4-20mA  Output
  • 600 Vac Isolation
  • Output Configurable as Control Output, Setpoint Retransmission or  Process Variable Retransmission
  • Plug and Play Configuration


The CG-485 ClickNGo module is an analog output expansion module for the N20K48 of modular controller. It adds one channel of isolated analog output to the N20K48 controller.  Used in conjunction with the controller dock, once inserted, it is automatically recognized by the controller. Its configuration parameters are referenced to the dock slot into which the module has been inserted. The CG-3DO module can be configured through the controller's keyboard, QuickTune software or QuickTune Mobile software.



 To Order click on the model below or  scroll to the top of the page and select the model number then  click on ADD TO CART button
 PART NUMBERS DESCRIPTION
CG-AOIn Stock Analog Output ClickNGo Module for the N20K48 Modular PID Controller - 1 Analog Output Channel



 Downloads

CG-AO Data Sheet



SPECIFICATIONS
Analog Output Types: 0 to 20 mA or 4 to 20 mA
Current Accuracy: 0.25% @ 25°C
Resolution: 0.00125 mA (14 bits)
Thermal Drift: 0.005% /°C
Maximum Load Impedance: 500 Ohms
Output Voltage Capacity: 10V
Maximum Voltage Output With No Load: 16V
Electrical Isolation: 600 Vac
Operating Temperature: -20 to 60°C (-4 to 140 °F)
Relative Humidity: 80% max. @ 30 °C (86 °F) (For temperatures above 30°C (86°F), reduce by 3% for each °C)
Dimensions: 53.8 x 10.6 x 22.2 mm
Weight: 10g
Protection: IP50 when installed in controller
Software: QuickTune (for PC), QuickTune Mobile(for mobile devices)
Certifications: CE, UKCA
