- 6 analog output channels
- 16-bit resolution
- Output signals: 4-20mA, 0-20mA, 0-5V, 1-5V, 0-10V
- High accuracy: ±0.05% of Span ±0.0025% /˚C
- Fast output setting time: 0.1 second (stable to 99.9%)
- Isolation breakdown voltage: 1500VAC at 50/60Hz for 1 minute
- Compatible with PR10, PR20, and PR30 paperless chart recorders

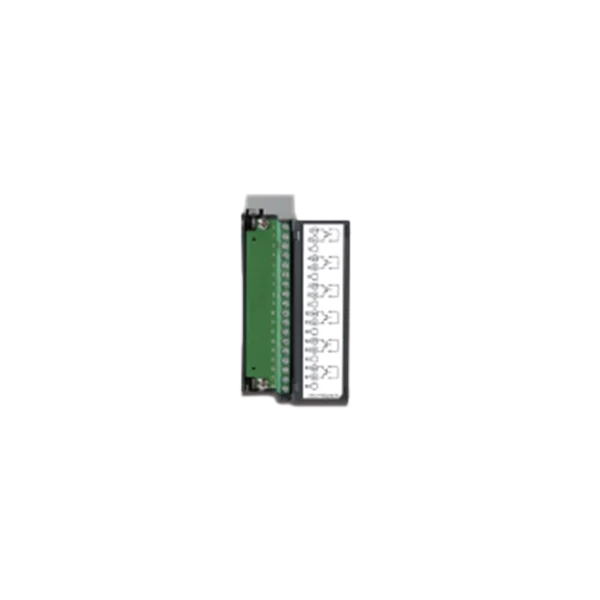

The AO206 is an expandable analog output card designed for use with PR10, PR20, or PR30 paperless chart recorders. Each card provides 6 analog output channels for current and voltage signals, supporting a wide range of industrial applications.
Expansion Slots
The PR10 and PR20 recorders support up to 4 rear expansion slots, while the PR30 provides up to 16 rear expansion slots for scalable system design.
SPECIFICATIONS
Channels
6 channels per card
Output Signal
4-20mA, 0-20mA, 0-5V, 1-5V, 0-10V
Resolution
16 bits
Accuracy
±0.05% of Span ±0.0025% /˚C
Load Resistance
0-500Ω (current), 10KΩ minimum (voltage)
Output Regulation
0.01% for full load change
Output Setting Time
0.1 second (stable to 99.9%)
Isolation Breakdown Voltage
1500VAC at 50/60Hz for 1 minute
Integral Linearity Error
±0.005% of Span
Temperature Effect
±0.0025% of Span /˚C
