Accurate Thermal Systems Fluidized Temperature Baths Model FTBSL6
Accurate Thermal Systems Fluidized Temperature Baths Model FTBSL6

Accurate Thermal Systems Fluidized Temperature Baths Model FTBSL6

Regular price $5,585.00 $5,485.00 Sale

  • Fully Automatic Fluidizing Air Control
  • Cover and Lid Design that Minimizes Media Loss
  • Independent Over-Temperature Limit Protection
  • Fast Heat Up, Excellent Stability, Uniformity & Accuracy
  • 1900 Watt Heat Capacity
  • Compact Size for Placement on Standard Lab Benches
  • Portable, only 45 lbs with Aluminum Oxide
  • RS485 Interface for PC Connection & Downloadable Windows Software
  • CE, Designed & Mfg in USA
  • Ships In 1-2 Days For Fast and FREE Delivery!

With over 25 years of experience with Fluidized Bath technology, Accurate Thermal Systems has developed a range of products that offer outstanding performance, safety, features and value that are unmatched in the marketplace. Unlike competing Fluidized baths, these systems have a smaller footprint, include advanced features and cost thousands of dollars less. In addition, they are much safer than salt baths with thermal response that is 2 to 3 times faster than ovens.

Fluidized Temperature Baths have been the heat source of choice for over 20 years by many Fortune 500 plastic, medical device manufacturers as well as companies who require fast heat up of their immersed devices, sensors and materials with minimal quenching.

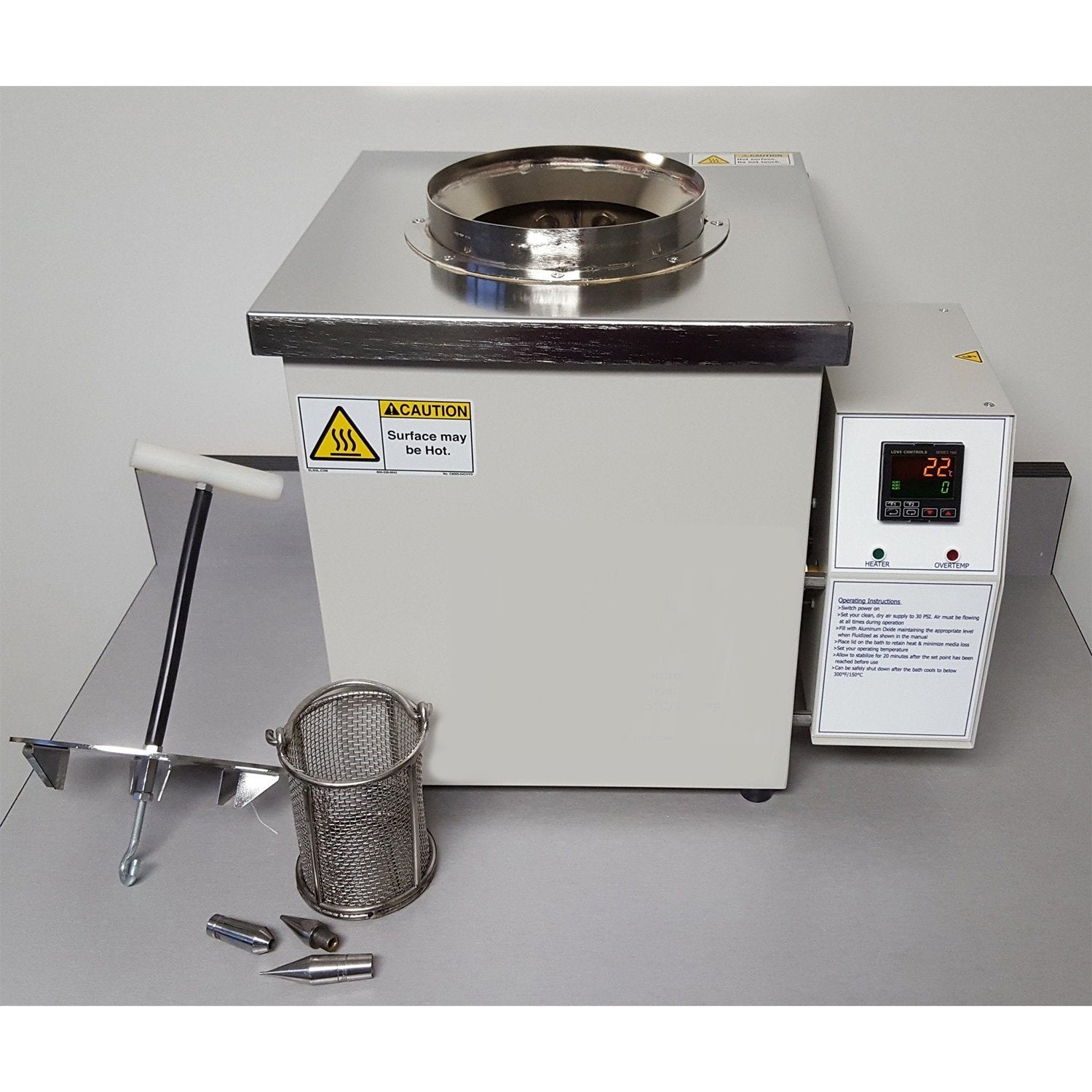

Unique bath cover and lid design minimizes media loss. Media loss is either blocked by the lid or collected on the cover flange which then drops back into the system. The lid with handle is lowered into the fluidized bath for cleaning parts, heat treating or calibrating temperature sensors.

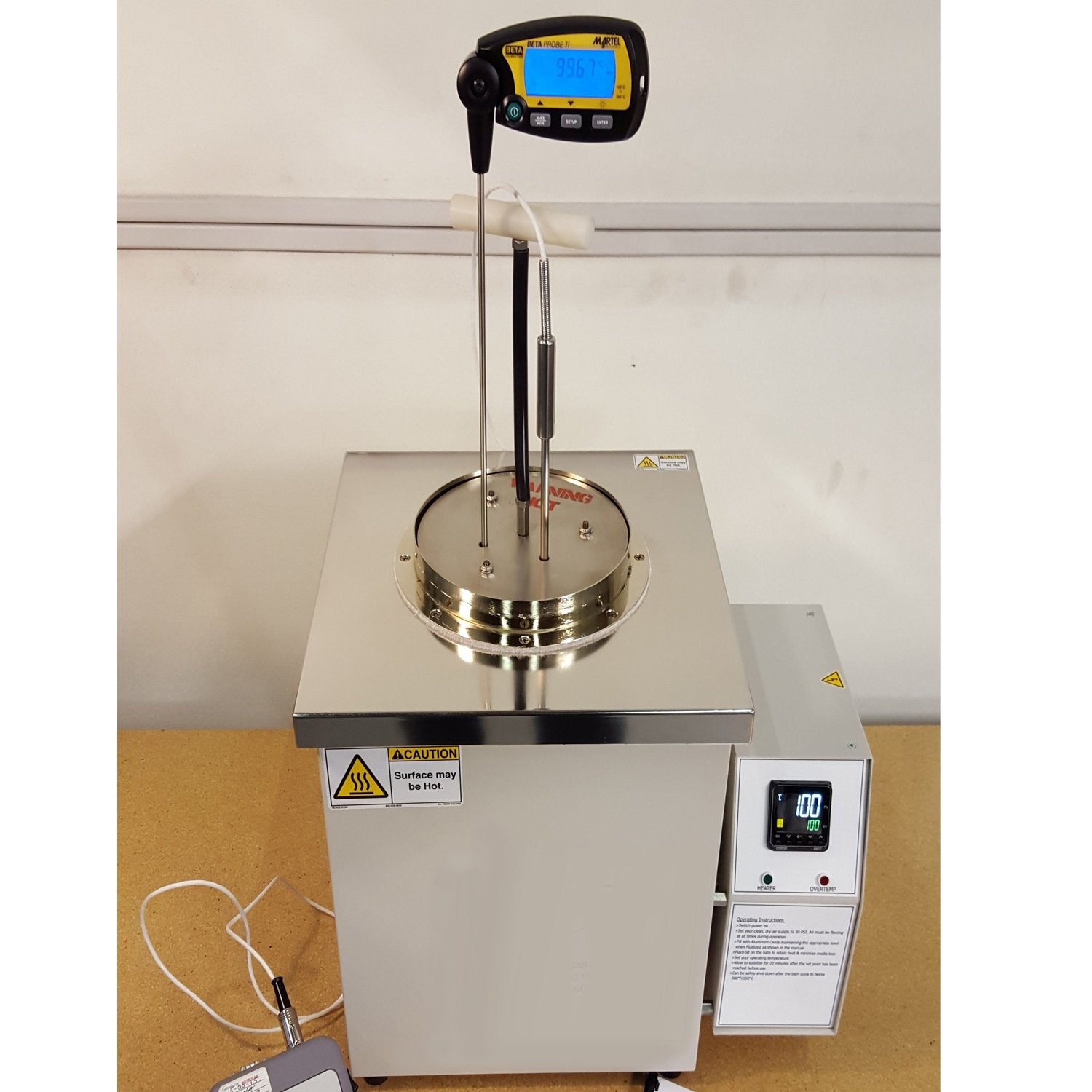

An eyelet is added to the lid for suspending an optional basket (part # CL-AC-ATS1080) for parts cleaning or device heat treatment. The optional probe support (part # CL-AC-ATS3082) will suspend temperature sensors and thermometers into the fluidized bath for calibration. The probe holder immersion depth can be adjusted for  added flexibility. Drill holes into the lid for the diameters you require. The lid is easily modified for immersing apparatus, assemblies and small reactors for heating.

Applications: thermal cleaning of small extrusion tooling, polymer rheometer and melt flow indexers parts, nitinol stent shape setting, temperature sensor and system calibration, reactor heating, and general heat treatment of devices and materials.

System Requirement: 120 VAC mains, 50/60 hz-20 amp supply or 240 VAC mains, 50/60 hz-10 amp supply. A clean air supply at a fixed 30 PSI, max flow of 1.8CFM.

Units come with: 20 lbs of media, bath cover and lid.

 To Order the models below scroll to the top of the page and choose the desired model from the "Input Power" drop down menu, then ADD TO CART
 PART NUMBERS DESCRIPTION
CL-AC-ATS2016 FLUIDIZED SAND BATH, 120 VOLT
CL-AC-ATS2018 FLUIDIZED SAND BATH, 240 VOLT
ACCESSORIES
CL-AC-ATS1078 SPARE LID w/HANDLE
CL-AC-ATS1080

BASKET, 3.5" x 5" DEPTH

CL-AC-ATS1076

SPARE ALUMINUM OXIDE, 20 LBS

CL-AC-ATS3082

PROBE SUPPORT for TEMPERATURE SENSORS







 Datasheets, Operating Manuals and Downloads

FTBSL6 Fluidized Bath Datasheet

FTBSL6 Instruction Manual

Visit the FTBSL6 page on the Accurate Thermal Systems website to download:

  • SDS for Brown Aluminum oxide
  • SDS for White Activated Alumina
  • AccuTherm FTB Software V814
  • Fume Ventilation Diagrams for Fluidized Baths
  • CE Declaration of Conformance Fluidized Baths



SPECIFICATIONS

TEMPERATURE RANGE: 50 TO 605C

WORKING VOLUME: 5.3 dia x 6" depth (134mm X 152mm)

TYPICAL STABILITY THRU OPERATING RANGE: +/-0.3C

DEAD BED STABILITY (5 minute period): +/-0.04C

CALIBRATED ACCURACY: +/-2.0C

HEAT UP TIME TO 600C FROM AMBIENT: 70 minutes

COOL DOWN TIME, 600C TO 200C: 130 minutes

HEAT POWER, 1 PHASE, 50/60 HZ: 1920 watts

AIR PRESSURE & MAX FLOW REQUIRED: 30 PSI, 1.8 CFM (2.1 bar, 50 lpm)

DIMENSIONS: 15" H x 17" W x 13" D (381mm x 432mm x 330mm)

WEIGHT w/ALUMINUM  OXIDE: 45 lbs (unit only 32 lbs, 14.5 kgs)

WARRANTY: 1 year
