General Tools DPH208R pH/mV Meter w/RS232
General Tools DPH208R pH/mV Meter w/RS232

General Tools DPH208R pH/mV Meter w/RS232

Regular price $115.00 $113.00 Sale

  • Professional pH/mV meter
  • RS232C Computer Serial Interface
  • Wide Manual Temperature Compensation Adjustment
  • Large Dual LCD display
  • Record MIN/MAX reading w/Recall
  • Data Hold, Auto Shut Off, C/F Selectable by Push Button
  • pH function w/High Impedance avoids measuring errors
  • In Stock for FAST and FREE Delivery!

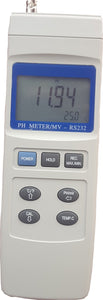

General Tool's DPH208R is a professional pH/mV meter with a pH range of 0 to 14 pH x 0.01 pH. The meter measures mV to 1999 mV. It's  microprocessor circuitry assures high accuracy and reliable performance. pH calibration is easily done via the push button on the front panel.

Wide applications include: water conditioning, aquariums, beverage, fish hatcheries, food processing, photography, laboratory, paper industry, quality control, school and colleges research.

 To Order the model or accessory below scroll to the top of the page and choose the desired model or accessory from the "Professional pH/mV mete" drop down menu, then ADD TO CART
 PART NUMBER DESCRIPTION
PH-GT-DPH208R Professional pH/mV meter
ACCESSORY
SW-GT-ASFTKIT Software & Cable Kit



SPECIFICATIONS

CIRCUIT: Custom one-chip microprocessor LSI circuit

DISPLAY: 51 mm x 32 mm dual function LCD, 15 mm digit size

MEASUREMENT

pH: 0-to 14 pH

mV: -1999 mV to 1999 mV

INPUT IMPEDANCE: 10^12 ohm

TEMPERATURE COMPENSATION FOR pH MEASUREMENT

Manual: 0-10C, adjusted by push button on front panel

Auto (ATC): with optional temp probe (model TP-07) 0-65C

pH CALIBRATION: pH7, pH4, pH10, 3 pts cal

DATA HOLD: Holds the current reading value on the display

MEMORY RECALL: MIN & MAX reading values saved & retrieved by record function

POWER OFF: Auto save or manual off by push button

DATA OUTPUT: RS232 computer serial interface

OVERLOAD INDICATION: "----" symbol

OPERATING TEMP: 0C to 50C (32F to 122F)

OPERATING HUMIDITY: Max 80% RH

SAMPLING TIME: Approx 0.8 second

POWER SUPPLY: 9V battery

POWER CURRENT: Approx DC 7 mA

WEIGHT: 250 g/0.55 lb, w/battery

SIZE: 195 x 68 x 30 mm (7.6 x 2.6 x 1.2 inch)

ELECTRICAL SPECIFICATIONS

 Measurement Range Resolution Accuracy
pH 0 to 12 pH 0.01pH +/- (0.02 pH + 2 d)
mV 0 to 1999 mV 1 mV +/- (0.5% + 2 d)
