- Three-in-one measurement of atmospheric pressure, temperature, and humidity
- Connects to the Internet through the GW1 Gateway(sold separately)
- LoRa wireless communication for long-range, low-power connectivity
- IP65-rated enclosure for reliable use in demanding environments
- Ultra-low power design with battery or external DC power options
- Local storage for up to 50,000 sensor records during network interruptions
- Wireless deployment with built-in mounting holes and included mounting accessories
- Quick device binding by scanning the QR code with the mobile app
- Compatible with the UbiBot IoT platform for remote monitoring from phones, tablets, and computers

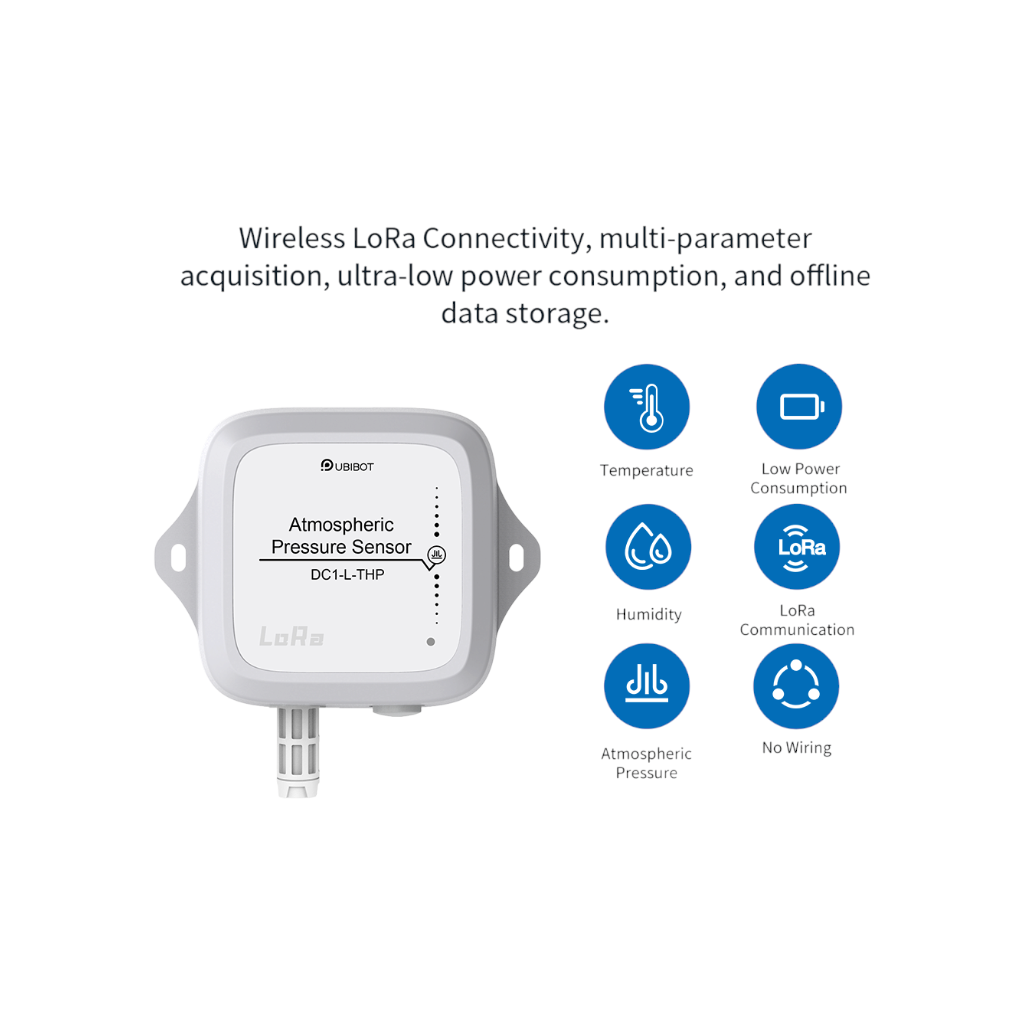

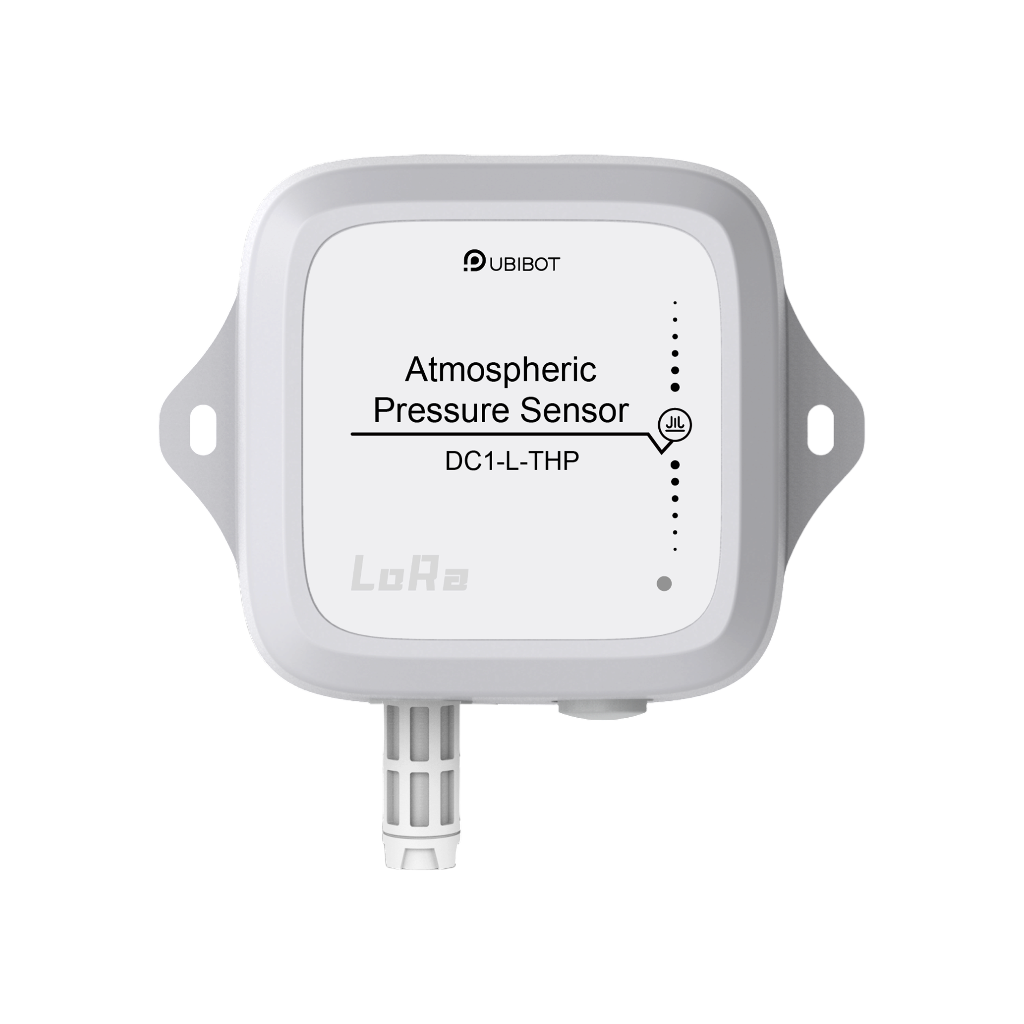

The LoRa Atmospheric Pressure Sensor DC1-L-THP is a multi-parameter environmental monitoring device designed to simultaneously measure atmospheric pressure, temperature, and humidity. Its integrated design provides comprehensive monitoring for applications such as environmental monitoring, meteorological research, office spaces, smart buildings, agricultural monitoring, and industrial environments.
Using LoRa wireless technology, the DC1-L-THP provides long-range communication with ultra-low power consumption. The sensor communicates with a compatible GW1 gateway, which then connects to the IoT platform through Wi-Fi, mobile network, or RJ45 Ethernet. This allows users to monitor device status and environmental data in real time from mobile phones, tablets, and computers while reducing wiring complexity and deployment cost.

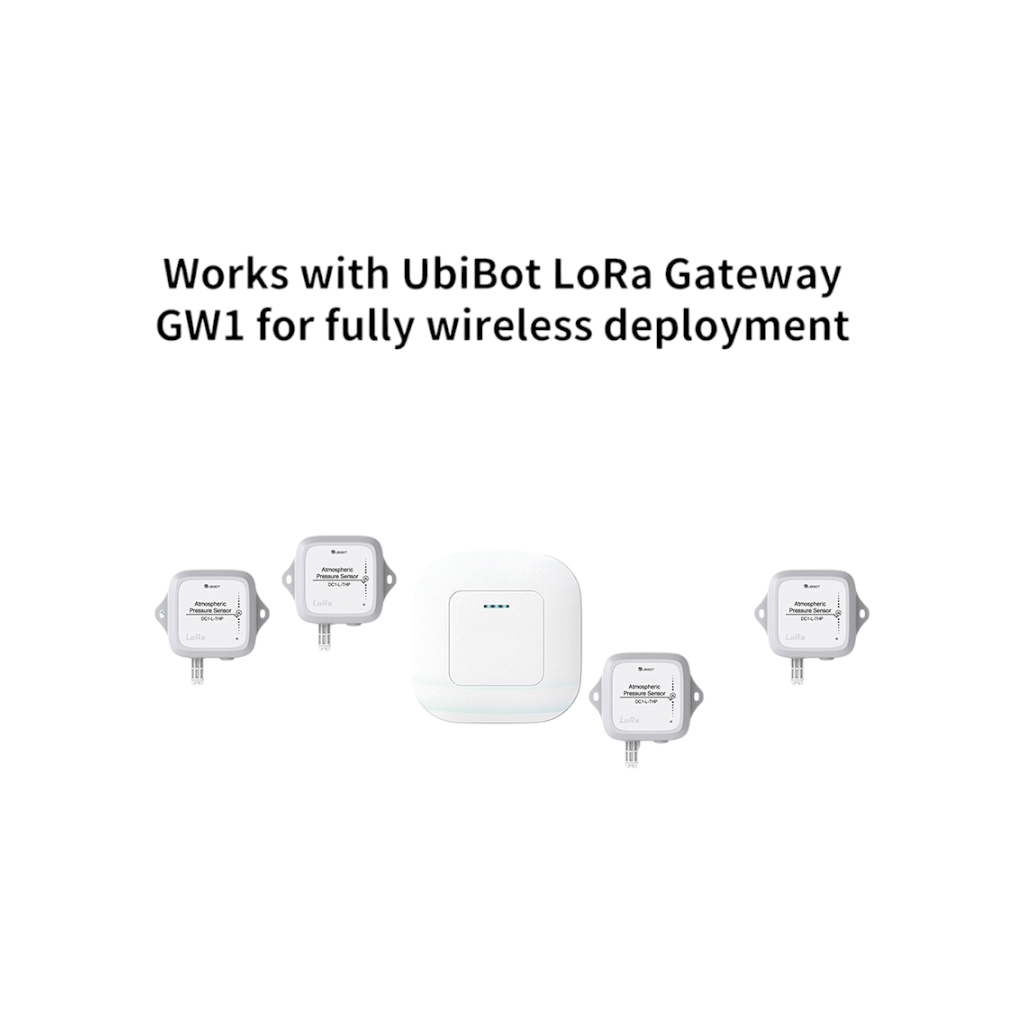

The DC1-L-THP connects wireless to the GW1 gateway(purchased separately) using LoRa wireless technology. The gateway supports connection to over 100 devices. The gateway offers WiFi, Ethernet and cellular connection to the internet.
The device supports multiple power options, including battery power and external DC power. Combined with its LoRa ultra-low-power design, the sensor can achieve extended standby and operating times depending on collection and upload intervals. This makes it suitable for large-scale deployments where long battery life and stable communication are important.
Reliable Environmental Protection
The DC1-L-THP features an IP65-rated enclosure to help protect against dust and water ingress. This durable design supports long-term stable operation in complex environments and makes the device suitable for industrial, agricultural, and outdoor environmental monitoring applications.
Data Security During Network Interruptions
If data upload fails or the network connection is interrupted, the sensor can locally store up to 50,000 sensor data records. Once communication is restored, unsent data can be uploaded to the server in a batch, helping maintain data continuity and integrity.
Easy Installation and UbiBot Platform Integration
The sensor supports wireless deployment and includes built-in mounting holes along with mounting accessories for flexible installation. Quick binding is available by scanning the QR code through the mobile app. The UbiBot IoT platform provides centralized device management, monitoring, and data access for scalable environmental monitoring solutions.
| To Order the model below scroll to the top of the page then click on ADD TO CART button |
| PART NUMBERS | DESCRIPTION |
| DC1-L-THP | LoRa Atmospheric Pressure, Temperature and Humidity Data Logger |
SPECIFICATIONS
Measured Parameters: Atmospheric pressure, temperature, and humidity
Communication: LoRa wireless communication
Gateway Compatibility: Interacts with UbiBot gateway GW1 via LoRa
Gateway Network Connection: Wi-Fi, mobile network, or RJ45 Ethernet cable
Platform: UbiBot IoT platform
Remote Monitoring: Mobile phones, tablets, and computers
Protection Rating: IP65
Power Supply Options: Dry cell battery, IoT battery, Li-SOCl2 batteries, or external DC power source
Local Data Storage: Up to 50,000 sensor data records during data upload failure or network disconnection
Installation: Wireless deployment with built-in mounting holes and mounting accessories
Device Binding: QR code binding via mobile app
Applications: Environmental monitoring, office spaces, smart buildings, industrial monitoring, agricultural monitoring, and meteorological research
Battery Life
| Usage Interval | AA Alkaline Battery | Li-SOCl2 Batteries (ER14505 equivalent) |
|---|---|---|
| 1 minute collect/1 minute upload | 70 days | 340 days |
| 10 minute collect/30 minute upload | 395 days | 5 years |
