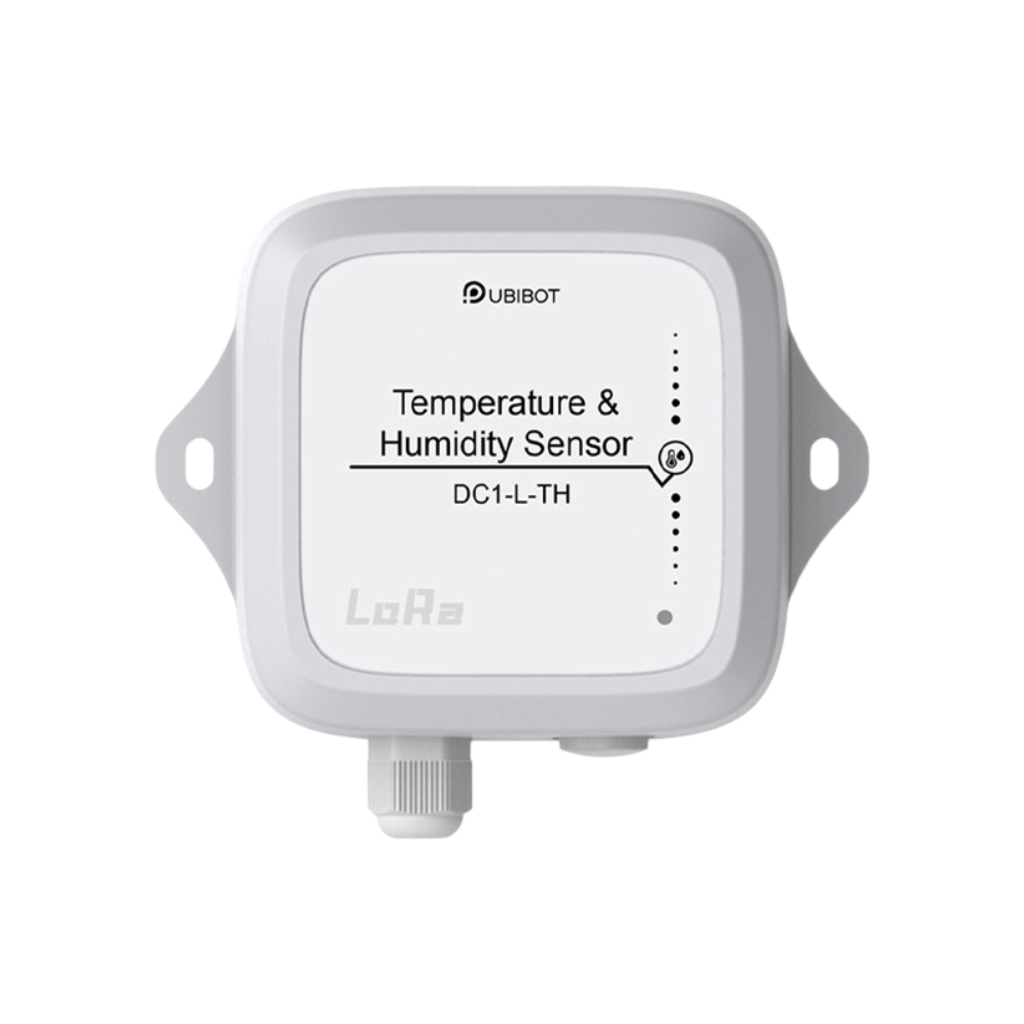

LoRa Temperature/RH Data Logger DC1-L-TH

• High-precision Swiss-made temperature and humidity sensor
• Connects to the Internet through the GW1 Gateway(sold separately)
• Typical accuracy of ±0.2°C temperature and ±2% RH humidity
• LoRa wireless communication for long-range(up to 1km)
• Local storage for up to 50,000 sensor records
• Ultra-low power consumption with battery and DC power supply options
• Wireless installation helps eliminate complex wiring
• Works with GW1 LoRa gateways for connection to the UbiBot IoT platform
• Suitable for smart agriculture, buildings, factories, warehousing, and other multi-point monitoring applications

The DC1-L-TH LoRa Temperature and Humidity Sensor is designed for accurate environmental monitoring in applications where reliable long-range wireless sensing is needed. Equipped with a high-precision Swiss-made sensor, it detects small changes in temperature and humidity to provide dependable environmental data.

The sensor offers typical accuracy of ±0.2°C for temperature from 0 to 65°C and ±2% RH for humidity from 10 to 90% RH. This makes it well suited for monitoring spaces where stable environmental conditions are important, including storage areas, production environments, smart buildings, and agricultural facilities.

LoRa Wireless Connectivity
Using LoRa wireless technology, the DC1-L-TH supports long-distance data transmission with low power consumption. Wireless deployment reduces the need for complex wiring, helping lower installation cost and allowing flexible placement across large facilities or distributed monitoring points. A single LoRa gateway can manage up to 100 devices, making it practical for large-scale sensor networks.

LoRa Transmission Distances

Local Data Storage
The device can store up to 50,000 sensor data records locally. If LoRa communication is interrupted, the sensor continues recording data to help maintain data integrity. Once communication is restored, the stored data can be retransmitted, helping safeguard environmental records.

UbiBot IoT Platform Integration
The LoRa Temperature and Humidity Sensor communicates with a GW1 LoRa gateway(sold separately), which connects to the UbiBot IoT platform via WiFi, mobile network, or RJ45 Ethernet depending on the gateway configuration. Users can access device data and monitor status from smartphones, tablets, or computers for convenient real-time environmental monitoring.

SPECIFICATIONS

Sensor Type: Temperature and humidity sensor
Temperature Sensor: High-precision Swiss-made sensor
Temperature Accuracy: ±0.2 ℃ (@ 0 ~ 65 ℃)
Humidity Accuracy: ±2 %RH (@ 10 ~ 90%RH)
Wireless Communication: LoRa
Local Data Storage: Up to 50,000 sensor data records
Power Supply: Supports various battery and DC power supply options
Power Consumption: Ultra-low power consumption with extended standby
Gateway Support: A single LoRa gateway manages up to 100 devices simultaneously
Platform Connectivity: LoRa gateway connects to the UbiBot IoT platform via WiFi, mobile network, or RJ45 Ethernet
Access Methods: Smartphones, tablets, or computers
Installation: Wireless deployment with built-in mounting holes and installation accessories
Applications: Smart agriculture, smart buildings, smart homes, smart factories, and smart warehousing

Battery Life
