- 4 or 8-Channel Thermocouple Temperature Data Logger with Thermal Shield
- Withstands Oven Temperatures up to 350°C (662°F) for up to 25 Minutes When Properly Sealed
- Ideal for Oven Profiling, Powder Coating Cure Ovens, Wet Coating Cure Ovens, Batch Ovens and Conveyor Ovens
- External Thermocouple Probes Provide Accurate Measurements with Fast Response Times
- Supports Thermocouple Types J, K, T, E, R, S, B and N
- Programmable Start Time with Push Button, Immediate or Delayed Start Options
- Reusable, Battery Powered and Compact Stainless Steel Enclosure
- USB Interface with User-Friendly MadgeTech Software for Graphing, Statistics and Excel Export
- System Includes:
TCTempX Thermocouple-Based Temperature Data Logger
Thermal Insulated Enclosure
Type K Thermocouples

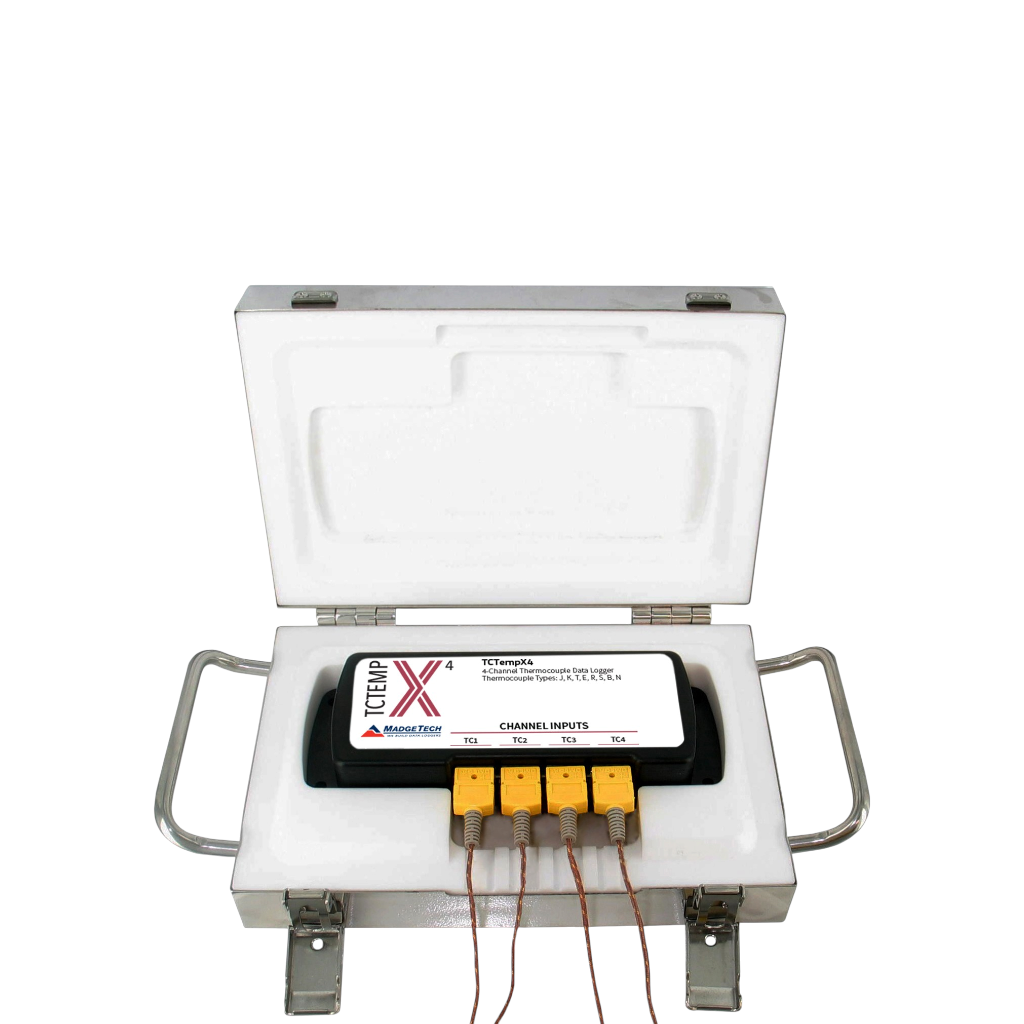

The ThermoVaultX Series is a thermally insulated, battery powered oven temperature data logger designed for temperature profiling in high heat industrial processes. Available in 4-channel and 8-channel versions, it combines a TCTempX data logger with a protective thermal enclosure to record thermocouple temperature data inside ovens and other extreme temperature environments.
The ThermoVaultX is well suited for validating and optimizing powder coating cure ovens, wet coating cure ovens, batch ovens and conveyor ovens. Oven profiling helps users confirm process control, identify process issues and produce consistent product quality.
High Temperature Thermal Protection
The stainless steel thermal enclosure acts as a buffer to protect the logger during exposure to elevated temperatures. When properly sealed and used according to the specified exposure limits, the ThermoVaultX system can withstand ambient temperatures up to 350°C (662°F) for up to 25 minutes. Maximum exposure duration varies by oven temperature, with longer allowable times at lower temperatures.
Multi-Channel Thermocouple Recording

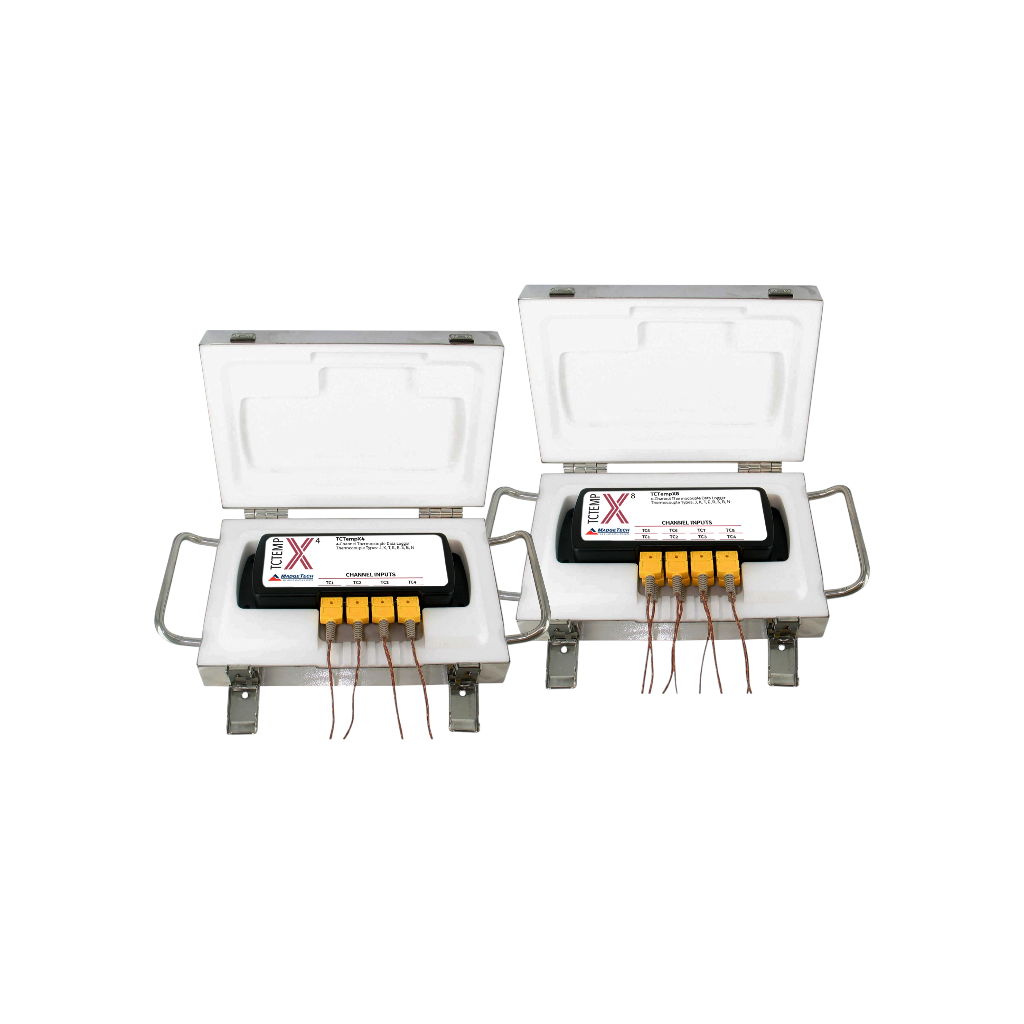

The ThermoVaultX Series is available with either 4 or 8 thermocouple channels, allowing multiple points in an oven or process to be monitored during a single run. The logger supports J, K, T, E, R, S, B and N thermocouple types with automatic thermocouple linearization and automatic cold junction compensation based on the internal channel. Type K thermocouples are included.
Software and Data Analysis
MadgeTech software allows recorded data to be downloaded to a computer and viewed in degrees Celsius, degrees Fahrenheit, Kelvin or Rankine. Data can be displayed in graph or tabular form, zoomed for closer inspection and exported to Excel for additional analysis. Software features include multiple graph overlay, statistics, min/max/average lines, digital calibration, summary view and calculations such as Mean Kinetic Temperature.
The ThermoVaultX offers programmable start options including push button start, immediate software start and delayed start up to six months in advance. Readings are date and time stamped, and the logger provides 524,032 readings per channel on the 4-channel model or 262,016 readings per channel on the 8-channel model with all channels enabled.
Disclaimer & Terms of Use
Listed specifications can be used to determine maximum allowable exposure times for the TCTempX with ThermoVaultX. The barrier extends the operating temperature of the logger up to 350 °C (662 °F). Both the data logger and ThermoVaultX must be at ambient temperature, approximately 25°C (77°F) before being placed in the extreme temperature environment. Immediately following exposure to high temperature, the data logger should be removed from the ThermoVaultX, using appropriate precautions, as it could be VERY hot. Failing to remove the data logger may allow heat trapped in the ThermoVaultX to continue to heat the data logger to potentially unsafe levels. The ThermoVaultX may take hours to fully cool down. Even if the exterior of the ThermoVaultX is cool to the touch, the interior of the barrier and its contents may still be VERY hot. Allow the entire system to cool down to approximatel 25 °C (77 °F) before successive cycle.
SPECIFICATIONS
Internal Channels
Temperature Range: -20 °C to +60 °C (-4 °F to +140 °F)
Temperature Resolution: 0.01 °C (0.018 °F)
Calibrated Accuracy: ±0.5 °C (0 °C to 50 °C)
Remote Channels
Remote Channel Thermocouple Types: J, K, T, E, R, S, B, N
Thermocouple Connection: Female subminiature (SMP)
Cold Junction Compensation: Automatic, based on internal channel
J Thermocouple Range: -210 to +760 °C, 0.1 °C resolution, ±0.5 °C accuracy
K Thermocouple Range: -270 to +1370 °C, 0.1 °C resolution, ±0.5 °C accuracy
T Thermocouple Range: -270 to +400 °C, 0.1 °C resolution, ±0.5 °C accuracy
E Thermocouple Range: -270 to +980 °C, 0.1 °C resolution, ±0.5 °C accuracy
R Thermocouple Range: -50 to +1760 °C, 0.5 °C resolution, ±2.0 °C accuracy
S Thermocouple Range: -50 to +1760 °C, 0.5 °C resolution, ±2.0 °C accuracy
B Thermocouple Range: +50 to +1820 °C, 0.5 °C resolution, ±2.0 °C accuracy
N Thermocouple Range: -270 to +1300 °C, 0.1 °C resolution, ±0.5 °C accuracy
Thermocouple Accuracy Note: Thermocouple accuracy specified with 24 AWG diameter thermocouple wires.
Maximum Exposure Time
100 °C (212 °F): 110 minutes
150 °C (302 °F): 62 minutes
200 °C (392 °F): 45 minutes
250 °C (482 °F): 35 minutes
260 °C (500 °F): 33 minutes
300 °C (572 °F): 30 minutes
350 °C (662 °F): 25 minutes
General
Start Modes: Push button start and software programmable immediate start or delay start up to six months in advance
Memory: 4-channel: 524,032 readings per channel; 8-channel: 262,016 readings per channel
LEDs: 1 per channel and 2 status LEDs
Reading Rate: 4 Hz up to 1 reading every 24 hours
Calibration: Digital calibration through software
Calibration Date: Automatically recorded within device
Battery Type: 9 V lithium battery included, user replaceable
Battery Life: 18 months typical
Data Format: Date and time stamped °C, °F, K, °R, mV, V
Time Accuracy: ±1 minute/month
Computer Interface: USB-A to micro USB cable included; 460,800 baud
Operating System Compatibility: Windows XP SP3 or later
Software Compatibility: Standard Software version 4.2.17.0 or later; Secure Software version 4.2.16.0 or later
Internal TCTempX Environment: -20 °C to +60 °C, 0 %RH to 95 %RH non-condensing
ThermoVaultX System Environment: -20 °C to +350 °C, 0 %RH to 95 %RH non-condensing
Dimensions and Weight
Dimensions with Handles, Brackets and Front Enclosure Latches: 12.3 in x 6.65 in x 2.45 in (312 mm x 168 mm x 62 mm)
Enclosure Case Only Dimensions: 9.1 in x 5.9 in x 2.45 in (231 mm x 149 mm x 62 mm)
Weight: 4-channel: 8.85 lb (4.01 kg); 8-channel: 8.98 lb (4.07 kg)
Ordering Information
ThermoVaultX4 PN 901350-00: Thermal Shield with a 4-channel temperature data logger, 72 inch 24 AWG type K thermocouples (0 °C to +482 °C), USB-A to micro USB cable and universal power adapter
ThermoVaultX8 PN 900437-00: Thermal Shield with an 8-channel temperature data logger, 72 inch 24 AWG type K thermocouples (0 °C to +482 °C), USB-A to micro USB cable and universal power adapter
U9VL-J PN 901804-00: Replacement battery for TCTempX Series
