- Outdoor Protective Housing for Xi Series Infrared Cameras (ACXIOPH24)
- IP66-Rated Aluminum Enclosure Shields Against Dirt, Dust, Moisture, and Cold
- Integrated PTC Heater and Fan Extend Operation Down to -40 °C
- Integrated Laminar Air Purge Collar Keeps the Lens Clean
- Optional Built-In HD Visual Camera (1280 x 720 Pixels)
- Houses a Gigabit USB Server and the Industrial Process Interface
- Includes a Protective Window; Wall-Mount-Ready Design

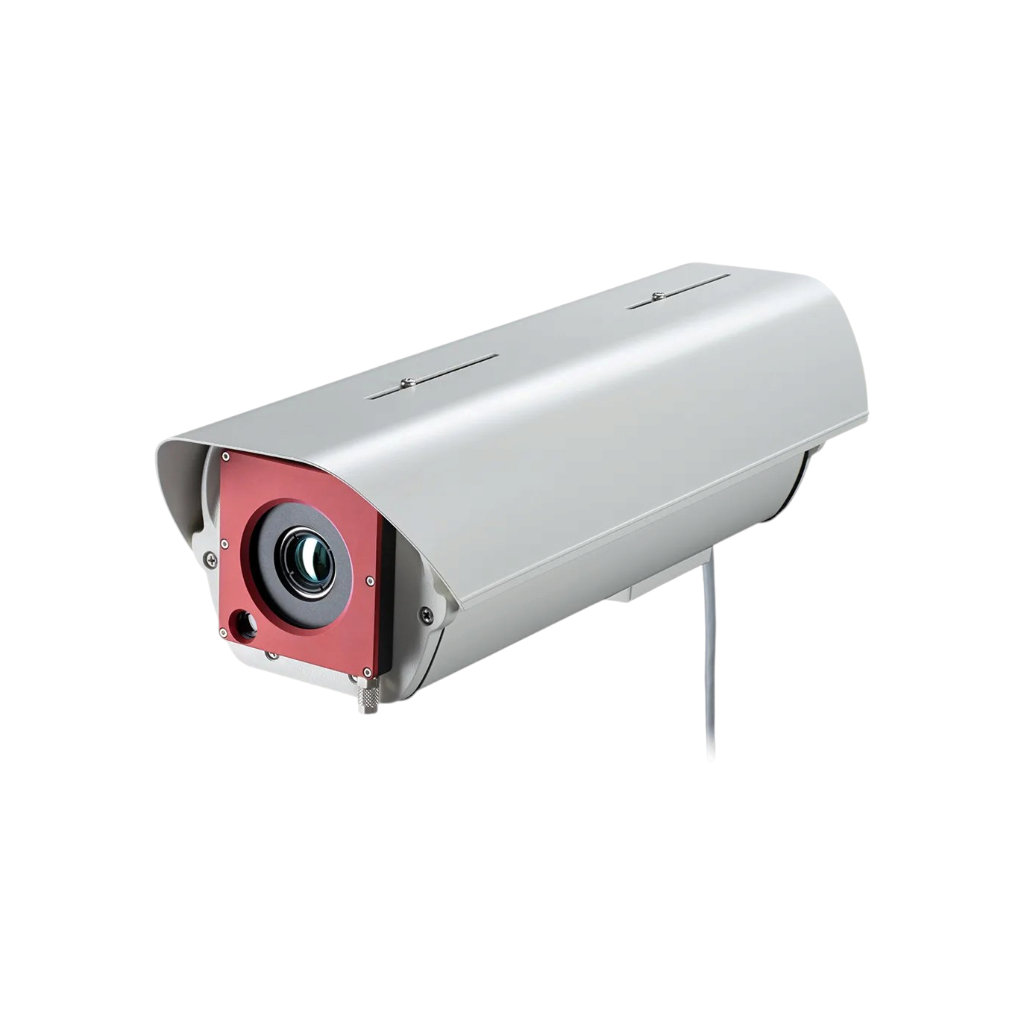

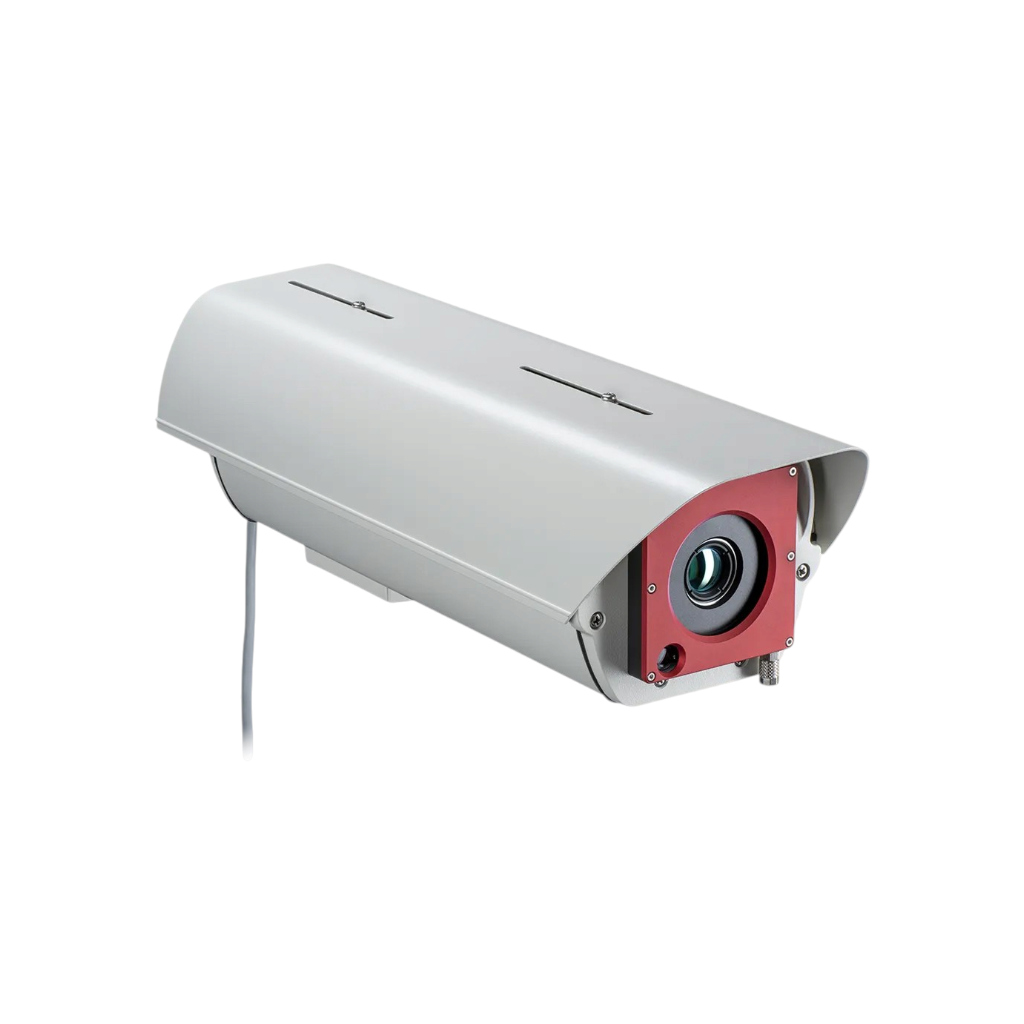

The Xi Series outdoor protective housing lets your infrared camera operate reliably in harsh outdoor and weather-exposed environments. The rugged aluminum enclosure shields the camera from dirt, dust, moisture, humidity, and cold, while an integrated heating system and fan extend the operating range so the camera keeps measuring in conditions from deep cold to summer heat. IP66-rated against driving rain and dust, it is built for permanent outdoor installation.
Heating and Temperature Range
An integrated PTC heater automatically switches on when the temperature drops below 15 °C and off again around 25 °C (±5 °C), while a fan runs in parallel to distribute heat evenly inside the housing and prevent condensation. Together they extend the usable ambient range to -40 °C up to +50 °C, with an extended version reaching +60 °C - so the camera can run year-round in exposed locations. The housing operates on a 24 V DC supply and draws 70 W.
Keeping the Lens Clean

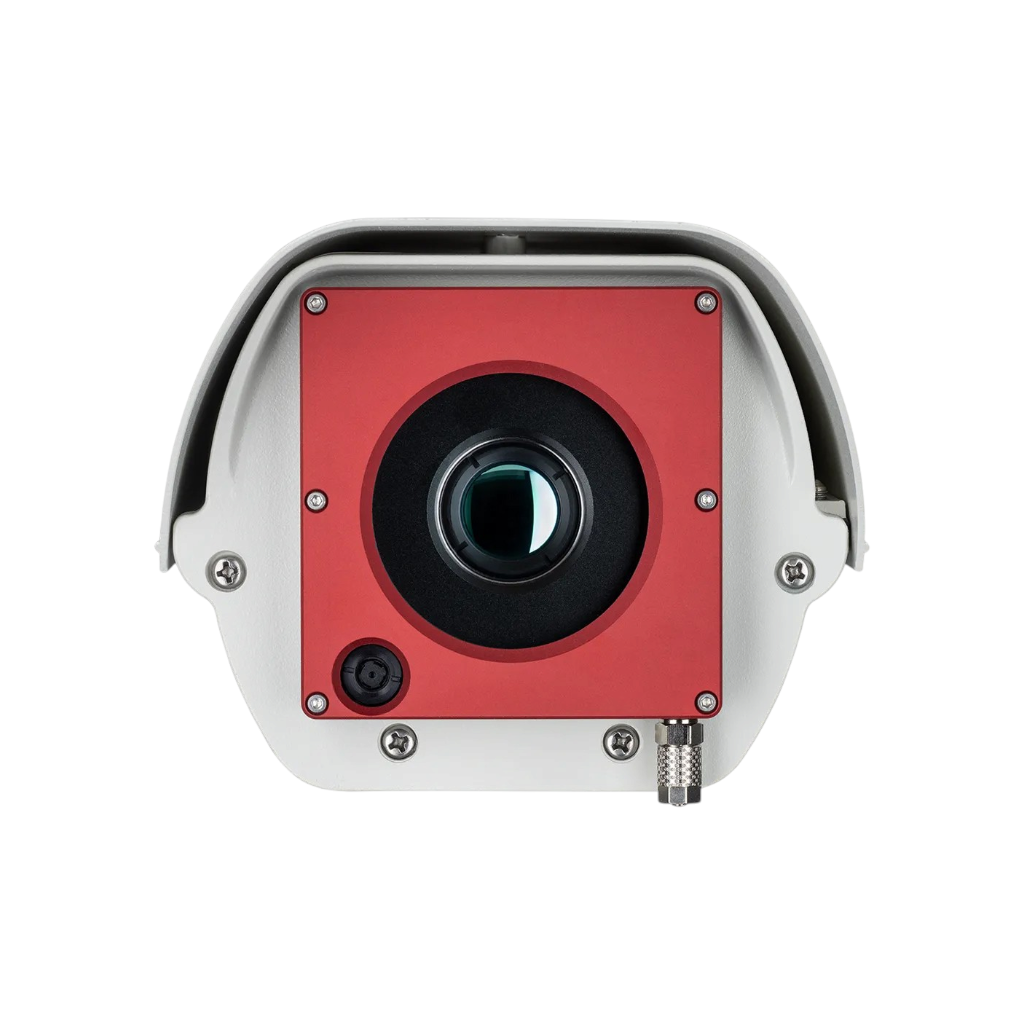

An integrated laminar air purge collar keeps dust, smoke, and fumes off the protective window, maintaining a clear optical path for accurate measurements. It runs on oil-free, technically clean air at 20-100 l/min and 1.1-8 bar. A protective window seals the front of the housing, and replacement windows and foils are available.
Built-In Electronics and Integration

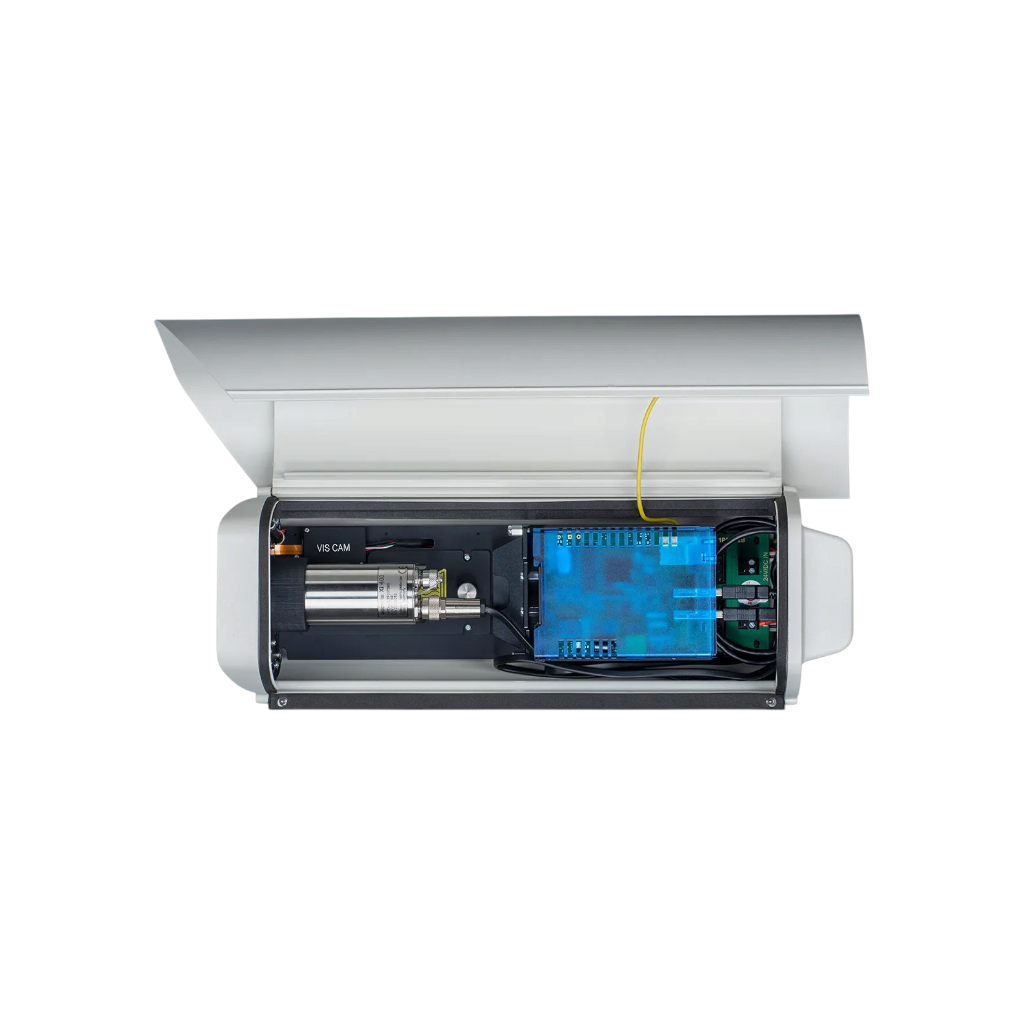

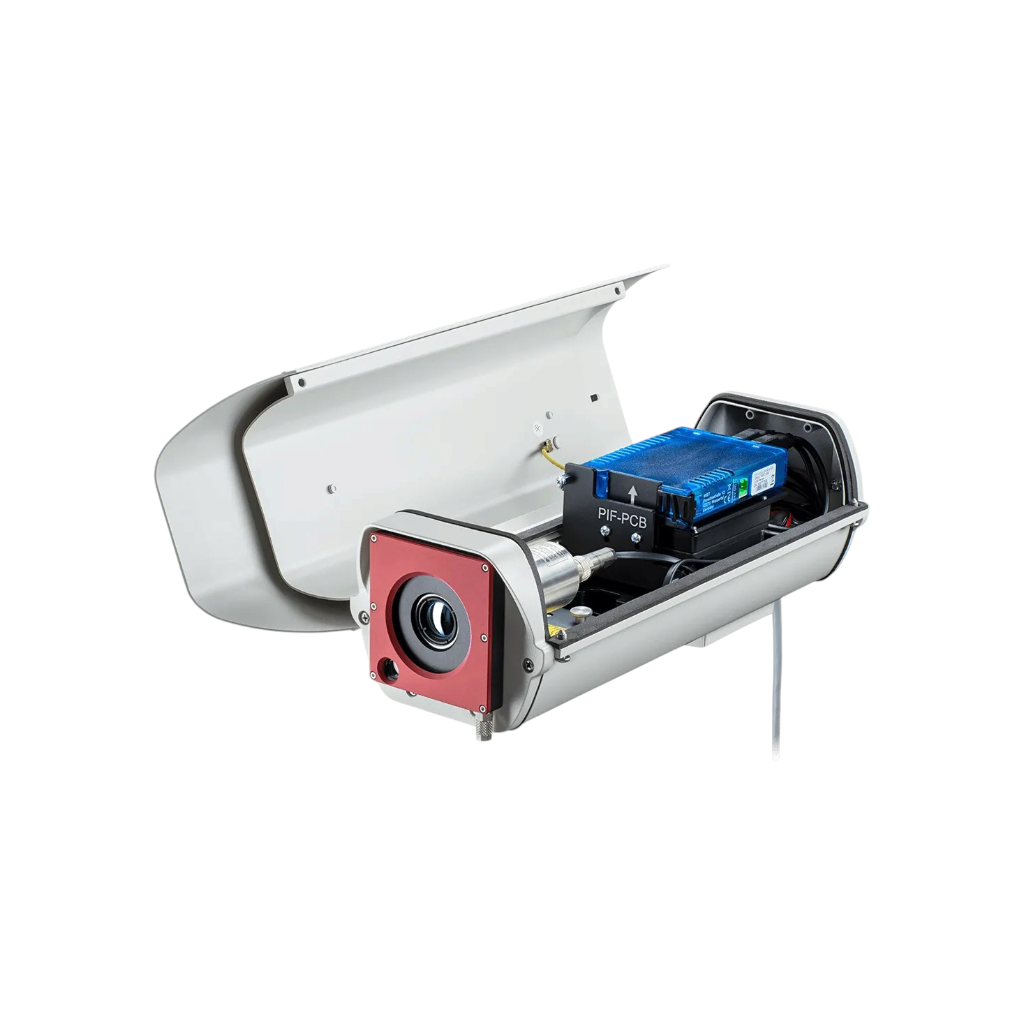

The housing has room for additional components and an internal circuit board that connects the heater, fan, an optional Gigabit USB server, and the industrial process interface. Cables route through dedicated glands for Ethernet, USB, process-interface, and power lines. The industrial process interface can be fitted inside, but because space is limited it must be installed as the board-only version (without its own housing). An optional built-in HD visual camera (1280 x 720) can be added to provide a visual image alongside the thermal data.
Mounting and What to Order With It
The infrared camera mounts to a dedicated plate inside the housing using the supplied screws and washers. A wall mount is required for installation and is ordered separately. Replacement protective windows or foils, and the board-only industrial process interface, are also available to complete your setup.
| To Order click on the part no.(or scroll to the top of page and select your configuration) then click the ADD TO CART button |
| Part Number | Built-In HD Visual Camera | Description |
| ACXIOPH24 | No | Outdoor protective housing for Xi series cameras - IP66 aluminum enclosure with integrated heater, fan, and laminar air purge; houses the thermal camera only |
| ACXIOPH24VIS | Yes | Outdoor protective housing for Xi series cameras with a built-in HD (1280 x 720) visual camera - adds a visible-light video feed alongside the thermal image |
| Downloads |
| Outdoor Protective Housing Data Sheet |
| Outdoor Protective Housing Manual |
SPECIFICATIONS
Compatibility: Xi series infrared cameras (Xi 80, Xi 410 LT, Xi 410 MT, Xi 1M)
Material: Aluminum
Environmental Rating: IP66
Operating Temperature: -40 °C … +50 °C (extended version to +60 °C)
Heating: PTC heater (auto-starts below 15 °C) with fan for even temperature distribution
Power Supply: 24 V DC
Power: 70 W
Current Draw: 3 A (short term 6 A)
Max Field of View: 90° (horizontal)
Integrated Components: Gigabit USB server / industrial process interface
Optional: Built-in HD visual camera (1280 x 720)
Weight: 2 kg (2.5 kg with wall mount)
Air Purge
Type: Integrated laminar air purge collar
Airflow: 20 … 100 l/min
Absolute Pressure: 1.1 … 8 bar
Air Quality: Oil-free, technically clean air only
