830 Multifunction Diagnostic Process Calibrator

830 Multifunction Diagnostic Process Calibrator

Regular price $4,364.00 Sale SKU:CL-PI-830
Ships in 5-10 days

  • Multifunction Dual Channel Process Calibrator: mA, V, T/C, OHMS, RTD, Hz, pH, Pressure
  • First Multifunction Calibrator w/5 Troubleshooting Tools Plus a Universal Transmitter
  • Detect Hidden Loop Problems w/Patented Current Leak Detection Technology
  • Check All Loop Parameters at Once with the LoopScope
  • Automatically Detect 2,3,4-Wire RTDs
  • Swap Out Faulty Transmitters to Diagnose Control Issues
  • Troubleshoot Wiring Problems Without a Multimeter
  • Use as a Milliamp and Voltage Calibrator
  • Calibrate Directly in C/F
  • Checkout Flow and Vibration Systems
  • Simulate pH Probes into Transmitters & Analyzers
  • Measure Temperature Sensors, Frequency Pickups, Loop Currents, Voltage Levels & Pressure
  • Comes with NIST Cert, Rubber Boot, Carrying Case, Manual, Batteries, mV/RTD Test Lead Set, RTD Wire Kit

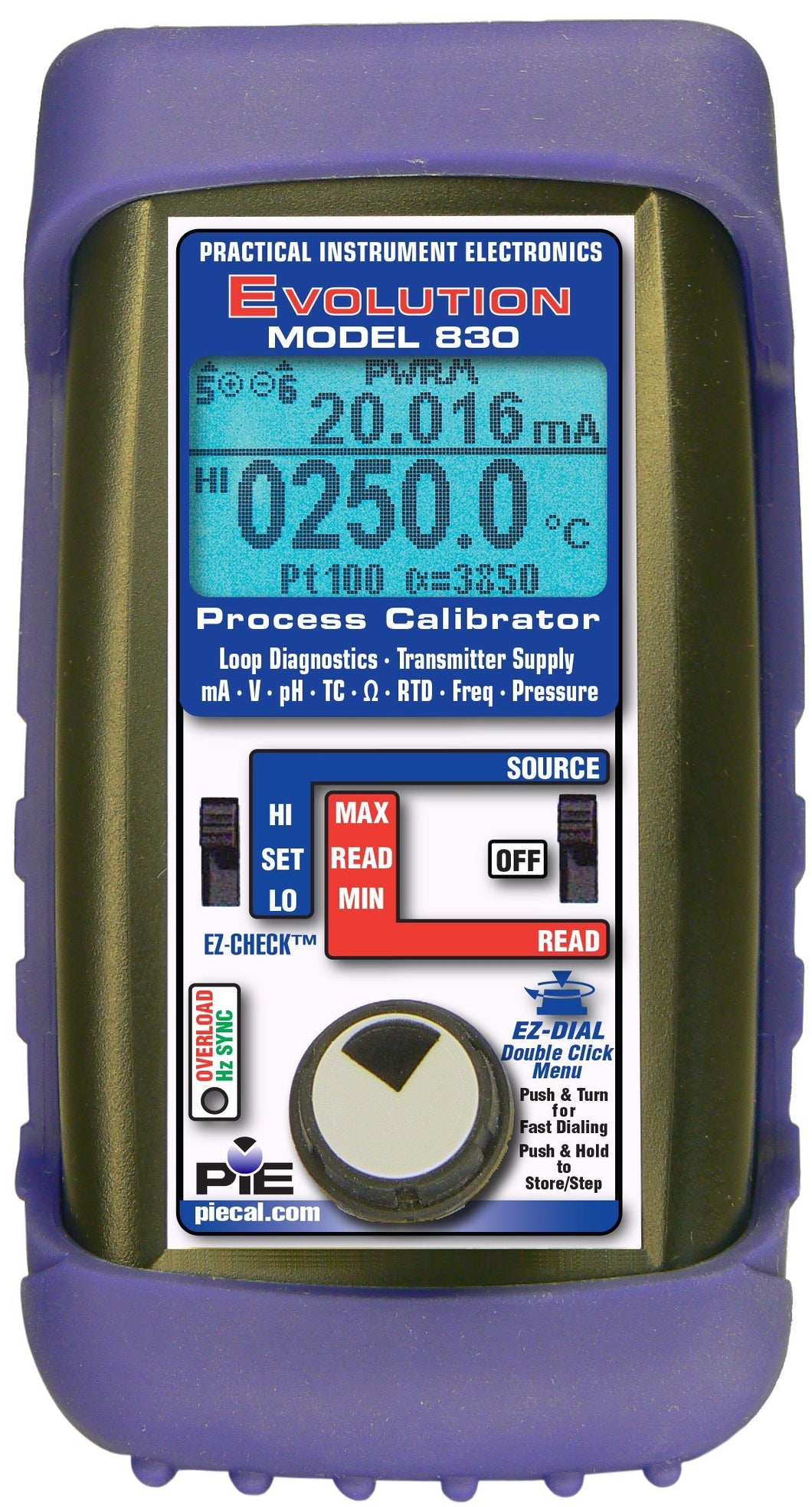

Get more tools in a smaller calibrator. Carry eight single function calibrators plus a milliamp calibrator with loop supply plus a loop trouble shooter in the palm of your hand.

The 830 is more than a multifunction calibrator. It is also a loop detective that is able to diagnose common problems that other test equipment just can't find. Have a flooded junction box or unknown ground faults? The 830 diagnostic technology will detect it. Or use the exclusive LoopScope to see at a glance all the parameters - milliamps, voltage and resistance - in the loop.

Stop throwing away perfectly good transmitters only to find the problem is somewhere else in the loop. Setup the 830 as an isolated universal transmitter and turn on the Loop Diagnostics. The display will tell you exactly the sensor input, the current output and if there is any uncontrolled current in the loop due to a ground fault, corrosion bridge or moisture. If the control system sees no problem when the 830 is acting as a transmitter then you can replace the faulty transmitter. With RTDs the 830 automatically detects which of the 2,3, or 4 wires are connected and unbroken quickly alerting you to a sensor problem.

 To Order the model below scroll to the top of the page then click on and ADD TO CART button
 PART NUMBER DESCRIPTION
CL-PI-830 PIE 830 Multifunction Diagnostic Process Calibrator



 Datasheets and Operating Instructions

PIE 830 Datasheet

PIE 830 Operating Instructions



SPECIFICATIONS

READ mA

Ranges and resolution: 0.000 to 24.000 mA or -25.00 to 125.00% of 4-20 mA

Accuracy: < +/-(0/02% of reading + 0.003 mA)

Voltage burden: < 2C at 24 mA

Overload/current limit protection: 24 mA nominal

SOURCE mA/POWER & MEASURE 2-WIRE TRANSMITTERS & PWRM LEAK

Ranges and resistances: 0.000 to 24.000 mA or -25.00 to 125.00% of 4-20 mA

Accuracy: < +/-(0.02% of reading + 0.003 mA)

Loop compliance voltage: > 24 DCV @ 20.00 mA

Loop drive capability: 1200 Ohms at 20 mA for 15 hours nominal

Loop drive capability: 1200 Ohms at 20 mA for 15 hrs nominal; 950 Ohms with Hart Resistor or leak detection running

mA 2-WIRE TRANSMITTER SIMULATIONS

Accuracy: same as source/power & measure

Voltage burden: < 2V at 20 mA

Overload/current limit protection: 24 mA nominal

Loop voltage limits: 2 to 60 VDC (fuse-less protected from reverse polarity connections)

VOLTAGE READ

Range and resolution: +/-99.999 mV, +/-999.99 mV, 0 to 10.250V, 0.00 to 60.00V DC

Accuracy: < +/-(0.02% of reading + 0.01% full scale)

Input resistance: > 1MOhm

SOURCE V DC

Ranges and resolution: -20.000 to 99.000 mV, 500.00 to 999.99 mV, 0.000 to 10.250V

Accuracy: < +/-(0.02% of reading + 0.01%full scale)

Source current: > 20 mA

Sink current: > 16 mA

Output impedance: < 1 Ohm

Short circuit duration: infinite

pH SOURCE

Accuracy in mV: < +/-(0.02% of reading in Mv + 0.1 mV)

Accuracy in pH: < =/- 0.003 pH @ 25C

THERMOCOUPLE SOURCE

Accuracy: < +/-(0.02% of reading + 0.01 mV)

Cold junction compensation: +/- 0.05C - thermistor traceable to NIST for 11 years

Output impedance: < 1 Ohm

Source current: > 20 mA (drives 80 mV into 10 Ohms)

THERMOCOUPLE READ

Accuracy & cold junction compensation: sames as thermocouple source

Input impedance: > 1 Megohms

Open t/c threshold: Pulse: 10K Ohms; <5 uamp puse for 300 milliseconds (nominal)

RTD, OHMS & CONTINUITY READ

Resistance ranges: 0.00 to 401.00, 0.0 to 4010 Ohms

Accuracy: +/-(0.025% of reading + 0.065 Ohms)

Excitation current: 1.0 mA to 401 Ohms, 0.5 mA to 4010 Ohms (nominal)

Continuity: 0.0 to 401.0 Ohms; beeps from 0.0 to 100 Ohms

RTD & OHMS SOURCE

3-4 Wire Accuracy from 1 to 10.2 mA external excitation current: +/-(0.025% of reading + 0.075 Ohms

Below 1 mA of external excitation current: +/-(0.025% of reading + 0.075 Ohms + 0.025 mV/mA excitation current)

2-Wire Accuracy: add 0.1 Ohms to 3-4 wire accuracy

Resistance ranges: 0.00 to 401.00 to 4010.0 Ohms

Allowable excitation current range: <401 Ohms: 10.2 mA max; steady or pulse/intermittent, 401 to 4000 Ohms: 1 mA max; steady or pulsed/intermittent

Pulse excitation current compatibility: DC to 0.01 second pulse width

FREQUENCY SOURCE

Ranges: 1 to 2000 CPM, 0.01 to 999.99 Hz, 0.1 to 9999.9 Hz, 0.001 to 20.000 kHz

Accuracy: +/-(0.02% of reading + 0.01% of full scale)

Output waveform: square wave, zero crossing -1.0 to +5V peak-to-peak +/-10%

Risetime (10 to 90% of amplitude): < 10 microseconds

Output impedance: < 1 Ohm

Source current: > 1 mA rms at 20 kHz

Short circuit duration: infinite

Optical coupling: green LED (HZ SYNC) flashes at output frequency

FREQUENCY READ

Ranges and accuracy: same as frequency source

Accuracy: +/-(0.02% of reading + 0.01% of full scale)Trigger level: 1 V rms, dc coupled

Input impedance > 1 Meg Ohm + 60 pF

OPERATING TEMPERATURE RANGE: -20 to 60C (-5 to 140F)

STORAGE TEMPERATURE RANGE: -30 to 60C (-22 to 140F)

TEMPERATURE EFFECT: < +/-0.005%/C of full scale; cold junction sensor, < +/-25 ppm/C

RH RANGE: 10% <RH <90% (0 to 35C) non-condensing, 10% <RH <70% (0 to 60C) non-condensing

ISOLATION

Voltage: 60V rms between all milliamp functions/read V DC & source V DC/Thermocouple/RTD/Ohms/Frequency/Pressure

Common mode: 50/60 Hz, 100 dB

NORMAL MODE REJECTION: 50/60 Hz, 50 dB

NOISE: < +/- 1/2 least significant digit from 0.1 to 10 Hz

DIMENSIONS: 5.63 x 3.00 x 1.60 in (143 x 76 x 41 mm)

WEIGHT: 12.1 oz (0.34 kg (including rubber boot & 4-AA batteries)

BATTERY LIFE

Read functions: > 20 hrs; read pressure > 7 hrs

Source mA: 14 hrs @ 12 mA into 250 Ohms

Pwr/meas mA: > 12 hrs at 30 mA

Source V, Ohms, T/C, pH, RTD, Hz: > 20 hrs

LOW BATTERY: Indication with 1 hr of operation left

PROTECTION AGAINST MISCONNECTION: Over-voltage protection to 60 vrms (rated for 30 seconds) Red LED indicates OVERLOAD or out of range conditions

DISPLAY: High contrast LCD with 0.35" (9 mm) high digits on main & 0.2" (5 mm) on mA display. LED backlight for use in dim lit areas
