PM030 Touch Screen Interface Module for PyroCube IR Temperature Sensor

Regular price $336.00 Sale

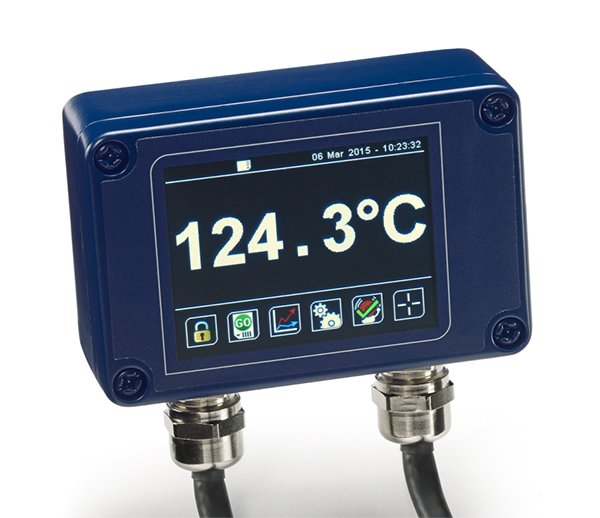

The PM030 is an optional multilingual touch screen interface module for the PyroCube sensor.

All the settings of the PyroCube sensor are adjustable via the built-in touch screen interface.

When an optional MicroSD Card is inserted into the PM030, the system functions as a fully-configurable temperature data logger.

Ships in 1-2 Weeks for FAST and FREE Delivery


SPECIFICATIONS
Touch Screen Display Format: 2.83” (72 mm) restive touch TFT, 320 x 240 pixels, backlit

Configurable Parameters:
Language (English, Chinese, Japanese)
Temperature units °C/°F
Displayed temperature
LED sighting on/off
Password
Date & time (for data logging time stamps)
Peak hold period, decay level
Averaging period
Correction (gain/offset)
Emissivity setting (with teach function)
Reflected energy compensation (with teach function)
Output type
Output temperature range
Polarity on error
Alarm mode, levels, hysteresis

Data Logging Specifications
Storage: MicroSD Card (optional), max. 32 GB, equal to 16 years of data at the fastest sample rate of 1 per second
Data Logging Interval: 1 second to 1 day (configurable)
Internal Clock Battery: 1 x BR 1225 3V (not included)
Variables Logged: Instantaneous target temperature, hold temperature, alarm events
File format: csv

Data Logging Configurable Parameters
Sample period
Number of samples
Scheduled start Configurable Parameters (Alarm Logging) Log times when triggered, acknowledged, reset
Log data while triggered

Electrical Specifications
Outputs: 2 x alarm relay outputs rated at 24 V DC, 1 A; Retransmitted analog output from sensor
Supply Voltage: 24 V DC ± 5%
