- High Accuracy: ±0.2°C | ±1.5% RH
- Communication Range: Up to 3 km in open field
- Internal Memory: Locally stored records (up to 15,000 with RHT Air+ and 480,000 with AirGate Air+) to prevent data loss
- Regulatory Compliance: Complies with FDA 21 CFR Part 11
- Data Security: Protection through proprietary encryption
- Durability: Certified by Anatel, FCC, RoHS, and CE
- Scalable Network: Supports up to 32 RHT Air+ sensors with a single AirGate Air+
- Versatile Power Supply: 8 to 30 VDC

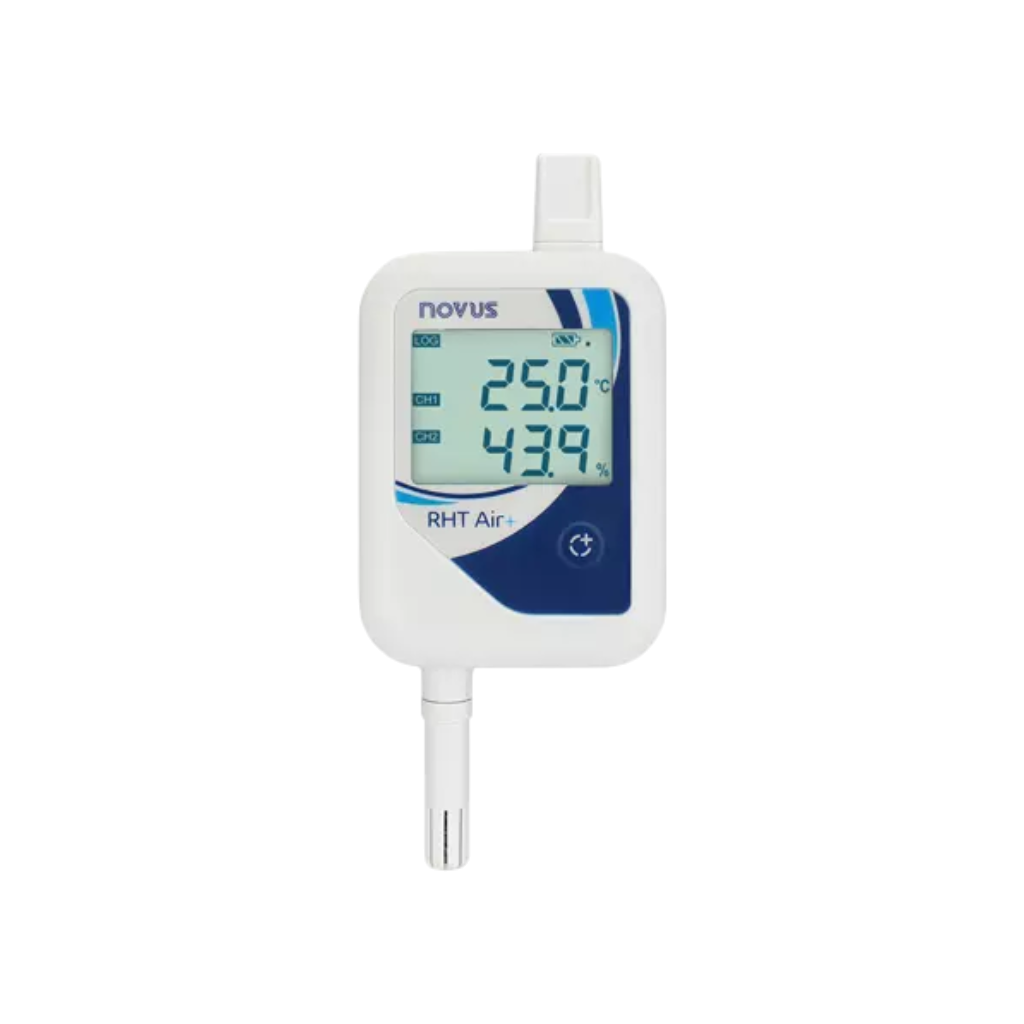

The RHT Air+ is a wireless sensor engineered for continuous temperature and humidity measurements. It's designed for use as part of the Climate Air+ system, but can be used independently. It features a 2-channel display and a battery life of up to 2 years. Even if network communication is interrupted, its internal memory can store up to 15,000 records, preserving data integrity and supporting compliance requirements.
Benefits of the Climate Air+ Solution
Implementing this system ensures uninterrupted and reliable monitoring, crucial for maintaining the integrity and compliance of sensitive environments. With LoRa technology overcoming obstacles in challenging physical conditions and advanced encryption securing transmitted data, the Climate Air+ Solution addresses the most demanding operational requirements.
This integrated approach simplifies installation and reduces operational costs while maximizing data protection. By delivering accurate, real-time insights, the Climate Air+ Solution empowers organizations to optimize environmental control, meet strict regulatory standards, and minimize risks associated with temperature and humidity fluctuations.
.
| To Order click on the model below or scroll to the top of the page then click on ADD TO CART button |
| PART NUMBERS |
| RHT-AIR-PLUS-915 |
RHT Air+ SPECIFICATIONS
Temperature Measurement Range: -10 to 70 °C (14 to 158 °F)
Temperature Resolution: 0.1 °C
Temperature Accuracy: ±0.2 °C
Relative Humidity Measurement Range: 0 to 100 % RH
Relative Humidity Resolution: 0.1 % RH
Relative Humidity Accuracy: ±1.5 % RH
Memory Type: Circular
Memory Capacity: 15,000 logs (2 quantities); 50 days with a 5-minute interval
Recording Interval: 2 to 720 minutes
Communication Interfaces
USB-C: For configuration, download, and diagnostics
LoRa (Model 915 MHz):
• Frequency: 915.4–927.4 MHz
• Bandwidth: 500 kHz (915)
• Spreading Factor: 7–11
• Transmission Power: 20 dBm
• Reception Sensitivity: -136 dBm
• Radio Coverage: Up to 3 km with clear line of sight
Power Supply
Non-rechargeable Batteries: Up to 2 years (with 10-minute publication, SF10, and 14 dBm)
USB-C: Recommended 5 V ~ 1 A power supply (cable length ≤ 1.5 m)
Display: 2 lines, 4 digits
Protection Index: IP65 (enclosure), IP40 (sensor)
Environment:
• Operating Temperature: -10 to 70 °C (14 to 158 °F)
• Storage Temperature: -20 to 70 °C (-4 to 158 °F)
• Humidity: 5 to 95 % RH (Non-condensed)
Dimensions: 70 mm x 175 mm x 45 mm
Housing: Polycarbonate (V2 flame retardant)
Software: NXperience (via USB), NXperience Trust (FDA 21 CFR part 11)
Certifications: Anatel: 07860-24-07089; FCC (Contains LoRa module, FCC ID: 2ADHKR34M); ISED (Contains LoRa module, IC: 20266-R34M[1])
