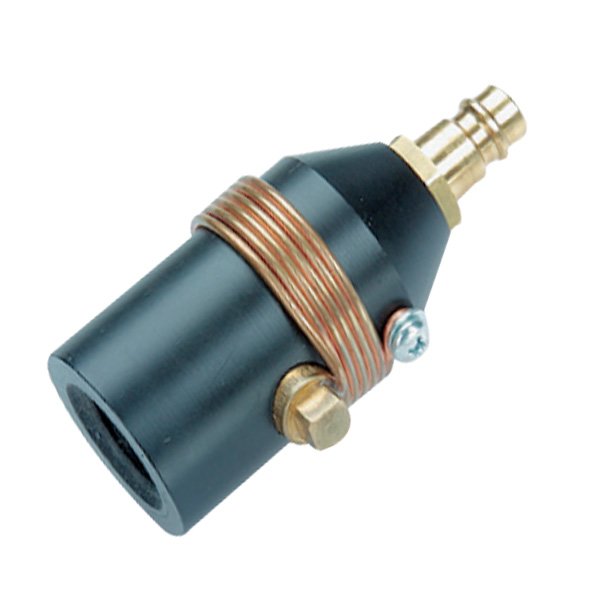

Sample Chamber with Quick Connect Process Fitting
- Models Available with MNPT or Quick Disconnect Process Fittings
- Pressure Range 29 to 232 PSI
- Compatible with FA500, FA510 and FA515 Dew Pont Transmitters

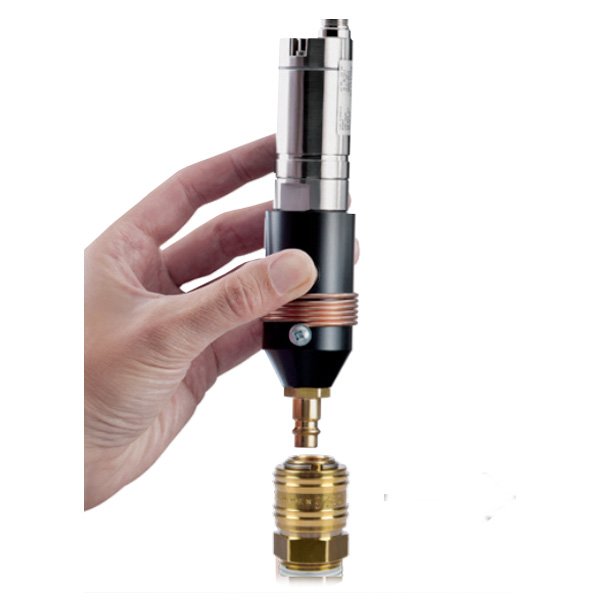

These sample chambers are designed for use with FA500, FA510 and FA515 Dew Point Transmitters. They are available with a NPT process connection or quick disconnect. When using the quick disconnect, an optional mating quick disconnect fitting is required. In order to provide a flow of air past the sensor providing accurate measurement, 0.071 to 0.11 CFM of process air will be vented to the environment.
| To Order the model below scroll to the top of the page then click on ADD TO CART button |
| PART NUMBERS | DESCRIPTION |
| CHAMBER-3393 | Sample chamber with quick connect process fitting |

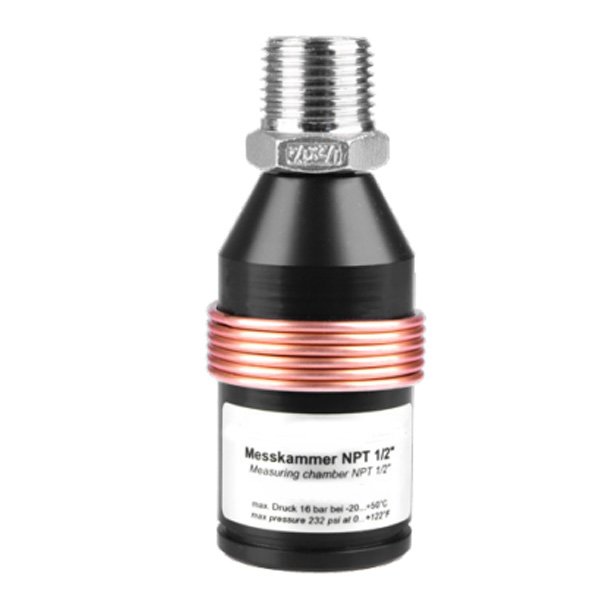

| CHAMBER-3392 | Sample chamber with NPT process fitting |
| Accessories | |
| QUICK-CONNECT-5750 | Quick-Lock coupling |
Specifications
Pressure Range: 29 to 232 PSI
Sensor Fitting: 1/2" NPT 1/2" female thread
Process Fitting: Model specific
CHAMBER-3393: 1/4" Industrial Quick-Connect
CHAMBER-3392: Plug nipple or NPT 1/4" female thread when using without plug nipple Sensor connection: NPT 1/2" female thread
