- Sensors monitor vibration and temperature of critical infrastructure to detect potential issues early
- Complete wireless asset monitoring with Bluetooth Low Energy 5.0
- Free cloud platform and easy integration into existing platforms
- Robust hardware with IP69K protection rating, ensuring dust and water resistance
- Long battery life for continuous operation: 9 to 60 months
- Easy installation with DIN rail mounting or screws
- Advanced vibration analysis with RMS, VRMS, FFT, and raw signal diagnostics
- Configurable for diverse applications from motor monitoring to workplace ergonomics

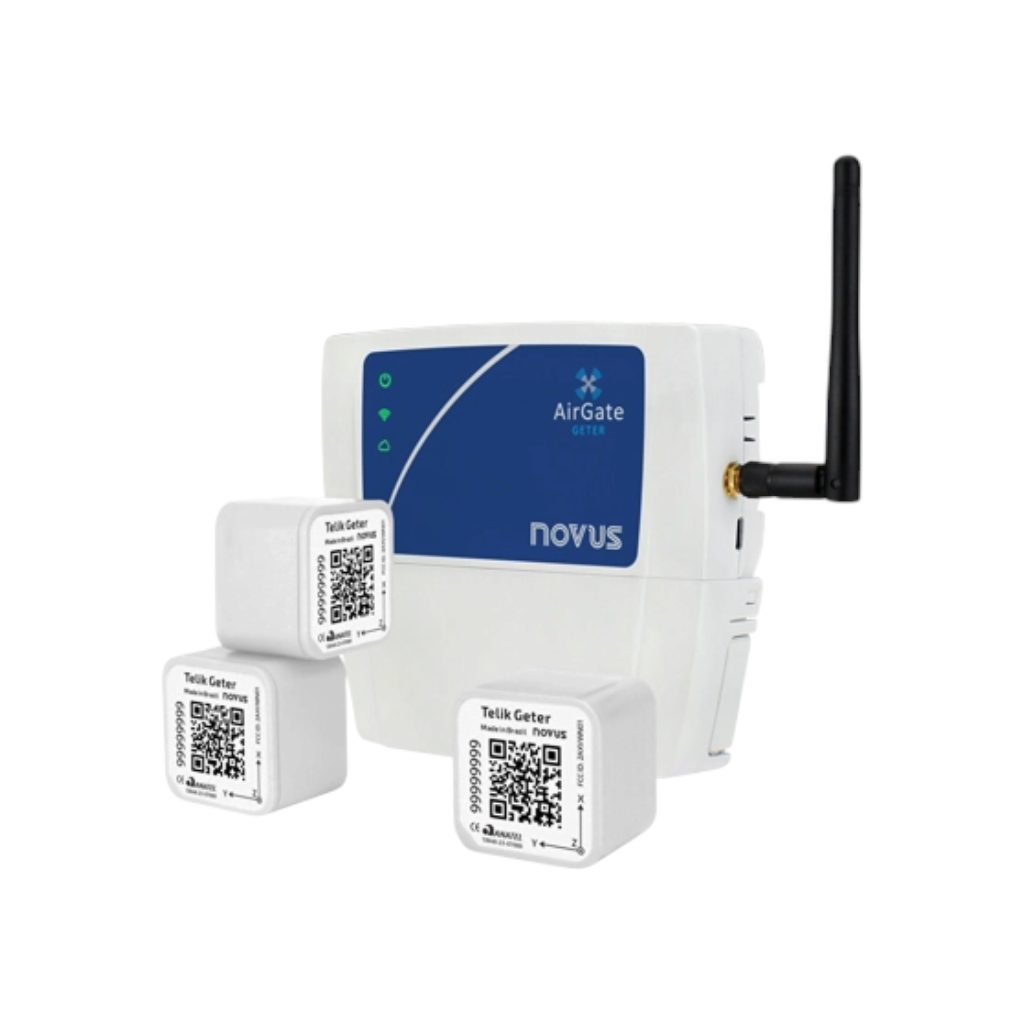

The Telik Geter system combines the AirGate Geter Gateway and Telik Geter Sensor to facilitate comprehensive condition monitoring and predictive maintenance across a wide variety of industrial applications. Tailored for dynamic environments, this solution integrates seamlessly into existing infrastructures, supporting up to 512 sensors at once.
It's easy to use. Simply place Telik Geter Sensors on critical equptment, such as motors, pumps, conveyors, etc. Ensure the sensors are within range of the AirGate Geter Gateway (50 to 70 meters), configure to your use case via the Telik Geter Connect App and Novus Geter Platform.
Vibration and Temperature Monitoring
Sensors continuously measure vibration and temperature on critical equipment such as motors, pumps, and gearboxes. Built-in algorithms including RMS, velocity RMS (VRMS), FFT, and raw signal capture allow both overall condition monitoring and detailed fault analysis, helping identify issues such as imbalance, misalignment, and bearing wear at an early stage.
Wireless Asset Monitoring
Data is transmitted wirelessly using Bluetooth Low Energy (BLE) 5.0, with a typical range of up to 50–70 meters line of sight depending on the environment. This allows multiple sensors to communicate with a single gateway without signal wiring, making it practical to monitor distributed equipment across a facility.
Cloud Platform and Integration
Sensor data is sent to a cloud platform where it is available for visualization through dashboards, historical trends, and configurable alarms. The system supports integration with external platforms using standard protocols such as MQTT and REST, enabling connection to SCADA systems, IoT platforms, or custom applications.
Industrial-Grade Hardware
The sensor housing is constructed from durable polycarbonate and rated IP69K, providing protection against dust ingress and high-pressure, high-temperature washdowns. This makes it suitable for harsh industrial environments where exposure to moisture, debris, and cleaning processes is common.
Long Battery Life
The sensors are powered by internal batteries with a lifespan ranging from 9 to 60 months depending on sampling frequency, transmission intervals, and selected algorithms. Adjustable configuration parameters allow users to optimize between data resolution and battery consumption based on the application.
Easy Installation
The gateway can be mounted using a DIN rail or screws and connects via Ethernet or Wi-Fi for network access. Sensors attach directly to equipment using integrated magnets or adhesives, allowing for quick installation without additional wiring or mechanical modification.
SPECIFICATIONS

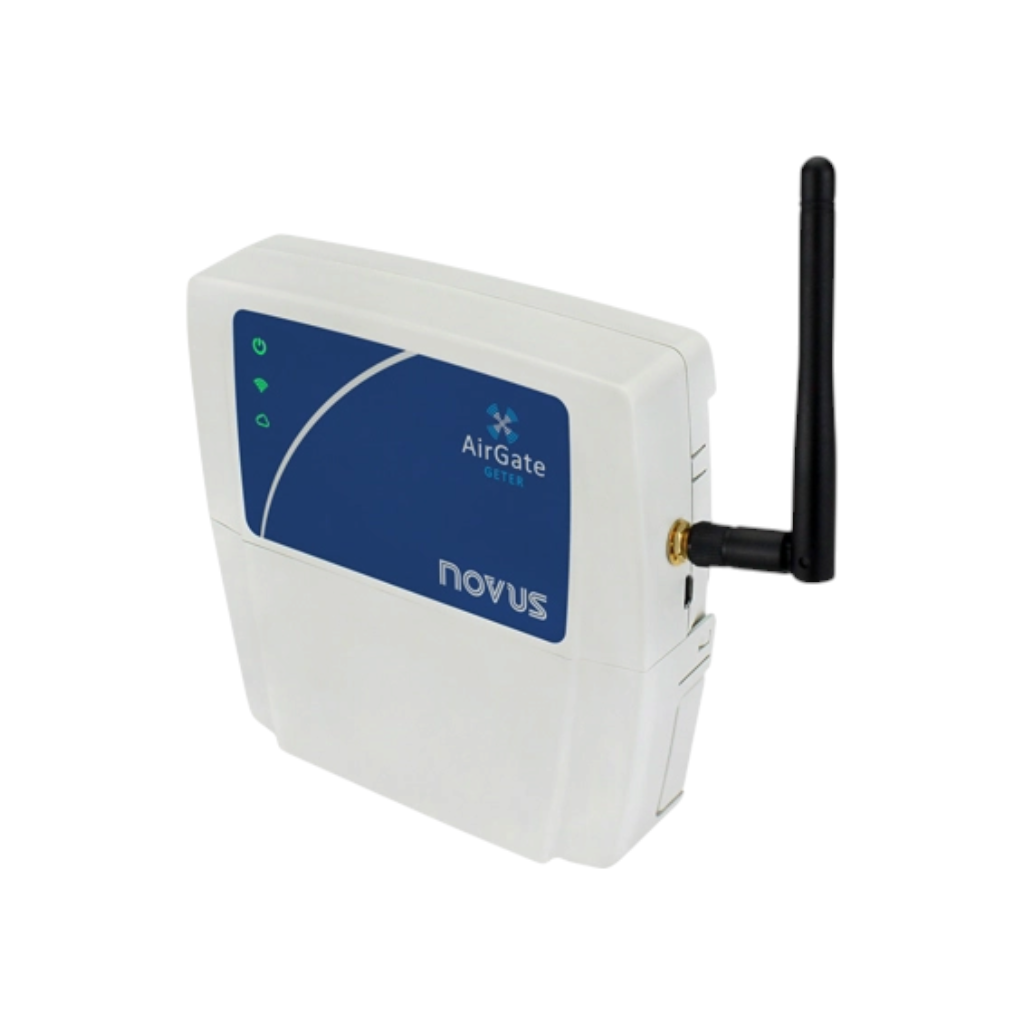

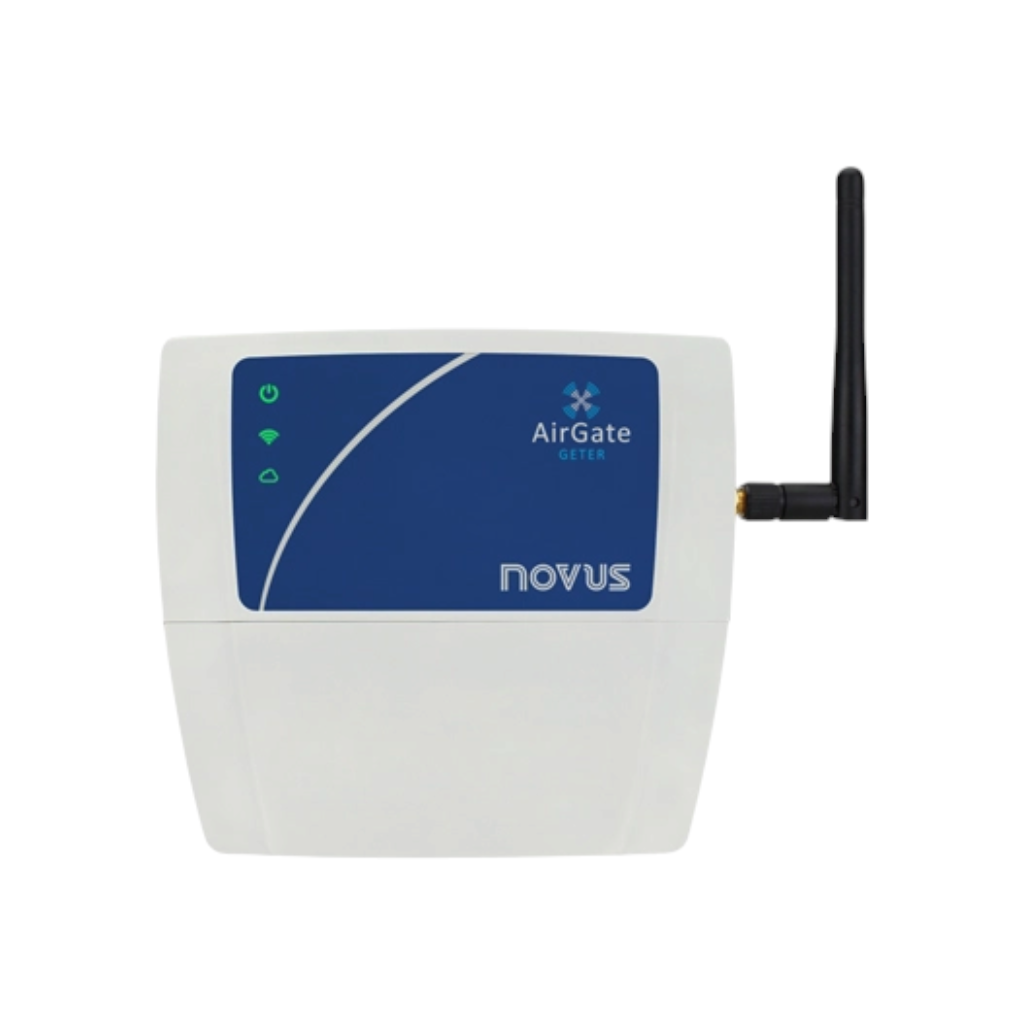

AirGate Geter Gateway
Operating Temperature: -20 °C ... 60 °C
Storage Temperature: -5 °C ... 25 °C
External Dimensions: 142 mm x 129 mm x 38 mm
Power Supply: 5 Vdc or 12 ~ 24 Vdc
Communication: Bluetooth Low Energy 4.2 (2.4 GHz – External antenna)
Bluetooth Signal Range: From 50 to 70 meters without obstacles
Transmission Power: +8 dBm
Reception Sensitivity: -103 dBm
Assembly: DIN rail or screw
Housing: ABS + PC
External Antenna for BLE: SMA connector (2.4 GHz)
Certifications: ANATEL: 13878-23-07089, FCC: Contains Wi-Fi module, FCC ID: 2AC7Z-ESPWROOM32D | Contains BLE module, FCC ID: 2ABU6-MS88SF2, ISED: Contains Wi-Fi module, IC: 21098-ESPWROOM32D, CE

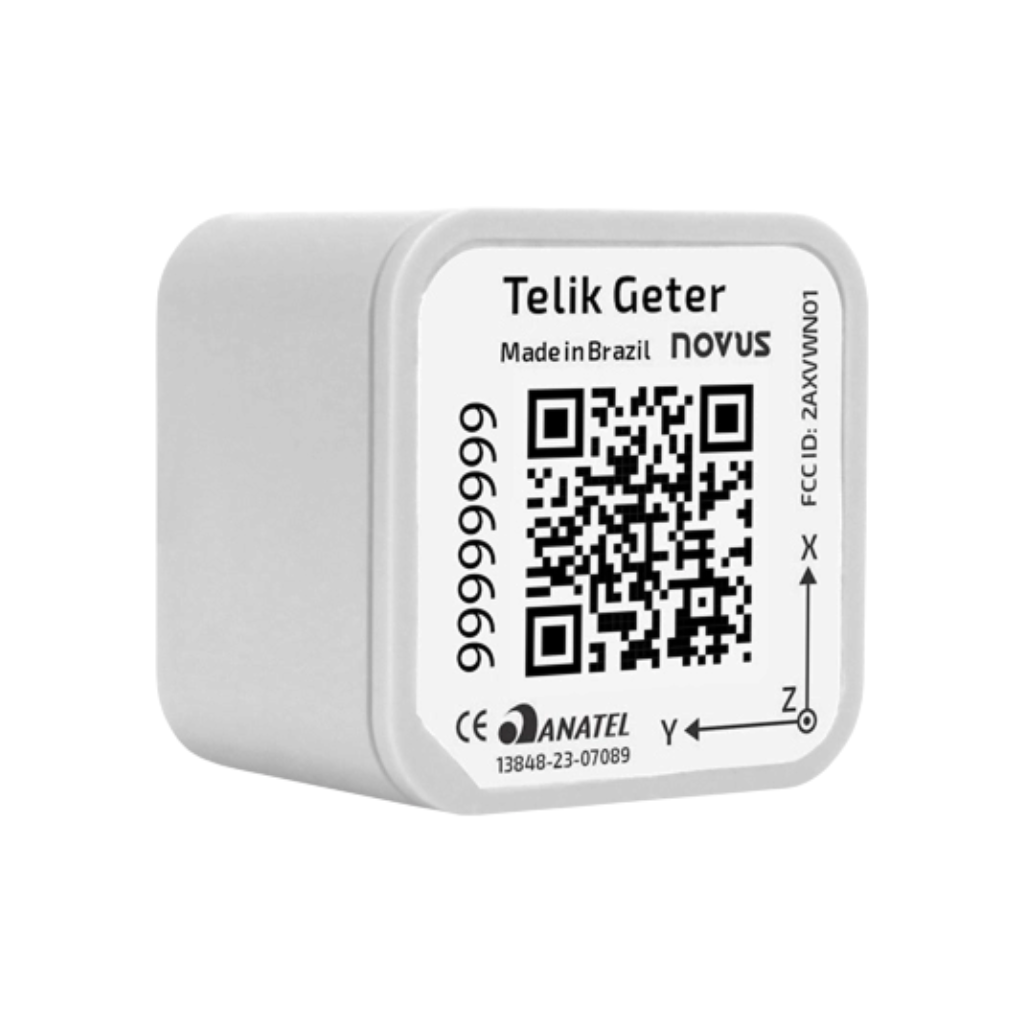

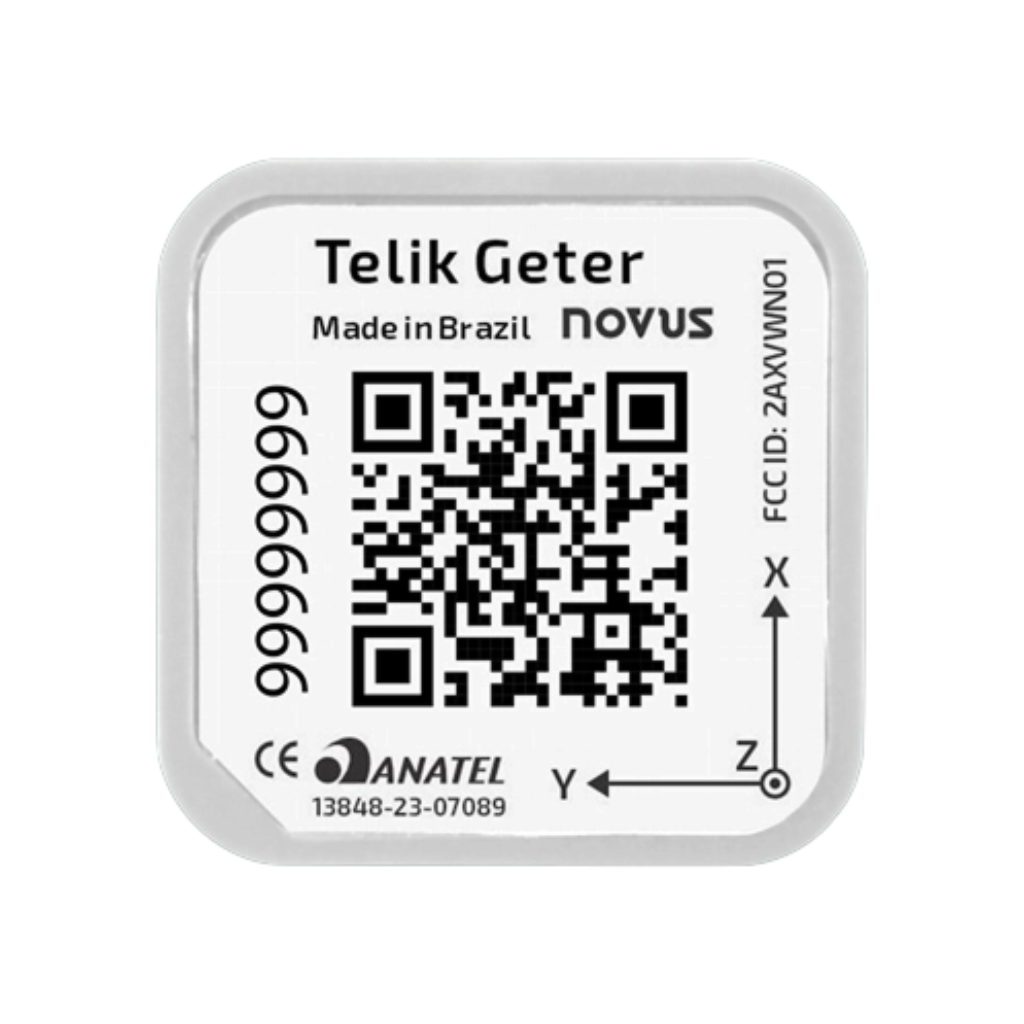

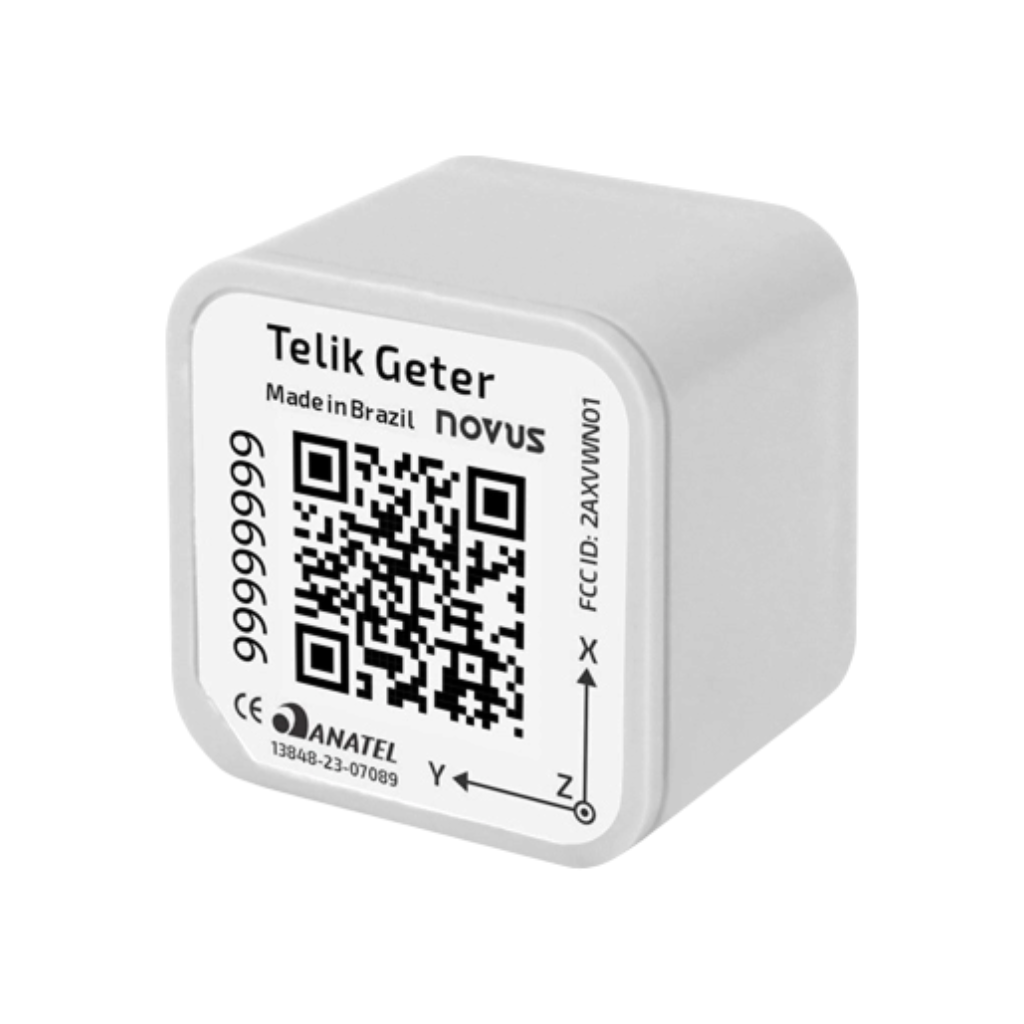

Telik Geter Sensor
Operating Temperature: -20 °C ... 70 °C
Storage Temperature: -5 °C ... 25 °C
External Dimensions: 25 mm x 40 mm x 40 mm
Microcontroller: 32-Bit microcontroller, 16 MHz (ARM® Cortex™-M0)
Memory: Flash memory: 256 kB, RAM memory: 32 kB
Communication: Bluetooth Low Energy 4.2 (2.4 GHz)
Signal Range: From 50 to 70 meters without obstacles
Transmission Power: +4 dBm
Reception Sensitivity: -93 dBm
Battery: 2 x ER14250 (duration 9 to 60 months, according to the application)
Fixing: 4 neodymium magnets | 10 mm x 6 mm
Encapsulation: Polycarbonate
Embedded Temperature Sensor Operation: -20 °C ... 85 °C
Resolution of the Embedded Temperature Sensor: 0.25 °C
Temperature Accuracy: ±4 °C without calibration
Protection Index: IP69K
Certifications: ANATEL: 13848-23-07089, FCC: FCC ID: 2AXVWN01, CE
