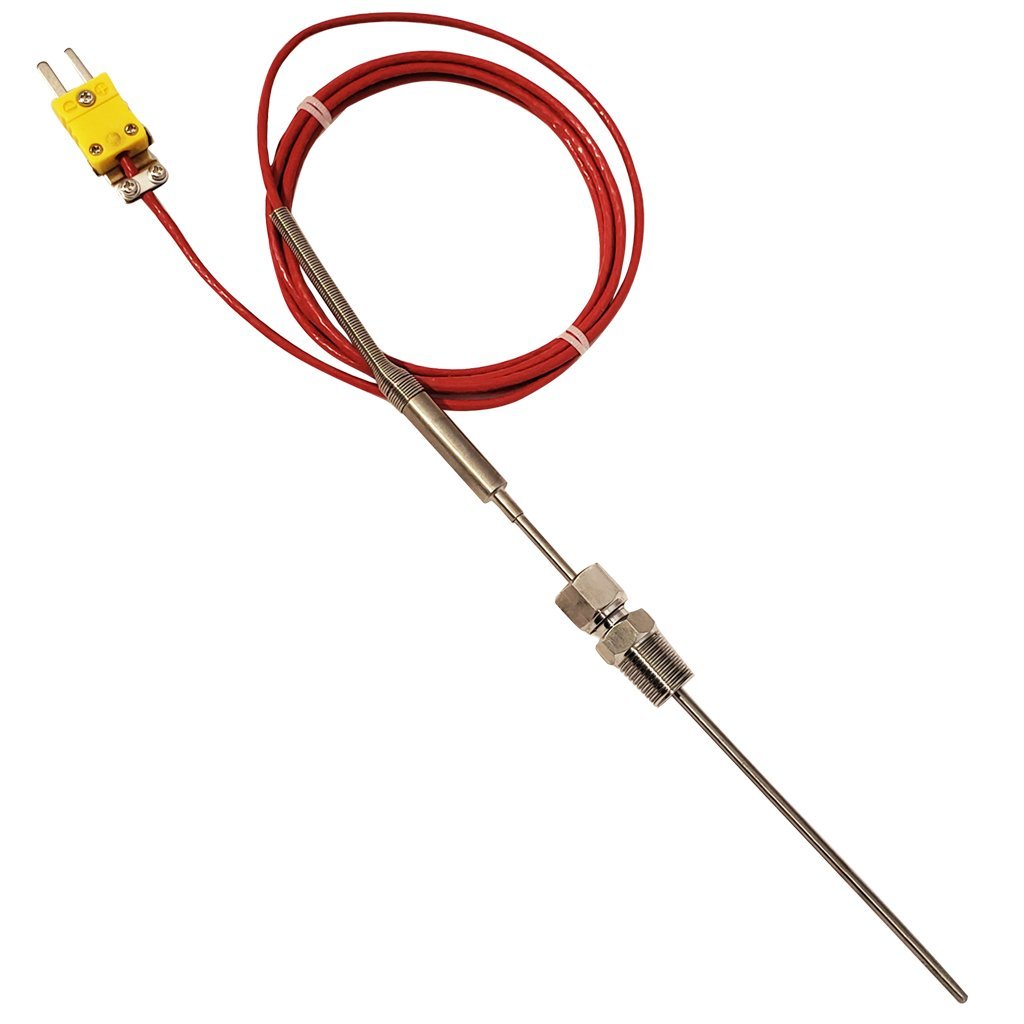

TJ-K Rugged Transition Joint Thermocouple Probe with Mounting Fitting
TJ-K Rugged Transition Joint Thermocouple Probe with Mounting Fitting
TJ-K Rugged Transition Joint K Thermocouple Probe with Fitting on Probe
TJ-K Rugged Transition Joint K Thermocouple Probe with Fitting on Probe
TJ-K Rugged Transition Joint Thermocouple Probe
TJ-K Rugged Transition Joint Thermocouple Probe
T Thermocouple Probe with Male Connector
T Thermocouple Probe with Male Connector
 K Thermocouple Probe with Stripped Leads
K Thermocouple Probe with Stripped Leads
TJ Series  Rugged Transition Joint Mineral Insulated Thermocouple Probe

TJ Series Rugged Transition Joint Mineral Insulated Thermocouple Probe

Regular price $42.00 Sale SKU:TJ-K-6-18U-72-M-FT
1 In stock* Ships in 3 weeks, if NOT in stock
* ships same or next day

  • K (Chromel/Alumel Type  or T (Copper/Constantan) Thermocouple
  • 6 Inch (152 mm) Long Probe with 1/8 inch (3 mm) Diameter
  • 72 Inch (1.830 mm) Lead Wire Terminating in Miniature Male Thermocouple Connector or Stripped Leads
  • Temperature Rating : 600°C (1,100°F) for Type K Thermocouple
  • Temperature Rating 370°C (700°F) for Type T Thermocouple
  • Includes Adjustable Stainless Steel Mounting Fitting
  • Ungrounded Junction

The TJ series are thermocouple probes with stainless steel sheath and ungrounded junction. The probes are available in type K and type T thermocouples.  This probe features a 304 stainless steel sheath, a heavy duty transition joint which connects the probe to the lead wires and 72 inches of lead wire which terminates in  either an industry standard male plug-type thermocouple connector or stripped leads.

This probe is well suited for industrial environments. The ungrounded junction of the probe isolates the thermocouple element inside the probe from the outer sheath wall of the probe making it resistant to ground loops often found in industrial environments. The rugged transition joint with spring wire strain relief makes for a highly mechanically sound connection between the wire and the probe.

Two termination options are available.  Either an industry standard male type thermocouple connector for quick connection to many thermocouple instruments or stripped leads.

Included with the probe is an adjustable and removable stainless steel mounting fitting. The "compression type fitting" can be moved along the length of the probe to set the insertion depth of the probe into the process or the fitting may be completely removed if desired.

.
 To Order, click on the model number link or scroll to the top of the page and  ADD TO CART
Model No.  Description
6 Inch Probe Lengths
TJ-K-6-18U-72-M-FTIn Stock Rugged Transition Joint Mineral Insulated Type K Thermocouple Probe with Connector, 6 Inch Probe Length
TJ-T-6-18U-72-M-FTIn Stock Rugged Transition Joint Mineral Insulated Type T Thermocouple Probe with Connector, 6 Inch Probe Length
TJ-K-6-18U-72-SL-FTIn Stock Rugged Transition Joint Mineral Insulated Type K Thermocouple Probe with Stripped Leads, 6 Inch Probe Length
TJ-T-6-18U-72-SL-FTIn Stock Rugged Transition Joint Mineral Insulated Type T Thermocouple Probe with Stripped Leads, 6 Inch Probe Length
12 Inch Probe Lengths
TJ-K-12-18U-72-M-FTIn Stock Rugged Transition Joint Mineral Insulated Type K Thermocouple Probe with Connector ,12 Inch Probe Length
TJ-K-12-18U-72-SL-FTIn Stock Rugged Transition Joint Mineral Insulated Type K Thermocouple Probe with Stripped Leads,12 Inch Probe Length



SPECIFICATIONS

Thermocouple Type: K or T
Temperature Rating: 600°C (1,100°F) for type K, 370°C (700°F) for type T
Probe Sheath Material: 304 Stainless Steel
Probe Diameter: 3mm (1/8inch)
Probe Length: 152mm (6 inches)
Thermocouple Junction: Ungrounded (thermocouple element is insulated from sheath wall)
Lead Wire Length: (Includes transition joint): 1,830mm (72 inches)
Lead Wire Insulation: PFA
Lead Wire Termination: Miniature Male thermocouple connector with strain relief (may be removed for stripped leads)
Mounting Fitting: Included, 1/8"NPT, stainless steel
