MTCC Miniature Thermocouple Connectors

Free Shipping! - USA Orders Over $75

Customer Reviews
Miniature Thermocouple Connectors - Male/Female Pair
Miniature Thermocouple Connectors - Male/Female Pair
Miniature Thermocouple Connectors - Top View
Miniature Thermocouple Connectors - Top View
Miniature Thermocouple Connectors - Side View
Miniature Thermocouple Connectors - Side View
MTCC-K-M - K Miniature Male Thermocouple Connector
MTCC-K-M - K Miniature Male Thermocouple Connector

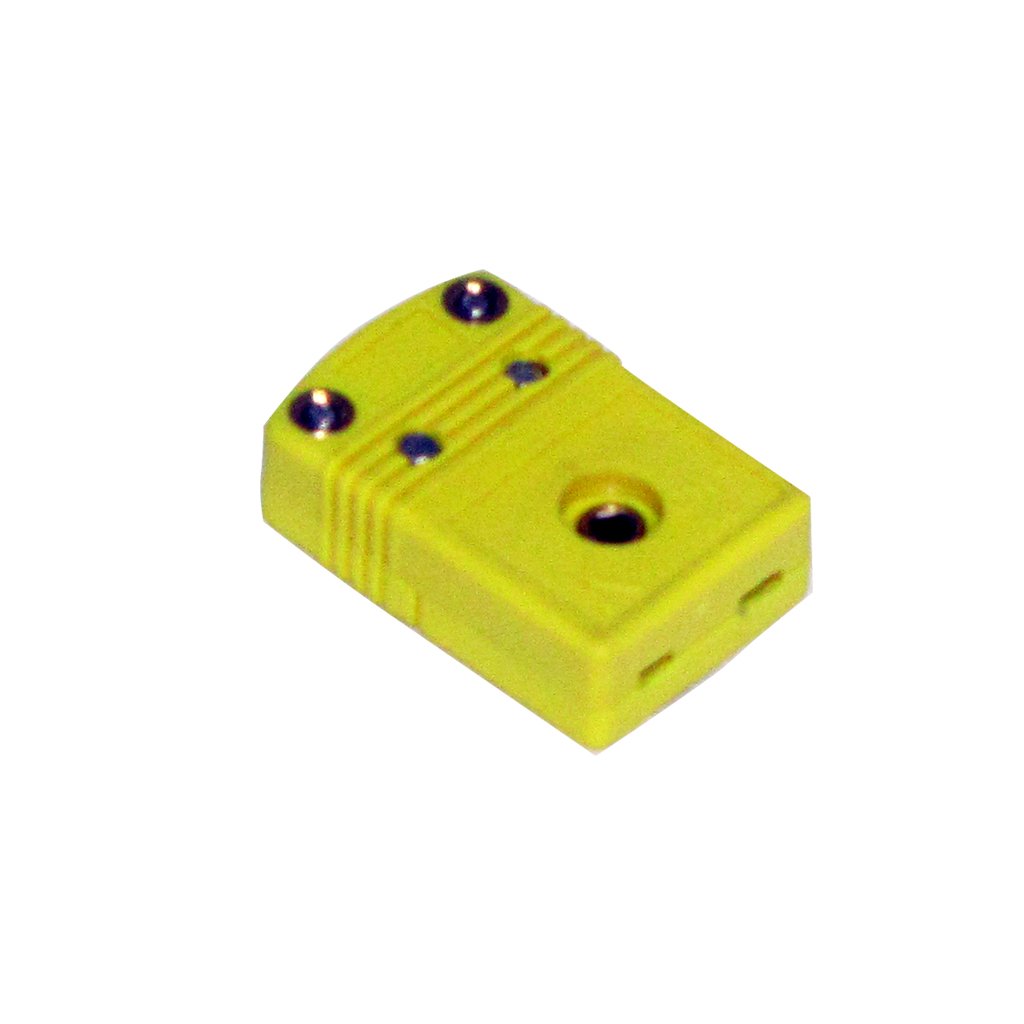

MTCC-K-F - K Miniature Female Thermocouple Connector
MTCC-K-F - K Miniature Female Thermocouple Connector
MTCC-T-M - T Miniature Male Thermocouple Connector
MTCC-T-M - T Miniature Male Thermocouple Connector
MTCC-T-F - T Miniature Female Thermocouple Connector
MTCC-T-F - T Miniature Female Thermocouple Connector
MTCC-J-M - J Miniature Male Thermocouple Connector
MTCC-J-M - J Miniature Male Thermocouple Connector
MTCC-J-F - J Miniature Female Thermocouple Connector
MTCC-J-F - J Miniature Female Thermocouple Connector
MTCC Miniature Thermocouple Connectors
MTCC Miniature Thermocouple Connectors

MTCC Miniature Thermocouple Connectors

Regular price $3.15 Sale SKU:MTCC-K-F
More than 300 In stock!*
* ships same or next day

  • Type K, T and J Thermocouple Calibration
  • ANSI Color Coded
  • Pins and Sockets Constructed of Thermocouple Alloys
  • Industry Standard Compatibility
  • Made from Glass Filled Nylon Rated to 350°F
  • Write On Window

The MTCC thermocouple connector is a miniature size connector made from glass filled nylon rated to 350°F (~180°C).  We offer this connector in both a male (pin) and female (socket) version. The body of the connector is colored to meet ANSI standards and is ergonomically designed with contours and ridges that make them easy to grasp and handle.

The male and female connectors are designed to be compatible with one another but the pin and sockets are also made to industrial standards which assure compatibility with other instruments and sensors with a flat-pin miniature design.

Both the male and female connectors have a write-on tab that allows you to add an identifying mark or label to each connector.

 To Order the models below click on the model number or scroll to the top of the page and choose the desired model from the "Model" drop down menu, then ADD TO CART
Model No.  Description
K Thermocouple
MTCC-K-MIn Stock
Miniature K type male thermocouple connector, single connectors
MTCC-K-FIn Stock

Miniature K type female thermocouple connector, single connector

T Thermocouple
MTCC-T-MIn Stock Miniature T type male thermocouple connector, single connector
MTCC-T-FIn Stock Miniature T type female thermocouple connector, single connector
J Thermocouple
MTCC-J-MIn Stock Miniature J type male thermocouple connector, single connector
MTCC-J-FIn Stock Miniature J type female thermocouple connector, single connector



SPECIFICATIONS

Calibration: K (Chromel Alumel)  or T (Constantan Copper-Nickel) type or J (Iron Constantan )
Ansi Color Coded: Yes
Size: Minature flat pin style
Material: Glass filled nylon
Temperature Rating: 180°C (356°F)
Maximum Conductor Size: 20 AWG

 MTCC Thermocouple Connector Dimensional Drawing
