- Part of the Telik Geter Asset Condition Monitoring System
- Collects data from Telik Geter Sensors and sends it to the NOVUS Geter cloud platform
- Supports communication with up to 512 sensors simultaneously
- Connects to the network using Ethernet or Wi-Fi
- Bluetooth Low Energy communication range of 50 to 70 meters without obstacles
- Mounts using DIN rail or screws for installation in control panels or equipment areas
- External BLE antenna connection helps improve coverage when installed inside enclosures

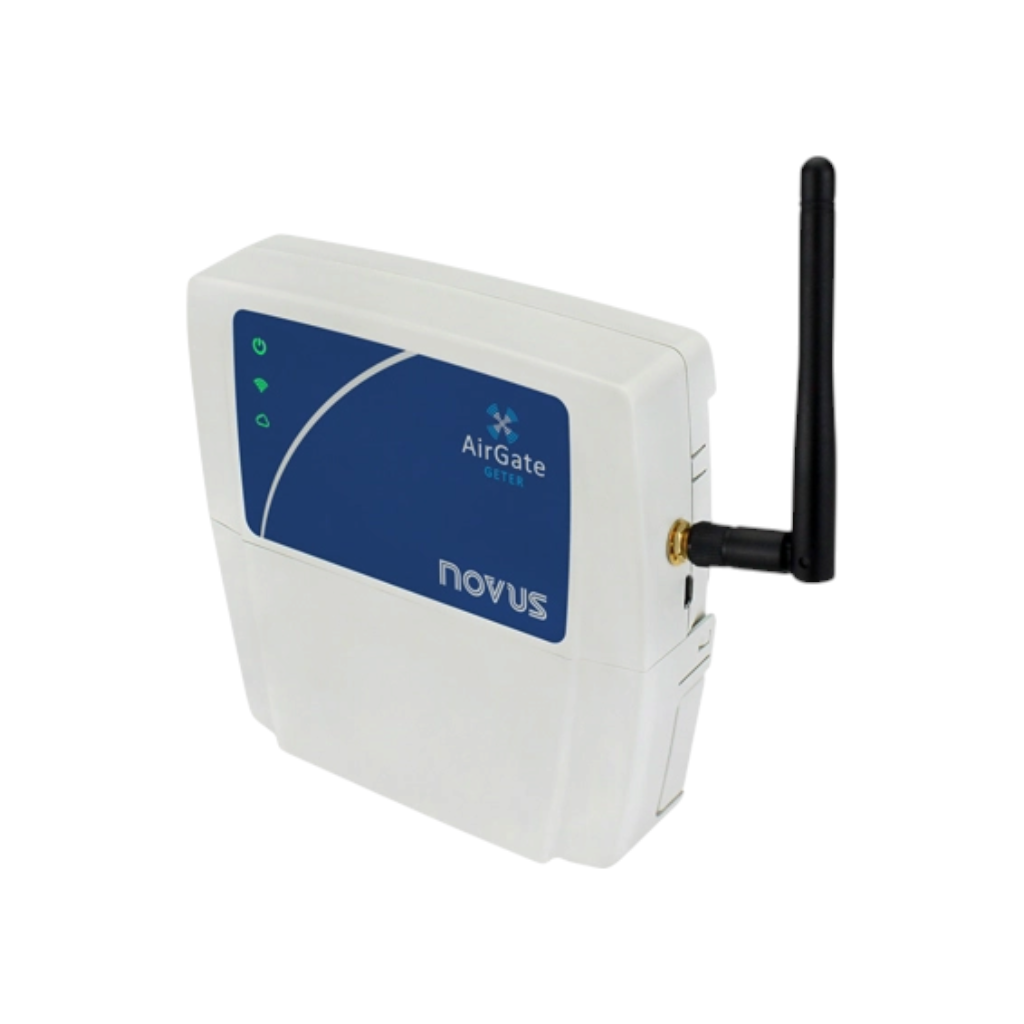

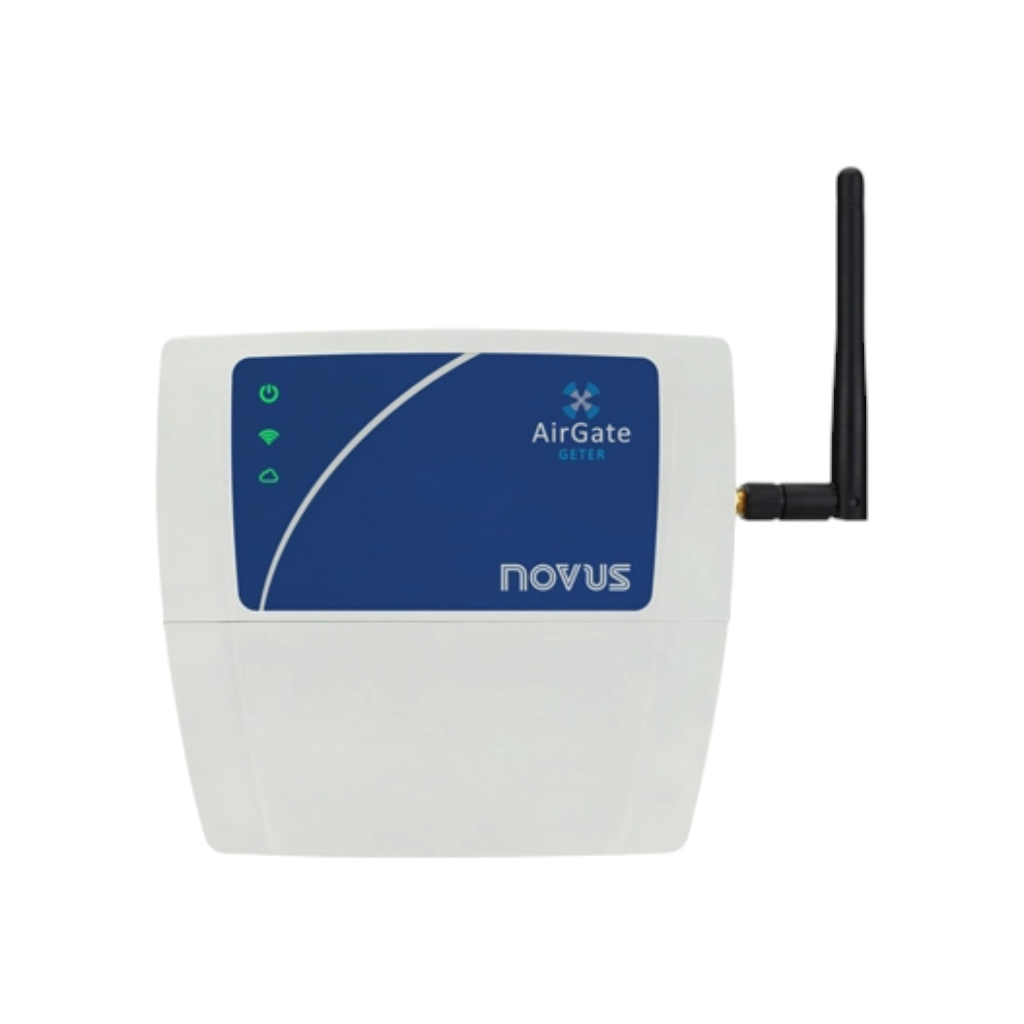

The AirGate Geter Gateway is used with the Telik Geter Asset Condition Monitoring System to collect wireless sensor data and transmit it to the NOVUS Geter platform. It acts as the communication bridge between Telik Geter Sensors installed on equipment and the cloud-based monitoring dashboard.
This gateway is typically used when adding additional monitoring areas, expanding sensor coverage, or replacing an existing gateway. Most application details, including vibration monitoring, dashboards, alarms, and sensor configuration, are covered on the main Telik Geter system page.
Wireless Sensor Collection
The gateway receives data from Telik Geter Sensors over Bluetooth Low Energy, with a typical open-area range of 50 to 70 meters. Multiple gateways can be used across a facility to support larger monitoring networks and improve coverage in industrial environments.
Network and Cloud Connectivity
The AirGate Geter Gateway connects to the local network using Ethernet or Wi-Fi and sends sensor data to the NOVUS Geter cloud platform. From there, users can view dashboards, trends, alarms, and condition monitoring data from connected sensors.
Industrial Installation
The gateway can be mounted on a DIN rail or secured with screws, making it suitable for installation inside panels or near monitored equipment. The external BLE antenna connection allows the antenna to be positioned outside metal enclosures when needed for improved wireless communication.
SPECIFICATIONS
AirGate Geter Gateway
Operating Temperature: -20 °C ... 60 °C
Storage Temperature: -5 °C ... 25 °C
External Dimensions: 142 mm x 129 mm x 38 mm
Power Supply: 5 Vdc or 12 ~ 24 Vdc
Power Supply Input: Detachable terminal blocks
Power Output: 5 Vdc auxiliary output
Communication: Bluetooth Low Energy 4.2, 2.4 GHz, external antenna
Bluetooth Signal Range: 50 to 70 meters without obstacles
Transmission Power: +8 dBm
Reception Sensitivity: -103 dBm
Northbound Communication: Ethernet 10/100 Mb/s and Wi-Fi 802.11 b/g/n 2.4 GHz
Cloud Communication Protocol: MQTT and REST
RS485: For configuration purposes only
Assembly: DIN rail or screw mounting
Housing: ABS + PC
External Antenna for BLE: SMA connector, 2.4 GHz
Certifications: ANATEL, FCC, ISED, CE
