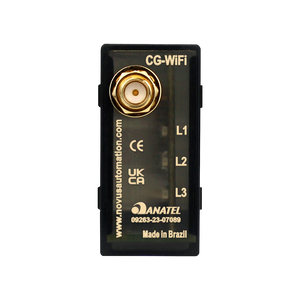

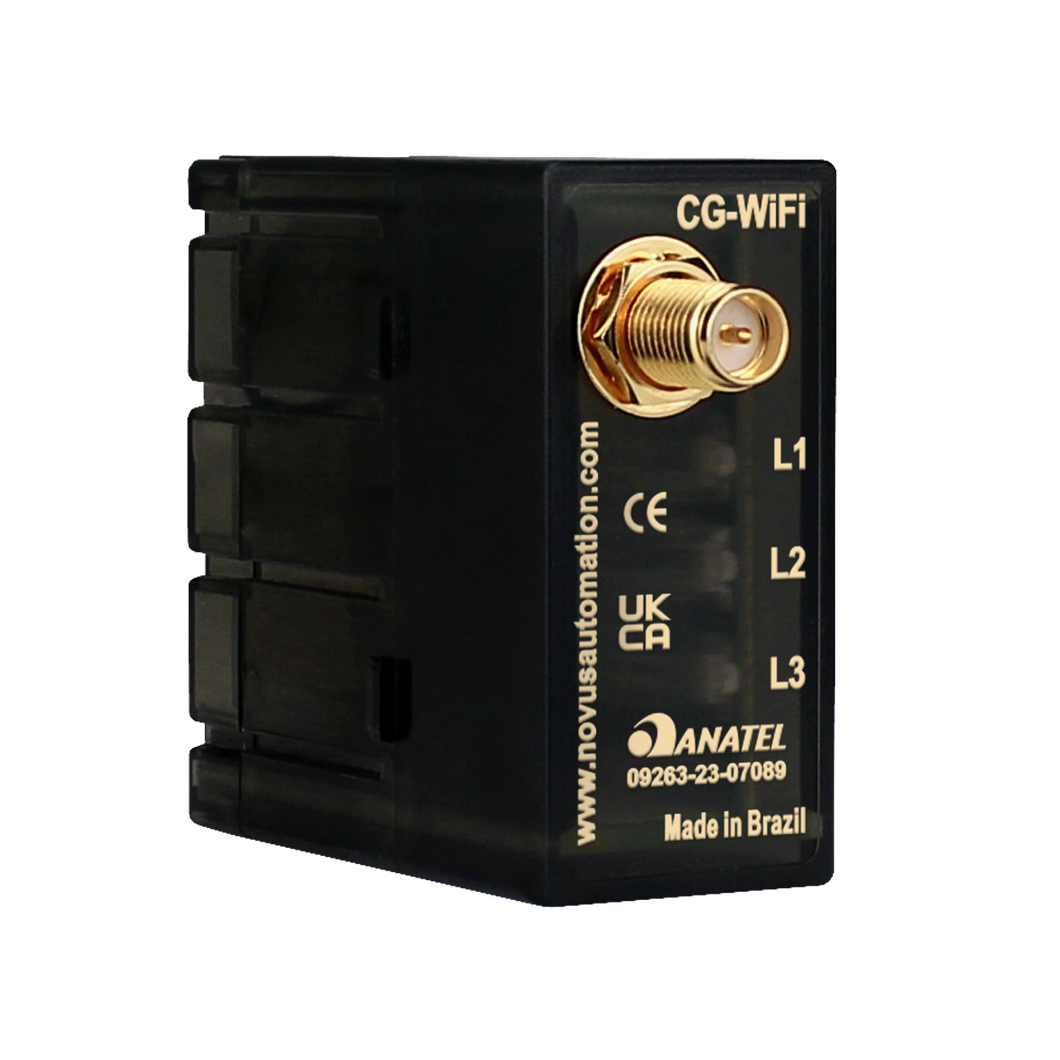

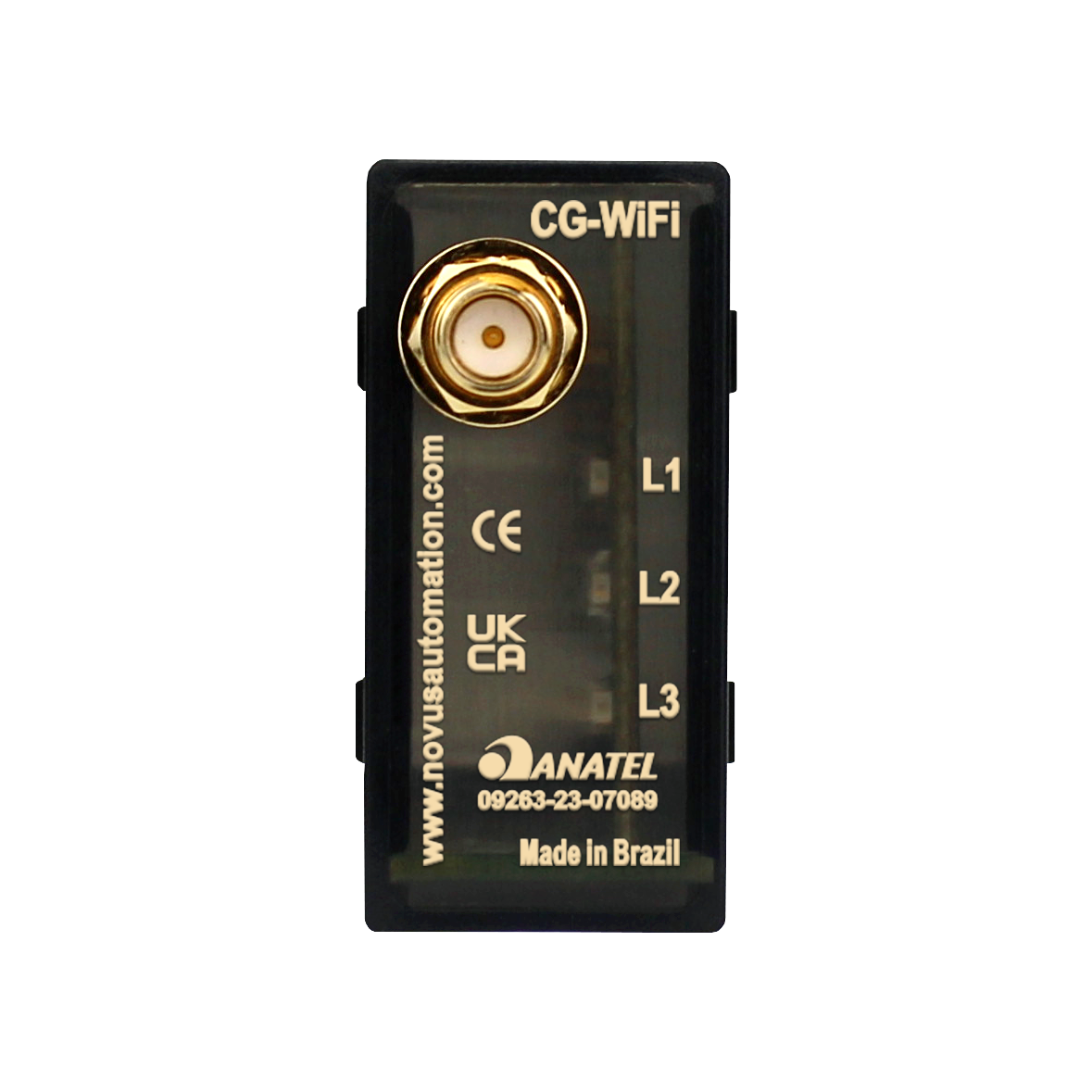

CG-WiFi WiFi Communication ClickNGo Module for the N20K48 Modular PID Controller
CG-WiFi WiFi Communication ClickNGo Module for the N20K48 Modular PID Controller

CG-WiFi WiFi Communication ClickNGo Module for the N20K48 Modular PID Controller

Regular price $50.00 Sale SKU:CG-WIFI
11 In stock* Ships in 2-4 weeks, if NOT in stock
* 5 available for immediate shipment, 6 ship in 3-4 days

  • Adds WiFi Communications to N20K48 Controllers
  • Plug and Play Configuration
  • Modbus TCP Protocol
  • MQTT PROTOCOL
  • IoT Cloud Support

The CG-WiFi ClickNGo module is an WiFi digital communications expansion module for the N20K48 of modular controller. The CG-WiFi ClickNGo module turns the N20K48 into an IoT device that can perform signal acquisition through the cloud. Used in conjunction with the controller dock, once inserted, it is automatically recognized by the controller. The CG-WiFi module can be configured through the controller's keyboard, QuickTune Windows software or QuickTune Mobile software.

Modbus TCP Protocol
The CG-WiFi is compatible with the Modbus-TCP protocol. Modbus-TCP is an industry standard protocol which allows an N20K48 with the WiFi module to connect to many data acquisition and SCADA(Supervisory Control and Data Acquisiton) software devices as well as other devices like PLC and Automation Systems that support Modbus-TCP.

MQTT Protocol Support
The CG-WiFi supports MQTT protocol a protocol normally used for communication between IoT devices and Cloud systems. This allows the N20K48 controller with a CG-WiFi module to be compatible with cloud platforms, software and other devices that also support this protocol.

NOVUS Cloud IoT Platform(Free Starter Plan)
The CG-WiFi is compatible with the NOVUS Cloud is an IoT platform solution for monitoring devices for process data online visualization. It is the perfect choice for customers with low IT infrastructure or with requirements of unified data from multiple devices at multiple locations. The NOVUS Cloud can receive information of any kind from the IoT devices, store them in the cloud database and present the data in elegant dashboards. Operation or management staff can get online awareness about the process deviations through E-mail notifications, besides the online dashboard alarms. Hosted on cloud server, NOVUS Cloud is accessible worldwide on the internet from any computer or mobile device.
View more details about the Novus Cloud.

Optional WiFi Antenna
The CG-WiFi requires the use of a WiFi antenna. We offer an antenna for panel mount instruments but the CG-WiFi module is compatible with 2.4 GHz RP-SMA connector with a female connector.



 To Order click on the model below or  scroll to the top of the page and select the model number then  click on ADD TO CART button
 PART NUMBERS DESCRIPTION
CG-WiFi Digital Communications WiFi ClickNGo Module for the N20K48 Modular PID Controller



 Downloads

CG-WiFi Data Sheet



SPECIFICATIONS
Operating Temperature: -20 to 60 °C (-4 to 140°F)
Relative Humidity: 80% max. @ 30 °C (86°F) (For temperatures above 30°C (86°F), reduce by 3 %for each °C)
Dimension: 53.8 x 10.6 x 22.2 mm(uses four slots in the dock)
Weight: 10 g
Protection: IP50 when installed in controller
Antenna: Single Wi-Fi antenna with RP-SMA female connector
WLAN Standards: IEEE 802 part 11/b/g/n (802.11b/g/n)
Frequency Band: 2.400 to 2.484 GHz
Software: QuickTune (for PC), QuickTune Mobile(for mobile devices)
Certifications: CE, UKCA, Anatel (09263-23-07089)
