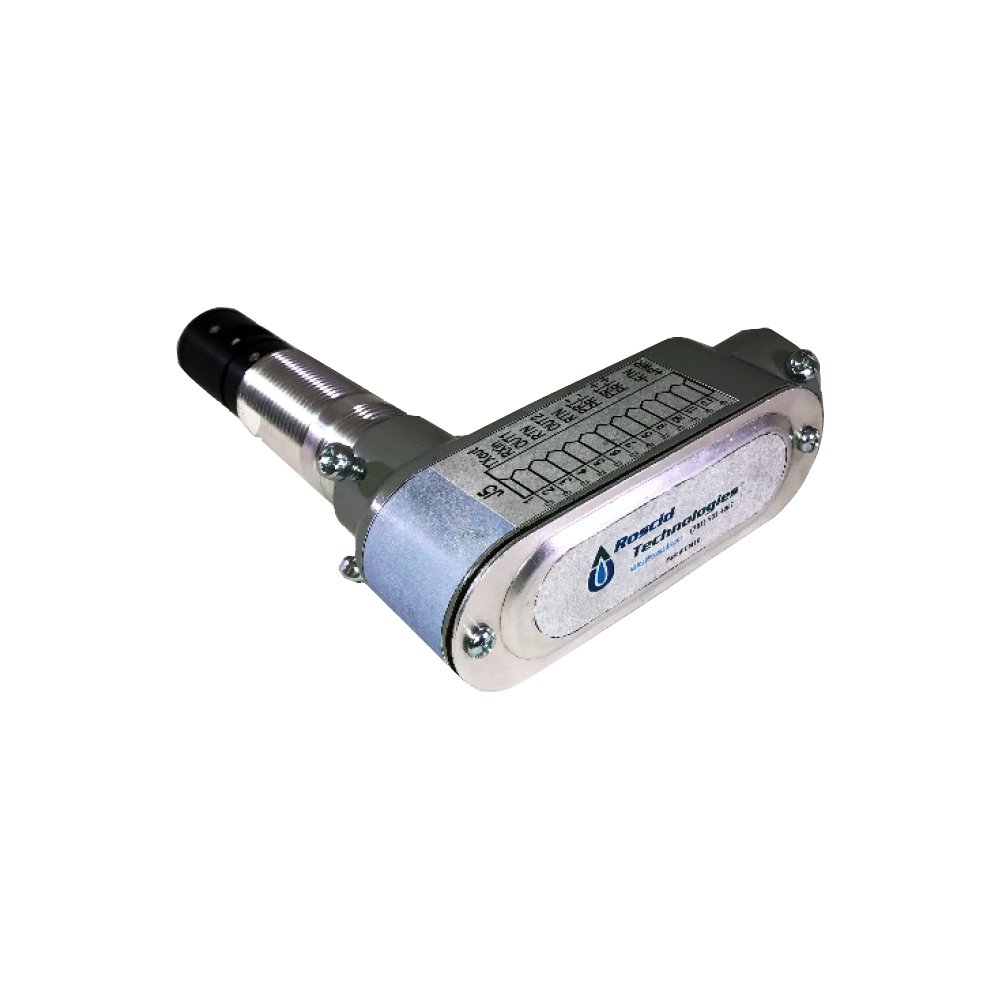

CM10 Dew Point Transmitter Pipe Mount Model
CM10 Dew Point Transmitter Pipe Mount Model
CM10 Dew Point Transmitter Side View
CM10 Dew Point Transmitter Side View
CM10 Dew Point Transmitter Duct Mount Model
CM10 Dew Point Transmitter Duct Mount Model

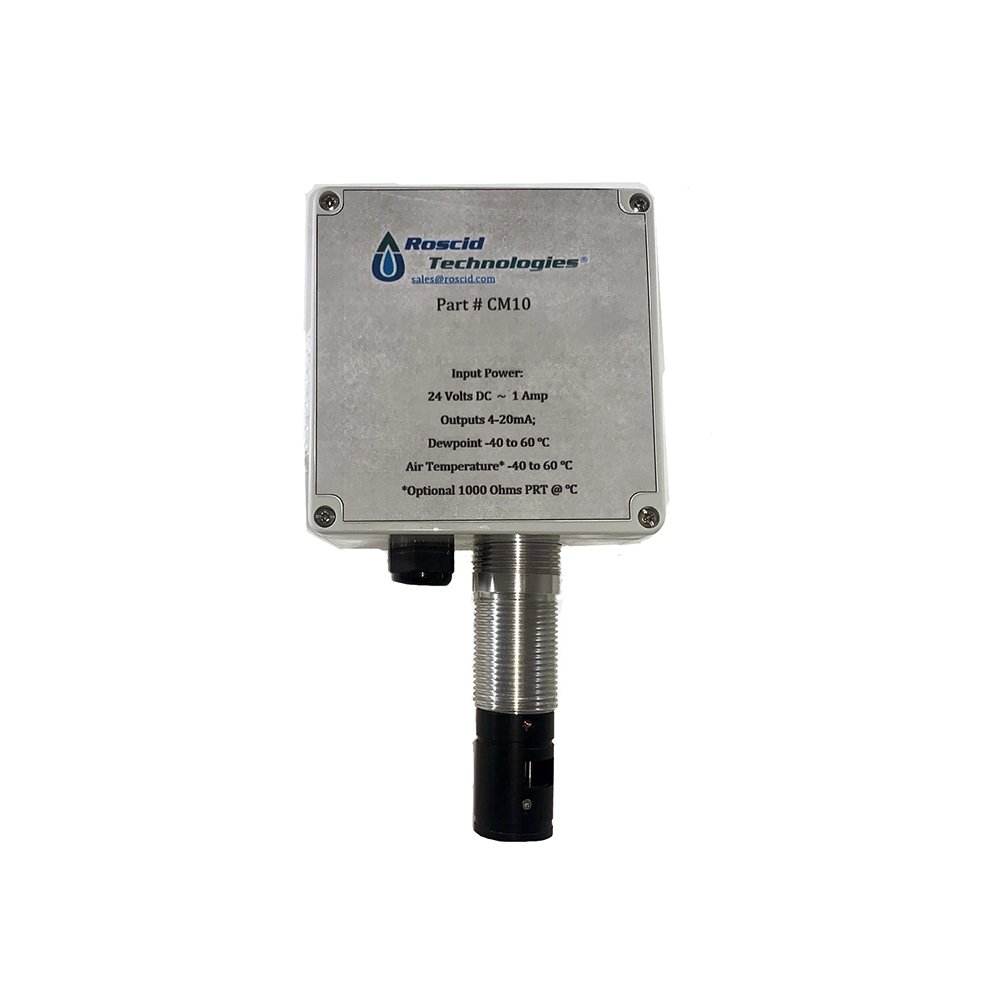

CM10  Dew Point Transmitter Wall Mount Model
CM10 Dew Point Transmitter Wall Mount Model

CM10 Low Cost Chilled Mirror Hygrometer - Dew Point Transmitter

Regular price $1,550.00 Sale SKU:CM10-P
Ships in 2-3 weeks

  • High Accuracy
  • Two 4-20mA Outputs (configurable)
  • RS232 Communications
  • Includes NIST Traceable Certificate
  • Durable
  • Fast Response
  • Multiple Mounting Options
    • Duct Mount
    • Pipe Mount
    • Wall Mount
  • Air temperature Option for Wall Mount Model
  • Automatic Balance Function For the Mirror/Optical Loop Circuitry

The CM10 series is a family of low-cost dew point chilled mirror transmitters that is available in duct, wall or pipe mount configuration. The CM10 offers stable, accurate and repeatable measurements traceable to NIST. An NIST calibration certificate is included with the purchase of each CM10.

The CM10 employs chilled mirror technology a primary measurement using a fundamental principle to measure the dew point very accurately.  Air flows over the CM10's internal mirror which contains circuitry to precisely control the mirror's temperature. The CM10 regulates the temperature of the mirror cooling it until a thin film of condensate forms on the mirror. The condensate is detected optically and a feedback control loop maintains the mirror at the precise temperature at which the condensate or dew forms. This temperature is then transmitted via the CM10's two user scaleable 4-20mA outputs.  Each output is factory scaled for the CM10's operating range but the user can independently scale each output using the CM10's RS232 interface.  User specified ranges may also be requested when ordering.

An air temperature option is available for the wall mount model.  The air temperature option includes an external precision RTD probe.  With this option one of the 4-20mA outputs is used for air temperature transmission.

Simple maintenance to cleaning the mirror requires using a wetted cotton swab to restore the transmitter to normal operation. Because of its construction, the customer can enjoy a long life of excellent performance.

Applications for the CM10 include:

  • HVAC
  • Clean Rooms
  • Environmental Chambers
  • Pharmaceutical
  • Industrial Processes
  • Glovebox Applications
  • Semiconductor
  • Data Storage
  • Hospitals
  • Museums
  • Battery Systems

.

 To Order the model below click on the part number or scroll to the top of the page then  click on ADD TO CART button
 PART NUMBER DESCRIPTION
CM10-P CM10 Pipe Mount Model
CM10-D CM10 Duct Mount Model
CM10-W CM10 Wall Mount Model
CM10-W-T CM10 Wall Mount Model with Temperature Option
Accessories
PSJ-R-WA24V24W Regulated Wall Mount Power Supply, 24 VDC, 1 Amp, 24 Watt
PSJ-U-DR24V24W DIN rail mount power supply, 24 VDC, 1 Amp, 24 Watt



 Downloads
Data Sheet
User Manual



SPECIFICATIONS

Measurement Ranges
  Dew Point (@25°C): -20 to 60°C
  Dew Point (@0°C): -40 to 60°C
  Temperature(Optional):  -40 to 120°C
Accuracy
  Dew point: +/-0.5C
  Temperature : +/-0.5C
Hysteresis: None
Repeatability: +/- 0.05°C
Resolution: 0.01%
Supply Voltage: 24Vdc +/-3V @ 1.0A
Analog Output:  Two 4-20mA outputs user scaleable, factory scaled for -20 to 60°C
Operating Temperature: -40 °C to +60 °C
Weight: < 5lbs.
Air Velocity: 50 to 900m/min
Pressure: 2 ATM
