PT100 Temperature Probe for WS1-Pro and GS1 Family

Free Shipping! - USA Orders Over $75

Customer Reviews
The PT100 probe with audio connector is compatible with the GS1 family
The PT100 probe with audio connector is compatible with the GS1 family

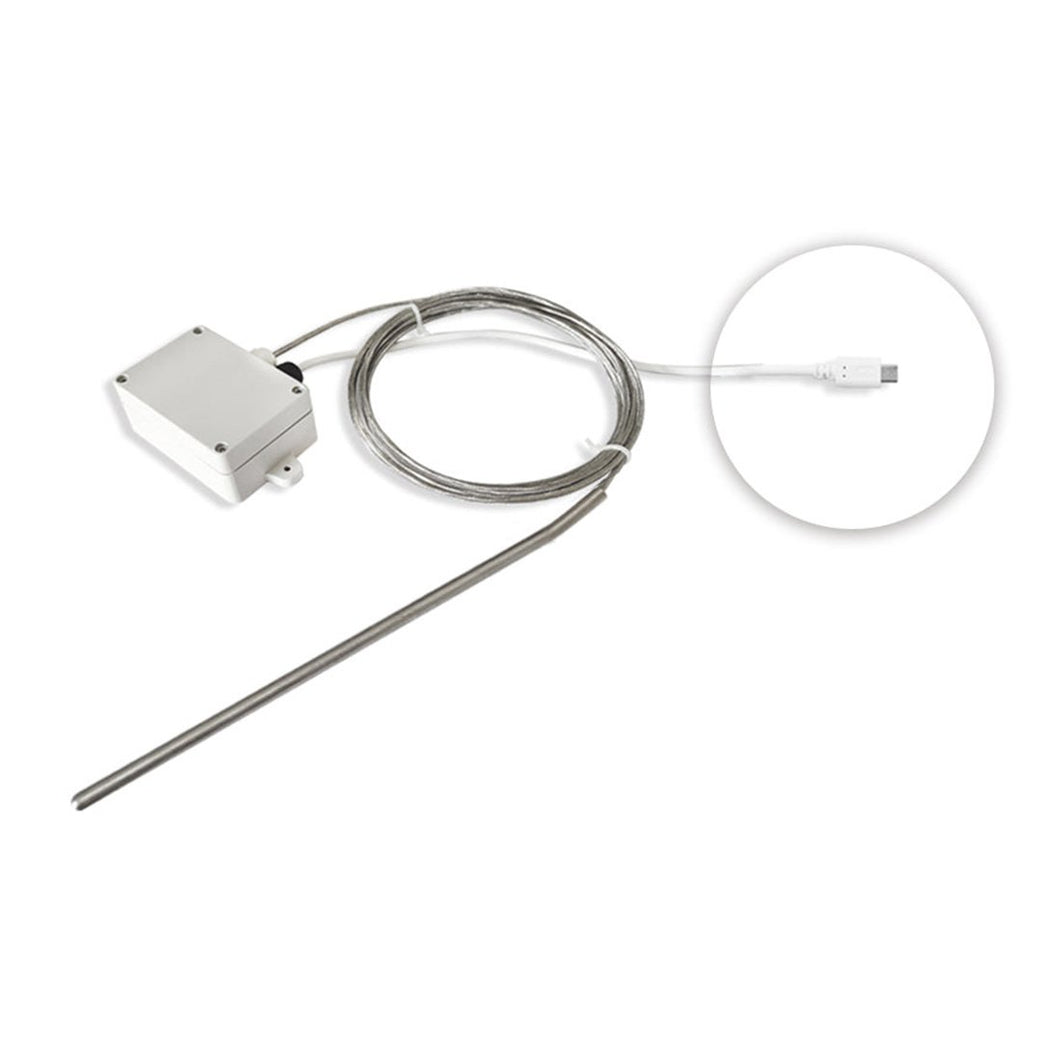

The PT100 probe with micro USB connector is compatible with the WS1-PRO family
The PT100 probe with micro USB connector is compatible with the WS1-PRO family
PT100 Temperature Probe for WS1-Pro and GS1 Family
PT100 Temperature Probe for WS1-Pro and GS1 Family

PT100 Temperature Probe for WS1-Pro and GS1 Family

Regular price $73.00 Sale SKU:PT100-3M-R-USB
1 In stock* Ships in 2-3 weeks, if NOT in stock
* ships same or next day

  • Temperature Range -200 to 400°C
  • Probe Size 6mm(dia) x 200mm (length)
  • 500mm Cable Length
  • IP68 Weather Proof Construction
  • 304SS Probe Construction
  • Compatible with GS1 and WiFi-PRO


This external RTD temperature probe is designed for use in extreme industrial environments. It can work in a over the wide temperature range of -200 to 400°C. The probe itself is constructed from 304 stainless steel which is durable and compatible with mildly corrosive liquids.

There are two versions of the PT100 probe; one which has a Micro USB connector and is compatible with the WS1-PRO and the other which has an Audio plug and is compatible with the GS1.

When used with the GS1 or WS1-PRO, the temperature measurements, will be displayed on the large LCD screen and also transmitted to the UbiBot cloud platform.  The UbiBot cloud platform provides data visualization via any browser enabled device or the mobile app.  The cloud platform can generate alters when alarm conditions occur.  These alerts can be email, SMS text, voice, IFTTT as well as several other forms.

.

To Order  click on the model below or scroll to the top of the page then click on ADD TO CART button
PART NUMBERS DESCRIPTION
PT100-3M-R-AUDIOIn Stock PT100 with audio connector for the GS1
PT100-3M-R-USBIn Stock PT100 with micro USB connector for the WS1-PRO



SPECIFICATIONS
Monitoring Range:-200 to 400°C
Accuracy: ±2%+1°C
Probe Length: 200mm
Probe Diameter: 5mm
Cable Length: 3m
Connector: Micro USB or Audio Plug
Communications: RS485 ModBus RTU
Enclosure Rating: IP68
Compatibility: WS1-PRO-SIM, WS1-PRO-WiFi, GS1-AETH1RS, GS1-AL4G1RS, GS1-AETH1RS-ALARM, GS1-AL4G1RS-ALARM
