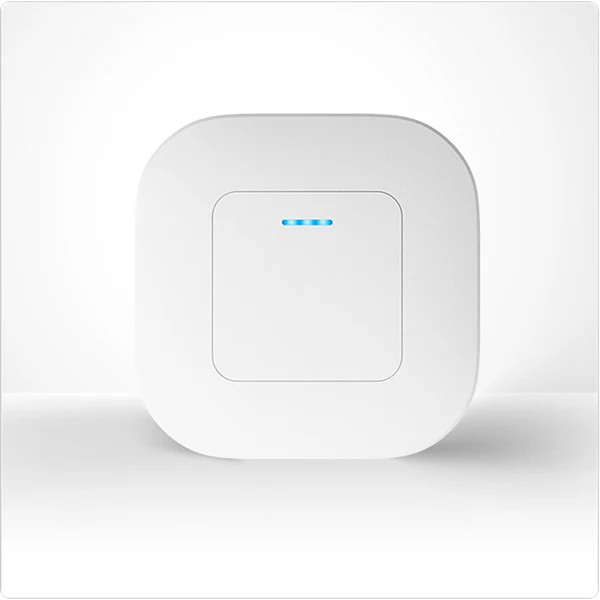

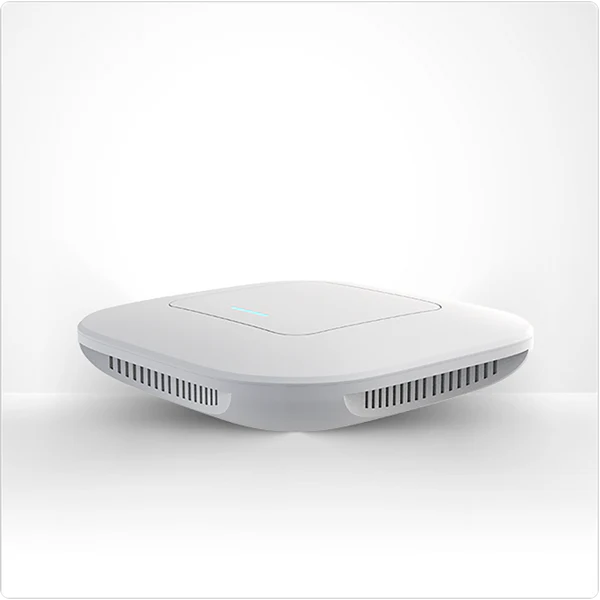

LoRa Gateway GW1

• LoRa Wireless Communication for Long-Range, Low-Power Deployment
• WiFi, Ethernet and Cellular Connectivity Options

• LoRa Wireless Communication for Long-Range, Low-Power Deployment

• Built-In Offline Storage for up to 300,000 Sensor Data Records
• Automatic Data Re-Transmission After Communication Recovery
• Supports Connection up to 100 LoRa Sensors
• Suitable for Medical Storage, Refrigeration, HVAC, Industrial Monitoring, and Thermal Power Applications

The LoRa Gateway GW1 is a high-performance, low-power IoT communication device supporting the LoRa wireless protocol. It features long-distance transmission and multi-device access capabilities. The gateway supports
multiple networking methods—Wi-Fi, Ethernet, and 4G making its configuration flexible and suitable for various complex deployment environments. Its stable data forwarding capability makes it an ideal core for building a LoRa wireless monitoring network.

Multiple Network Connection Methods

The GW1 can be connected to the UbiBot IoT big data platform through WiFi, 4G cellular or Ethernet, allowing full control and monitoring of connected sensors from multiple devices like mobile devices, tablets, laptop and desktop computers.  All of the GW1 support WiFi communications.  We also offer models that have either Ethernet Connectivity or 4G cellular in addition to WiFi.

Long Range Transmission

Sensors

When paired with a Ubibot LoRa Sensor, it enables remote collection and real-time monitoring of environmental parameters like temperature and humidity. The LoRa sensor communicates with the GW1 gateway via the LoRa network, offering advantages such as low power consumption, long range, and strong penetration ,making it especially suitable for scenarios that require long battery life and stable signal.  Below is a list of compatible sensors:

Temperature and Humidity Sensor DC1-L-TH

PT 100 Temperature Sensor DC1-L-PT

Atmospheric Pressure, Temperature and Humidity Sensor DC1-L-THP

Data Collector DC1-L-1RS - Connects up to six remote probes.

Access Data From Anywhere with an Internet Connection Real Time Data Monitoring and Charting Secure Data Logging and Storage Multiple Types of Alarms and Notifications Assign Data Access Rights to Others  Multi-Device Support

SPECIFICATIONS

Work frequency: 915MHz
WiFi frequency: 2.4GH
Ethernet: 10/100 Mbps，Full-duplex/half-duplex auto-sensing
Router WiFi Channel Requirement: 1-13
Body Material: ABS material
Device interface: 1 USB TypeC, 1 RJ45 interface
Power supply: DC12V/1A power supply(included)
Dimensions: 190mm*190mm*40mm
Storage space: 300,000 data points
Ambient Environment: Temperature range -20℃~60℃；Humidity range 10~90%
