Metal panels with cutouts for miniature thermocouple panel jack connectors.
| To Order the model below scroll to the top of the page then click on ADD TO CART button |
| PART NUMBERS | DESCRIPTION |

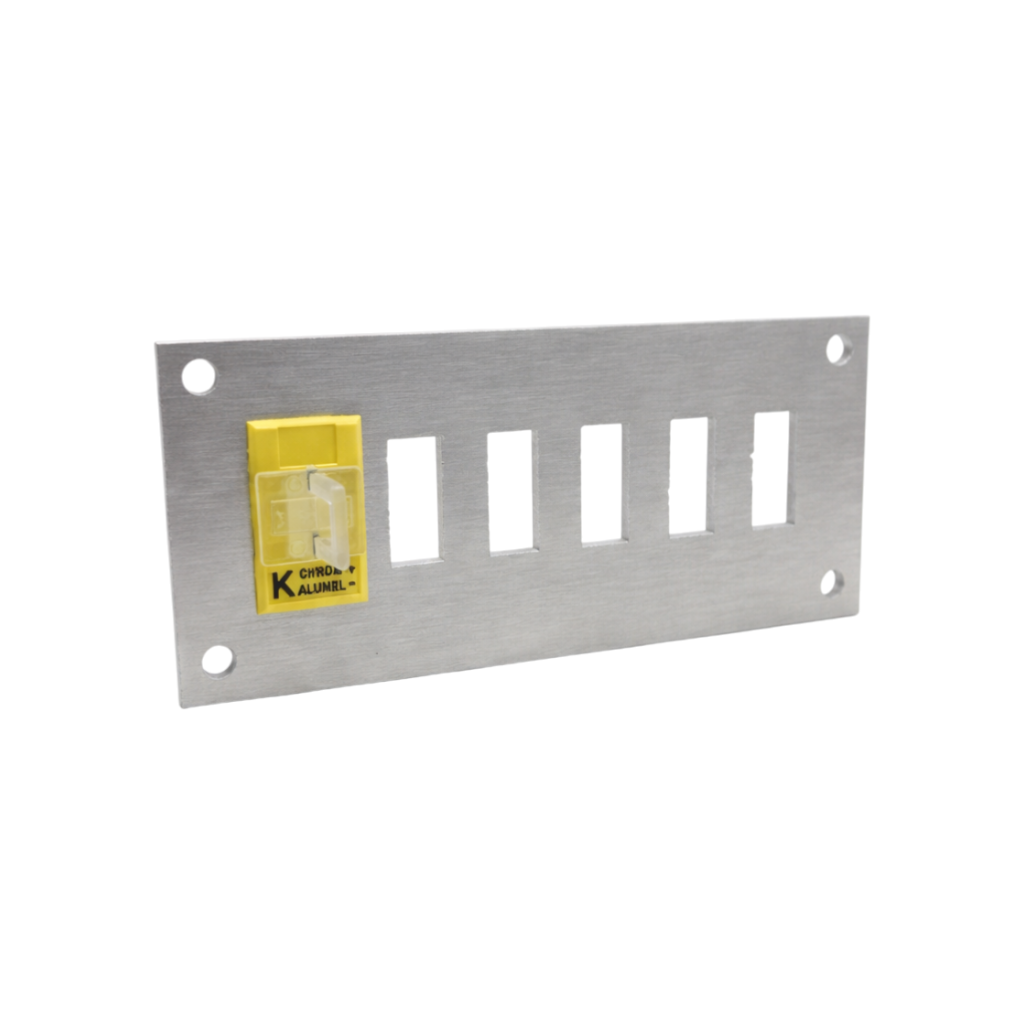

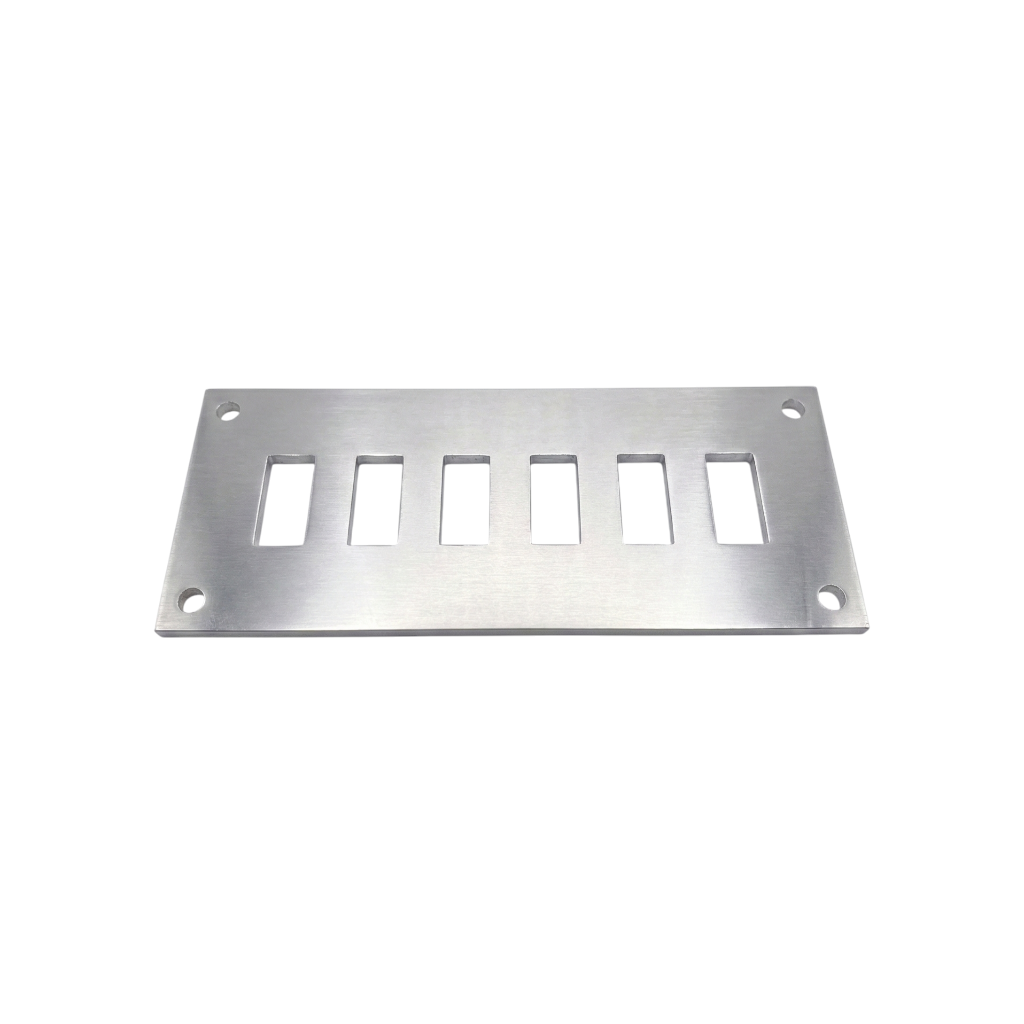

MTCPJ1-6 |
Panel with 6 cutouts for miniature thermocuple panel jack connectors |

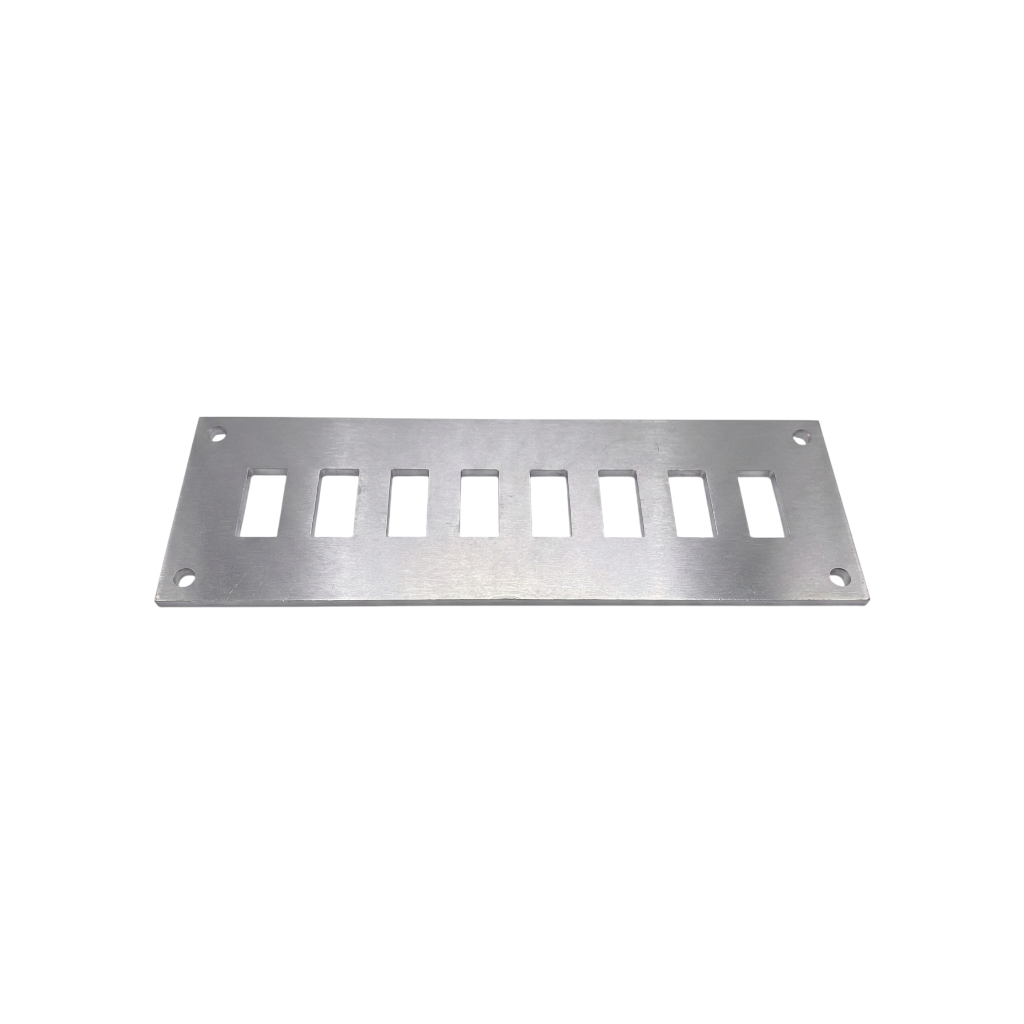

| MTCPJ1-8 |
Panel with 8 cutouts for miniature thermocuple panel jack connectors |

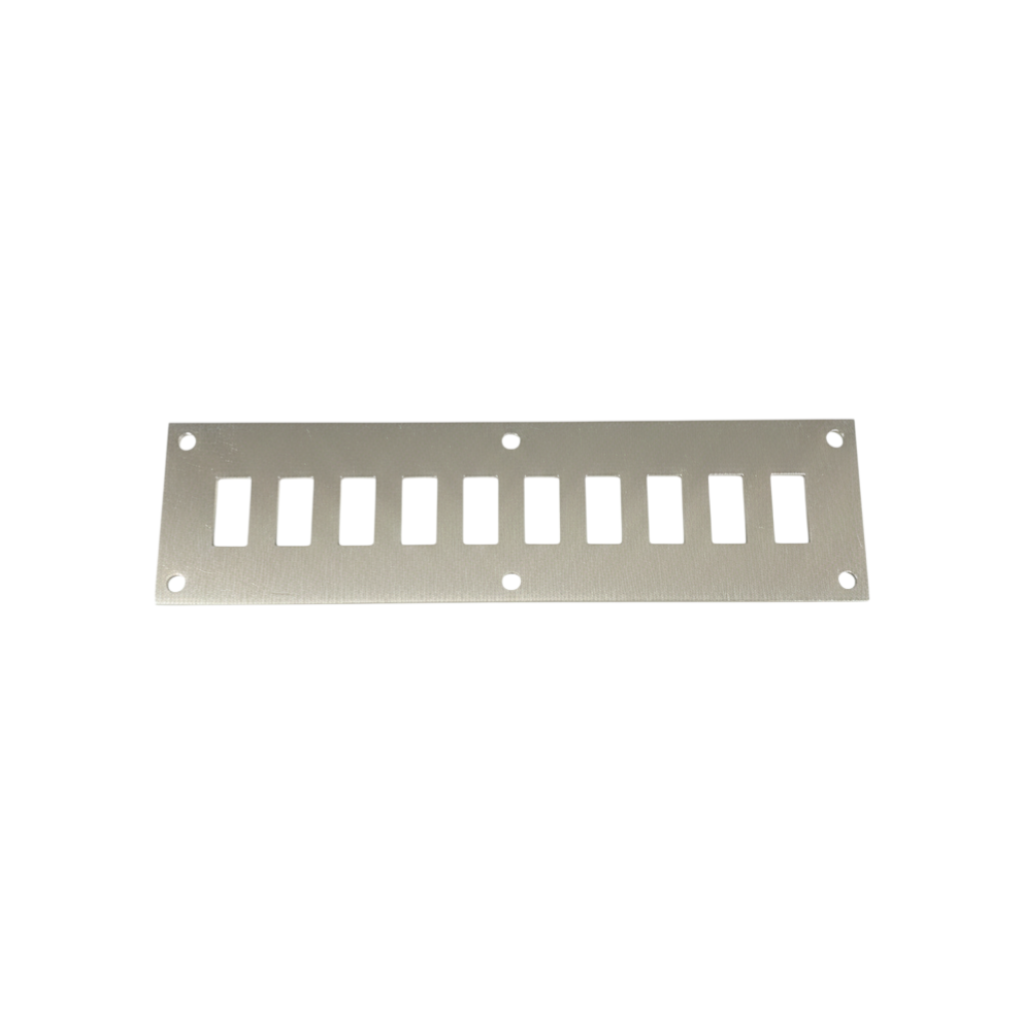

| MTCPJ1-10 |
Panel with 10 cutouts for miniature thermocuple panel jack connectors |

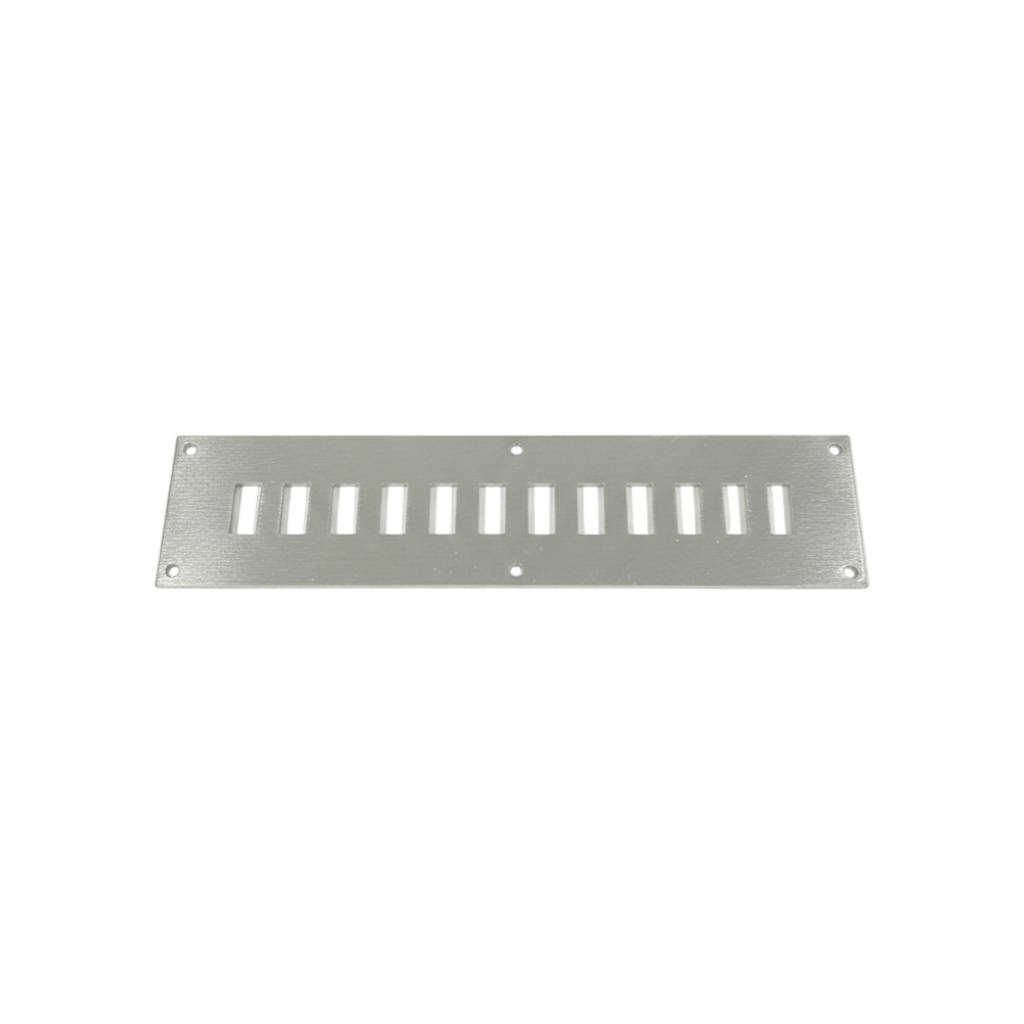

| MTCPJ1-12 |
Panel with 12 cutouts for miniature thermocuple panel jack connectors |

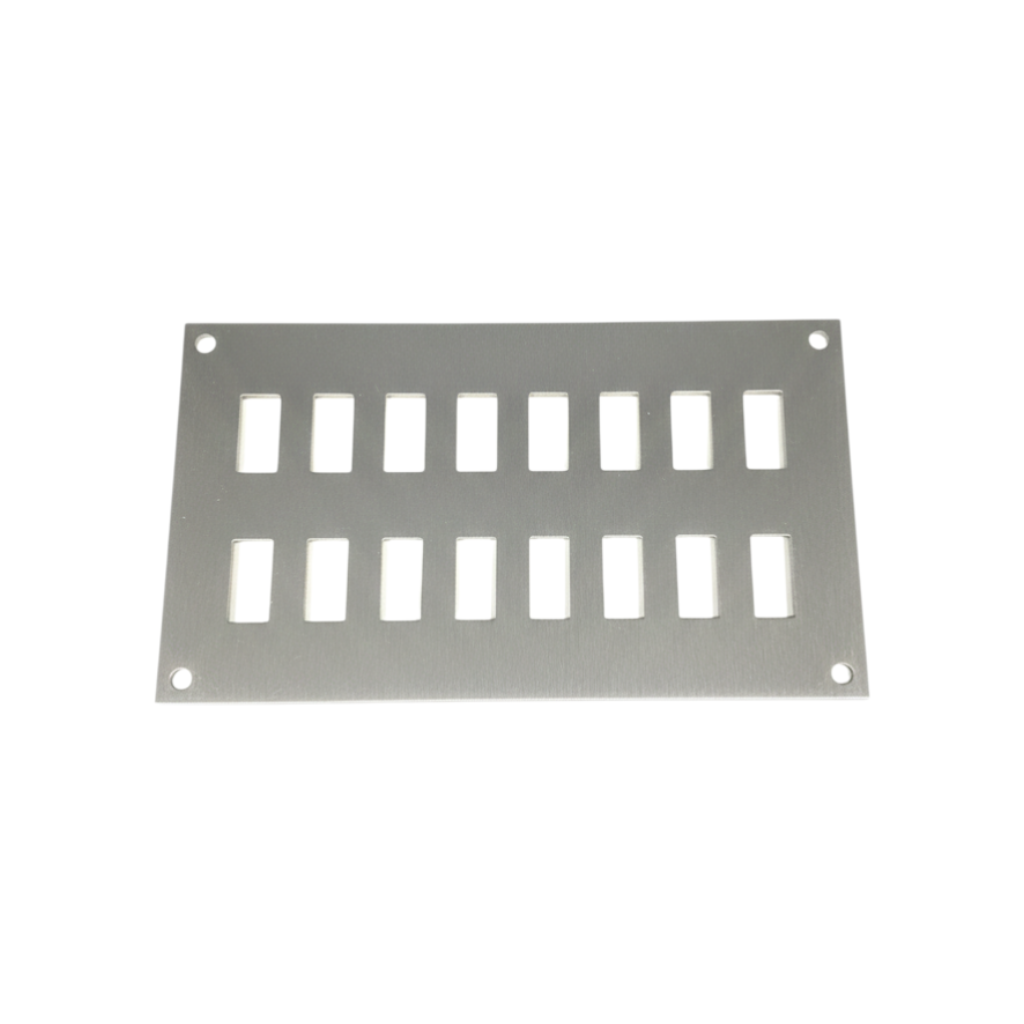

| MTCPJ2-16 |
Panel with 16 cutouts for miniature thermocuple panel jack connectors |

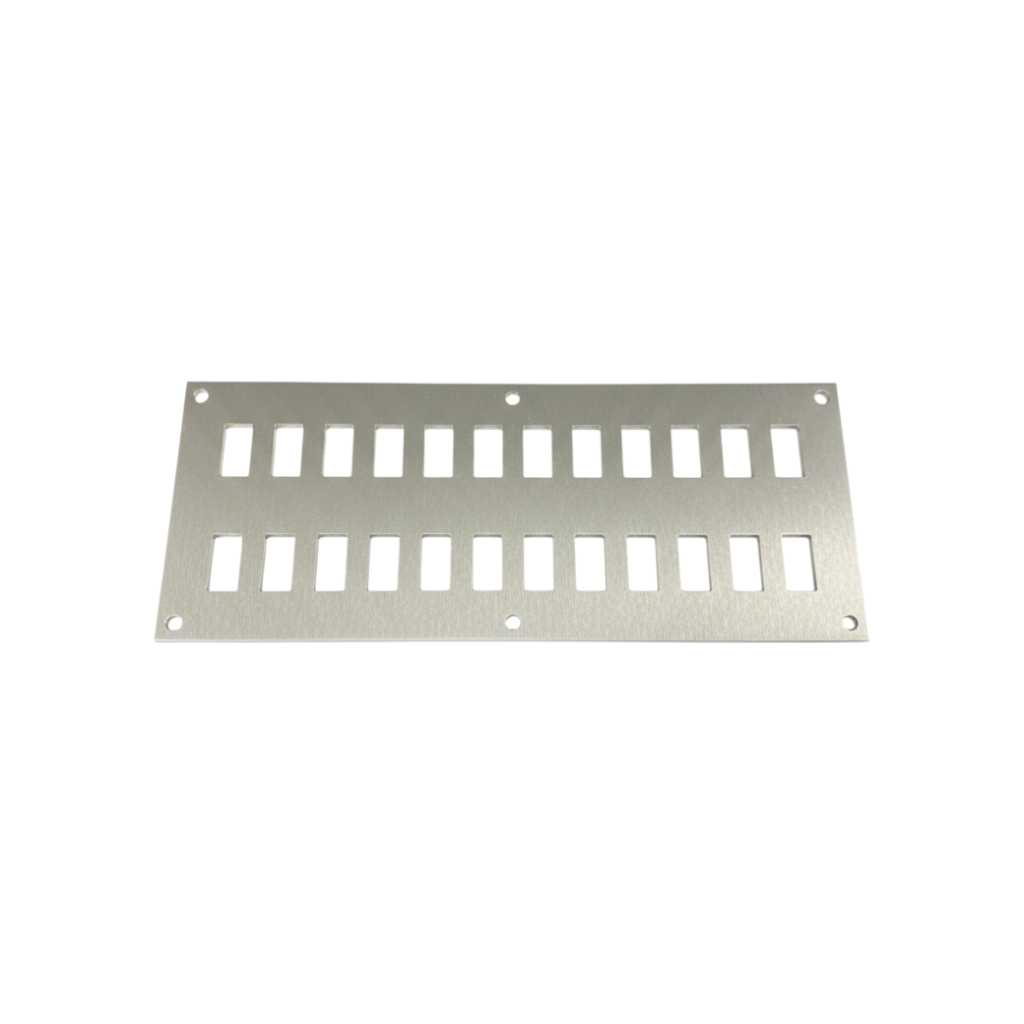

| MTCPJ2-24 |
Panel with 24 cutouts for miniature thermocuple panel jack connectors |
SPECIFICATIONS
Cutout Dimensions: 8.1 x 16.7 mm (0.32 x 0.66 in)
Panel Dimensions:
- MTCPJ1-6: 4.33 in × 1.75 in × 0.10 in (110.00 mm × 44.45 mm × 2.54 mm)
- MTCPJ1-8: 5.50 in × 1.75 in × 0.10 in (139.70 mm × 44.45 mm × 2.54 mm)
- MTCPJ1-10: 6.625 in × 1.75 in × 0.10 in (168.28 mm × 44.45 mm × 2.54 mm)
-MTCPJ1-12:8.625 in × 1.75 in × 0.10 in (219.08 mm × 44.45 mm × 2.54 mm)
-MTCPJ2-16:5.50 in × 3.125 in × 0.10 in (139.70 mm × 79.38 mm × 2.54 mm)
-MTCPJ2-24: 7.875 in × 3.125 in × 0.10 in (200.03 mm × 79.38 mm × 2.54 mm)
