- Compact Size
- Easy Mount with Spring Clip
- Accessible Terminal Screws
- Color-Coded
- Accepts all Industry Standard Miniature Male Connectors

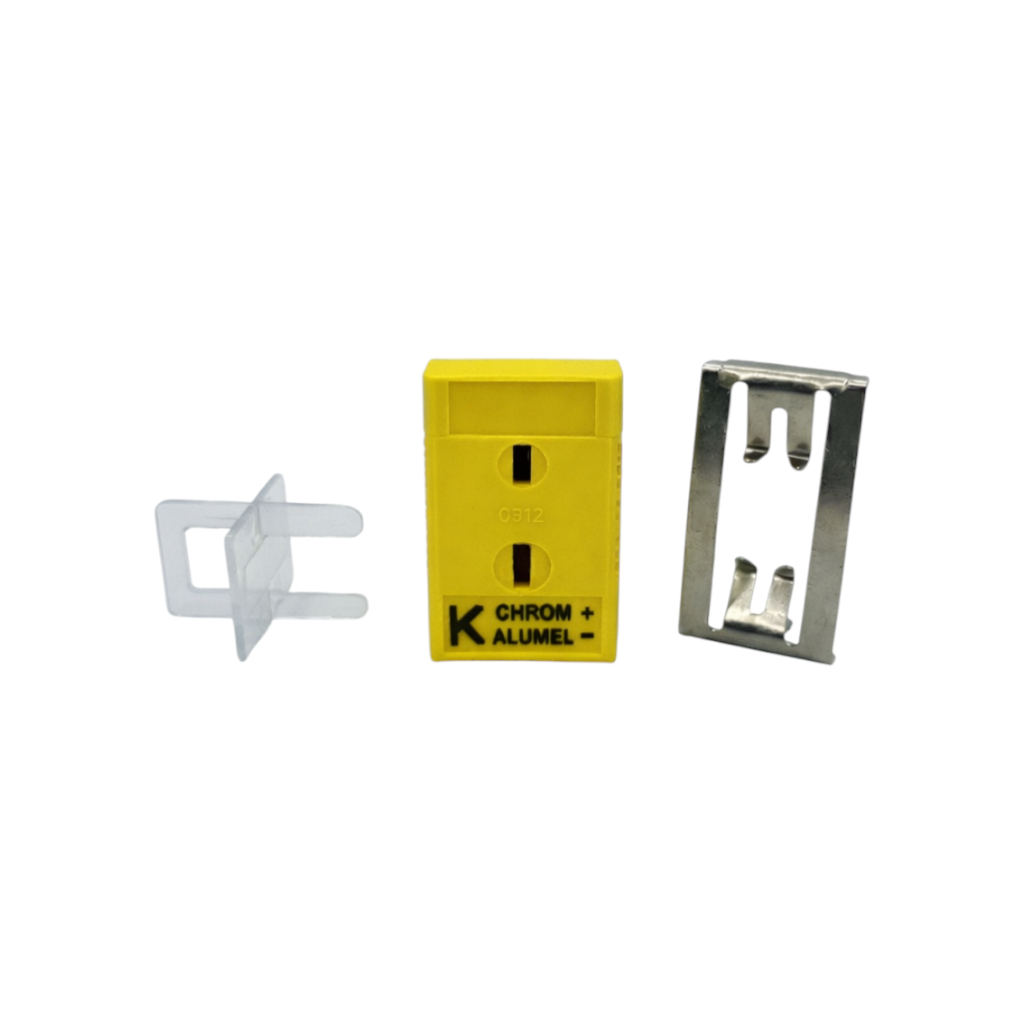

- Spring Clip and Dust Guard Included

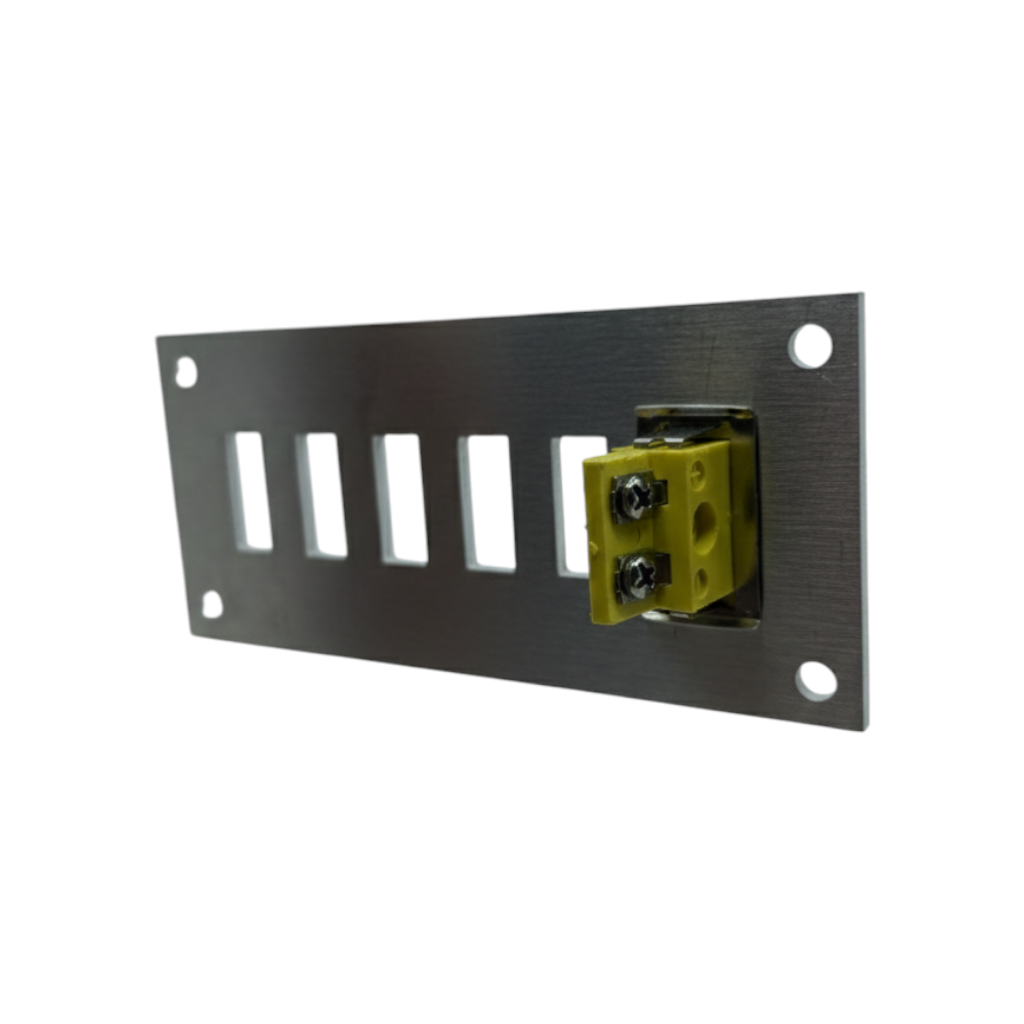

Metal panels with connector cutouts sold separately. See available options here.
The Miniature Thermocouple Panel Jack Connectors are engineered to maximize functionality while minimizing required panel space. These female connectors are uniquely designed for simplicity, featuring easy installation with a push-on clip that securely retains the connector in a rectangular cutout.
With its glass-filled Nylon composition, they can withstand temperatures ranging from -29°C to 180°C (-20 to 356°F). It is an excellent choice for systems requiring reliable, high-temperature performance without the bulk of standard jacks. Their compact design makes them an ideal solution for crowded panels in industrial and commercial applications.
They support various types of thermocouple connections including Type K, J and T, ensuring compatibility with a wide range of temperature sensors. They are color-coded for easy identification and integration into existing systems.
| To Order the model below scroll to the top of the page then click on ADD TO CART button |
| PART NUMBERS | DESCRIPTION |

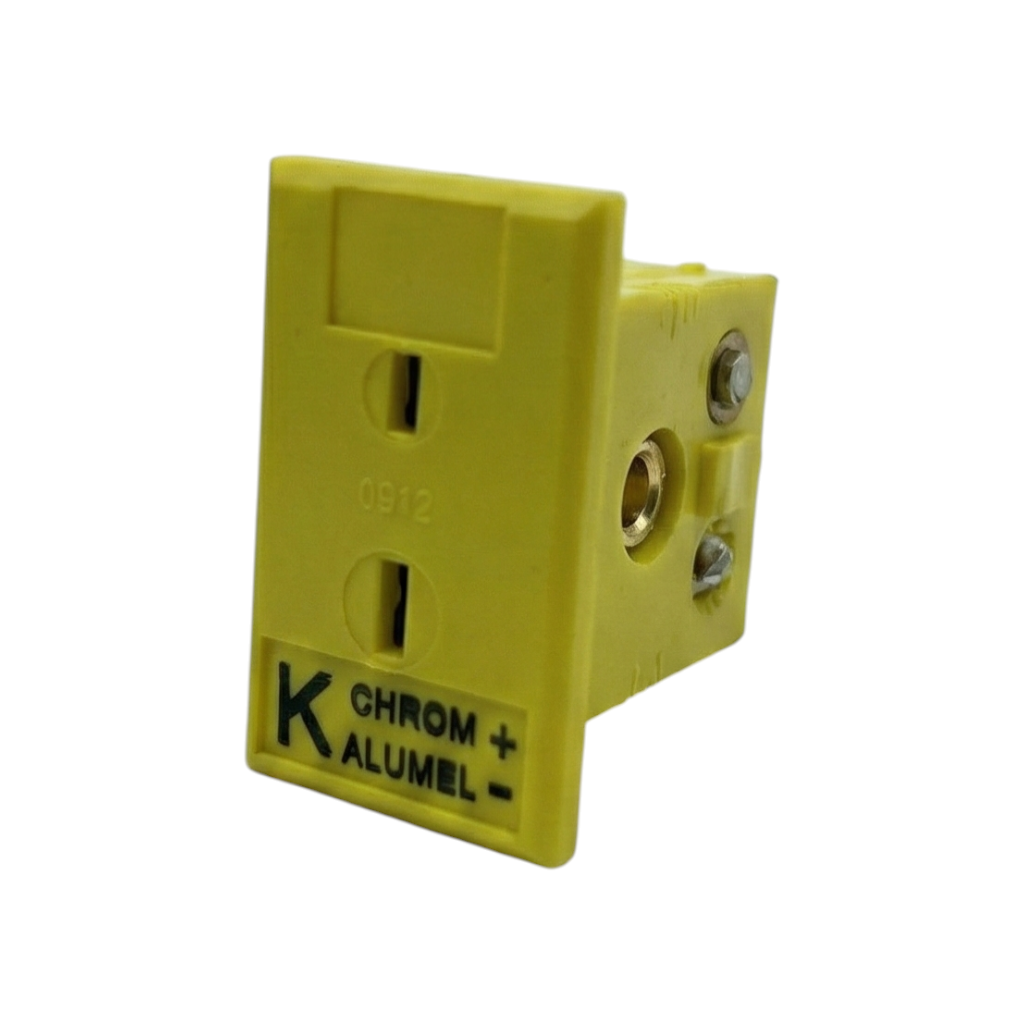

MTCPJ-K |
K type miniature thermocouple panel jack connector |
|
MTCPJ-T
|
T type miniature thermocouple panel jack connector |

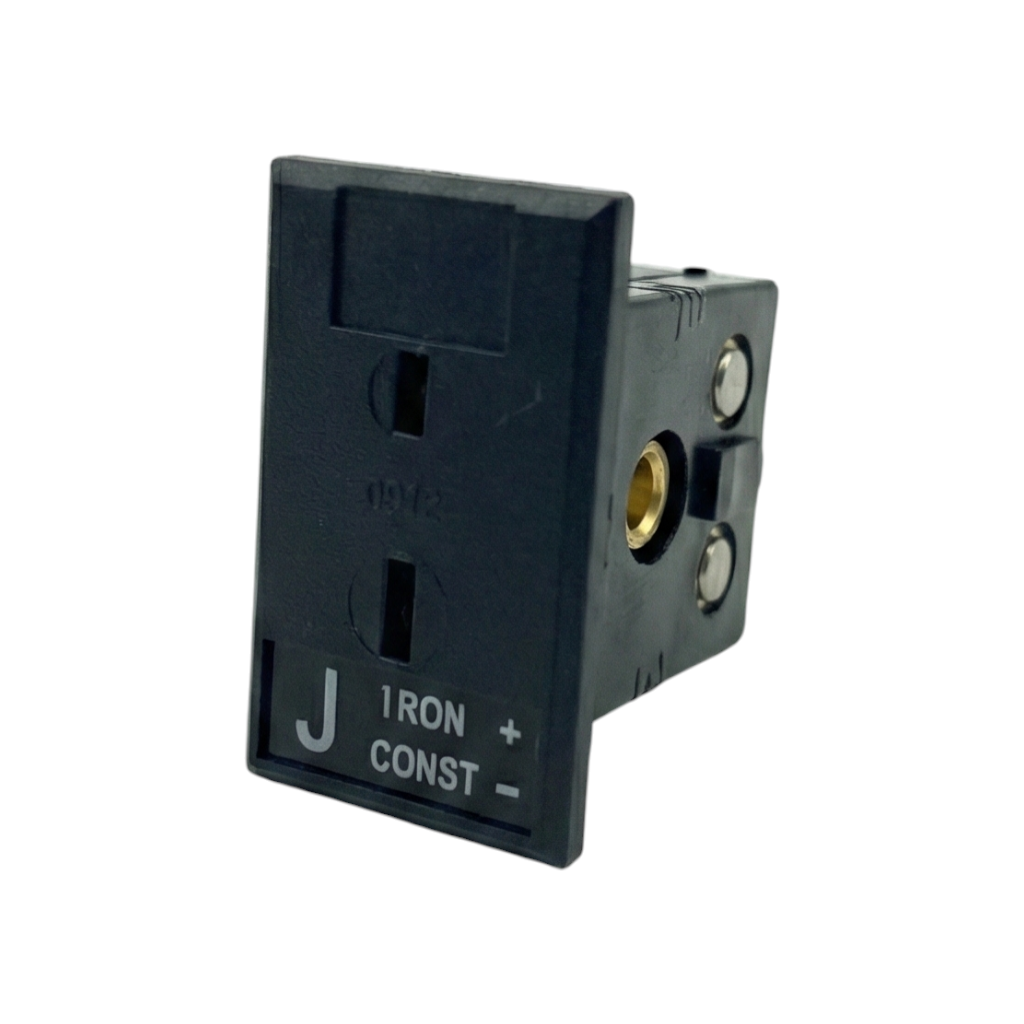

| MTCPJ-J |
J type miniature thermocouple panel jack connector |
SPECIFICATIONS
Cutout Size: 8.1 x 16.7 mm (0.32 x 0.66 in)
Centers: 14.3 mm (0.56 in) horizontally, 23.8 mm (0.94 in) row to row
Temperature Range: -29 to 180°C (-20 to 356°F)
Material: Glass-Filled Nylon
