Pyrocube P Series Pyrometer for Thin Film Plastic
Pyrocube P Series Pyrometer for Thin Film Plastic
Optional PM030 Touch Screen Interface
Optional PM030 Touch Screen Interface

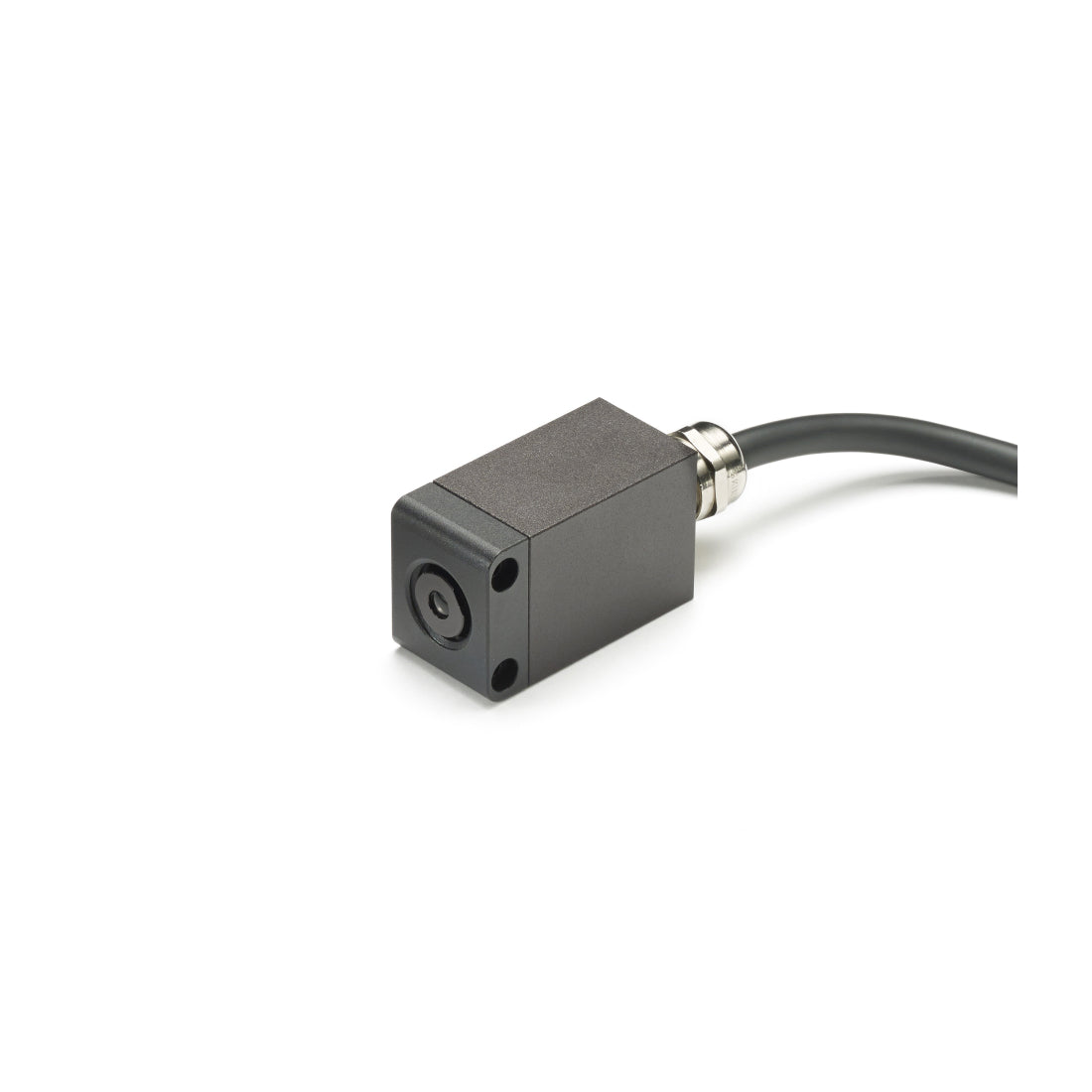

Pyrocube P Series Pyrometer for Thin Film Plastic

Regular price $3,263.00 Sale SKU:IR-CA-PCU-P12.0-2M-1V
Ships in 5 weeks

  • Measures Thin Films of Polyolefin, Polyamide, Polyethylene, Polypropylene, Polystyrene, Nylon, PVC, Acrylic, Polyurethane and Polycarbonate
  • Temperature Range 120°C to 350°C
  • Measures an Area as Small as 12 mm
  • Response Time 10ms
  • Continuous LED Aiming Light Shows the Position and Size of the Measured Spot
  • Multilingual Touch Screen Interface (optional: contact IOThrifty for details)

The PyroCube is a family of non-contact infrared temperature sensors with built-in LED sighting. They have an extremely fast response time, and can precisely measure the temperature of a very small area. The continuous LED sighting illuminates the position and size of the measurement spot while readings are being taken, without affecting the accuracy of the measurement.

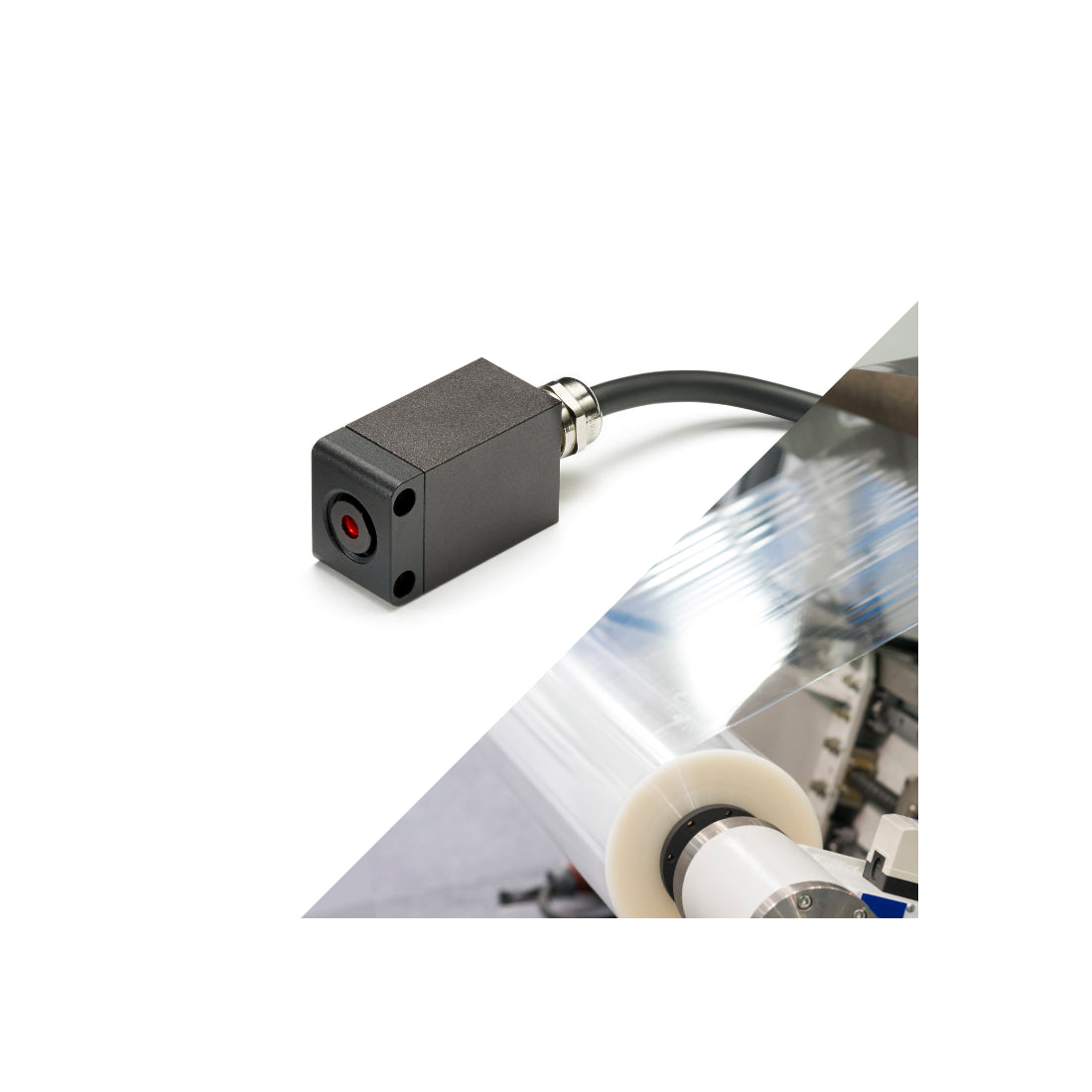

The PyroCube P accurately measures the temperature of thin film plastics that cannot be measured with general-purpose sensors. Materials include polyolefins, polyamide, polyethylene, polypropylene, polystyrene, nylon, PVC, acrylic, polyurethane and polycarbonate.

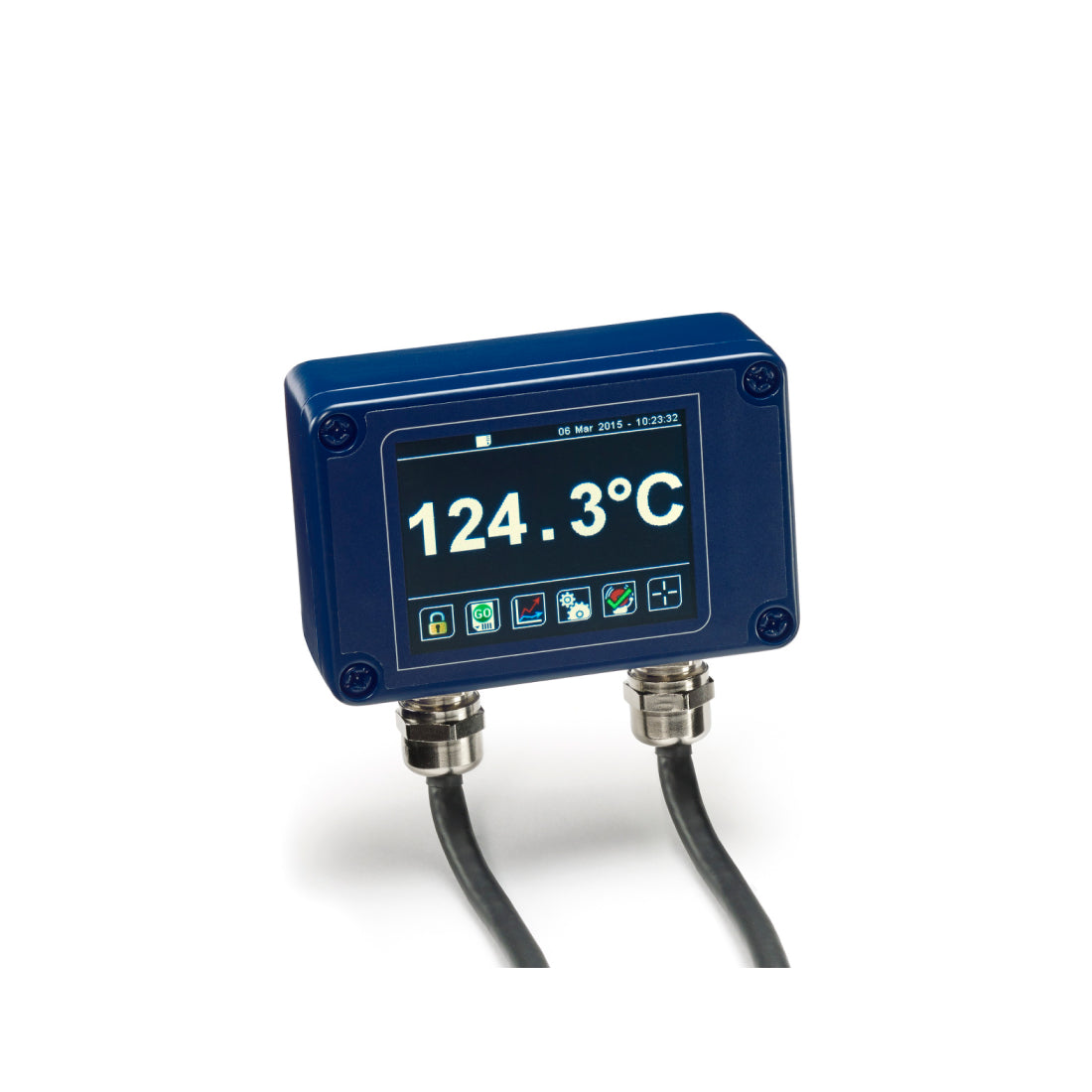

Optional PM030 Touch Screen Interface Module
The PM030 is an optional multilingual touch screen interface module for the PyroCube sensor. The PyroCube can be used with or without the optional PM030. It functions as a standalone temperature indicator, alarm unit and configuration tool, and a selectable analog output allows it to be connected to further instrumentation.

All the settings of the PyroCube sensor are adjustable via the built-in touch screen interface. When an optional MicroSD Card is inserted into the PM030, the system functions as a fully-configurable temperature data logger.

Ordering

Select from the drop down boxes on the top of the page

1) Cable Length
    2 Meters
    5 Meters
    10 Meters

2) Voltage Output
   0-1Vdc
   0-5Vdc
   0-10Vdc
Note: All models also have 0-20mA, 4-20mA and mv/°C outputs as standard.  If voltage output is not required, choose 0-1Vdc



Downloads
PyroCube P Datasheet
PyroCube P User Manual



Measurement Specifications

Temperature Range: 120°C to 350°C
Measurements below 120°C are possible with reduced stability

Analog Output Scale (Factory default)
4 mA = 80°C
20 mA = 350°C
Adjustable via optional touch screen module or RS232

Response Time (95%): 10 ms, Adjustable via averaging function
Measured Spot Diameter: 12 mm at distance 200 mm; varies depending on measurement distance (see Field of View Diagrams below)
Target Sighting: Red LED built-in as standard on all models, shows the position and size of the measurement area. Switchable on/off
Accuracy of Measurement: ±4°C
Repeatability:  ±1°C
Temperature Resolution:  0.5°C
Emissivity Setting: Adjustable, 0.3 to 1.0, via RS232C or optional touch screen interface
Spectral Response: 3.4 µm


PM030 Specifications
Touch Screen Display Format: 2.83" (72 mm) resistive touch TFT, 320 x 240 pixels, backlit
Configurable Parameters:
Language (English, Chinese, Japanese)
Temperature units: °C/°F
Displayed temperature
LED sighting on/off
Password
Date & time (for data logging time stamps)
Peak hold period, decay level
Averaging period
Correction (gain/offset)
Emissivity setting (with teach function)
Reflected energy compensation (with teach function)
Output type
Output temperature range
Polarity on error
Alarm mode, levels, hysteresis

PM030 Data Logging Specifications
Storage: MicroSD Card (optional), max. 32 GB, equal to 16 years of data at the fastest sample rate of 1 per second
Data Logging Interval: 1 second to 1 day (configurable)
Internal Clock Battery: 1 x BR 1225 3V (not included)
Variables Logged: Instantaneous target temperature, hold temperature, alarm events
File format: .csv

Configurable Parameters (Data Logging):
Sample period
Number of samples
Scheduled start

Configurable Parameters (Alarm Logging):
Log times when triggered, acknowledged, reset
Log data while triggered

Electrical Specifications:
Outputs: 1 analog output and 1 alarm output
Analog Output: 4-20 mA (this is the default factory setting on all models)
Output type can be changed via optional PM030 touch screen interface to a choice of:
0-20 mA
mV/°C
Voltage (range depends on model, see Ordering)
Alarm Output: 1 open drain alarm output, rated 27 V DC, 0.2 A
Supply Voltage: 5 to 27 V DC, 100 mA max
Digital Communications: RS232C Modbus RTU, non-isolated
Output Cable Connection to Sensor:  -MB models: Hardwired,  -MA models: Connector built into sensor


Mechanical Specifications
Weight (without cable) : 85 g

Environmental Specifications (PyroCube Sensor)
Environmental Rating: IP67
Operating Ambient Temperature: 0°C to 50°C
Storage Temperature: -15°C to 70°C
Operating Ambient Humidity: 30% to 85% RH non-condensing

Field of View Diagrams
The given measured spot size contains 90% of the energy detected by the sensor. We normally recommend the target is at least twice as large as the given measured spot for maximum accuracy. Accuracy specifications are valid up to the maximum distances shown.

PyroCube P Field of View
