Calex's PyroNFC Compact Infrared Temperature Sensor -Smartphone Configurable
PyroNFC Series: Smartphone Configuarable Infrared Temperature Sensor
PyroNFC Series: Smartphone Configuarable Infrared Temperature Sensor
PyroNFC Pyrometer with Fixed Mounting Bracket
PyroNFC Pyrometer with Fixed Mounting Bracket
PyroNFC Pyrometer with Bracket and Air Purge
PyroNFC Pyrometer with Bracket and Air Purge

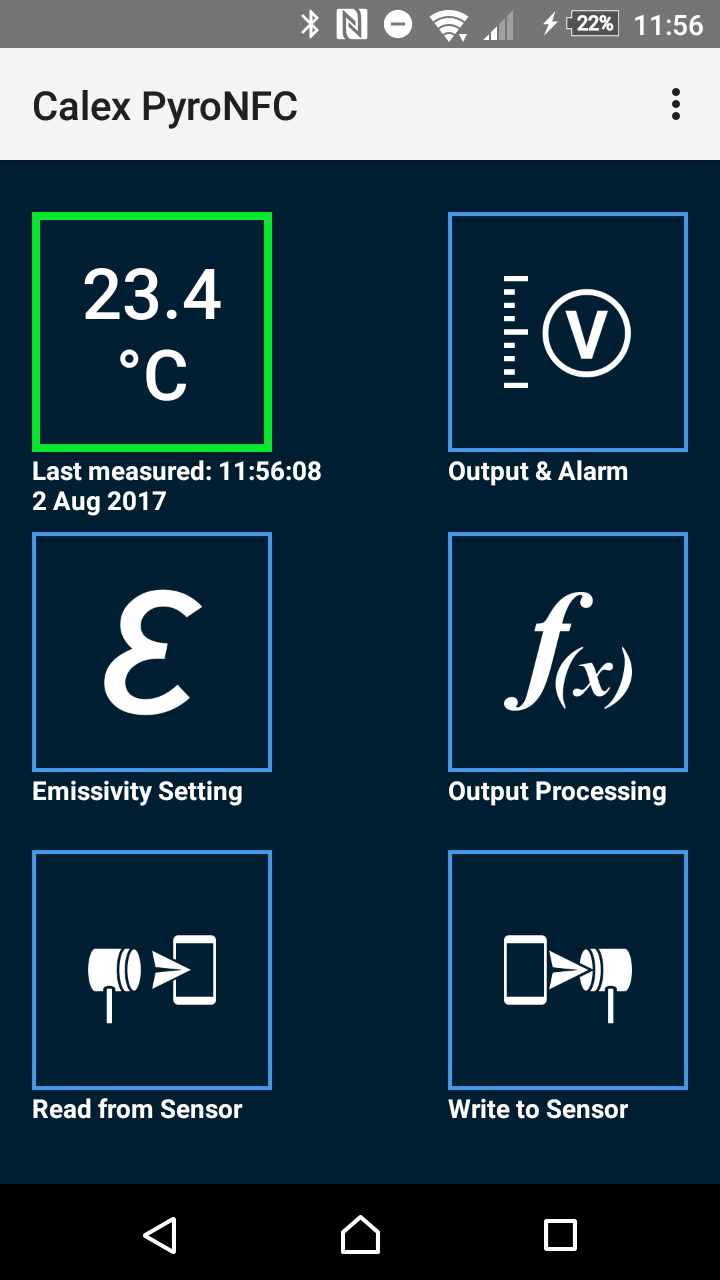

Software Screen Image for PyroNFC  Smartphone Infrared Temperature Sensor
Software Screen Image for PyroNFC Smartphone Infrared Temperature Sensor

Calex's PyroNFC Compact Infrared Temperature Sensor -Smartphone Configurable

Regular price $182.00 Sale SKU:IR-CA-PN151
10 In stock* Ships in 4 weeks, if NOT in stock
* ships same or next day

  • Non-contact Industrial Temperature Sensor
  • Fully Configurable via Smartphone App
  • Choice of Voltage or Thermocouple Outputs
  • Simultaneous Open Collector Alarm Output
  • Accurately & Consistently Measures from 0°C to 1000°C
  • Extremely Small, w/Side-Entry Cable for Ideal Mounting in Tight Places
  • Fast Response Time: 125 ms
  • Low Cost, High Performance
  • Operates in Ambient Temperature up to 80C Without Cooling
  • Form Factor Optimized for Brake Testing Applications

Calex's PyroNFC is a non-contact infrared temperature sensor that is configurable using a smart phone with near-field communications (NFC).  We offer models with K  thermocouple output or voltage output.

Continuously read temperature from Calex's PyroNFC sensors. You can instantly configure them without the need to power the unit. To communicate, you simply touch the sensor. PyroNFC are compatible with NFC-equipped Android devices. The app is free from the Google Play Store by searching: PyroNFC.

 To Order the models below scroll to the top of the page and choose the desired model from the "Output/Cable Length" drop down menu, then ADD TO CART
 PART NUMBER DESCRIPTION
IR-CA-PN151In Stock PyroNFC with voltage output and 1 meter cable
IR-CA-PN151KIn Stock PyroNFC with thermocouple  output and 1 meter cable
PN151-3METERS PyroNFC with voltage output and 3 meter cable
PN151K-3METERS PyroNFC with thermocouple  output and 3 meter cable
PN151-4METERS  PyroNFC with voltage output and 4 meter cable
PN151K-4METERS PyroNFC with thermocouple  output and 4 meter cable
ACCESSORIES
IR-CA-FBN FIXED MOUNTING BRACKET
IR-CA-ABN ADJUSTABLE MOUNTING BRACKET
IR-CA-APN AIR PURGE COLLAR
IR-CA-CALCERTA 3 pt UKAS TRACEABLE CAL CERTIFICATE



 PyroNFC Video



 Downloads

User Manual

Datasheet



SPECIFICATIONS

Temperature Range: 0-1000°C
Outputs
  Configurable via NFC: 0-5, 1-5 or 0-10 V DC output, linear w/measured temperature, rescalable
  Open collector alarm output with temperature threshold & hysteresis
Field Of View: 15:1
Accuracy: +/- 1.5% of reading or +/- 1.5°C, whichever is greater
Repeatability: +/- 0.5% of reading or +/- 0.5°C whichever is greater
Response Time: t90 125ms
Configuration: Via Android app using NFC-equipped device (smartphone or tablet)
Emissivity: Adjustable via app, setting range 0.2 to 1.0
Max Temperature Span: (Linear Output): 1000°C
Min Temperature Span: (Linear Output) 100°C
Spectral Range: 8-14 um
Max Supply Voltage: 28 V DC
Min Supply Voltage(at sensor):
  12 V DC (for 10 V output)
  6 V DC (for 5 V or thermocouple output)
Max Current Draw: 7 mA
Environmental Rating: IP65
Ambient Temperature Range: 0C to 80°C
Relative Humidity: 95% max, non-condensing
EMC: EN61326-1, EN61326-2-3,RoHS Compliant

Configurable Parameters
  Temperature range (linear output)
  Linear volatage output type & scale
  Alarm output threshold & hysteresis
  Emissivity setting
  Reflective temperature
  TEMPERATURE UNITS: C/F

Signal Processing
  Averaging period (0.125 to 60 seconds)
  Peak/Valley hold
  Hold period (0.125 to 1200 seconds)

Real Time Temperature Reading: Hold NFC device against sensor for continuous in-app temperature updates
