SSR-4800 Solid State Relays for AC Loads with DC Control Signals

Free Shipping! - USA Orders Over $75

Customer Reviews
SSR-4800 Solid State Relays for AC Loads with DC Control Signals
SSR-4800 Solid State Relays for AC Loads with DC Control Signals

SSR-4800 Solid State Relays for AC Loads with DC Control Signals

Regular price $33.00 Sale SKU:SSR-4840
More than 300 In stock!*
* ships same or next day

  • Currents From 10, 25, 40, 60, 80, 100 a
  • Maximum Voltage: 250vac or 480 Vac
  • Status LED
  • Internal Snubber for dv/dt Protection
  • Switching at Zero Crossing
  • Switching Voltage: 4 to 32 Vdc
  • High Switching Speed
  • High Noise Reduction
  • Requires Minimum Power for Switching
  • Does Not Generate EMI or RFI

Solid state relays (SSRs) are used for switching resistive and inductive loads and outperform the conventional mechanical relays with great advantages. The life cycle with millions of operations, the high switching speed without mechanical or electrical noise, no dangerous sparks or wearing, and the low power needed for switching make the solid state relays a perfect choice when high control accuracy is fundamental.


 To Order the model below click on model number (or scroll to the top of the page and select option from drop down box)  then click on and ADD TO CART button
 PART NUMBER DESCRIPTION

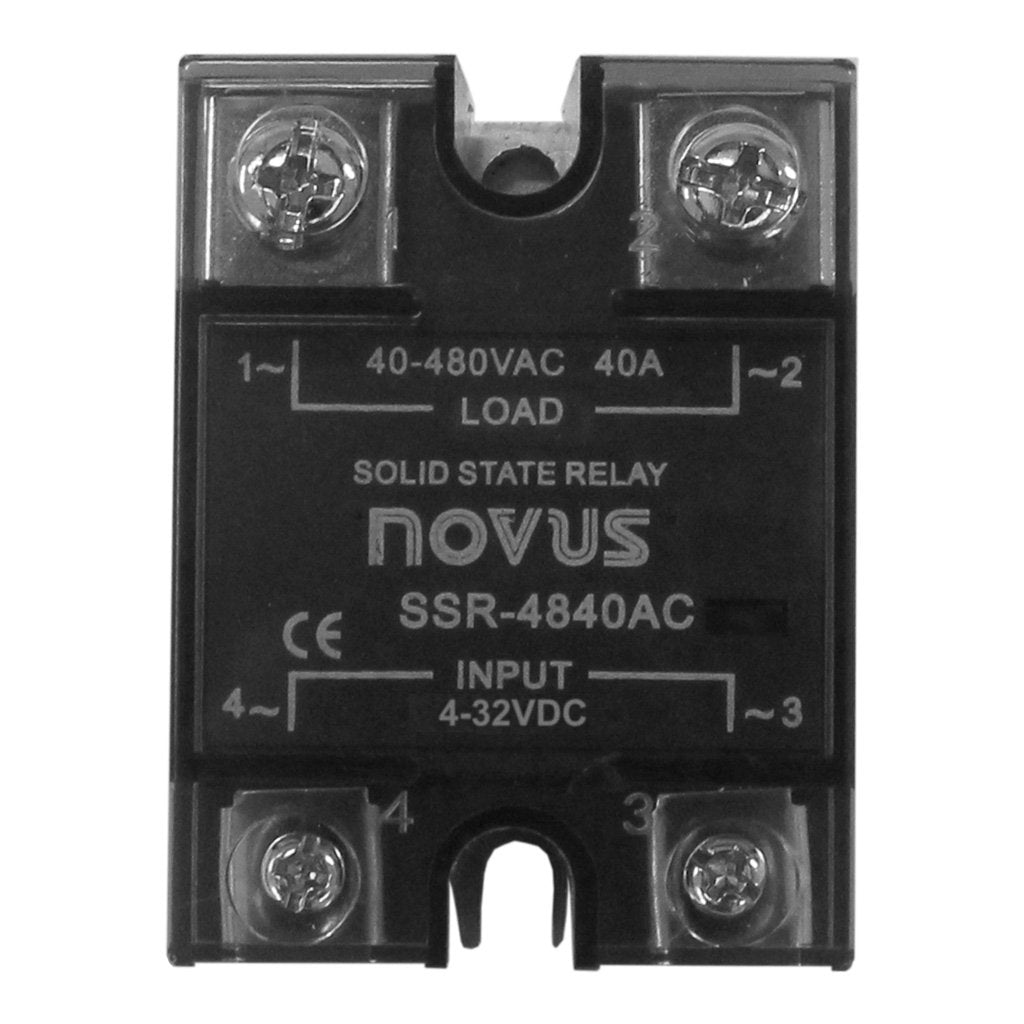

SSR-4810In Stock SSR with 10A ac max. load current
SSR-4825In Stock SSR with 25A ac max. load current

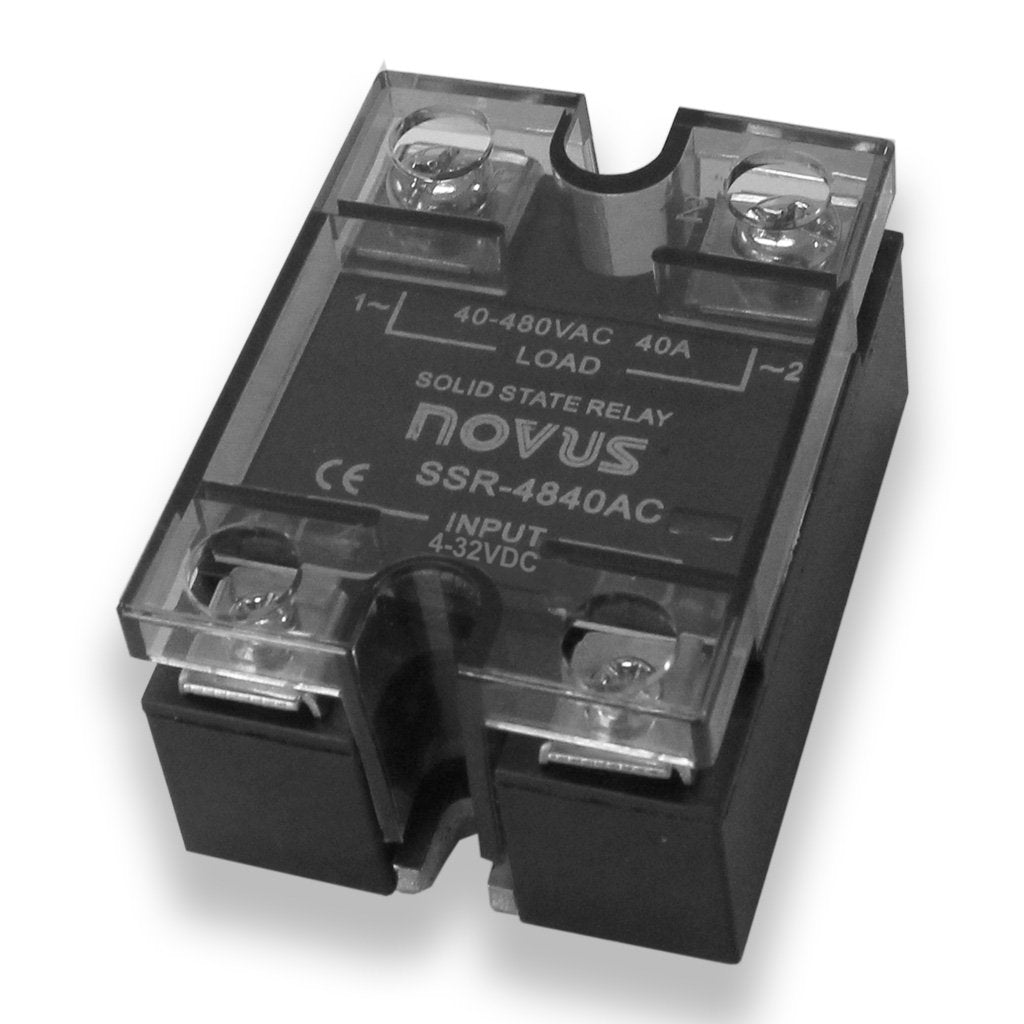

SSR-4840In Stock SSR with 40A ac max. load current
SSR-4860In Stock SSR with 60A ac max. load current



SPECIFICATIONS

Parameter  SSR-4810,SSR-4825,SSR-4840 SSR 4860
Load voltage 75-480Vrms 40-480Vrms
Load turn-on voltage 1.1 to 1.5 Vrms    1.1 to 1.5 Vrms
Load leakage current 14 mArms <5 mArms
Load frequency  47 to 70Hz 47 to 63Hz
dv/dt  50 to 200V/μs 300V/μs
Control current 4 to 32Vdc 3 to 32Vdc
Switching time  <10ms  <10ms
Control method Zero cross trigger Zero cross trigger
Isolation 4000Vrms 2000Vrms
Operating temperature -30 to 80°C -40 to 80°C



 Heat Dissipation

The SSR generates heat during its conduction. This heat must be dissipated to avoid SSR failure due to over-heating. The nominal SSR load specification assumes the use of a suitable heat sink. Without a heat sink the allowed load current is substantially reduced. The user may calculate the needed heat sink (please see user manual) or use the suggested heat sink. For better heat transfer, a thermally conductive paste must be used between the SSR and the heat sink.

SSR4810 Heat Dissapation
SSR4825 Heat Dissipation
SSR4840 Heat Dissipation
SSR4860 Heat Dissipation
