Regular price $4.60 Sale SKU:STCC-J-F
33 In stock* Ships in 3 weeks, if NOT in stock
* ships same or next day

  • Type K, T and J Thermocouple Calibration
  • ANSI Color Coded
  • Pins and Sockets Constructed of Thermocouple Alloys
  • Industry Standard Compatibility
  • Made from Glass Filled Nylon Rated to 350°F
  • Write On Window

The STCC thermocouple connector is a standard size connector made from glass filled nylon rated to 350°F (~180°C).  We offer this connector in both a male (pin) and female (socket) version. The body of the connector is colored to meet ANSI standards and is ergonomically designed with contours and ridges that make them easy to grasp and handle.

The male and female connectors are designed to be compatible with one another but the pin and sockets are also made to industrial standards which assure compatibility with other instruments and sensors with a round-pin miniature design.

Both the male and female connectors have a write-on tab that allows you to add an identifying mark or label to each connector.

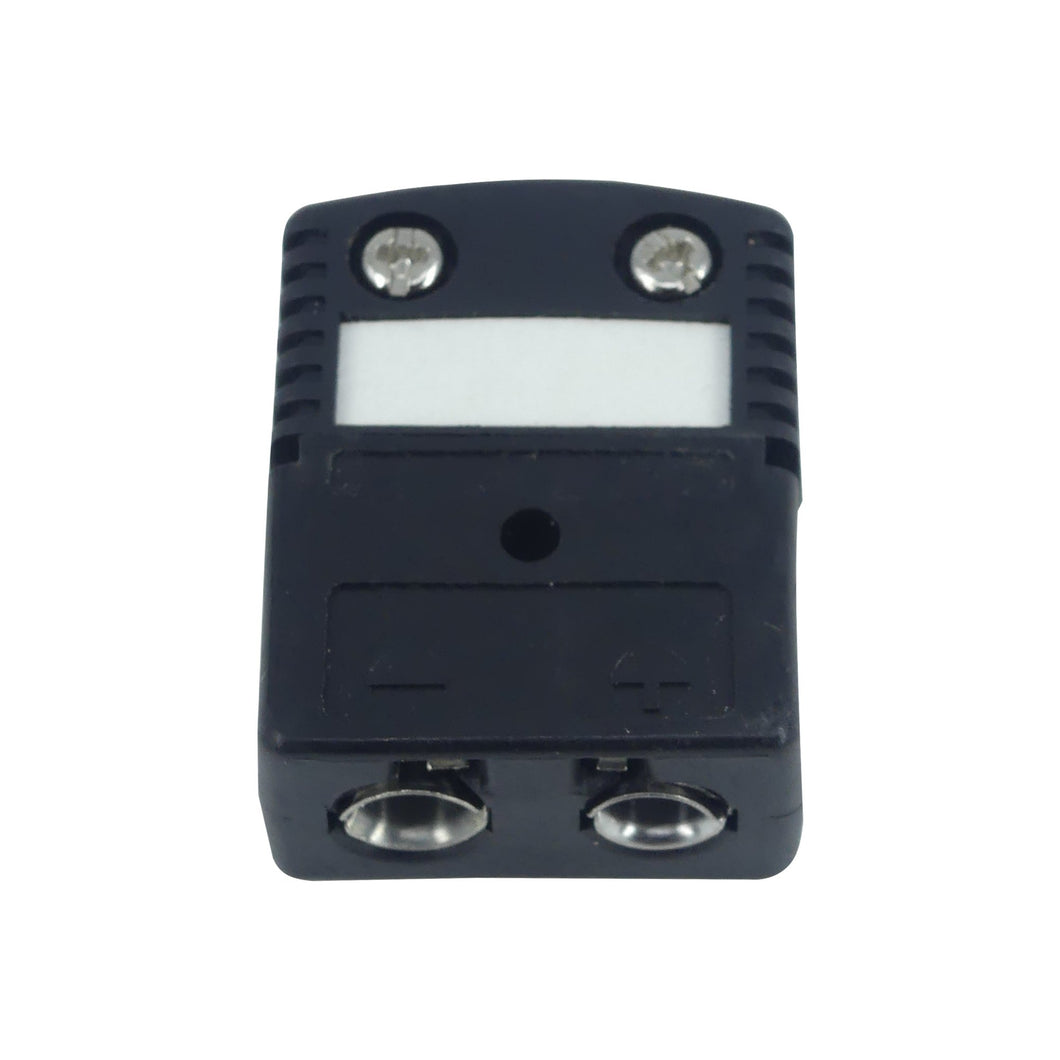

Universal Female Connector
The female connector uses a design which allows it to accept both standard size round pin male connectors or miniature sized flat pin male connectors.

Standard size female connector with universal sockets

 To Order the models below click on the model number or scroll to the top of the page and choose the desired model from the "Model" drop down menu, then ADD TO CART
Model No.  Description
K Thermocouple
STCC-K-MIn Stock Standard Sized K type male thermocouple connector, single connector
STCC-K-FIn Stock

Standard Sized K type female thermocouple connector, single connector

T Thermocouple
STCC-T-MIn Stock Standard Sized T type male thermocouple connector
STCC-T-FIn Stock Standard Sized T type female thermocouple connector
J Thermocouple
STCC-J-MIn Stock Standard Sized  J type male thermocouple connector
STCC-J-FIn Stock Standard Sized J type female thermocouple connector



SPECIFICATIONS

Calibration: K (Chromel Alumel)  or T (Constantan Copper-Nickel) type or J (Iron Constantan )
Ansi Color Coded: Yes
Size: Standard round pin style
Material: Glass filled nylon
Temperature Rating: 180°C (356°F)
