- Part of the Telik Geter Asset Condition Monitoring System
- Measures vibration and temperature on motors, pumps, gearboxes, and other rotating equipment
- Supports advanced vibration analysis including RMS, VRMS, FFT, and raw signal data
- Wireless communication via Bluetooth Low Energy with a range of 50 to 70 meters
- Battery powered with typical life from 9 to 60 months depending on configuration
- Magnetic mounting for fast installation on metal surfaces
- IP69K rated enclosure for use in harsh industrial environments

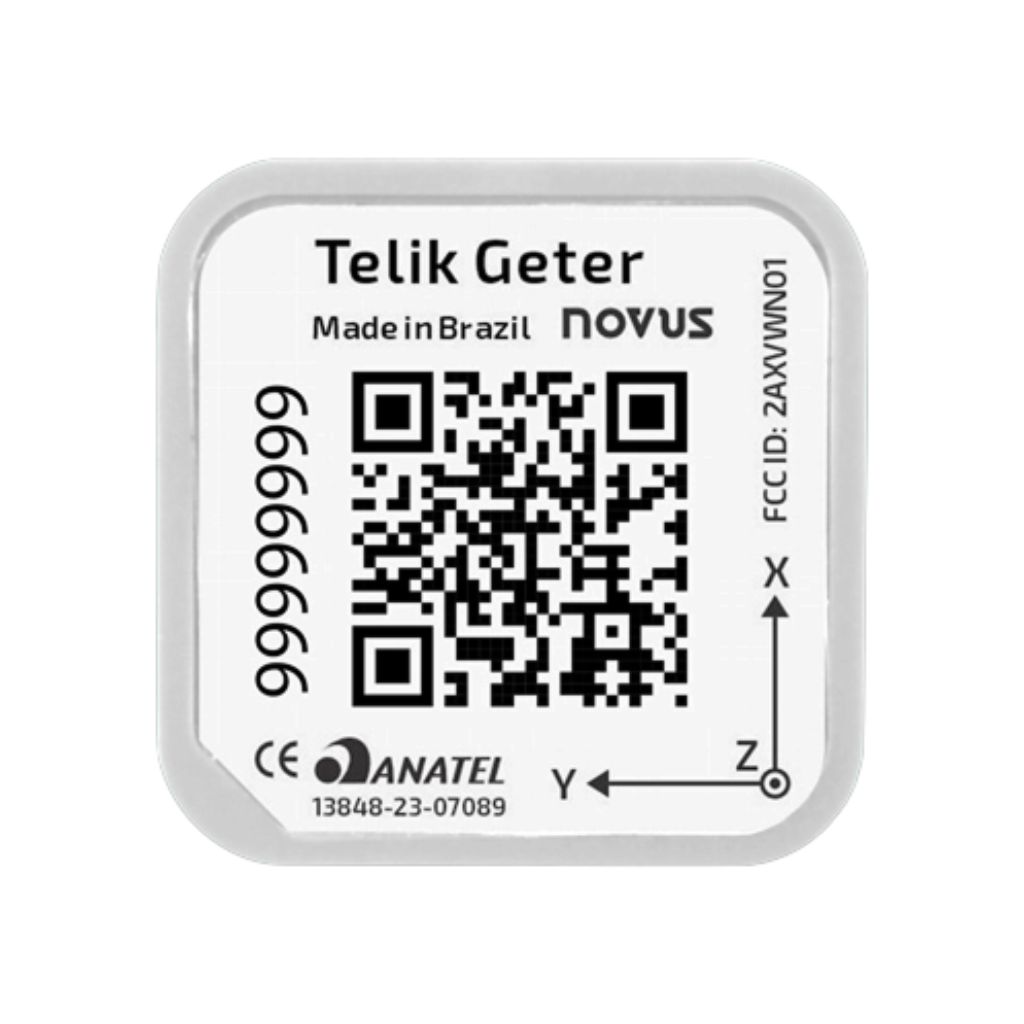

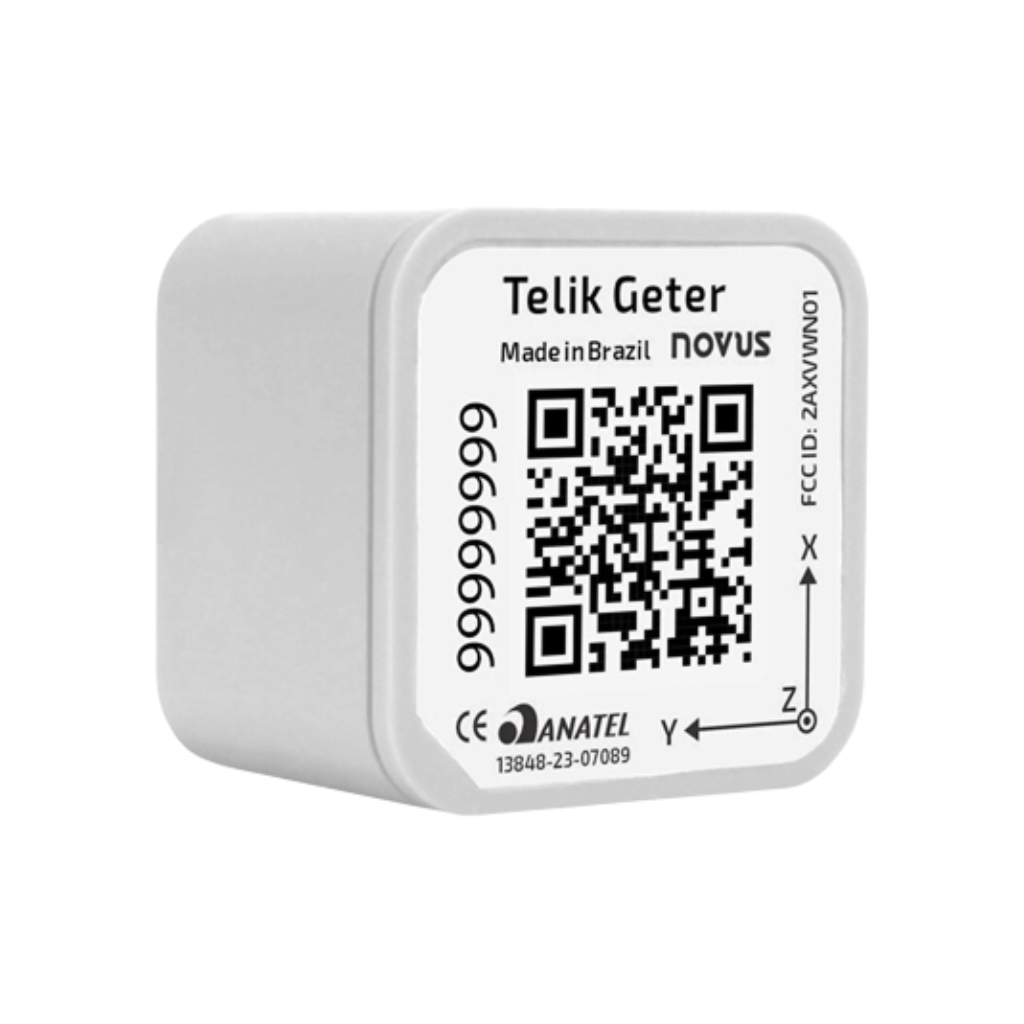

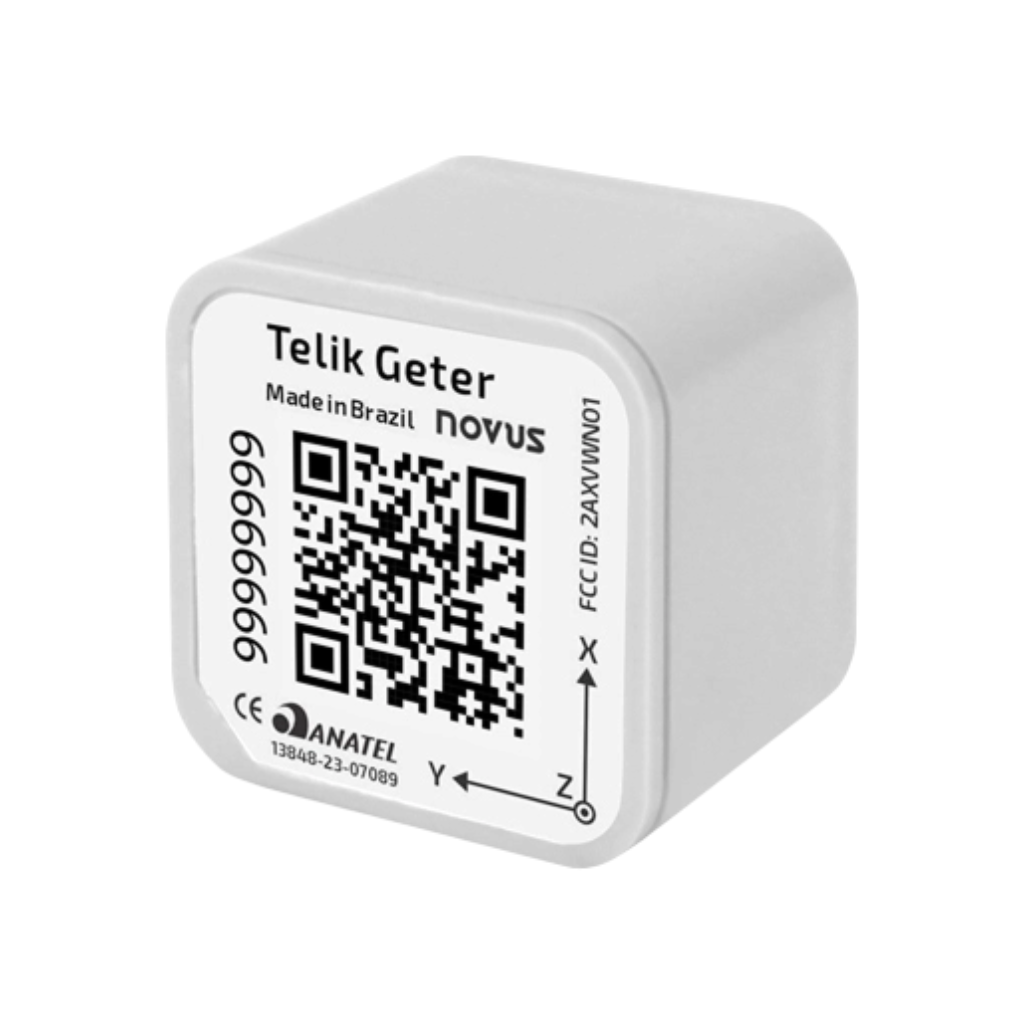

The Telik Geter Sensor is used with the Telik Geter Asset Condition Monitoring System to monitor vibration and temperature on critical equipment. It transmits data wirelessly to the AirGate Geter Gateway, where it is sent to the NOVUS Geter platform for visualization and analysis.
This sensor is typically used to expand monitoring coverage, add additional assets, or replace existing sensors. For full system functionality including dashboards, alarms, and configuration tools, refer to the main Telik Geter system page.
Vibration and Temperature Measurement
The sensor continuously measures vibration and temperature using an embedded MEMS accelerometer and temperature sensor. It supports multiple analysis methods including RMS, velocity RMS (VRMS), FFT, and raw signal capture, allowing both high-level condition monitoring and more detailed fault diagnostics.
Wireless Communication
Data is transmitted using Bluetooth Low Energy, with a typical range of 50 to 70 meters in open environments. This allows sensors to be installed directly on equipment without running signal wiring back to a central system.
Battery Powered Operation
The sensor is powered by internal batteries with a lifespan ranging from 9 to 60 months depending on sampling intervals, transmission frequency, and selected analysis methods. Configuration options allow optimization between data resolution and battery life.
Industrial Installation
The sensor includes integrated magnets for mounting to steel or cast iron surfaces and can also be installed using adhesives where needed. Its compact design allows it to be placed directly on motors, pumps, or other equipment without modification.
SPECIFICATIONS
Telik Geter Sensor
Operating Temperature: -20 °C ... 70 °C
Storage Temperature: -5 °C ... 25 °C
External Dimensions: 25 mm x 40 mm x 40 mm
Microcontroller: 32-Bit microcontroller, 16 MHz (ARM Cortex-M0)
Memory: Flash memory 256 kB, RAM memory 32 kB
Communication: Bluetooth Low Energy 4.2, 2.4 GHz
Signal Range: 50 to 70 meters without obstacles
Transmission Power: +4 dBm
Reception Sensitivity: -93 dBm
Battery: 2 x ER14250
Battery Life: 9 to 60 months depending on configuration
Fixing: 4 neodymium magnets, 10 mm x 6 mm
Encapsulation: Polycarbonate
Embedded Temperature Sensor Range: -20 °C ... 85 °C
Temperature Resolution: 0.25 °C
Temperature Accuracy: ±4 °C without calibration
Protection Rating: IP69K
Certifications: ANATEL, FCC, CE
