HR200 Humidity Transmitter/Meter for High Temperature and High Pressure Environments
Products HR200-M12 Humidity Transmitter with M12 Connector
Products HR200-M12 Humidity Transmitter with M12 Connector
HR200 Humidity Transmitter/Meter for High Temperature and High Pressure Environments

HR200 Humidity Transmitter/Meter for High Temperature and High Pressure Environments

Regular price $895.00 Sale SKU:TX-RO-HR200
2 In stock* Ships in 3 weeks, if NOT in stock
* ships same or next day

  • Humidity: 0-95%RH (non-condensing)
  • Humidity Accuracy: +/-1% from 15°C to 40°C
  • Operating Temperature: 0 to 200°C(non-condensing)
  • Pressure Rating: 750 PSI
  • One 4-20mA Loop Power Output
  • Two Line LCD
  • NIST Calibration Certificate Included

 The HR200 humidity transmitter/meter is designed to operate in extremely high humidity and temperature environments.  The humidity sensor is capable of measuring 0 % RH to 100 % RH(non-condensing) and operates within a temperature range of -40 °C to +190 °C.

additional advantages include:

    High chemical resistance
    Very low drift
    Wide temperature range
    High humidity stability
    Condensation resistant
    Suitable for extreme environments
    Fast recovery time

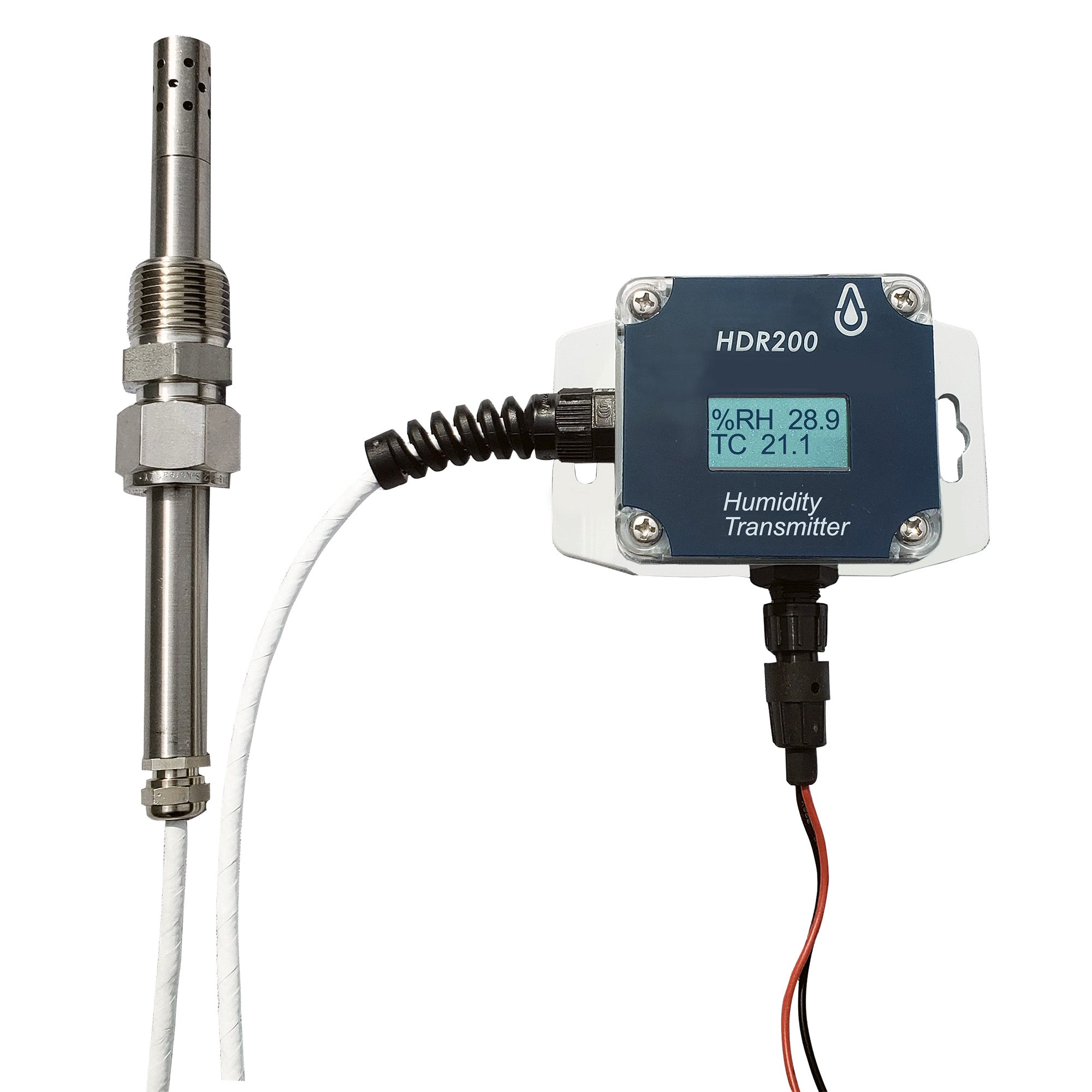

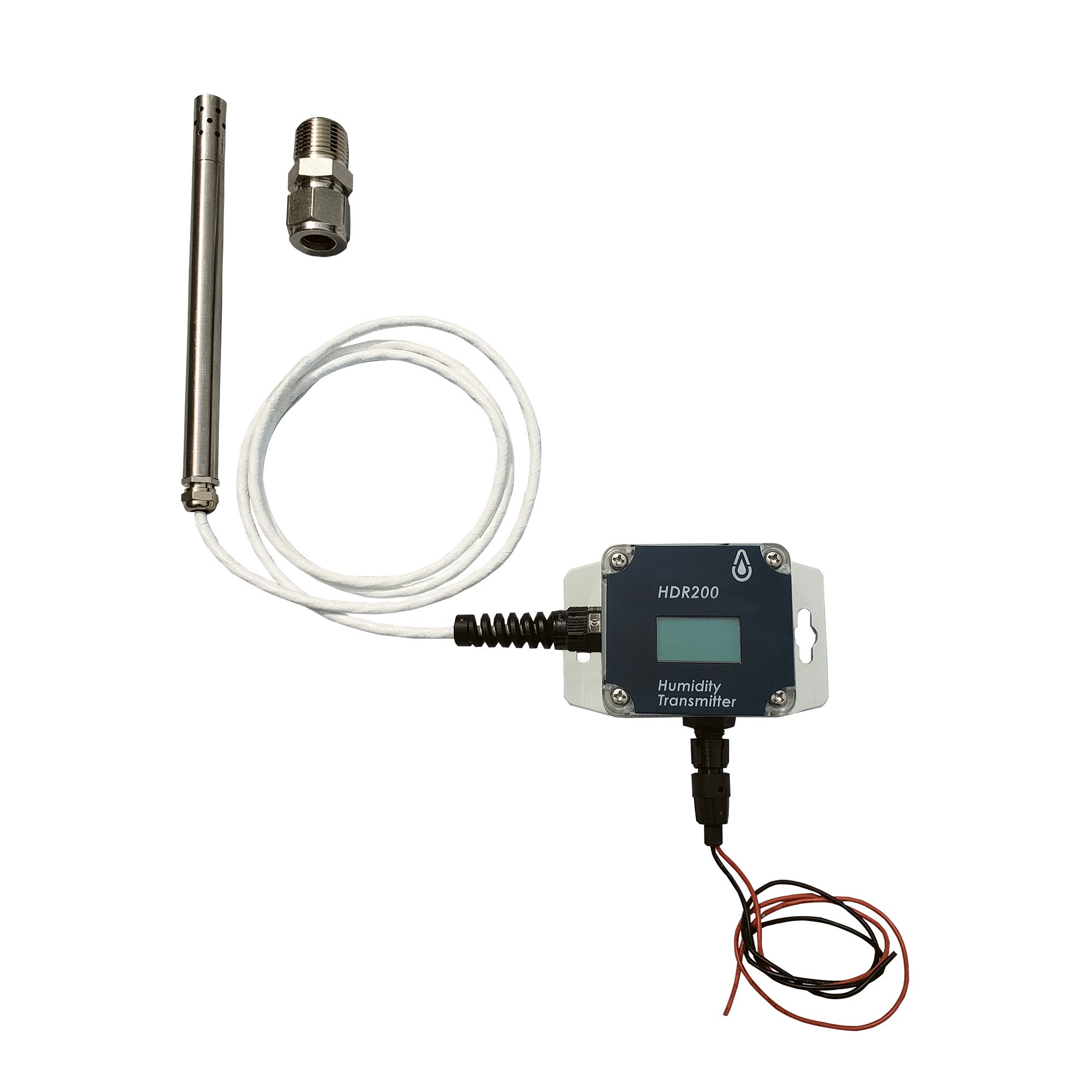

The HR200 humidity transmitter offers relative humidity with NIST traceable calibration. It includes a sensor probe which connects to an electronics unit. The probe features an all steel construction coupled with a cable that allows temperatures up to 200°C.  For pressure applications the probe is capable of handling 750PSI.  The electronics unit has a two line LCD display and both a digital RS232 output and 4/20mA output.  The 4-20mA output is scaled to equal 0-100 percent relative humidity.

HR200-M12 With Externally Accessible M12 Connection for RS232 or 4-20mA Output
The standard HR200 has an internal bi-directional RS232 port which is used for setting the temperature units and scaling the output.  Although the process value can be read from the RS232 port it is not practical in a production environment since the connection to the RS232 port is internal and can only be accessed with the HR200 cover removed. The HR200-M12  is a version of the HD200 with an externally accessible M12 style connector which allows access to both the RS232 and 4-20mA signals. (Only one of the signals, either 4-20mA or RS232 can be accessed at a time) The RS232 output will not only provide the dew point temperature but humidity and temperature as well.

The HR200 is ideal for environmental chambers, clean rooms and high temperature applications.  It works with inert gases such as Argon, Helium, Nitrogen and other noble gases.   Air, Oxygen, Hydrogen, CO2, CO and ammonia (NH3) are additional gases the sensor performs well in. If you have any questions about your gas application , please contact IOThrifty.

 To Order the model below scroll to the top of the page then  click on ADD TO CART button
 PART NUMBERS DESCRIPTION
TX-RO-HR200In Stock Humidity Transmitter/Meter for High Temperature and High Pressure Environments
TX-RO-HR200-M12 Relative Humidity Transmitter/Meter for High Temperature and High Pressure Environments with with M12 connector
Accessories
PSJ-R-WA24V24W Regulated Wall Mount Power Supply, 24 Vdc, 1 Amp, 24 Watt





 Downloads
User Manual
HR200 Data Sheet



 Videos

HDR200: High Temperature and High Pressure Dew Point and Relative Humidity Transmitter



Specifications

Ranges
RH: 0-95%RH (non-condensing)
Temperature: 0 to 200°C

Accuracy
Humidity Accuracy: +/-1% from 15°C to 40°C (0 to 90%) +/-2% Outside 15°C to 40°C or >90%RH
Temperature Accuracy: +/ 0.5°C from 0 to 100°C, >100C +/-1°C
RH Display Resolution: 0.1%

General

1/2" NPT fitting included
Calibration done at -60°C
Pressure Rating: 750PSI
Material: 304 SS
Mesh Filter Top (SS) removable and washable
Dimensions of Probe: Length: 6.5" (16.5cm); O.D.: 0.5" (1.27cm)
Enclosure Dimensions: 3.5" L X 2.5" W (Display Dimension)
Enclosure Mounting Centers: 3.1" (Display Mounting Center)
Cable Length: 1M (Additional Lengths Available, consult IOThrifty)
Cable Length(cable between probe and indicator): 1M
Power/Signal Cable Length: 1ft
Probe Maximum Temperature : 200°C(includes cable connecting probe to electronics)
Electronics Maximum Temperature: 60°C
Response time(T63): ~10 seconds
Power: 24VDC (typ)- 12-28VDC
