- 80 x 80 Pixel Industrial Infrared Camera for -20°C to 900°C Temperature Measurement
- Autonomous Operation with Automatic Spot Finder and Direct 0/4-20 mA Analog Output
- Motorized Focus with Distance-to-Spot Ratio up to 190:1
- USB 2.0, Ethernet, PoE, and RS485 Interface Options
- Rugged IP67 Stainless Steel Housing with Compact M30 Threaded Body
- 50 Hz Frame Rate for Real-Time Thermal Monitoring
- Optional Stackable Industrial Process Interface with up to 9 Analog or Alarm Outputs
- PIX Connect Software Package Included
- Optional Air Purge, Water Cooling, Shutter, and Outdoor Protective Housing Accessories
The Xi 80 is a compact spot finder infrared camera designed for precise non-contact temperature measurement in industrial applications. With an 80 x 80 pixel thermal detector, 50 Hz frame rate, and temperature ranges from -20°C to 900°C, it provides real-time thermographic monitoring in a small, rugged package.
The Xi 80 supports autonomous operation with automatic spot finder functionality, making it well suited for OEM integration and process monitoring applications where a permanent PC connection is not required. The camera can output measurement values directly through a 0/4-20 mA analog output, and its internal process interface can be configured for analog input, digital input, analog output, alarms, frame sync, fail-safe status, and other process functions.
Compact Industrial Design

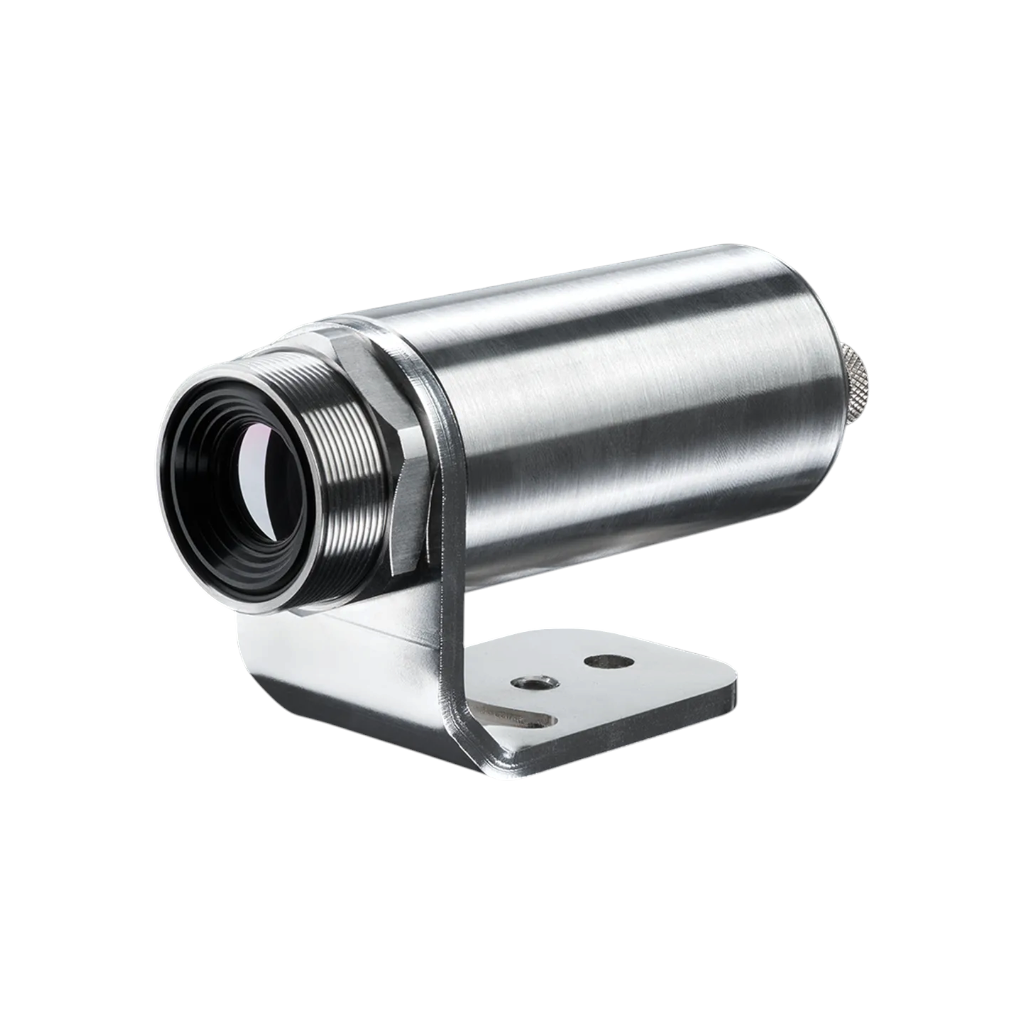

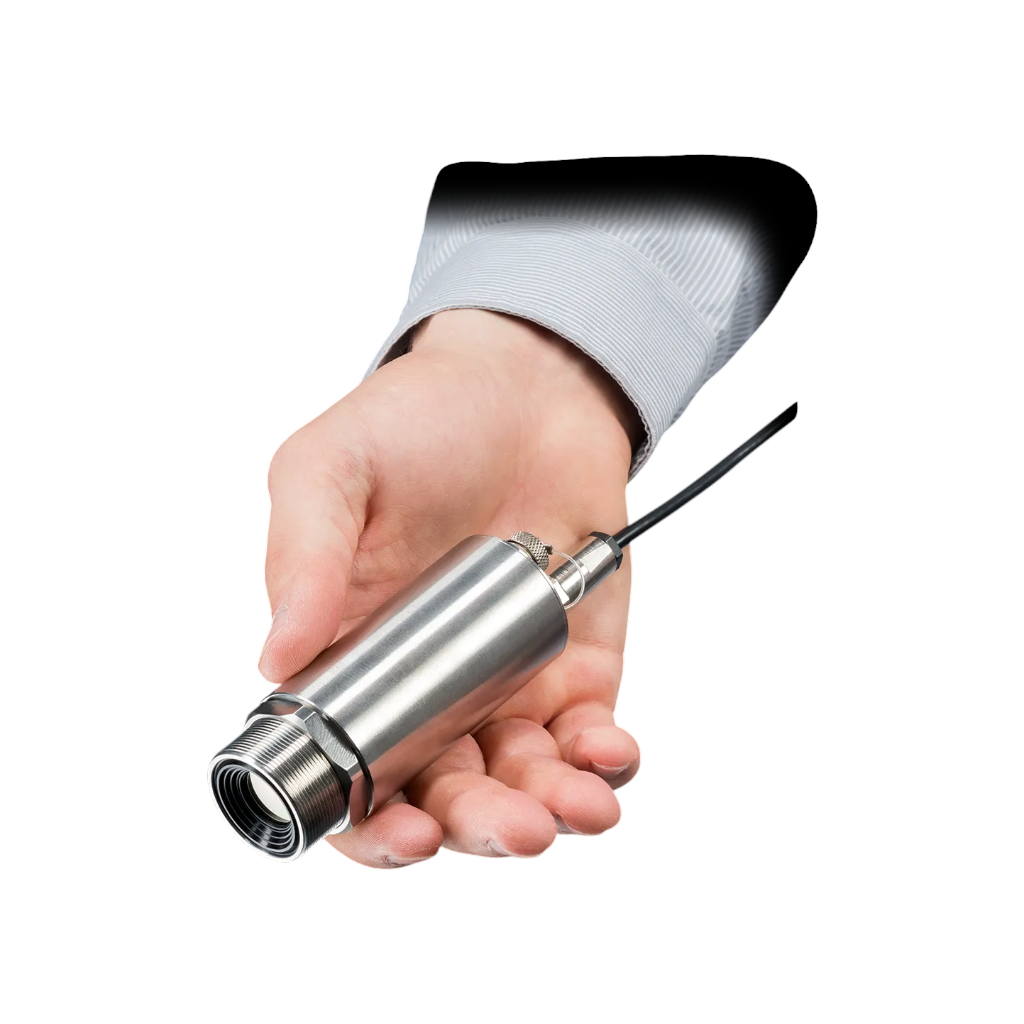

The Xi 80 features a stainless steel housing with an IP67 / NEMA 4 environmental rating and a compact 36 mm x 90 mm body with an M30x1 thread. It is supplied with a mounting bracket, mounting nut, USB cable, process interface cable with terminal block, and the PIX Connect software package.
Motorized Focus and Optics

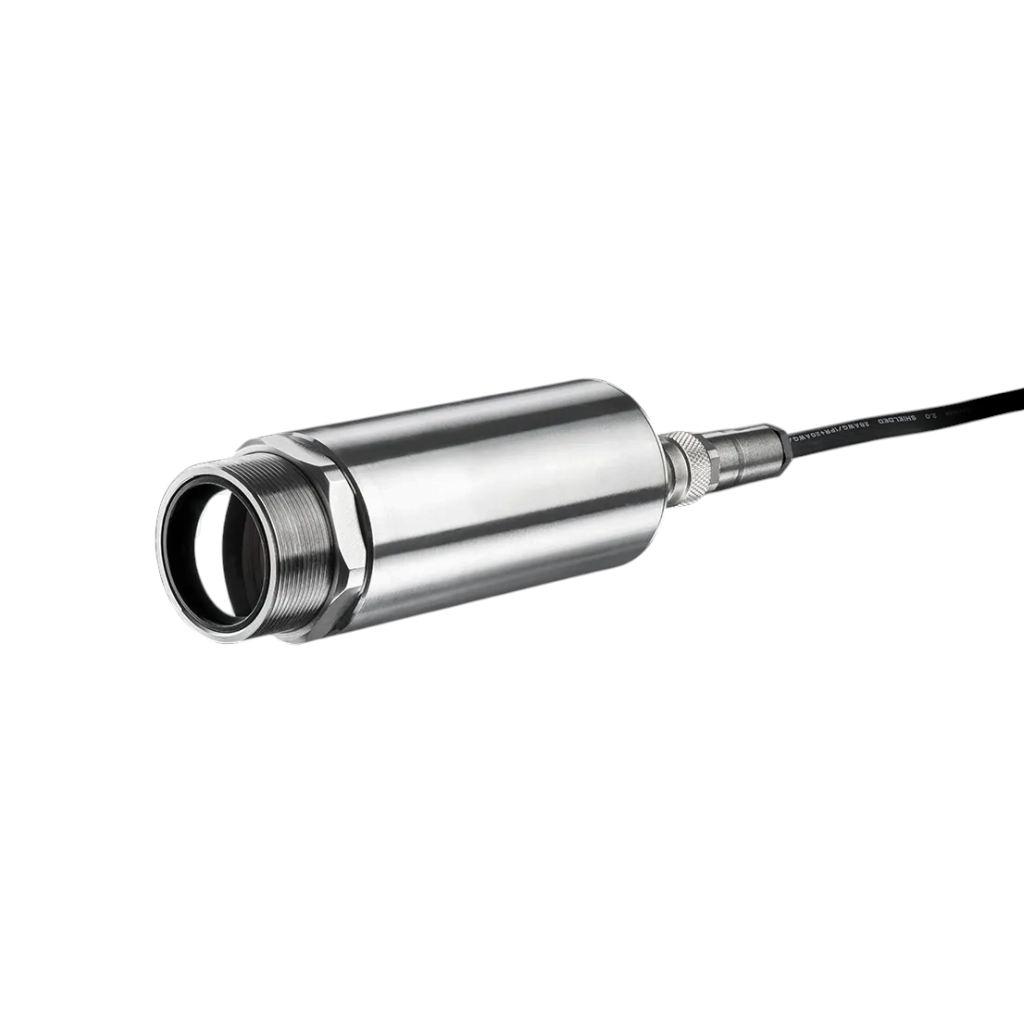

The motorized focus can be adjusted through PIX Connect software, allowing the thermal image to be optimized for the application. Multiple optics are available, including 12°, 30°, 55°, and 80° fields of view, with an optical resolution up to 190:1 using the 12° optic.
Industrial Connectivity

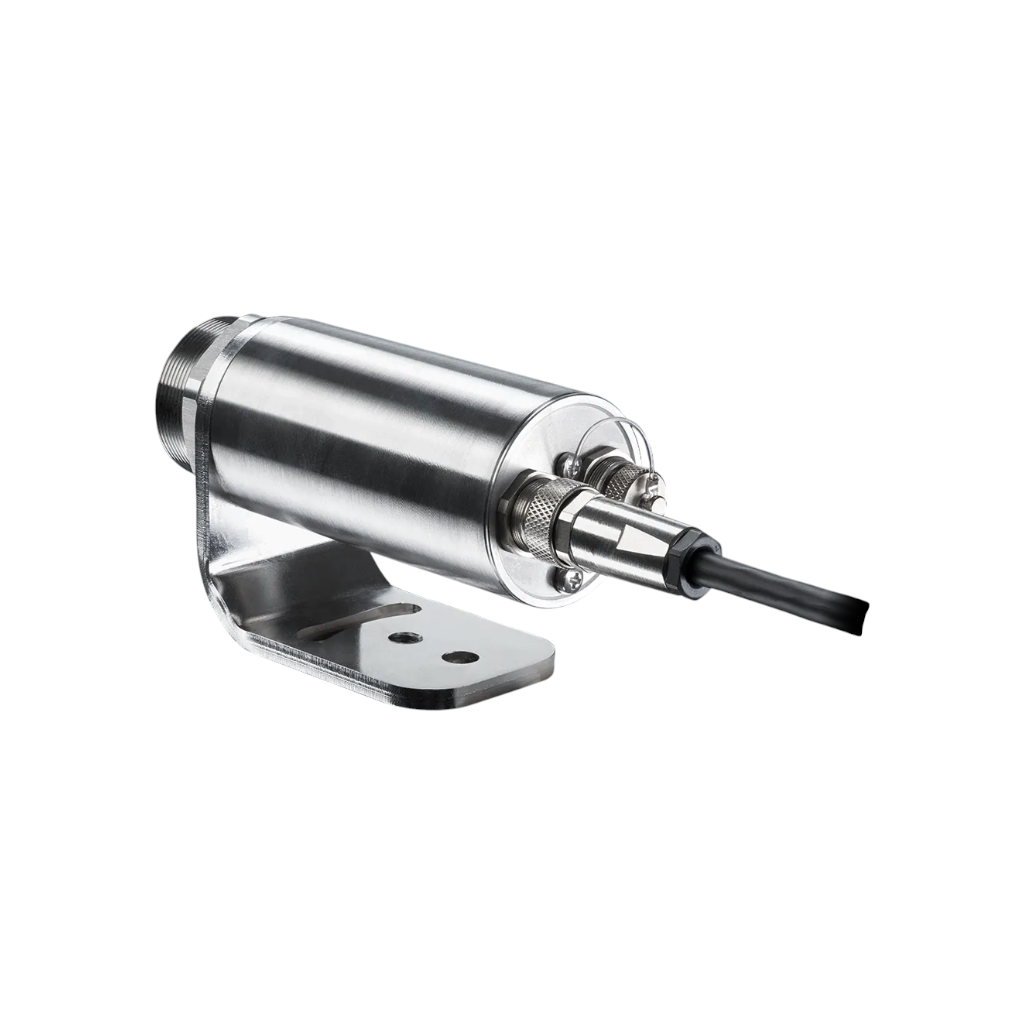

The Xi 80 supports USB 2.0, Ethernet, PoE, and RS485 communication. Ethernet cable lengths can be extended up to 100 m, and RS485 cable lengths can be extended up to 1000 m depending on the installation. For expanded process integration, an optional stackable industrial process interface provides up to 3 analog outputs, 3 alarm relay outputs, 3 inputs, and fail-safe relay functionality per interface, with up to 3 interfaces stackable for up to 9 analog or alarm outputs.
Software and Accessories

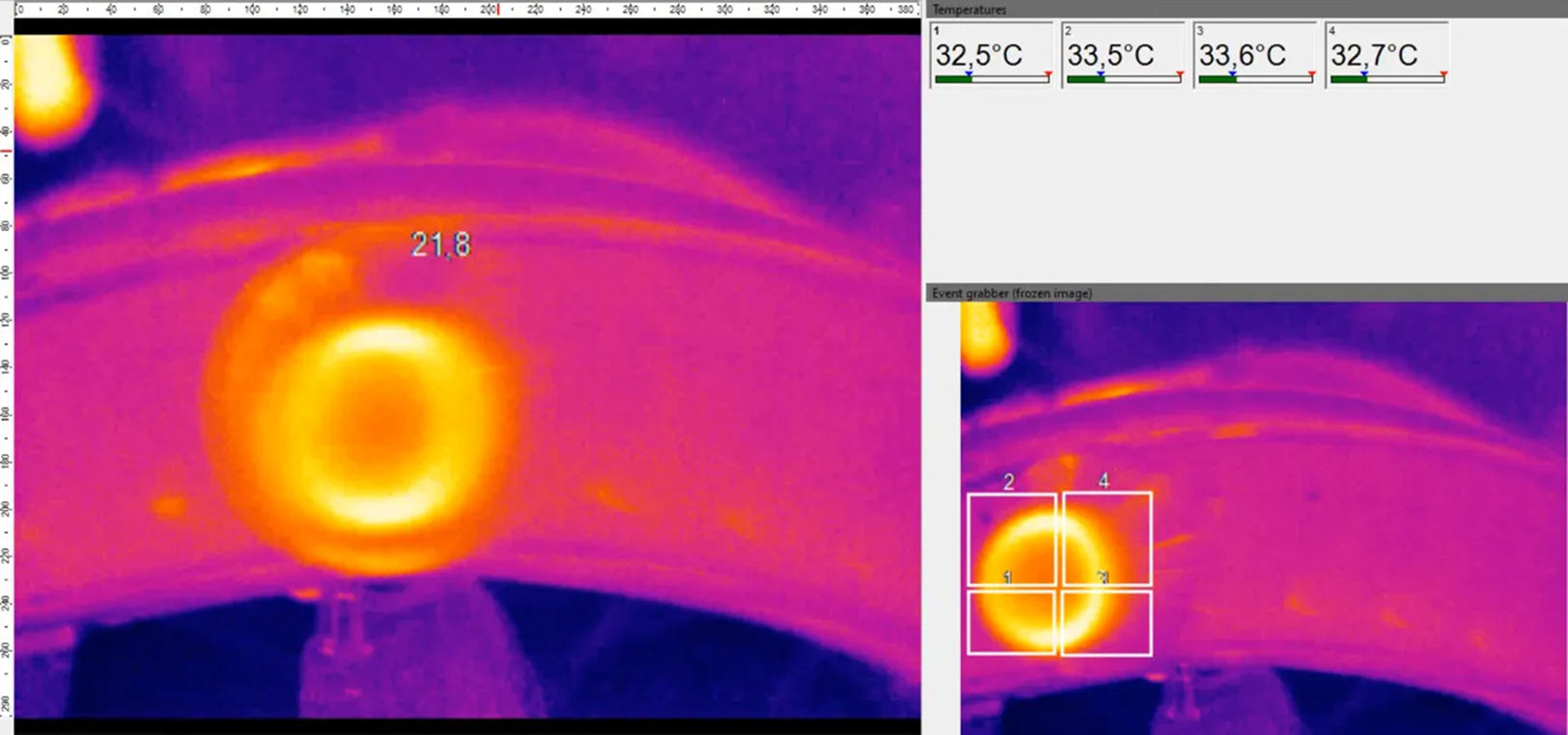

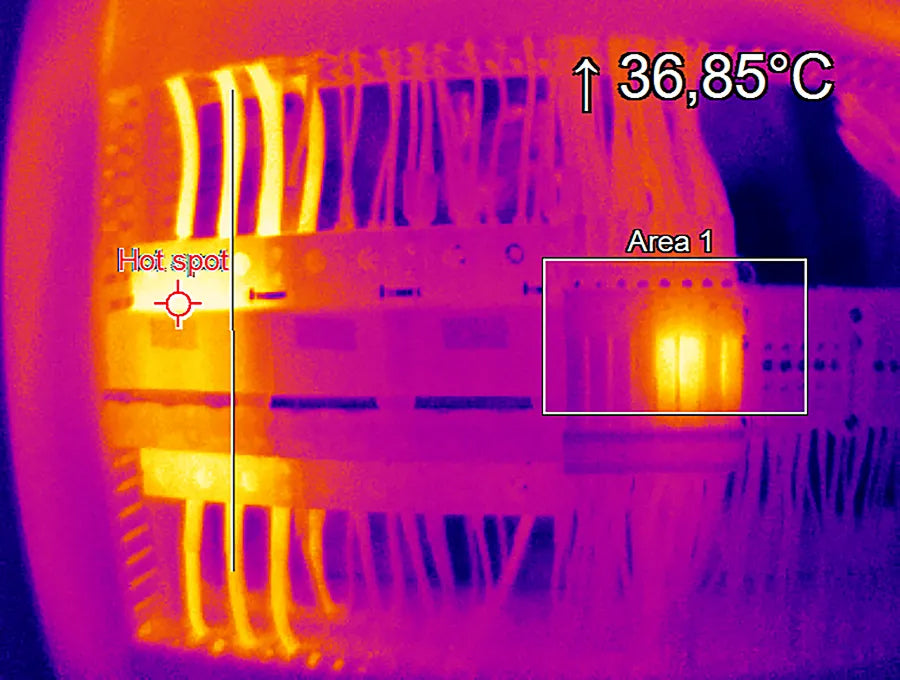

The included PIX Connect software provides thermal image display, measurement areas, hot and cold spot analysis, alarm configuration, recording, snapshots, and process communication tools. Optional accessories include an air purge for dusty or contaminated environments, a water-cooled housing for higher ambient temperature installations, a protective shutter, and an outdoor protective housing.
| Downloads |
| Xi 80 Data Sheet |
| Xi 80 User Manual |
SPECIFICATIONS
Optical Resolution: 80 x 80 pixels
Detector: FPA, uncooled (34 μm pitch)
Spectral Range: 8 – 14 μm
Temperature Ranges: –20 °C ... 100 °C, 0 °C ... 250 °C, (20) 150 °C ... 900 °C
Frame Rate: 50 Hz
Optics (FOV): 12° (f = 12.7 mm), 30° (f = 5.1 mm), 55° (f = 3.1 mm), 80° (f = 2.3 mm)
Focus: Motorized focus
Optical Resolution (D:S): 190:1 (12° optics)
Thermal Sensitivity (NETD): 100 mK
Accuracy: ±2 °C or ±2 %, whichever is greater
Direct Output / Input: 1x analog output (0/4-20 mA) / 1x input (analog or digital); electrically isolated
PC Interface: USB 2.0 / Ethernet (100 Mbit/s) / PoE / RS485
Industrial Process Interface (PIF): 3x analog outputs (0/4–20 mA or 0–10 V) and 3x alarm outputs (relais) / 3x inputs (analog or digital) / fail-safe (LED and relay); stackable up to 3 PIFs; electrically isolated
Cable Length: Ethernet / RS485: 20 m (extendable up to 100 m); USB: 1 m (standard), 3 m, 5 m
Power Supply: 5-30 V DC / PoE / USB
Ambient Temperature: 0 °C ... 50 °C
Storage Temperature: -40 °C ... 70 °C
Relative Humidity: 10...95 %, non-condensing
Enclosure Size / Rating: Ø 36 mm x 90 mm (M30x1 thread) / IP67 (NEMA 4)
Housing Material: Stainless steel
Weight: 201 - 210 g without mounting bracket, depending on lens
Shock: IEC 60068-2-27 (25G and 50G)
Vibration: IEC 60068-2-6 (sinus shaped), IEC 60068-2-64 (broadband noise)
Scope of Supply
Process imager Xi
USB cable (1 m)
Cable for output/input (1 m) incl. terminal block

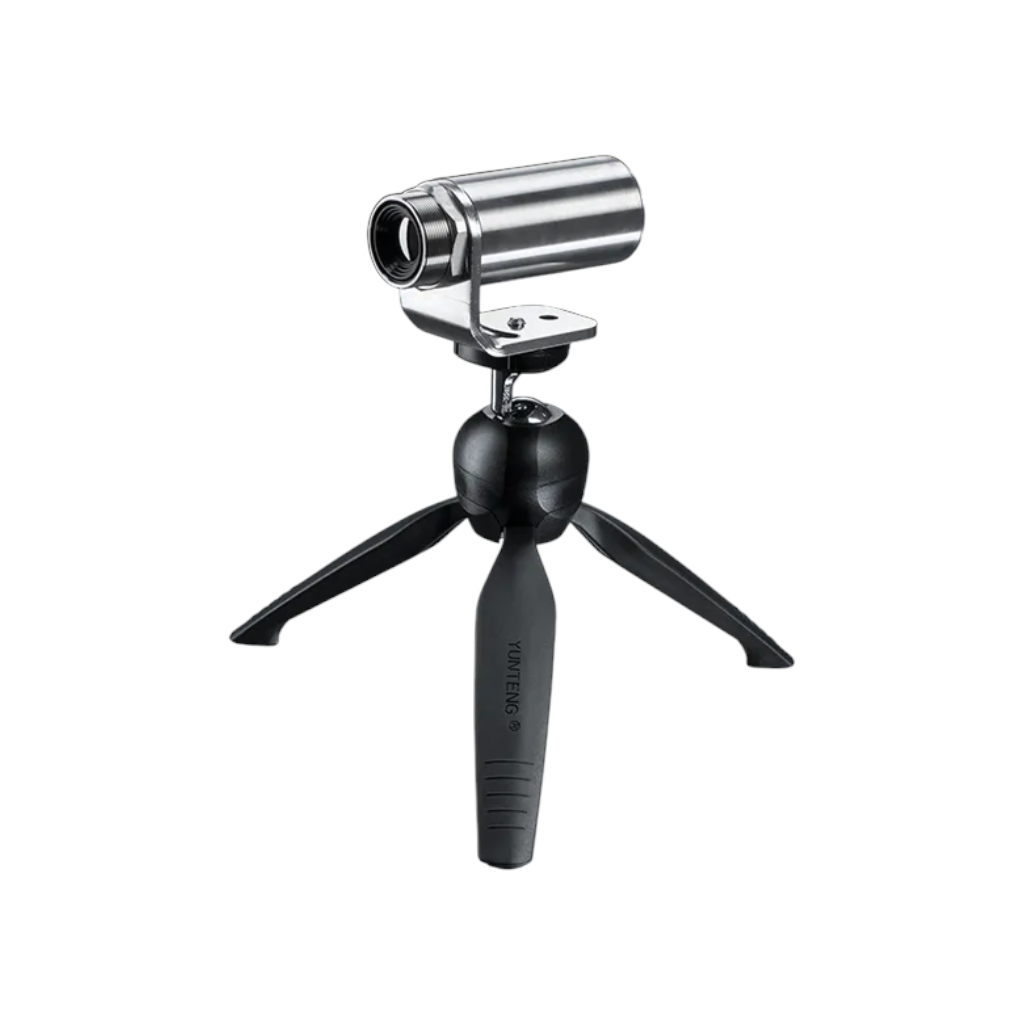

Mounting bracket with tripod thread, mounting nut
Software package PIX Connect
